Custom PCBA Mercury+ XU6 Xilinx Zynq UltraScale+ MPSoC Module Development Boards Manufacturer

Overview

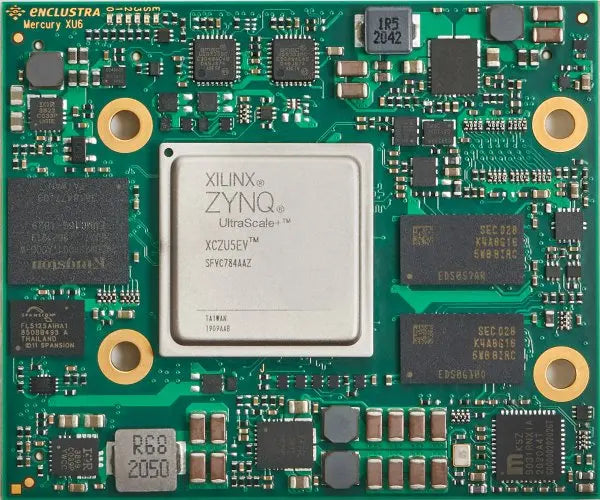

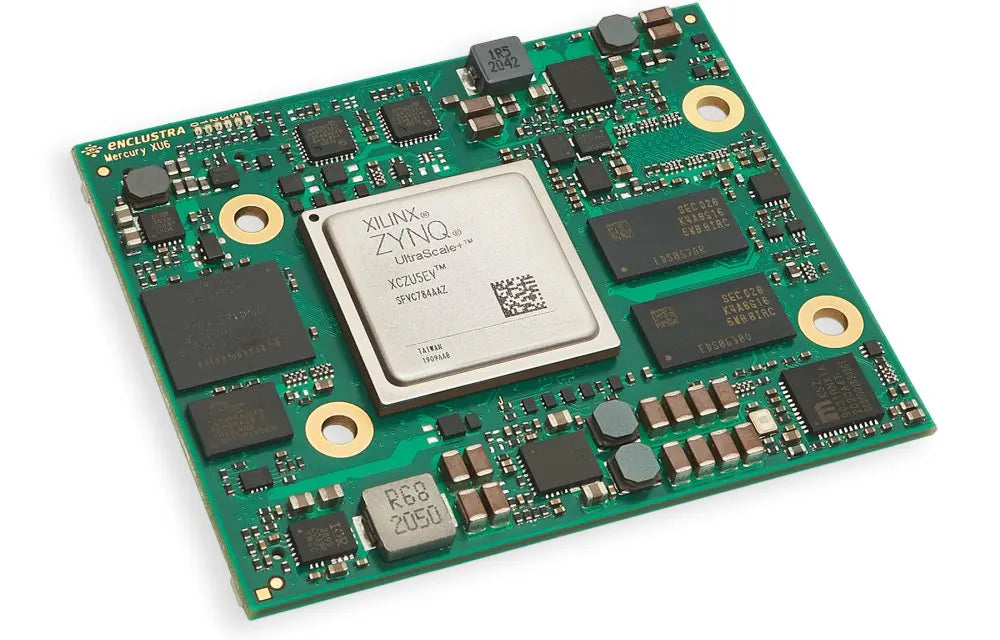

The Mercury+ XU6 system-on-chip (SoC) module combines Xilinx's Zynq UltraScale+™ MPSoC-series device with fast DDR4 ECC SDRAM, eMMC flash, quad SPI flash, Gigabit Ethernet PHY, dual USB 3.0 and thus forms a complete and powerful embedded processing system.

Highlights

• Built around Xilinx's Zynq Ultrascale+™ MPSoC

• DDR4 SDRAM with Error Correction Code (ECC)

• Up to 19.2 GByte/sec memory bandwidth

• Offers PCIe® Gen3 x4, PCIe Gen2 x4, 2x USB 3.0 and Gigabit Ethernet interfaces

• Available in industrial temperature range

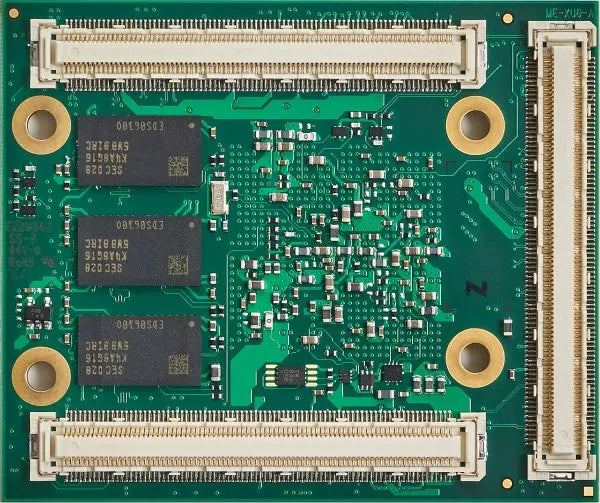

• Three 168-pin Hirose FX10 connectors with up to 294 user I/Os

• Linux BSP and tool chain available

• Powerful and compact FPGA board

Benefits

• A complete and powerful embedded processing system in a compact, space-saving form factor

• Large, high-bandwidth memory, with up to 8 GByte of DDR4 ECC SDRAM

• High-bandwidth data transfer: PCIe® Gen3 x4, PCIe Gen2 x4 interfaces, and USB 3.0

• Lowest power consumption due to the high-efficiency DC/DC converters

• Support for Linux embedded operating system

Features

• Xilinx® Zynq Ultrascale+™ MPSoC

  • ARM® dual-/quad-core Cortex™-A53
    (64 bit, up to 1333 MHz)

  • ARM dual-core Cortex™-R5
    (32 bit, up to 533 MHz)

  • Mali-400MP2 GPU (only for EG/EV models)

  • H.264 / H.265 Video Codec (only for EV models)

  • 16nm FinFET+ FPGA fabric

• Up to 8 GB DDR4 ECC SDRAM (PS side)

• 16 GB eMMC flash

• 64 MB QSPI flash

• Up to 8 × 6/12.5 Gbps MGT

• PCIe Gen2 ×4

• PCIe® Gen3 ×4 (only devices larger than ZU3)

• Gigabit Ethernet

• 2× USB 2.0/3.0 (host & host/device) or alternatively 1× USB 2.0 OTG

• Up to 256,000 system logic cells

• Up to 294 user I/Os

• • ZU2CG/ZU2EG/ZU3EG:

  • • 14 ARM peripherals

    • 240 FPGA I/Os

    • 20 MGT signals (clock and data)

  • ZU4CG/ZU4EV/ZU5EV:

  • • 14 ARM peripherals

    • 240 FPGA I/Os

    • 40 MGT signals (clock and data)

• 5–15 V supply

• 65 × 54 mm
