Custom PCBA Mercury+ PE3 Base Board for Mercury/Mercury+ FPGA Modules Manufacturer

Overview

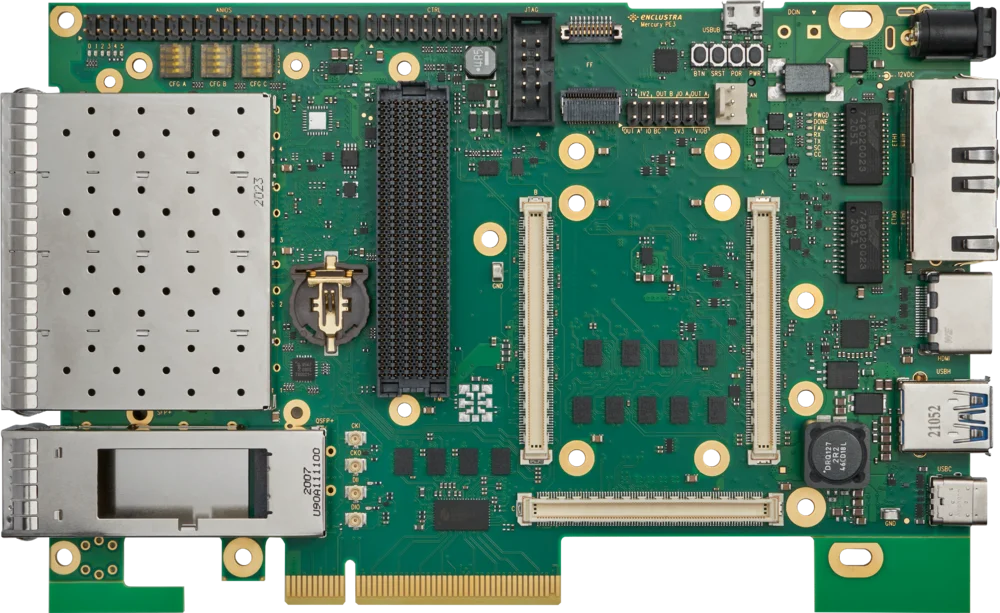

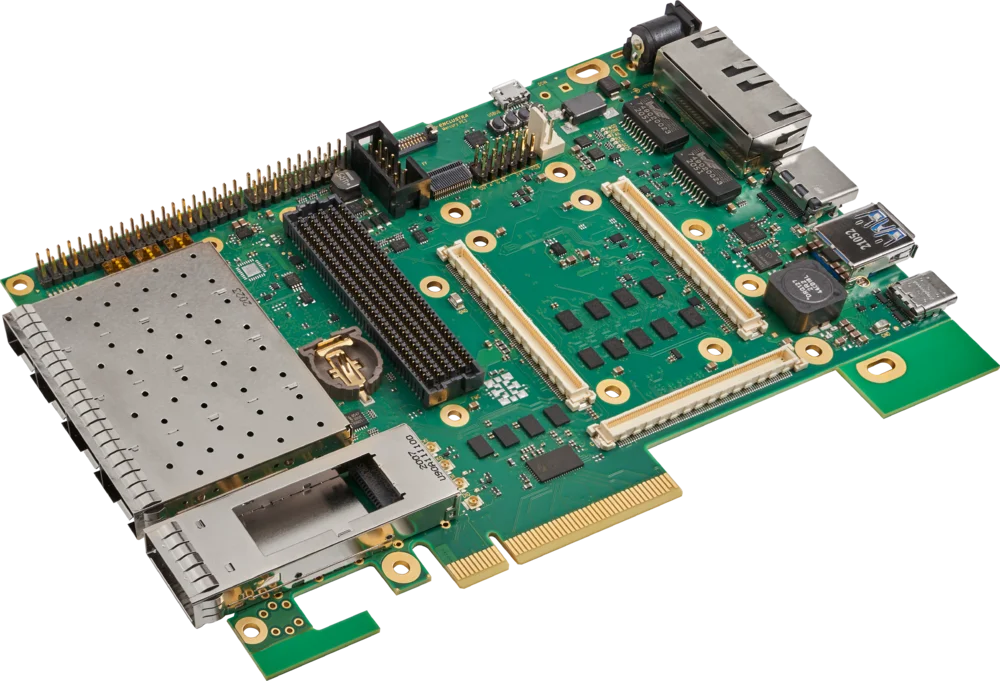

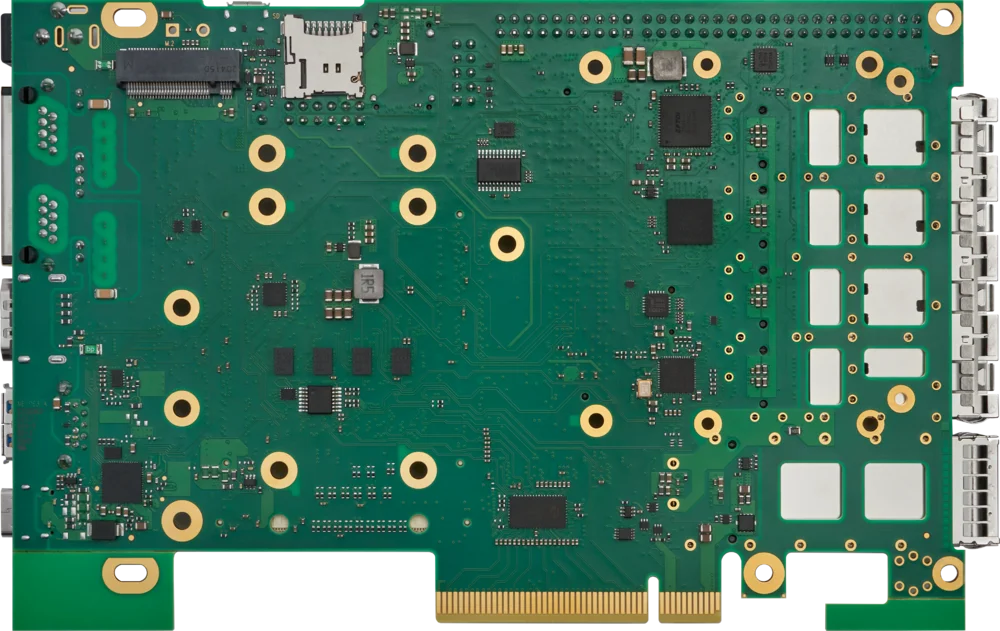

The Mercury+ PE3 is versatile PCIe® base board equipped with a multitude of I/O interfaces for use with the Mercury/Mercury+ family of FPGA & SoC modules, providing a head start for building custom FPGA and SoC based hardware systems. The board is equally well suited for rapid prototyping and for building FPGA systems without designing custom hardware.

Highlights

• Compatible with all Mercury & Mercury+ FPGA & SoC modules

• Offers PCIe® ×8, USB Type-C 3.0 with DisplayPort and USB 3.0 host connector

• QSFP+/SFP+ interfaces for high-speed communication applications

• Suitable from prototype to series production

• Board 171 × 112.4 mm with PCIe ×8 edge connector

• Can also be used as a standalone board (not as PCIe card)

Benefits

• High-Speed FPGA and flash programming over USB from a host PC

• Provides versatile set of I/O connectivity options, specialized for high-speed communication (PCIe, Firefly, SFP+/QSFP+) and video applications (HDMI)

• I/O extension capability through robust I/O extension connectors

Features

• Mercury module connectors

• PCIe × 8 interface

• QSFP+ slot, 4 × SFP+ slots

• USB 3.0 host connector

• USB Type-C 3.0 interface with DisplayPort support

• Samtec FireFly™ connector

• M.2 SATA/PCIe socket

• 2 × Gigabit Ethernet

• HDMI connector

• FMC HPC connector

• Low-jitter clock generator

• microSD card holder

• FTDI USB 2.0 High-Speed device controller

• System controller with USB JTAG/UART

• Standalone or PCIe operation

• 12 V single supply or USB-C powered

• 171 × 112.4 mm (PCB only)
