Mekotronics R58 Mini PC Aluminium enclosure, Rockchip RK3588

* Mekotronics R58 Mini-PC Aluminium Enclosure:

* SoC – Rockchip RK3588 octa-core processor

* Four Cortex-A76 cores @ 2.4 GHz, four Cortex-A55 cores @ 1.8 GHz

* Arm Mali-G610 MP4 GPU

* 6TOPS NPU

* 8K 10-bit decoder, 8K encoder

* Memory & eMMC flash configurations

4GB LPDDR4x + 32GB eMMC flash

8GB LPDDR4x + 64GB eMMC flash

16GB LPDDR4x + 64GB eMMC flash

* Storage expansion – 1x SATA

* Video Output

2x HDMI 2.1 ports up to 8Kp60

1x DisplayPort up to 8Kp60

DisplayPort via USB-C port

Up to four independent display

* Video Input – 1x HDMI 2.0 port

* VPU (in SoC)

* Video Decoder

8Kp60 H.265 VP9, AVS2

8Kp30 H.264 AVC/MVC

4Kp60 AVI

1080p60 MPEG-2, MPEG-1, VC-1, VP8

* Video Encoder – Real-time H.265/H.264 video encoding up to 8Kp30, also usable as a multi-channel encoder in parallel (at lower resolution)

* Networking

1x Gigabit Ethernet RJ45 port

Dual-band Wi-Fi 6 (2T2R) and BT 5.0 via Ampak AP6275P module plus 2x antenna connectors

* USB – 1x USB 3.0 Type-A port, 2x USB 2.0 Type-A ports, 1x USB Type-C port with DisplayPort Alt. mode support

* Expansion – 2x 5-pin GPIO headers, 2x serial port headers

* Misc – Power switch, recovery button, reset button, RTC + CR2032 battery, IR receiver

* Power Supply – 12V DC via power barrel jack

* Dimensions – 150*110*30mm

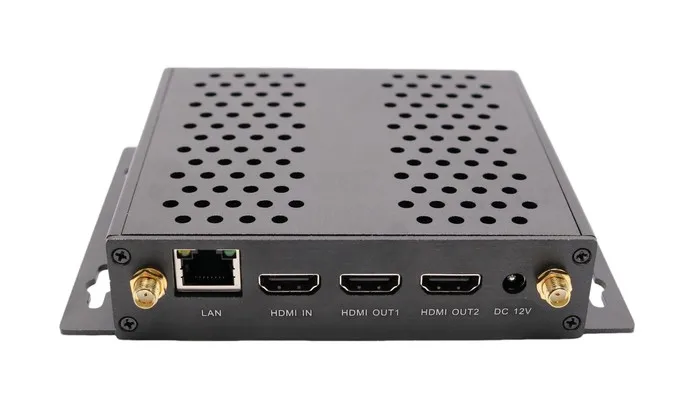

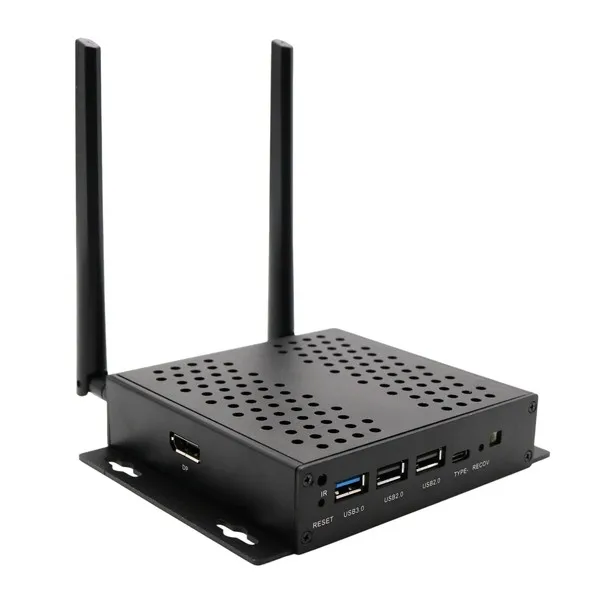

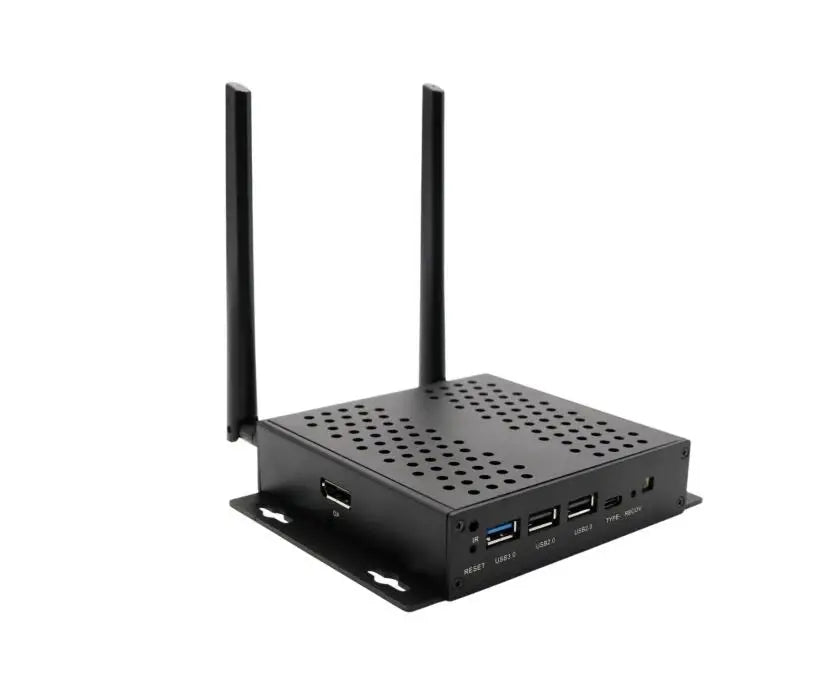

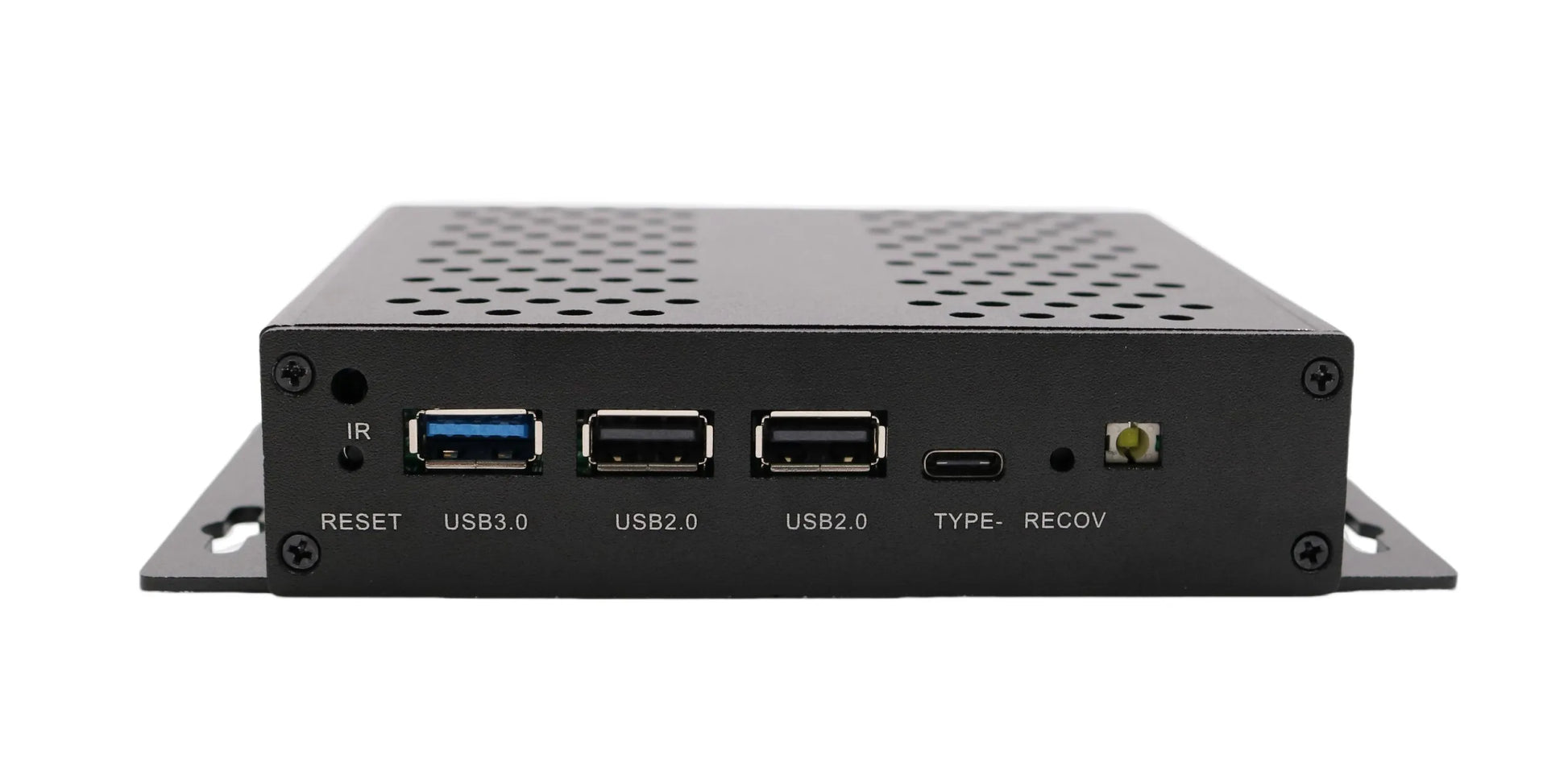

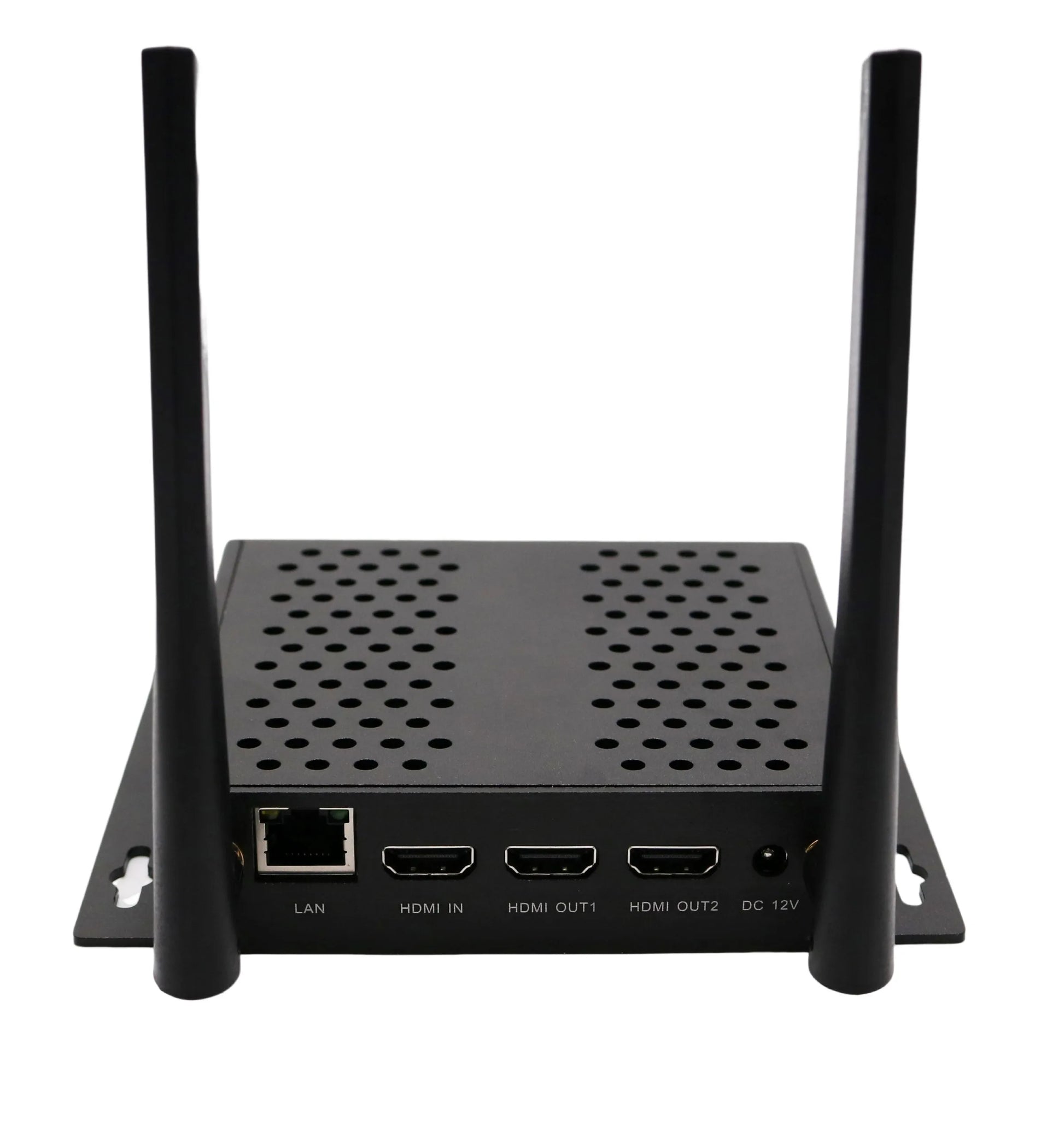

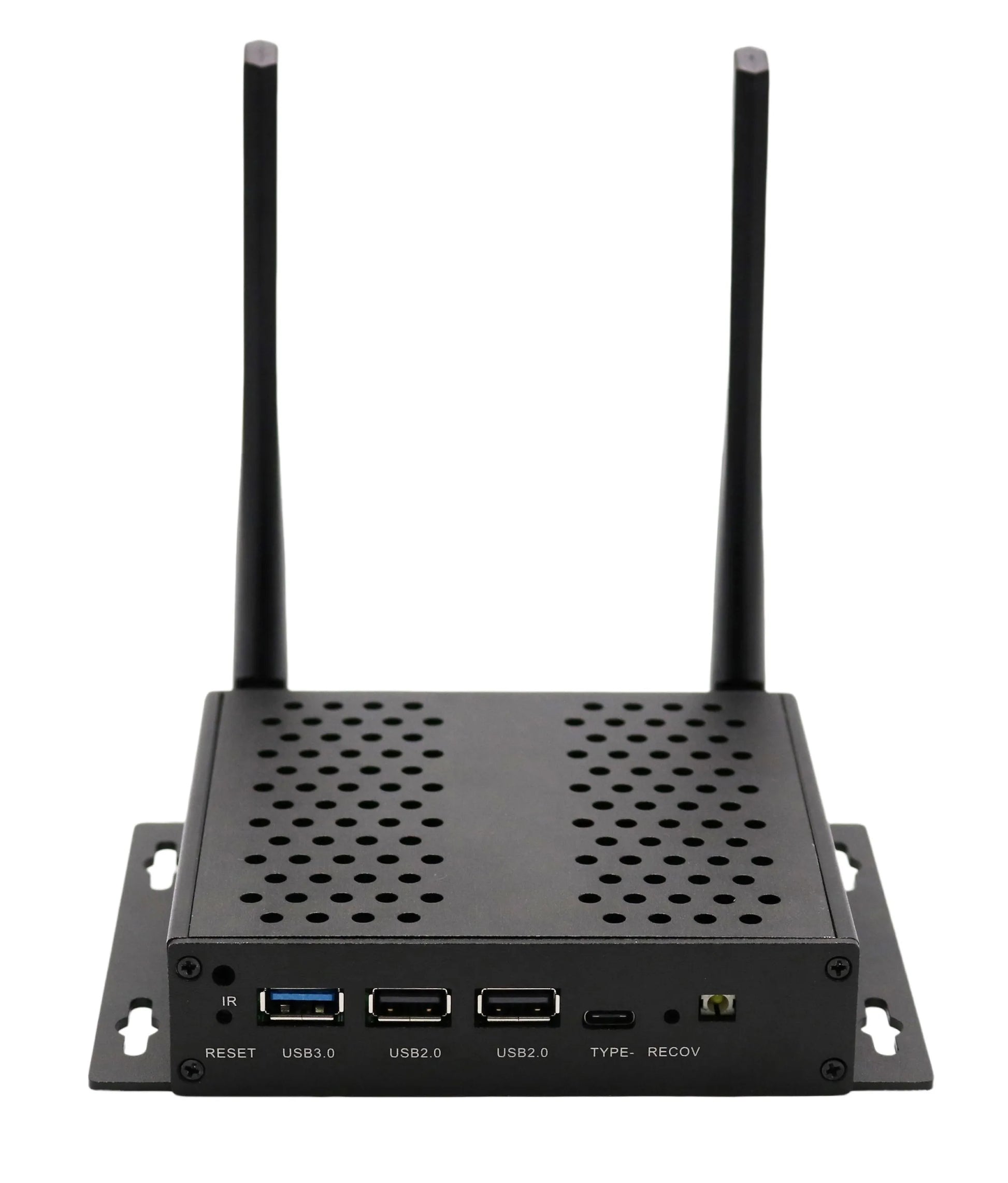

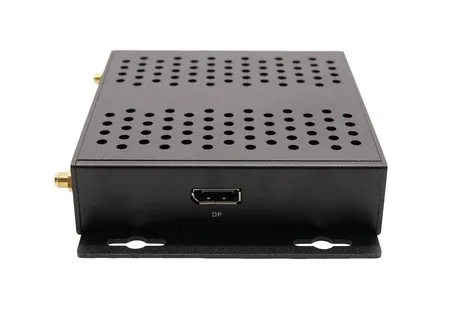

Rear panel, front panel and left-side panel:

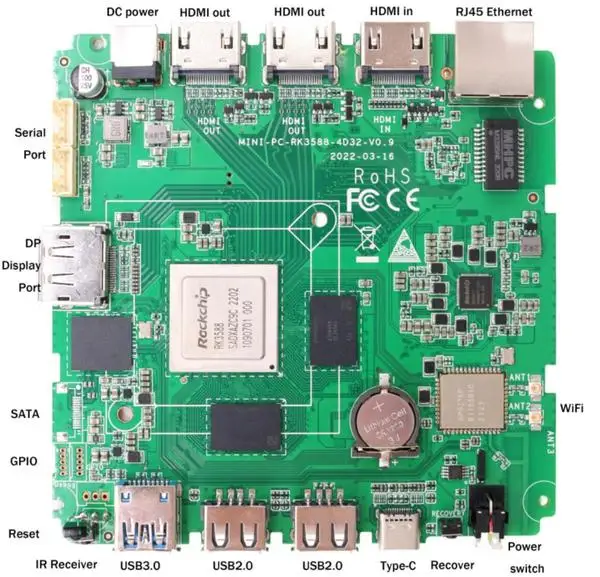

* R58 Mini-PC PCBA main board:

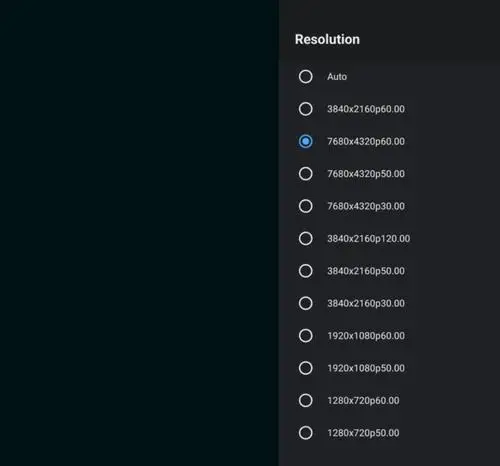

As usual, the R58 Mini PC has HDMI 2.1 output, so the max video resolution is 7680*4320, and max we can have three/four video output at the same time: HDMI x2, DP x1, Type-C x1

And following is some video codecs specs from Rockchip RK3588

H.265, VP9 decoded by 8K@60Hz, H.264 decoder by 8K@30Hz

AV1 decoder by 4K@60Hz, also support H.264 and H.265 encoder by 8K@30Hz

JPEG codec support YUV400/YUV411/YUV420/YUV422/YUV440/YUV444

By the way, for our RK3588, R58 Mini PC, we also developed four different operation systems:

Android 12, Debian 11, Buildroot and Ubuntu 20.04

We can provide you all the tools and firmware you need for your development.

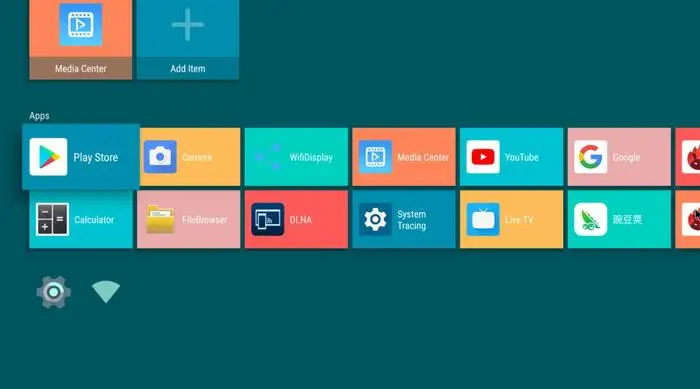

Android 12 OS:

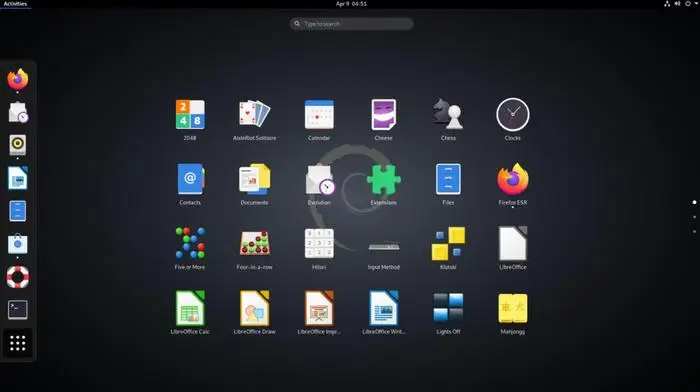

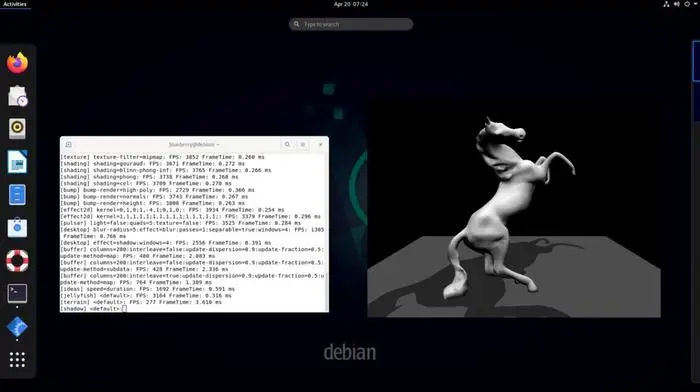

Debian 11 OS:

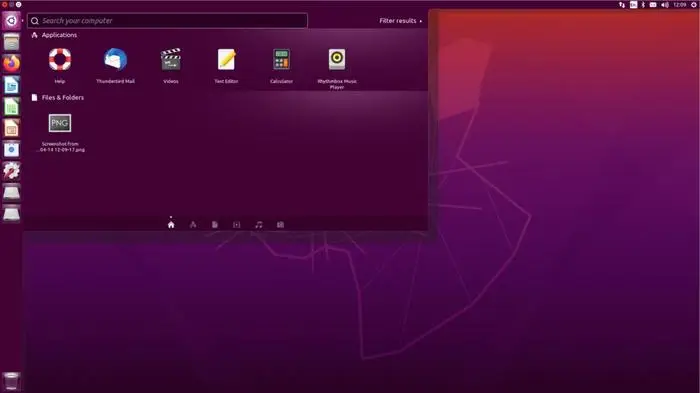

Ubuntu 20.04

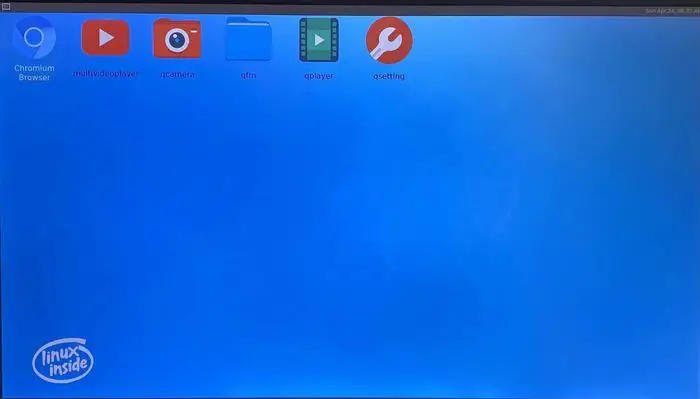

Buildroot
