Overview

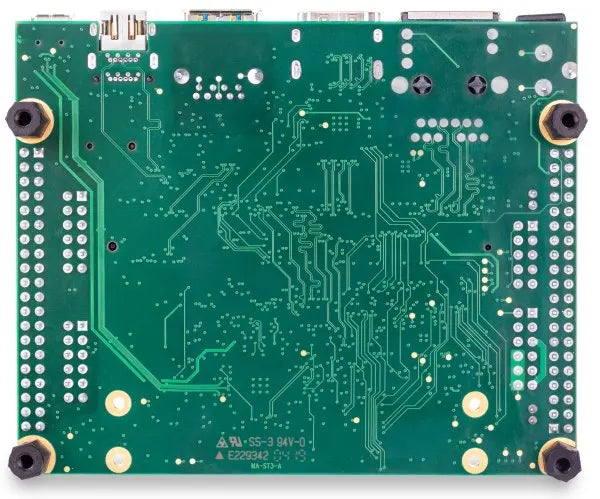

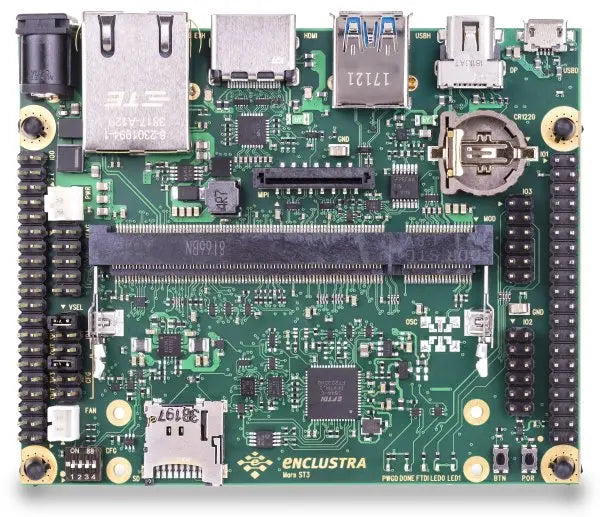

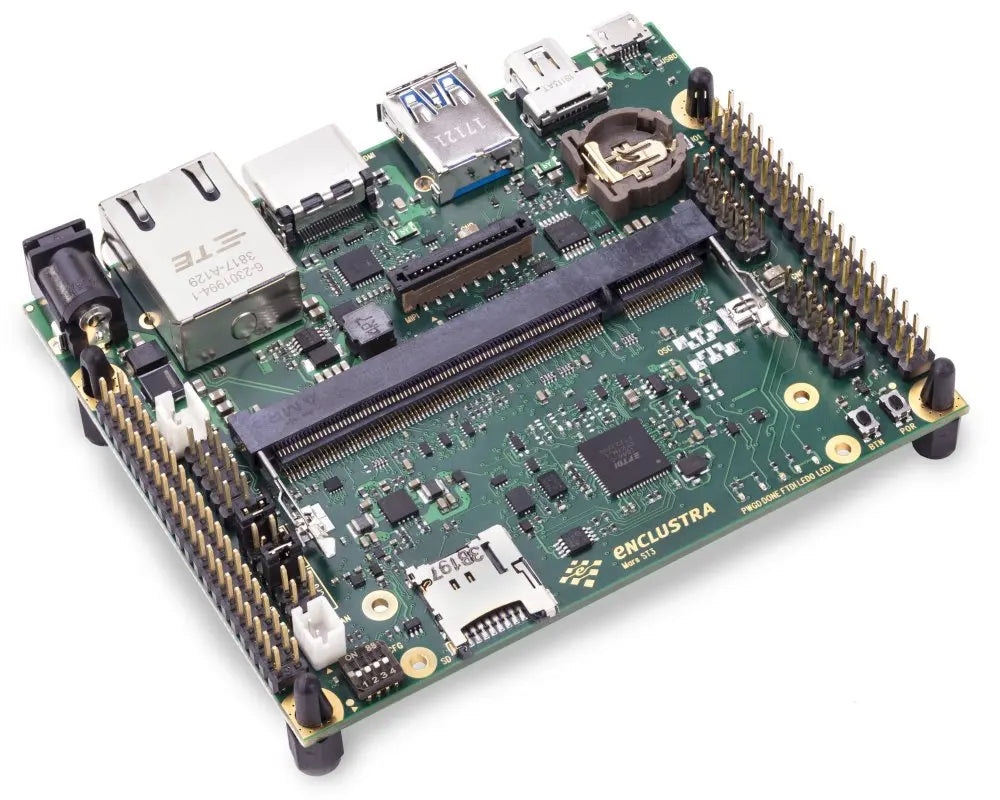

The Mars ST3 is a versatile base board for Mars SO-DIMM form factor FPGA and SoC modules, ideal for display applications and providing a head start for building custom FPGA-based hardware systems.

Highlights

• Compatible with all Mars FPGA modules

• Small solution size (80 × 100 mm)

• Wide range of I/O interfaces for video applications

• Targetted for prototype and series production

• 12 V DC input

Benefits

• Provides versatile set of I/O connectivity options

• Available in industrial-grade temperature range

Features

• Mars 200-pin SO-DIMM connector

• Ethernet RJ45 connector

• FTDI USB 2.0 High-Speed device controller

• USB 3.0 host connector

• HDMI connector

• Mini DisplayPort connector

• MIPI D-PHY connector

• 2 × 40-pin Anios headers

• Pmod I/O headers

• microSD card slot

• 80 × 100 mm

• 12 V single supply

Please note that the available features depend on the equipped Mars FPGA/SoC Module.
