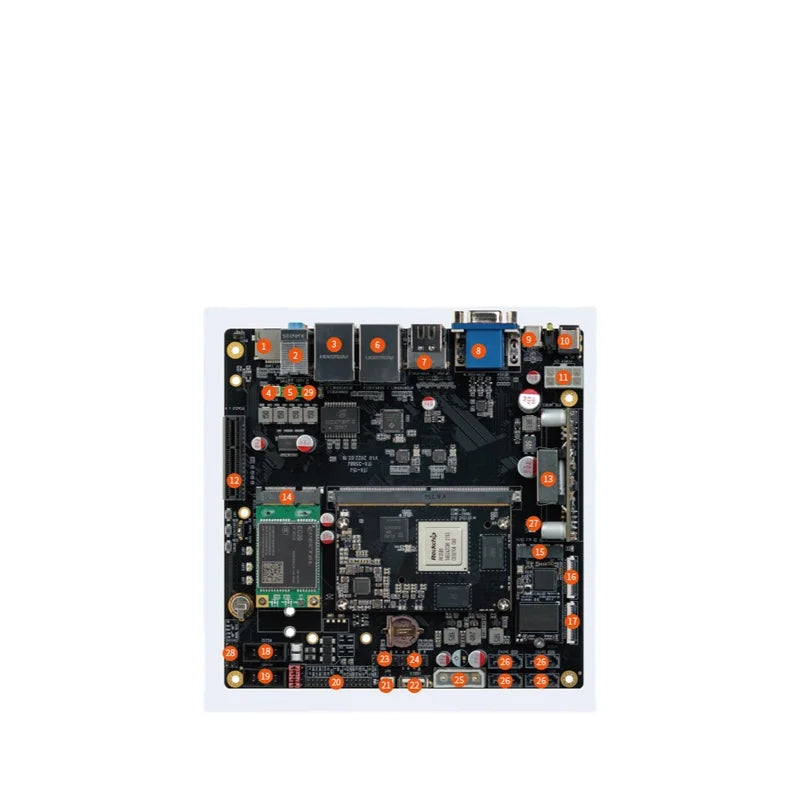

Custom PCBA ITX-3588J Rockchip RK3588 8K AI Mini-ITX Mainboard firefly Manufacturer

RockChip RK3588

8-core 64-bit (4×Cortex-A76+4×Cortex-A55) , 8nm lithography process, frequency up to 2.4GHz

ARM Mali-G610 MP4 quad-core GPU

Supports OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS

NPU computing power is up to 6 TOPS, Supports INT4/INT8/INT16 mixed operation,

Supports framework switching of TensorFlow / MXNet / PyTorch / Caffe / etc.

Integrated 48MP ISP with HDR&3DNR

Video decoding:

8K@60fps H.265/VP9/AVS2

8K@30fps H.264 AVC/MVC

4K@60fps AV1

1080P@60fps MPEG-2/-1/VC-1/VP8

Video encoding:

8K@30fps encoding, Supports H.265 / H.264

* Achieves up to 32-channel 1080P@30fps decoding and 16-channel 1080P@30fps encoding

4GB/8GB/16GB 64bit LPDDR4/LPDDR4x/LPDDR5 (Up to 32GB optional)

16GB/32GB/64GB/128GB eMMC

1 × M.2 SATA3.0, can expand with 2242 SATA3.0 SSD,

4 × SATA3.0, can expand with 4 pcs of SATA3.0 SSD/HDD

2.4GHz/5GHz dual-band WiFi6, BT 5.0, supports 5G/4G LTE expansion

2 × GbE (RJ45) , one supports POE power supply, max output 60w

Video output:

1 × HDMI2.1 (8K@60fps or 4K@120fps)

1 × HDMI2.0 (4K@60fps)

2 × MIPI-DSI (4K@60fps)

1 × DP1.4 (8K@30fps, multiplexed with USB3.0)

1 × VGA display output

Video input:

1 × HDMI-IN (4K@60fps) , Supports HDCP 2.3

2 × 2 lane MIPI-CSI input or 1 × 4 lane MIPI-CSI input

* Supports multi-channel 8K video output and 4K video input, up to four-screen output

with different displays

Audio output:

1 × Speaker output (10W-8Ω D class)

1 × Phone output

2 × HDMI audio output

1 × DP audio output

Audio input:

1 × Line-In input

1 × MIC input

1 × DP audio input

1 × PCIe3.0 (4Lane) , can expand with standard PCIe3.0 devices

1 × M.2 interface (SATA3.0) , 4 × standard SATA3.0 interface

4 × USB3.0 (Limit 1A)

1 × USB-C (USB3.0 / DP1.4) (Limit 2A)

4 × USB2.0 (3 of them are pins) (Limit 500mA)

Various power supply ways:

DC12V~24Vwide voltage input (DC5.5×2.1mm)

Computer power supply 12V input (standard ATX power interface - 8Pin)

POE 48V power input (up to 60W)

1×RS485 , 1×RS232, 8×GPIO, 4×I2C, 1×SPI, 3×ADC, 1×Debug,

2×UART (either-or RS485, RS232) , 1×Heating (12V) ,

1×Fan (12V/3P-1.25mm)

Android: Android 12.0

Linux: Ubuntu Desktop, Ubuntu Server, Debian11, Buildroot, RTLinux, Kylin Linux, UOS

* Supports UEFI Boot

17cm×17cm (Mini-ITX) , suitable for general ITX computer cases

Heat sink installation hole pitch: 45mm

Idle: ≈1.35W (12V/110mA)

Typical: ≈4.8W (12V/400mA)

Max: ≈20W (12V/1700mA)

Operating Temperature: -20℃-60℃,

Storage Temperature: -20℃-70℃,

Storage Humidity: 10%-80%
