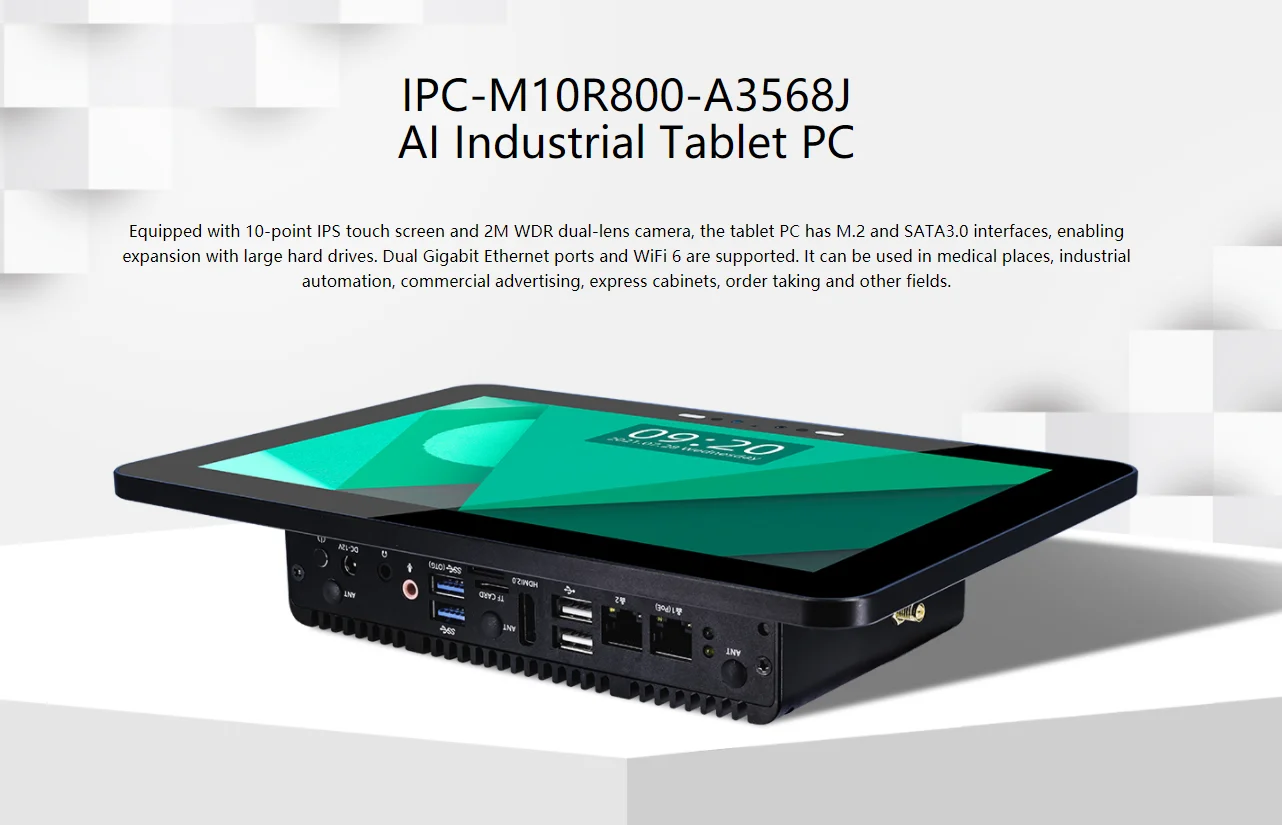

Custom PCBA IPC-M10R800-A3568J AI Industrial Tablet PC RK3568J 10.1 inch IPS screen Development board Manufacturer

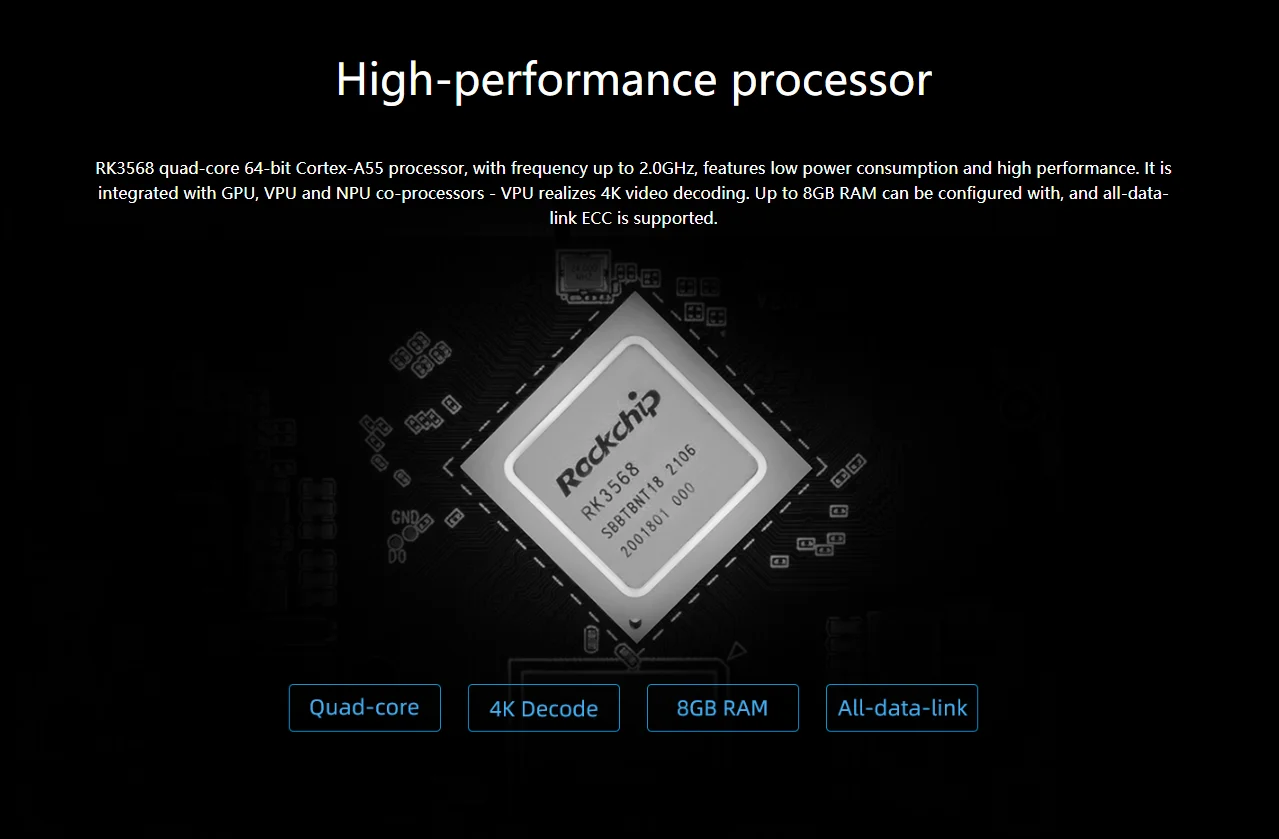

RockChip RK3568

Quad-core 64-bit Cortex-A55, 22nm lithography process, frequency up to 2.0GHz

ARM G52 2EE

Supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1

Embedded high-performance 2D acceleration hardware

0.8Tops@INT8, integrated high-performance AI accelerator RKNN NPU

Supports one-click switching of Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet

Supports 4K 60fps H.265/H.264/VP9 video decoding

Supports 1080P 100fps H.265/H.264 video encoding

Supports 8M ISP, supports HDR

2GB / 4GB / 8GB LPDDR4

Supports all-data-link ECC

32GB / 64GB / 128GB eMMC

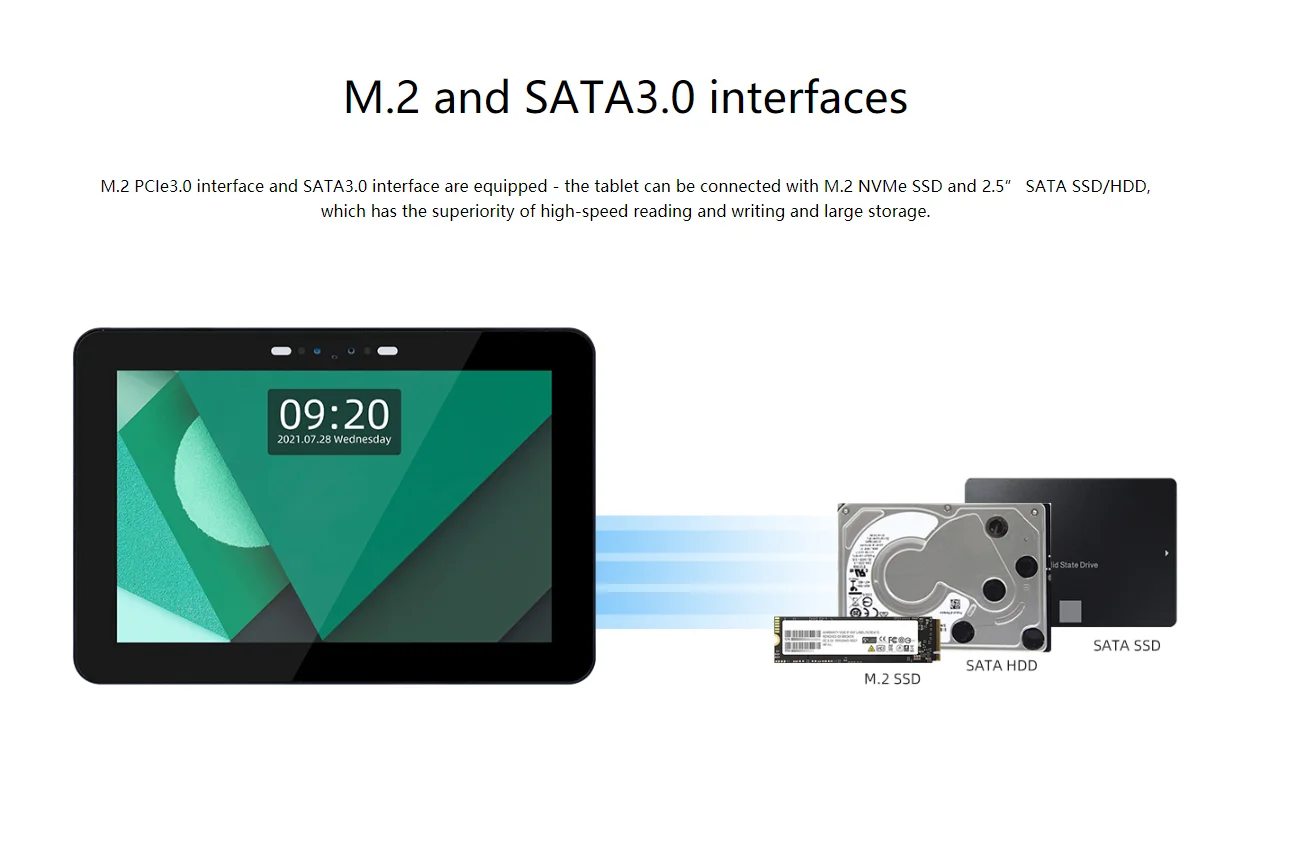

Supports 2242 / 2280 NVMe SSD (M.2 PCIe 3.0 interface)

Supports 2.5” SSD/HDD (SATA 3.0 interface)

TF-Card Slot x1 (Expand with TF card)

Supports Android 11.0, Ubuntu 18.04

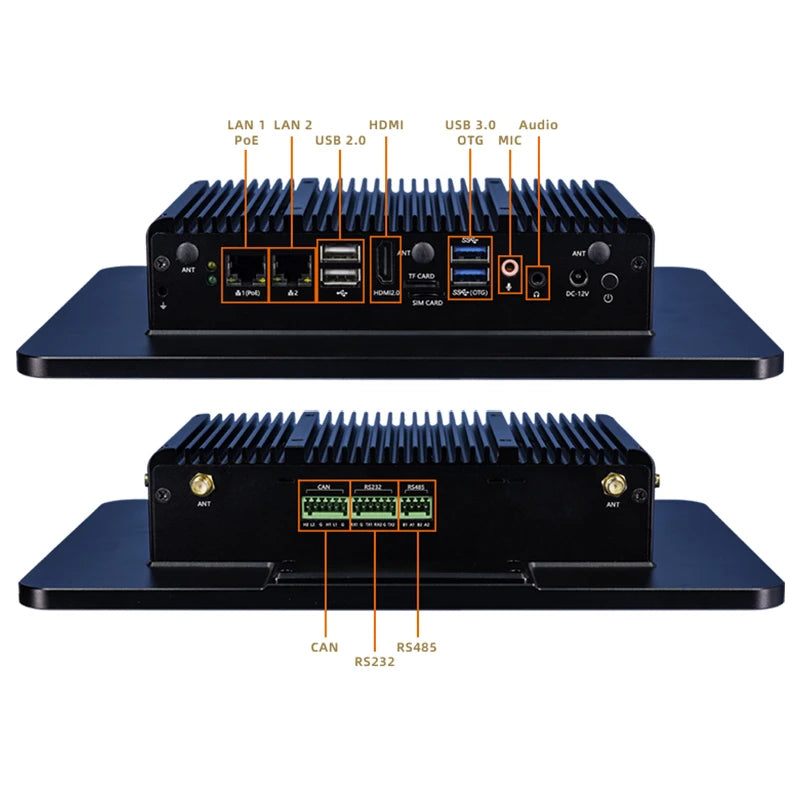

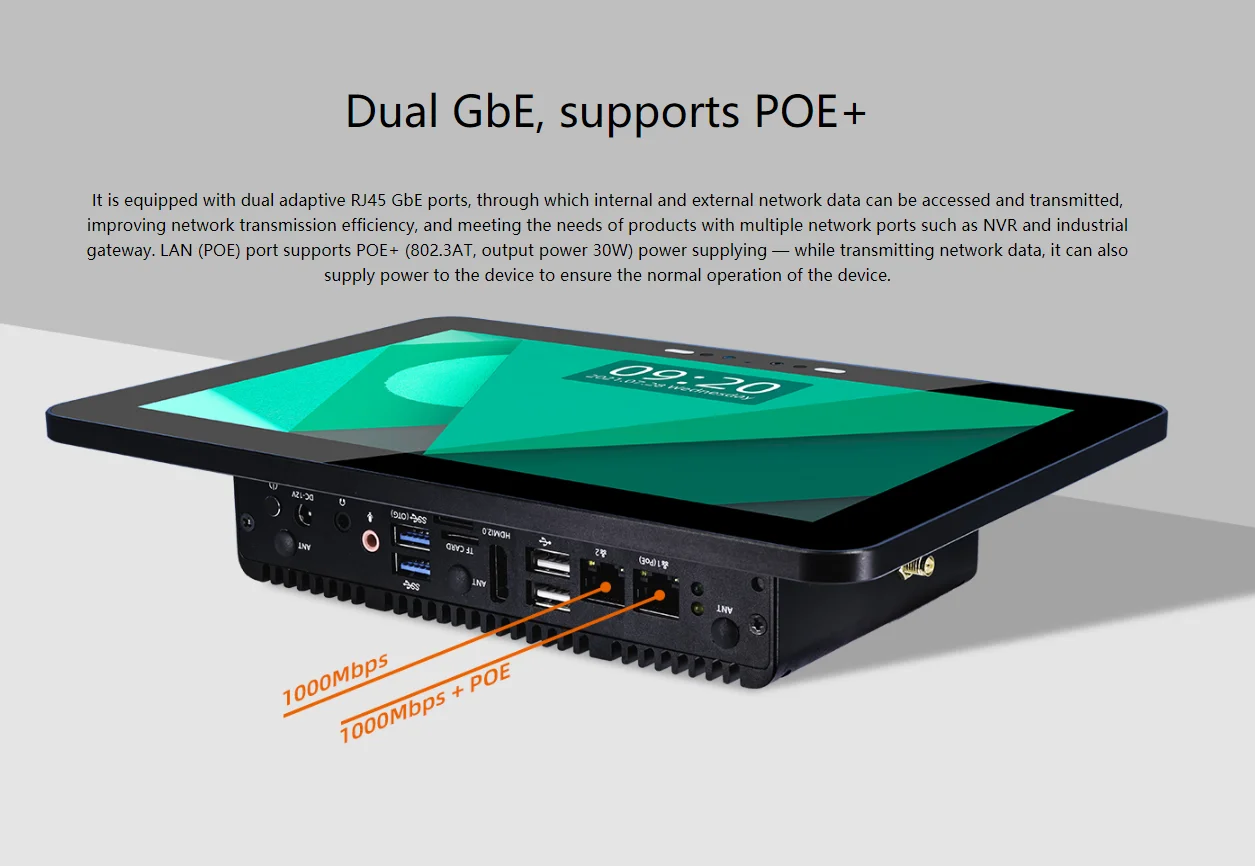

Supports dual Gigabit Ethernet (1000 M bps)

LAN (PoE) supports POE+ (802.3 AT, output power 30W) power supply

Supports M.2 to connect 5G, Mini PCIe to connect 4G LTE

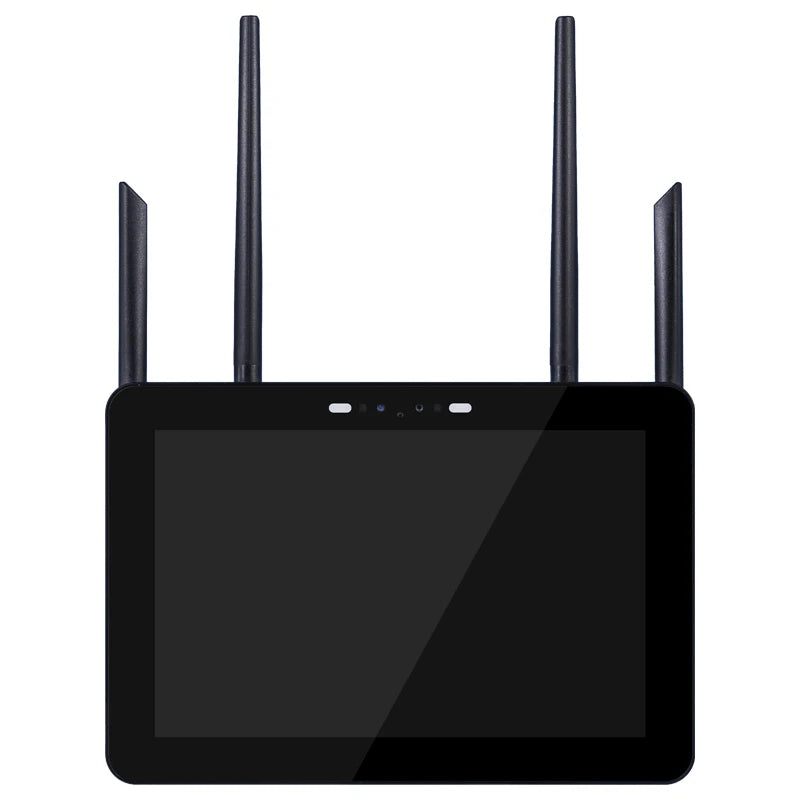

Supports 2.4G/5GHz WiFi, 802.11 a/b/g/n/ac/ax, WiFi 6

Supports BT5.0

1 × HDMI2.0, supports 4K@60fps output

1 × HDMI audio output

1 × Earphone output

1 × Microphone onboard audio input

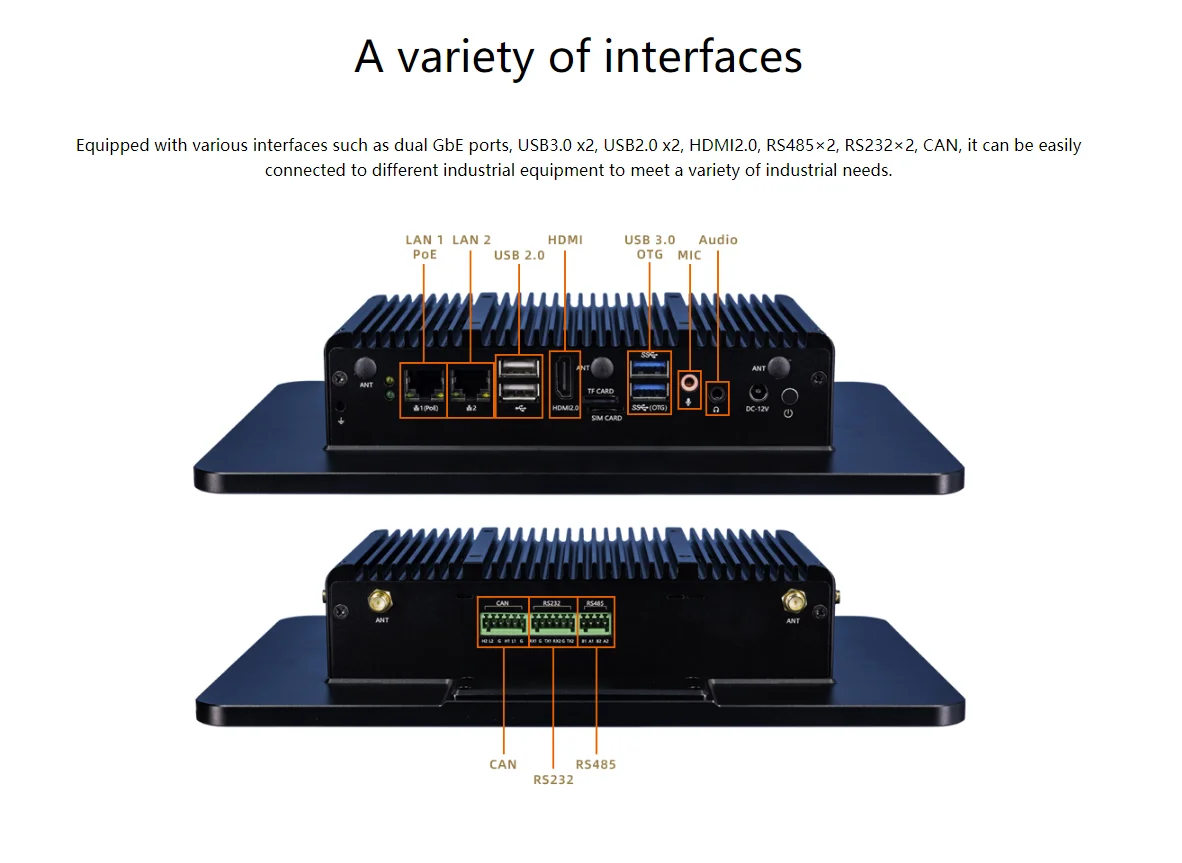

2 × CANFD / CAN, 2 × RS232, 2 × RS485

2 × USB3.0、2 × USB 2.0

1 × Power Button

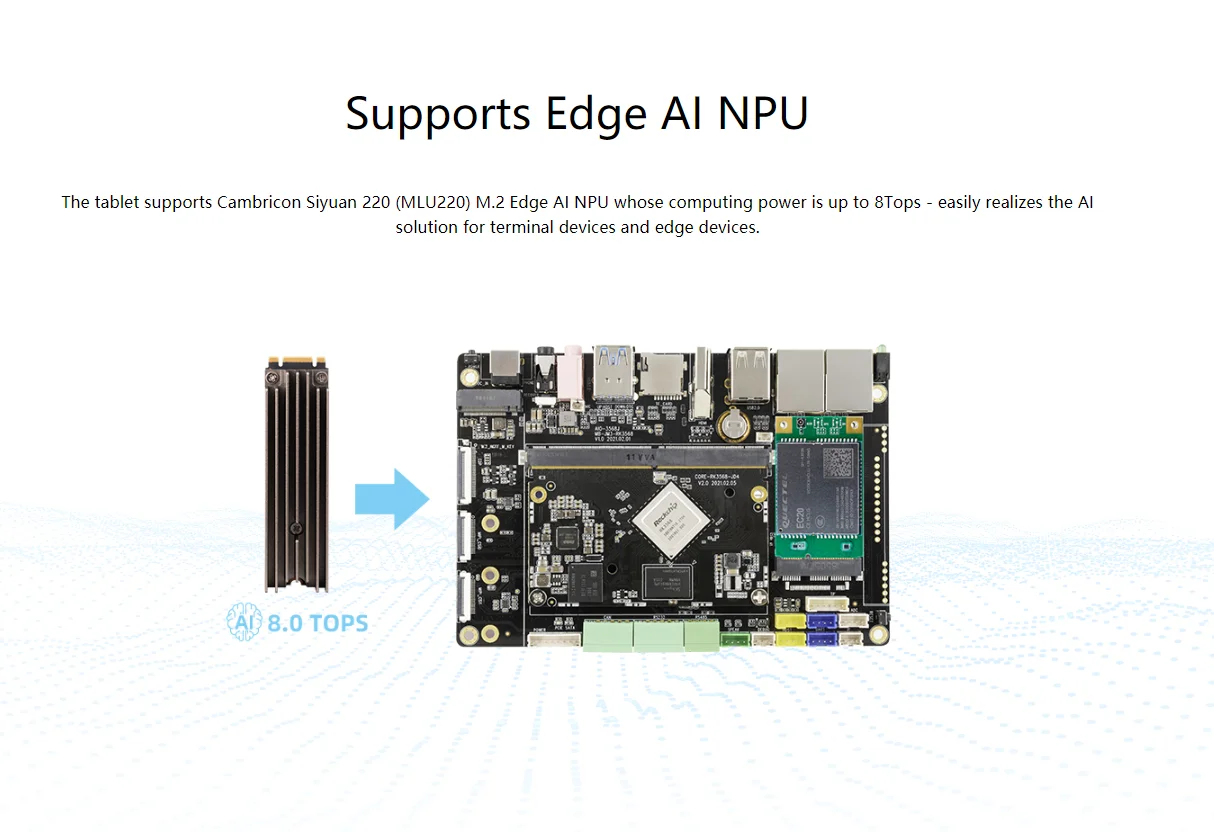

1 × M.2 PCIe3.0 (NVMe SSD or Cambricon Siyuan 220 M.2 Edge AI NPU)

1 × SATA 3.0 (2.5” SATA SSD/HDD)

1 × M.2 for 5G (or 1 × Mini PCIe for 4G LTE)

1 × SIM Card Slot

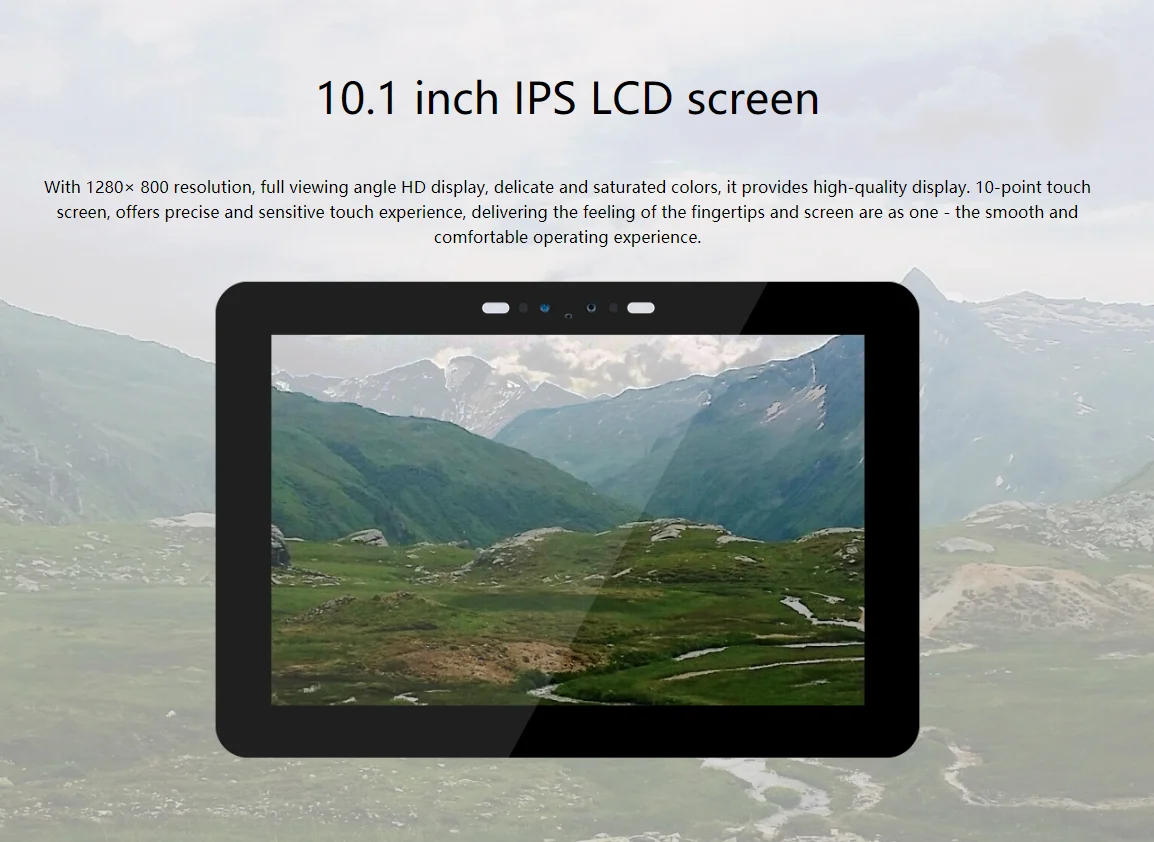

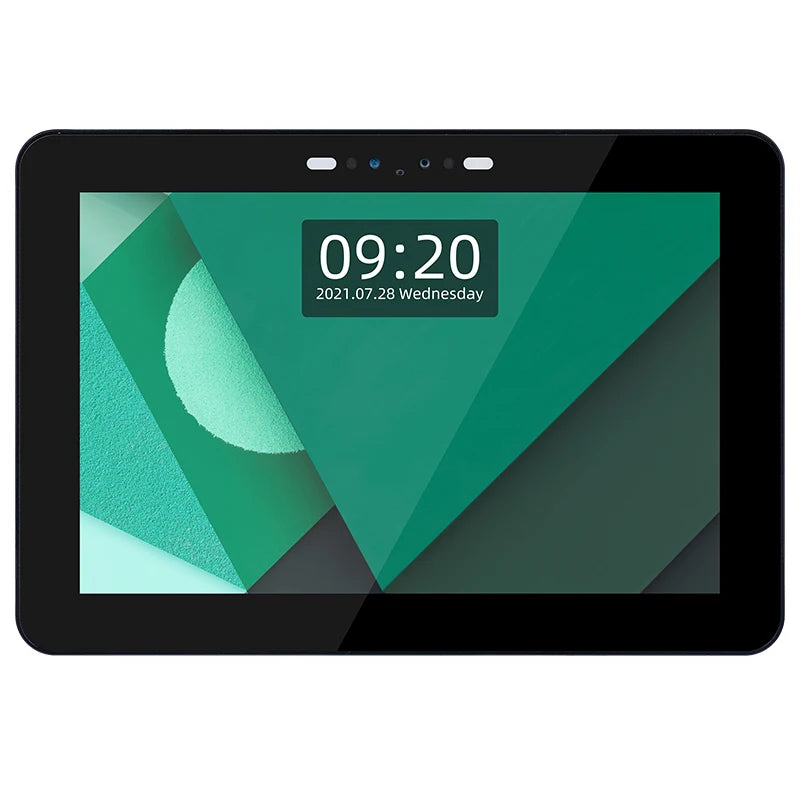

10.1” IPS Monitor

1280 × 800 (16:10)

10-point

300cd/m²

1000:1

MIPI（40Pin）

2 megapixel WDR dual-lens camera, microphone

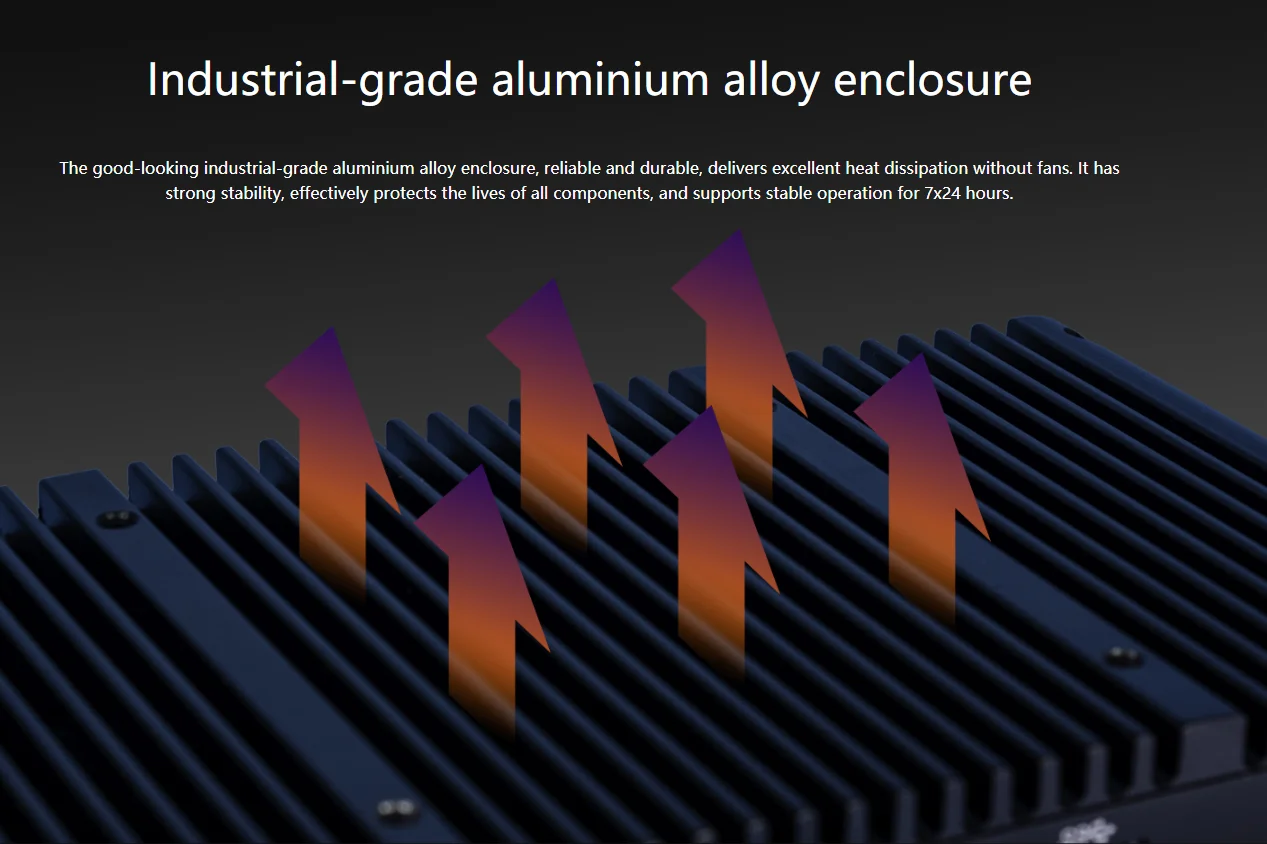

Aluminium alloy

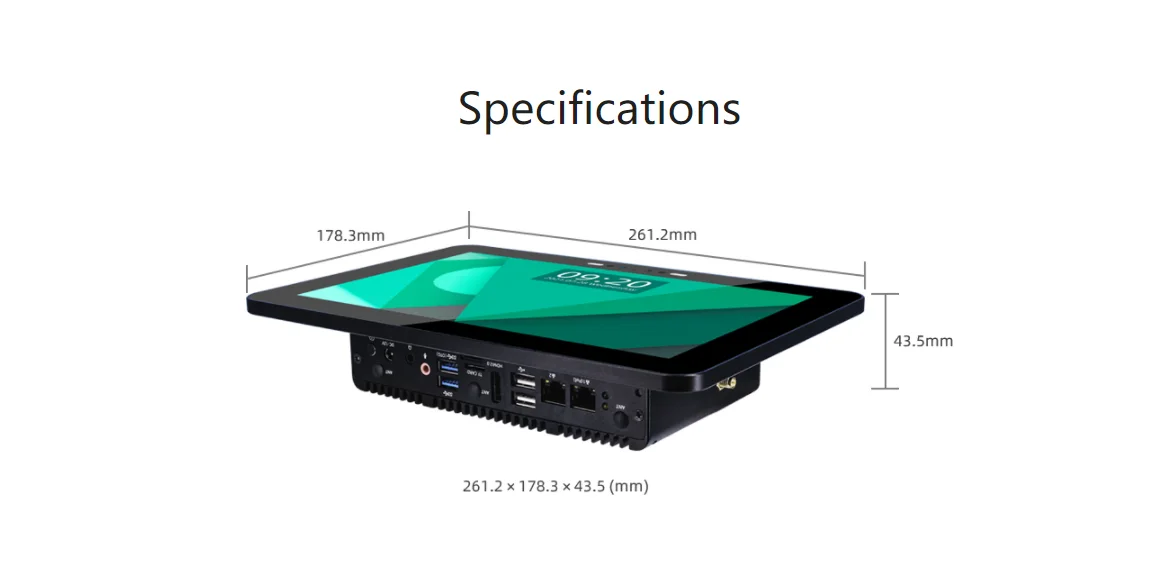

261.2 × 178.3 × 43.5 (mm)

-10℃- 50℃

-20℃- 60℃

10%～80 %
