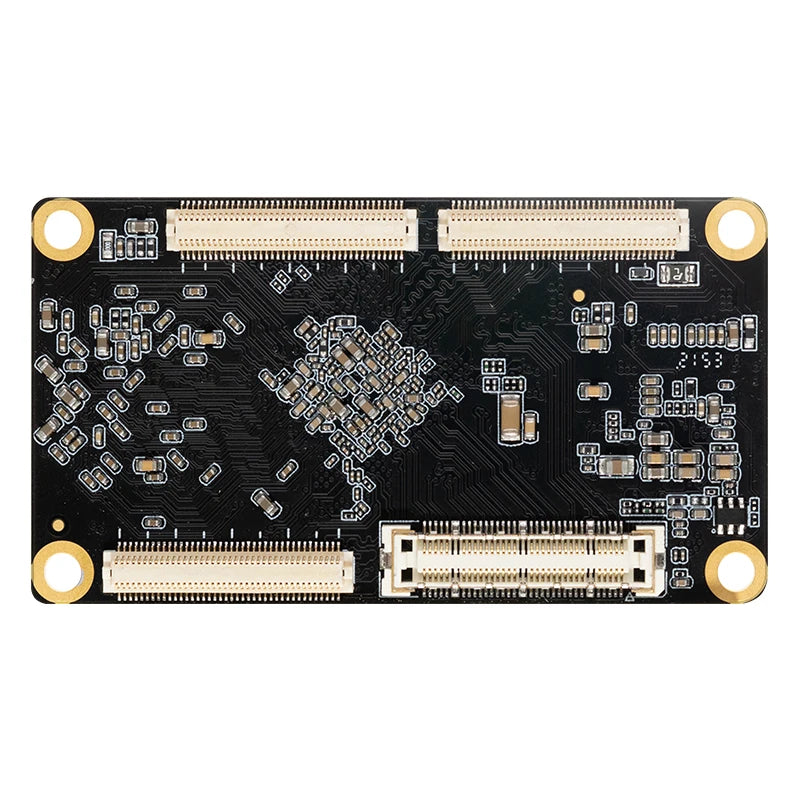

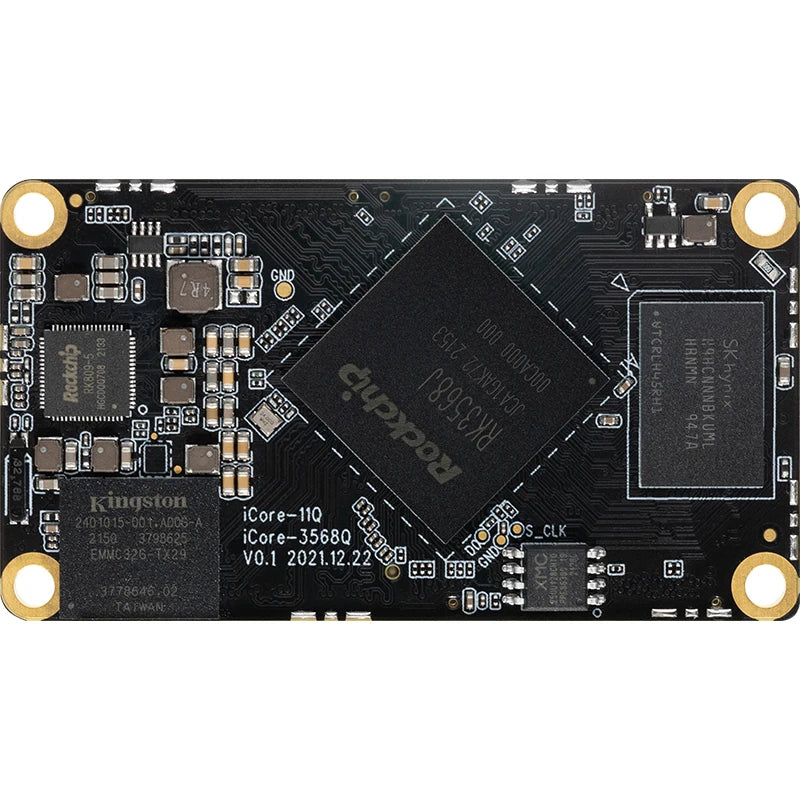

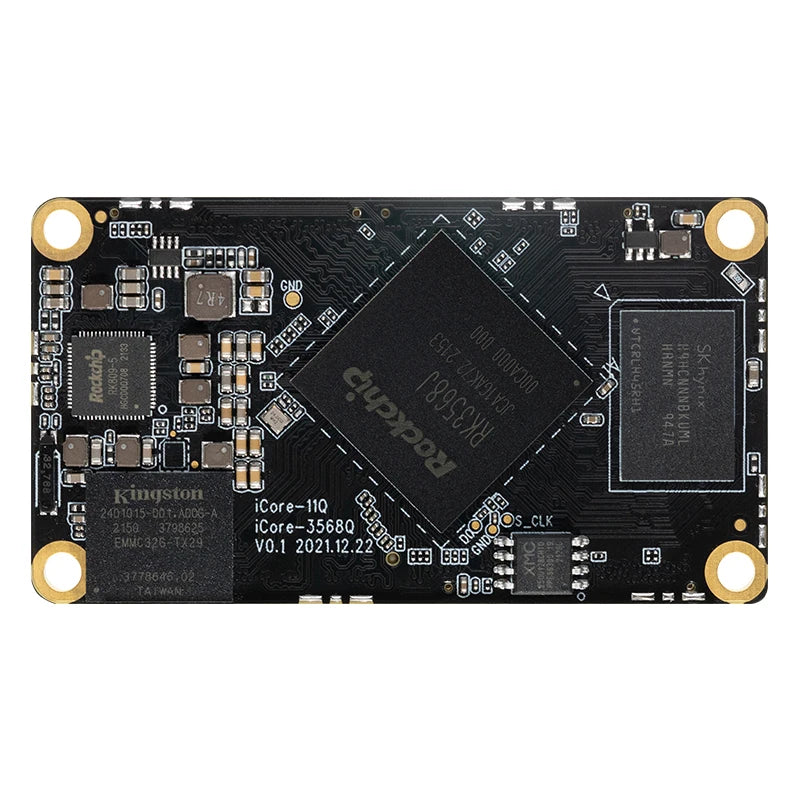

Custom PCBA iCore-3568JQ Quad-Core Industrial Core Board Development Boards Manufacturer

Custom PCBA iCore-3568JQ Quad-Core Industrial Core Board Development Boards Manufacturer

Regular price $100.00 USD
Regular price $0.00 USD Sale price $100.00 USD
Sale Sold out



Specifications

Basic Specifications

SOC

RockChip RK3568J

CPU

Quad-core 64-bit Cortex-A55, 22nm lithography process, frequency up to 2.0GHz

GPU

ARM G52 2EE

Supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1

Embedded high-performance 2D acceleration hardware

NPU

Integrated high-performance AI accelerator RKNN NPU, 0.8Tops@INT8

Supports one-click switching of Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet

VPU

Supports 4K 60fps H.265/H.264/VP9 video decoding

Supports 1080P 60fps H.265/H.264 video encoding

Supports 8M ISP, supports HDR

RAM

1GB / 2GB / 4GB / 8GB LPDDR4

Storage

8GB / 16GB / 32GB / 64GB / 128GB eMMC

16 MB SPI Flash

Hardware Features

Ethernet

Integrated GMAC, supports 2×RJ45 Ethernet (1000Mbps)

Wireless

Through SDIO port can expand to WiFi+BT module

-- Supports 2.4GHz / 5GHz WiFi, WiFi6, 802.11a/b/g/n/ac/ax protocol

-- Supports BT 5.0

Supports 5G / 4G LTE extension

Display

1 × HDMI2.0, Supports 4K@60 Hz

2 × MIPI DSI, Supports 1920 * 1080@60fps (or dual-channel 1 × MIPI DSI 2560*1440@60fps)

1 × eDP1.3, Supports 2560 * 1600@60fps

1 × RGB display, Supports 1920 * 1080@60Hz

1 × single LVDS LCD display

* Supports up to three screen output with different display

Camera

1 × MIPI CSI (can become single-channel 4Lan MIPI CSI or dual-channel 2Lan MIPI CSI)

1 × CIF

Audio

1 × HDMI

2 × I2S/PCM(2ch)/TDM(8ch)

PCIE

1 × PCIe 3.0(2Lane)

1 × PCIe 2.1(1Lane)

SATA

3 × SATA 3.0

USB

2 × USB 3.0,2 × USB 2.0

Extension

3 × SDMMC,3 × SPI,10 × UART,6 × I2C ,2 × I2S/PCM(2ch)/TDM(8ch)

16 × PWM,7 × ADC,3 × CAN,125 × GPIO

Power

5V (Deviation±5%)

OS/Software

OS

Supports Android 11.0 , Ubuntu 18.04, RTLinux

General

Size

66 mm × 36.5mm

Connector

BTB connector (1 × 60Pin + 3 × 80Pin)

Heat Dissipation

Idle: 0.015W

Normal: 2.75W

Max: 5.55W

Environment

Operating Temperature: -40℃-85℃

Storage Humidity: 10%-80%






 Welcome Customize Order!
