Lonten Tech

Custom PCBA Hot Seller RK3588 Android12 Development Board Kit with 4GB DDR4 32GBeMMC Manufacturer

Custom PCBA Hot Seller RK3588 Android12 Development Board Kit with 4GB DDR4 32GBeMMC Manufacturer

Regular price $100.00 USD
Regular price $0.00 USD Sale price $100.00 USD
Sale Sold out
Product Description
Hot Seller RK3588 Android12 Development Board Kit with 4GB DDR4 32GBeMMC

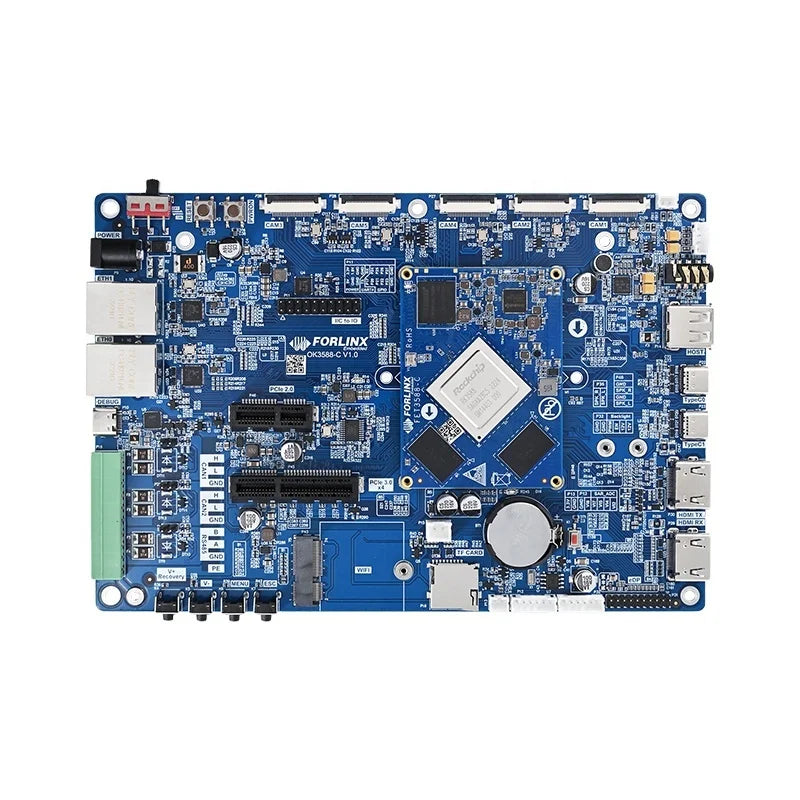

OK3588-C development board/ lit is featured with Rockchip's RK3588 one of the most anticipated processors, it consists of SoM and carrier board. All pin sources are available and easy-to-use on carrier board circuited from the SoM FET3588-C, which is much convenient to users. The board can support 8K HD display and can support quad screens playing with different content.



New Generation Advanced AIoT Processor
As a universal 8K supported SoC, RK3588 is outstanding in integer operations, floating-point arithmetic, RAM, low-power and even the outline. Advanced 8nm processing, Big& Little core structure and L3 cache, which are all have been greatly improved its computing capability.



Triple-core NPU up to 6 TOPS
RK3588 processor contains a triple-core NPU, supports co-work and work independently; Supports supports INT4/INT8/INT16/FP16 hybrid operation and computing power is up to 6TOPs. MAC utilization improved by more than 28% together with 2.0 RKNN TOOLkit2 can meet most demand for edge computing.



8K Encoder/ Decoder Exploring
RK4588 supports 8K display output, supports H.265 and VP9 decoder by 8K@60fps, H.264 decoder by 8K@30fps, and AV1 decoder by 4K@60fps. It’s a user friendly platform for massive video playing, completely compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2 and Vulkan1.2. Special 2D hardware engine with MMU will maximize display performance and provide very smoothly operation.



Various display interfaces, supports quad-screen playing with different content
Various display interfaces such as 2x HDMI 2.1, 2x eDP 1.3, 2x DP 1.4, 2x MIPI-DSI and BT.1120 are available. Can support quad-screen playing together but with different content, up to 7680x4320@60Hz output, will take users fantastic visual experience.



New generation ISP, meeting the demand for image quality improving.
RK3588 introduces a new generation totally hardware-based maximum 48-Megapixel ISP3.0. It implements a lot of algorithm accelerators, such as HDR, 3A, LSC, 3DNR, 2DNR, sharpening, dehaze, fisheye correction, gamma correction and so on.



Rich ready-to-use peripheral source

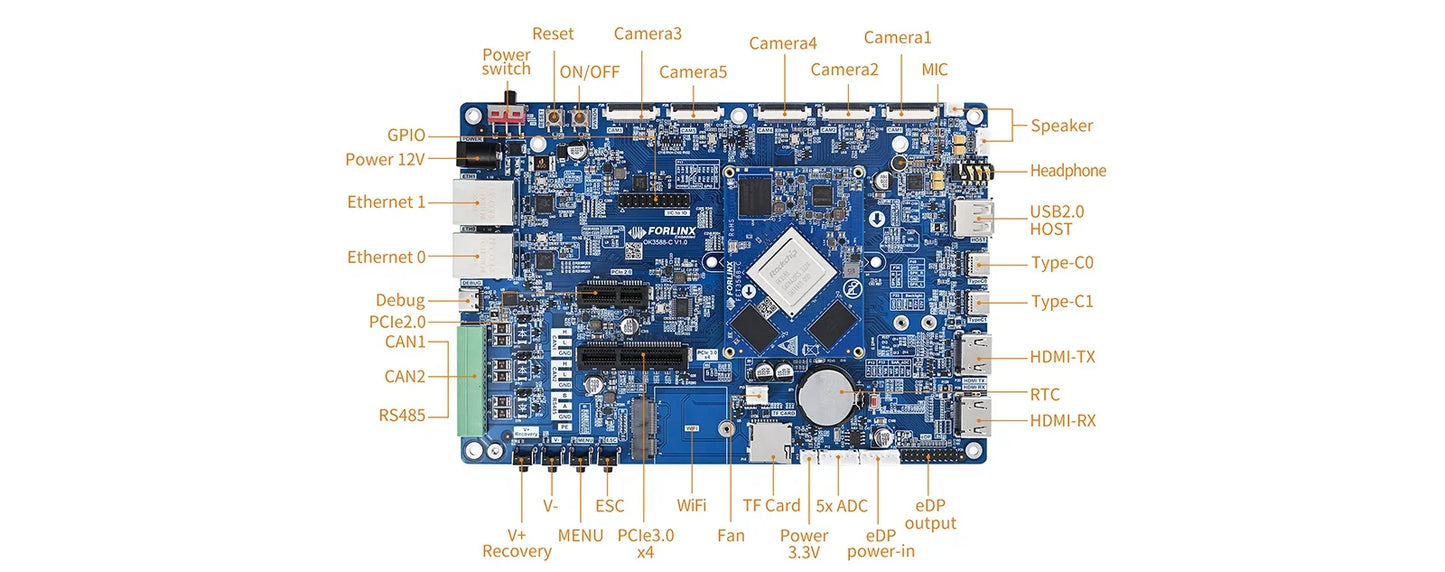

OK3588-C Carrier Board Pin Diagram

OK3588-C single board computer consists of SoM FET3588-C and carrier board, it could be a nice evaluation kit for testing purpose.



Multiplied isolation circuits, make the board a trusted platform.




 Welcome Customize Order!
