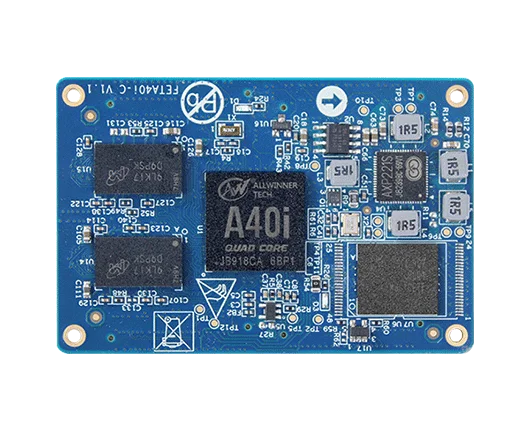

System on Module FETA40i-C based on Allwinner A40i
FETA40i-C is a system on module designed based on Allwinner Cortex -A7 quad-core industrial grade processor A40i with frequency up to 1.2GHz, it integrates with GPU MALI400MP2, RAM 1GB/ 2GB DDR3L and 8GB eMMC. Mostly popular video and iamge encode forms are perfectly supported. It is a superior item with advantages of excellent performance in industrial grade stability but low power and cost effcient performance. Supported with OS Linux and Android systems, applicable for industrail control vision interactive products, such as smart terminals, industrial control , data collection, machine vision, industrial IoT, portable devices, digital signage, etc.
The SoM has below features:
-
1. Allwinner Cortex -A7 industrial grade quad-core processor A40i, frequency up to 1.2GHz, integrated with Mali400MP2 GPU;
-
2. Supports dual-screen displaying both sync. and async, various display interfaces RGB/ MIPI/ dual 8-bit LVDS/ HDMI/ TV out are all support and available for 1920x 1080@ 60FPS;
-
3. One Gigabit Ethernet and one fast Ethernet are supported and available for WIFI/ BT4.0, 4G is also supported;
-
4. Can support multiple camera inputs, 2-ch DVP camera s up to 5.0MP, 4-ch TVIN can support NTSC and PAL;
-
5. CPU integrates with audio codec, can support one differential PHONEOUT, one stereo earphone output, and one microphone input;
-
6. Various peripherals: UARTx 8, SDx 4, USBx 3, SPIx 4, IICx 5, SATAx 1, PWMx 8;
-
7. Supports OS Linux and Android
Allwinner Cortex-A7 A40i
Cost efficient, expand commercial grade and industrial grade optional,
superior product performance in stability
SoM 10-layer ENIG PCB designing
SOM FETA40i-C is based on a 10-layer PCB designing
Stereo timbre, high-definition output
and multiple hardware video codec forms. The processor is built in with audio coder.
A wide range of peripherals
The SoM is scalable form one Gigabit Ethernet, one fast Ethernet, eight UART,
four SD, three USB, four SPI, five IIC, eight PWM, one SATA and two ISO-7816 interfaces
Multiple video capture channels
5.0MP DVP OV5640 camera is supported,
four CVBS-IN analog cameras can be supported syncronously
in NTSC and PAL forms for video recording and previewing
Versatile power solutions
The SoM is specially designed with low-power PMU AXP221s for precisely control of complex power,
and available for external power mode, Li-ion power mode and USB power mode.
Optimized system supporting
The SoM is supported with optimized Linux3.10 with QT5.9
Certificate
Complies with CE, FCC and RoHS
OKA40i-C SBC Pin Diagram
OKA40i-C single board computer consists of SoM FETA40i-C and carrier board
Welcome Customize Order!
