Custom PCBA FET3399-C System on Module(Rockchip RK3399 SoC) Manufacturer

CPU: RK3399

Architecture: Heterogeneous

Frequency: 1.8GHz

RAM: 2GB DDR3

ROM: 16GB eMMC

System: Linux4.4.189+ QT5.12，Android7.1

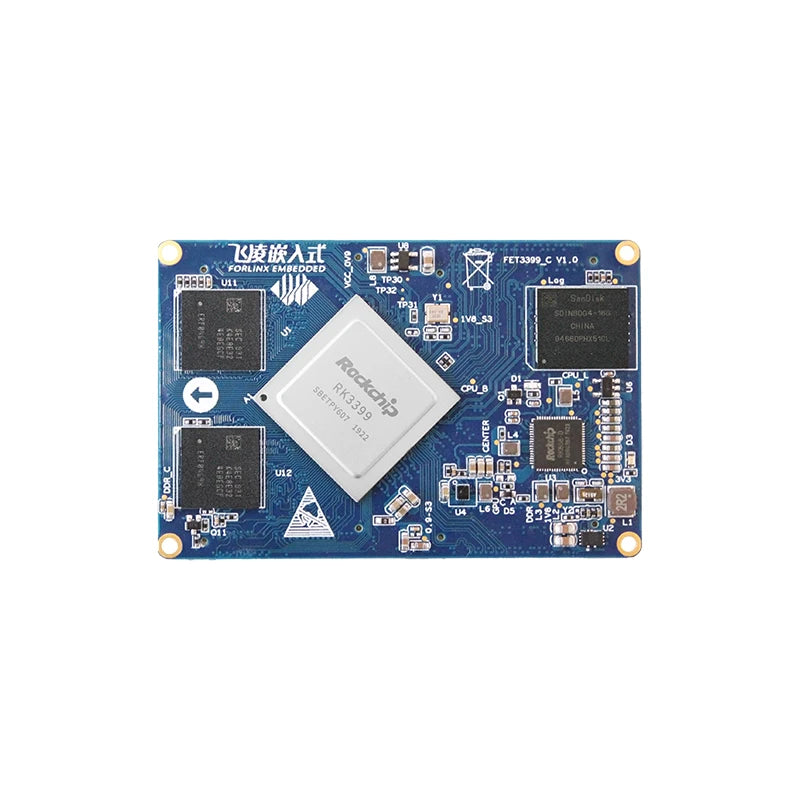

Rockchip RK3399 based SoM System on Module FET3399-C

FET3399-C is a system on module designed based on Rockchip RK3399 processor which consists of two Cotex-A72 featuring cores with frequency up to 1.8GHz and four Cortex-A53 featuring cores with frequency up to 1.4GHz. It's integrated with GPU Mali-T864, can support OpenGL ES1.1/ 2.0/ 3.0/ 3.1, OpenVG1.1, OpenCL and DX11. It has on-board 2GB LPDDR3 RAM and 16GB eMMC. A variety of display interfaces such as HDMI2.0, MIPI-DSI, eDP1.3 and DP1.2 are all available and resolution up to 4K. Dual-screen both synchronous and asynchronous playing are well supported. Besides, it carries PCIe, USB3.0 Host, Type-C, MIPI-CSI, SPDIF, IIC, SPI, UART, ADC, PWM, GPIO, IIS(8 digital micphone array input) and Ethernet on board.

• Target application

• Self-service terminal

• Edge computing

• 5G Smart terminal

• POS machine

• Facial recognition
