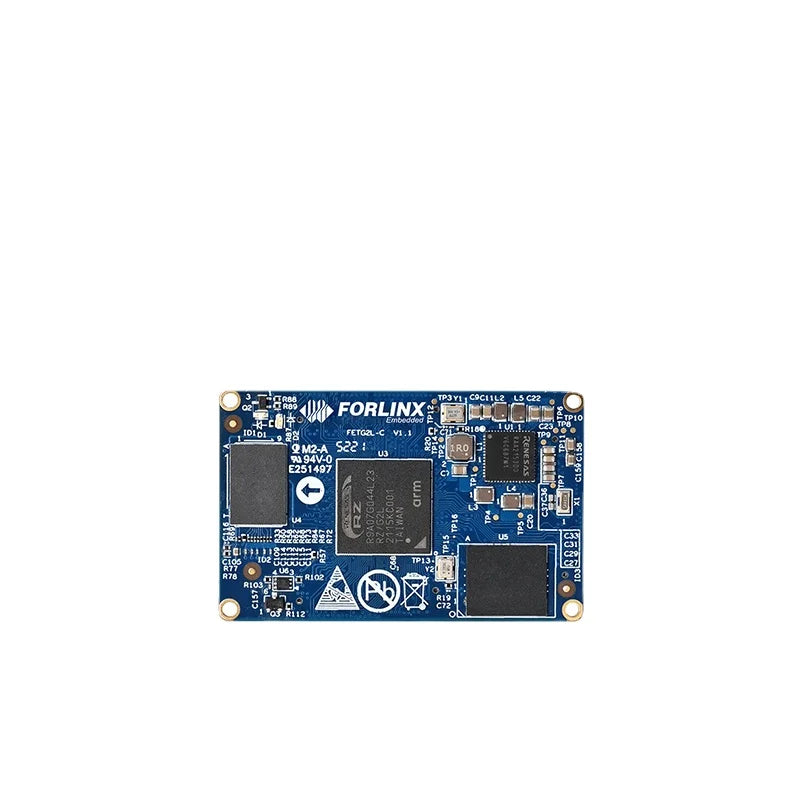

Custom PCBA FET-G2LD-C System On Module(Industrial Core Board) Manufacturer
Custom PCBA FET-G2LD-C System On Module(Industrial Core Board) Manufacturer
Regular price
$100.00 USD
Regular price
$0.00 USD
Sale price
$100.00 USD
Unit price
/
per
FETG2LD-CSoM Basic Parameters | |
Processor | Renesas RZ/G2L (R9A07G044Lxx) MPU Core: Arm Cortex-A55@1.2GHz, 1-core or 2-core MCU Core: Arm Cortex-M33@200MHz, 1-core GPU: • Arm Mali-G31 • OpenGL ES 1.1/2.0/3.1/3.2, Vulkan 1.1, OpenCL 2.0 VPU: Encoding / Decoding • H.264 / AVC (High Profile / Main Profile / Baseline Profile) • H.264 / MVC (Stereo High Profile) • up to 1920 x 1080 x 30 fps ISU: • image input up to 5M (2800×2047) • image output up to Full HD (1920×1080) • Support color format conversion • RGB / ARGB / YcbCr422 / YcbCr420 / RAW(Grayscale) |
RAM | 1GB / 2GB DDR4 |
ROM | QSPI NorFlash: 16MB eMMC: 8GB / 16GB optional |
Working Voltage | DC 5V |
Working Temperature | -40~85℃ |
Package | board to board connector(3*80pin Spacing 0.5mm, height 2mm) |
Dimensions | 38mm x 60mm |
OS | Linux4.19 |
