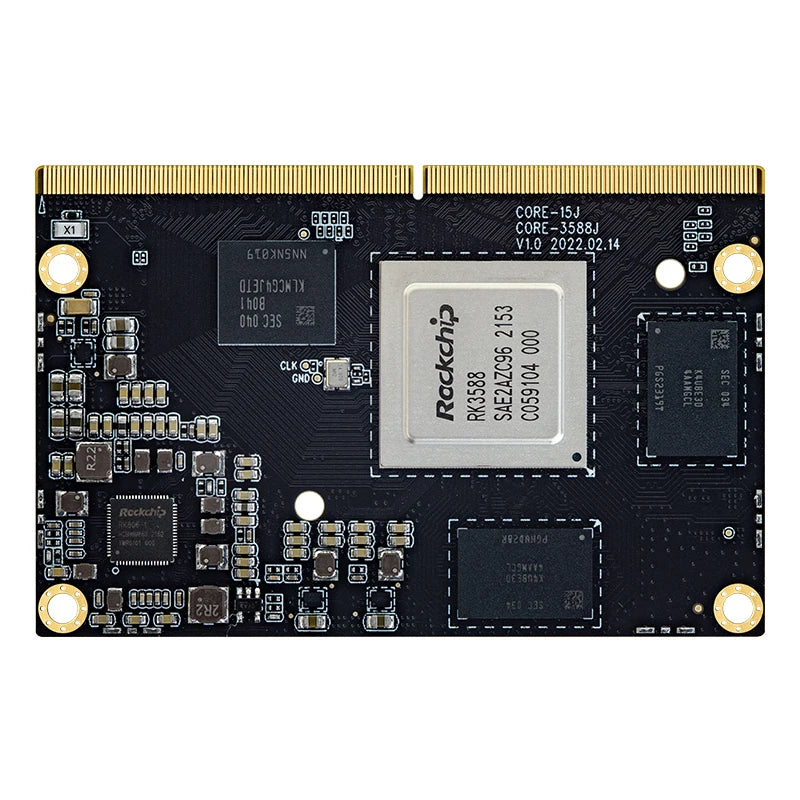

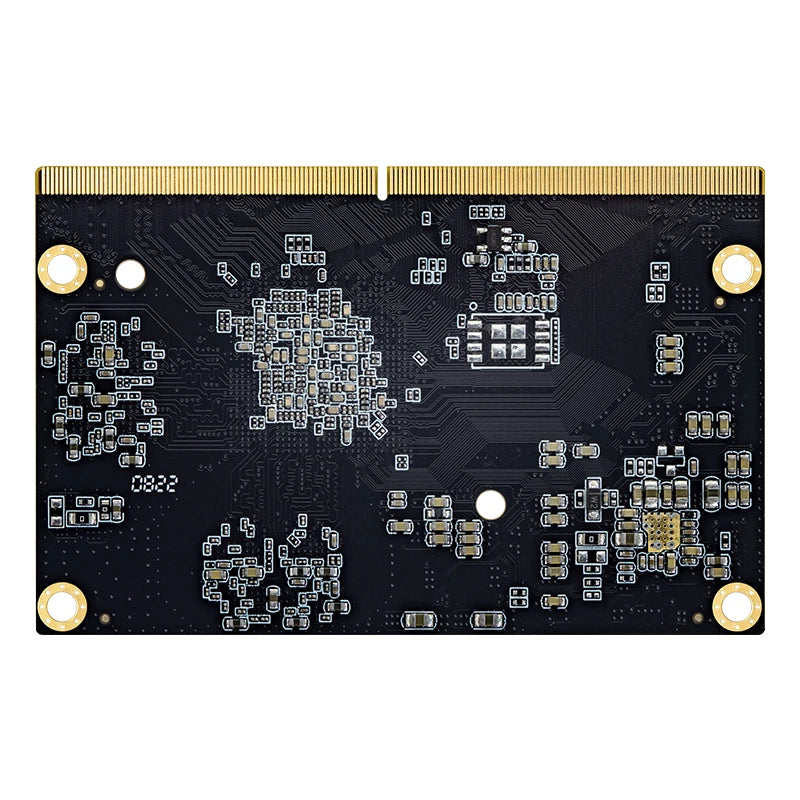

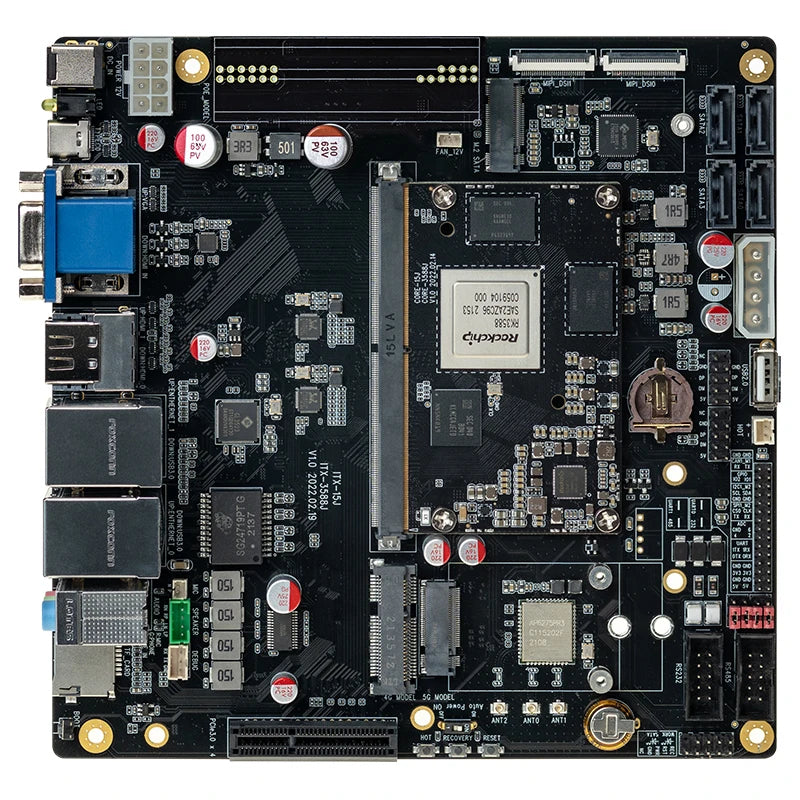

Custom PCBA Core-3588J Firefly RK3588 Rockchip Manufacturer
Custom PCBA Core-3588J Firefly RK3588 Rockchip Manufacturer
Couldn't load pickup availability
Specifications
| Basic Specifications | |
| SOC | RockChip RK3588 |
| CPU | 8-core 64-bit (4×Cortex-A76+4×Cortex-A55) , 8nm lithography process, frequency up to 2.4GHz |
| GPU | ARM Mali-G610 MP4 quad-core GPU Supports OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS |
| NPU | NPU computing power is up to 6 TOPS, Supports INT4/INT8/INT16 mixed operation, Supports framework switching of TensorFlow / MXNet / PyTorch / Caffe / etc. |
| ISP | Integrated 48MP ISP with HDR&3DNR |
| VPU | Video decoding: 8K@60fps H.265/VP9/AVS2 8K@30fps H.264 AVC/MVC 4K@60fps AV1 1080P@60fps MPEG-2/-1/VC-1/VP8 Video encoding: 8K@30fps encoding, Supports H.265 / H.264 * Achieves up to 32-channel 1080P@30fps decoding and 16-channel 1080P@30fps encoding |
| RAM | 4GB/8GB/16GB 64bit LPDDR4/LPDDR4x/LPDDR5 (Up to 32GB optional) |
| Storage | 16GB/32GB/64GB/128GB eMMC |
| Hardware Specifications | |
| Network | Integrated with PCIe3.0/GMAC/SDIO3.0/USB3.0, it can be extended to multi-channel Gigabit Ethernet, |
| Display | Video output: 1 × HDMI2.1 ( 8K@60fps or 4K@120fps) 1 × HDMI2.0 ( 4K@60fps) 2 × MIPI-DSI ( 4K@60fps) 2 × DP1.4 ( 8K@30fps, multiplexed with USB3.0) 2 × eDP1.3 ( 4K@60Hz) 1 × BT.1120 ( 1080@60fps) Video input: 1 × HDMI-IN ( 4K@60fps) , supports HDCP 2.3 1 × MIPI CSI (4 lanes) or 2×MIPI CSI (2 lanes) 2 × MIPI DC ( 4-lane DPHY v2.0 or 3-lane CPHY V1.1) 1 × DVP camera (up to 150MHz input data) * Supports multi-channel 8K video output and 4K video input, up to seven-screen output with different displays |
| Audio | 2 × 8-channel I2S 2 × 2-channel I2S 2 × SPDIF 2 × 8-channel PDM (supports multi-MIC array) 1 × Dual-channel digital audio codec (16-bit DAC) 1 × VAD |
| PCIE | PCIe3.0 (2×2lanes,1×4lanes,4×1lanes) 、3×PCIE2.0(1 lanes) |
| SATA | 3 × SATA3.0 |
| USB | 3 × USB3.0、4 × USB2.0 Host 2 × USB2.0 OTG |
| Power | 4V (error±5%) |
| Other Interfaces | 9 × I2C、10 × UART、5 × SPI、7 × ADC 、16 × PWM 、1 × SDMMC、GPIO |
| OS/Software | |
| OS | Android: Android 12.0 Linux: Ubuntu Desktop, Ubuntu Server, Debian11, Buildroot, RTLinux, Kylin Linux, UOS * Supports UEFI Boot |
| General | |
| Size | 82 mm × 53 mm |
| Interface Type | MXM3.0 ( 314 PIN, 0.5mm pitch) |
| PCB | 10-layer design, immersion gold technology |
| Heat Dissipation | Heat sink installation hole pitch: 45mm |
| Power Consumption | Idle: ≈1.35W (12V/110mA) Typical: ≈4.8W (12V/400mA) Max: ≈20W (12V/1700mA) |
| Environment | Operating Temperature: -20℃-60℃, Storage Temperature: -20℃-70℃, Storage Humidity: 10%-80% |
Welcome Customize Order!
