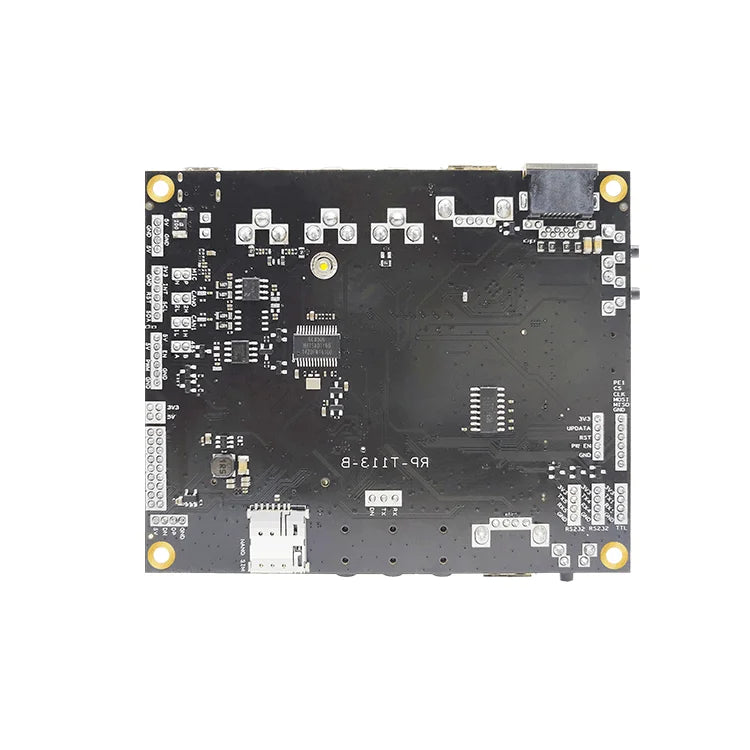

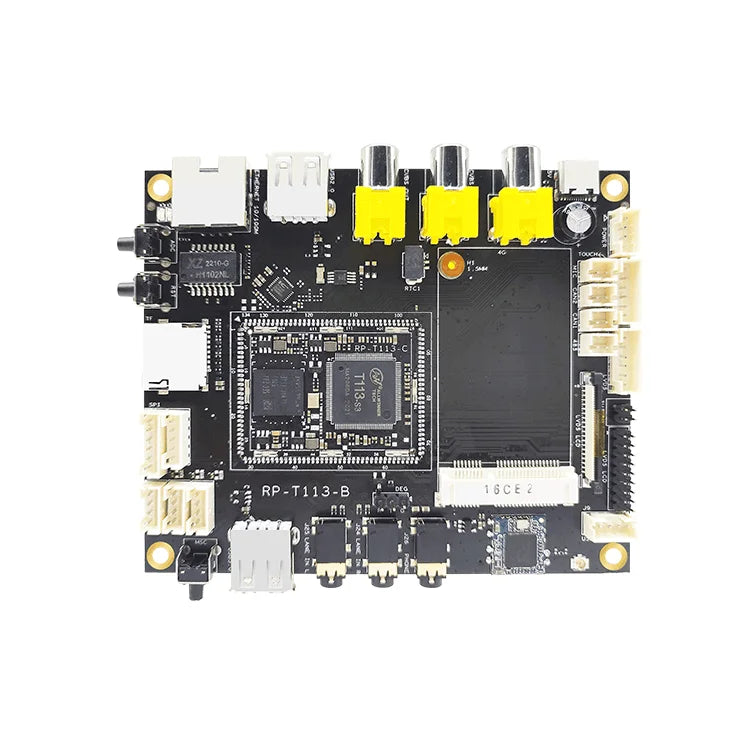

Custom PCBA Allwinner t113-s3 development board t113-s3 core board allwinnertech Rongpin rp-t113 wide temperature level Manufacturer

Main hardware indicators

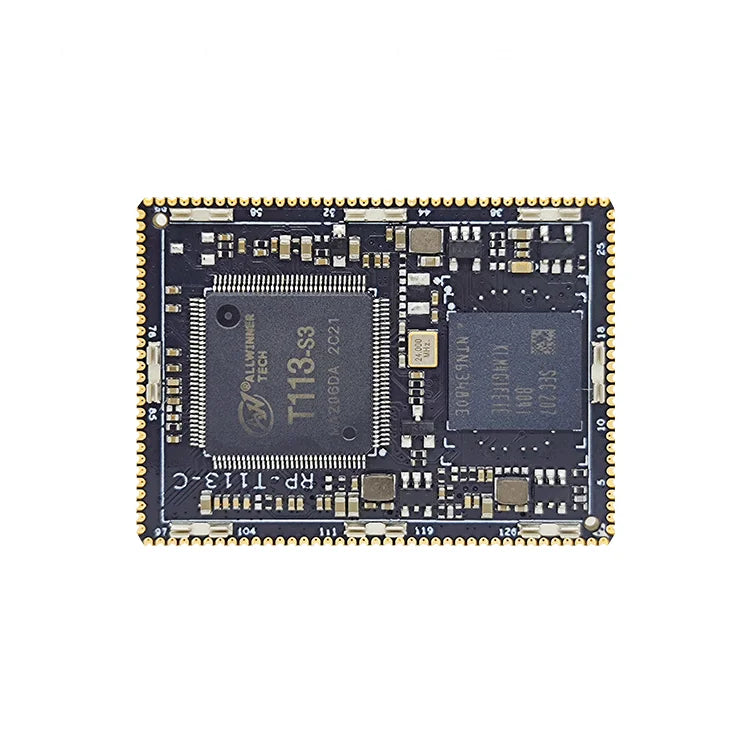

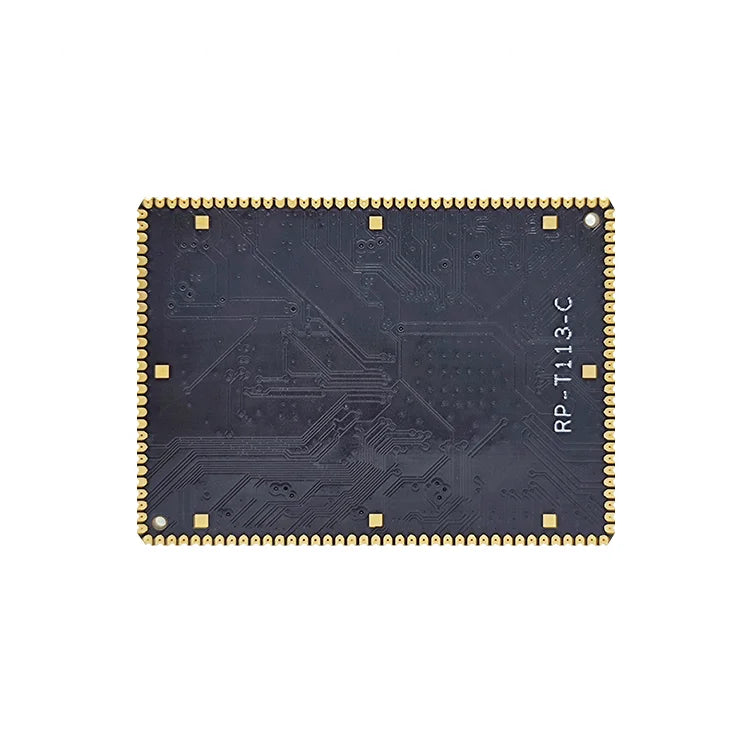

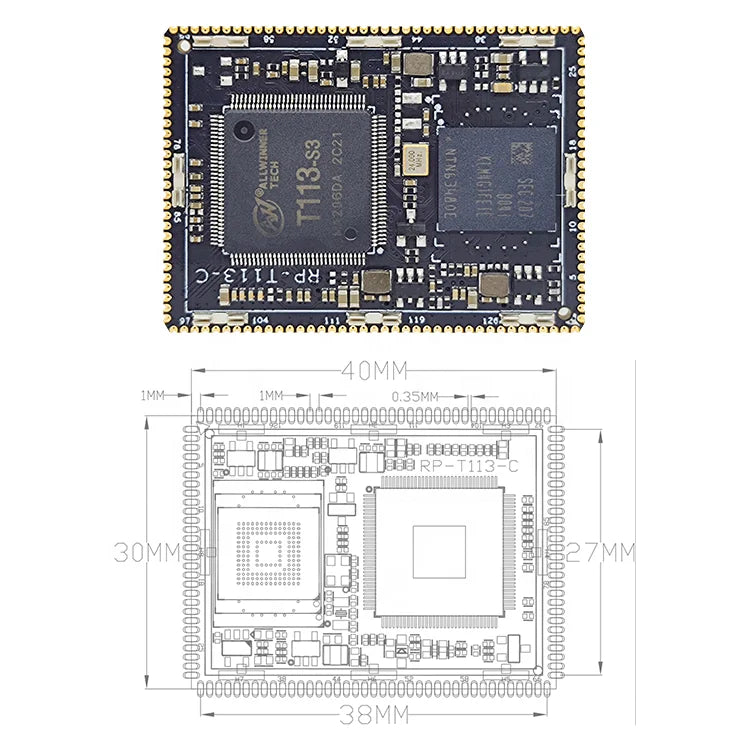

size

40mm long *30mm wide *3mm high

Connection mode

Stamp hole

CPU

Allwinner rpt113 dual core arm cortex-a7 CPU

Memory

Built in 128MB DDR3

storage

EMMC 5.1 standard 4GB optional 8g/16g/32g

Power management

Split design

working voltage

3.4-5.5V

support system

Linux5.4 QT5.12.5

working temperature

-25 to +85 degrees

life

The continuous operation life is more than 5 years

Common interface of core board

RGB

Rgb666 output Max 720P

LVDS

Support single 6/8 LVDS output up to 1280x800

Ethernet

Support Ethernet 100m RMII interface

CVBS input

Support two-way CVBS analog camera input

CVBS output

Support one CVBS output

I2S

Two way I2S, one way 8-channel / one way 2-channel

voice

Support 1 channel left and right channel output

SDIO

Support one SDIO 3.0 interface

USB 2.0

1-way independent USB 2.0

UART

5-way serial port

SPI

1-way SPI

I2C

4-way I2C

PWM

8-way PWM

ADC

1 channel analog ADC input interface

GPIO

Reusable GPIO up to 62

upgrade

Support usb/ TF card local upgrade

project

minimum

typical

maximum

Power parameters

Voltage

3.4V

5V

5.5V

Ripple

--

50mV

RTC (HYM8563)

0.3uA

0.9uA

1.2uA

Including base plate current test

Starting current

14mA

55mA

76mA

Desktop quiescent current

38mA

environment

relative humidity

--

65%

75%

working temperature

-25℃

--

85℃

Storage temperature

-40℃

-0℃

100℃
