Custom PCBA AIO-3288C Single Board Computer RK3288 Quad-core Cortex-A17/Android 5.1/Linux/2GB Dual-channel DDR3 8GB eMMC 5 Manufacturer

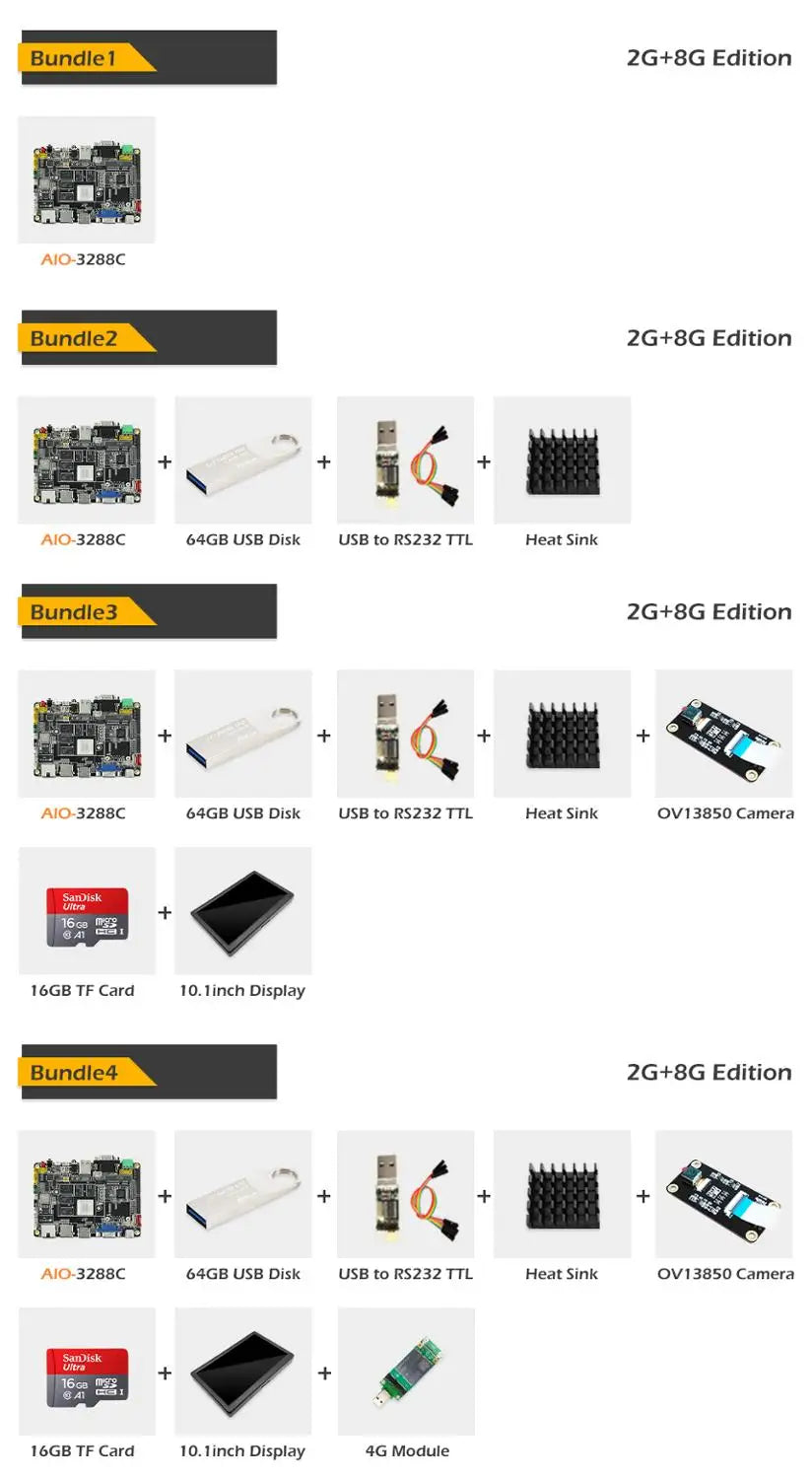

Bundle1： 2GB+8GB AIO-3288C
Bundle2： 2GB+8GB AIO-3288C + 64GB USB Disk  + USB to RS232 TTL + Heat Sink
Bundle3： 2GB+8GB AIO-3288C + 64GB USB Disk  + USB to RS232 TTL + Heat Sink + OV13850  Camera + 16GB TF Card + 10.1inch Touch LCD
Bundle4： 2GB+8GB AIO-3288C + 64GB USB Disk  + USB to RS232 TTL + Heat Sink + OV13850 Camera + 16GB TF Card + 10.1inch Touch LCD + 4G Module

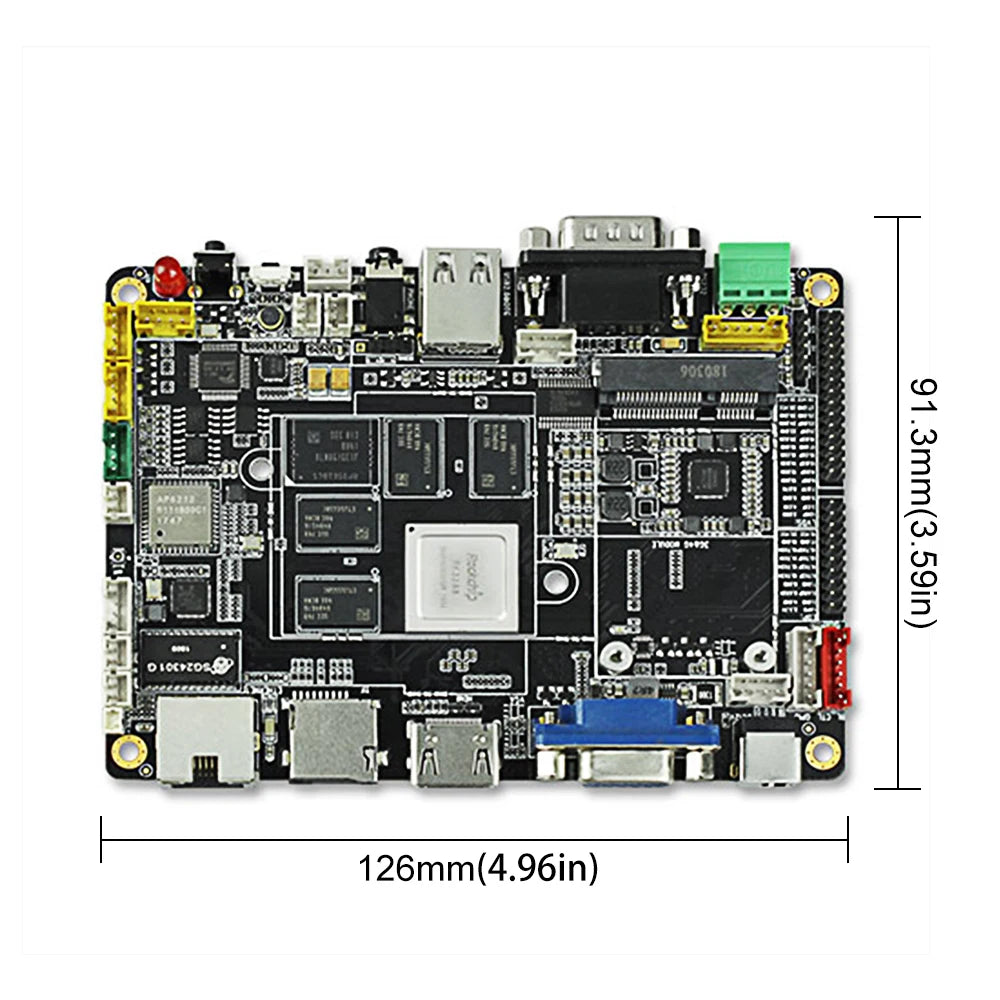

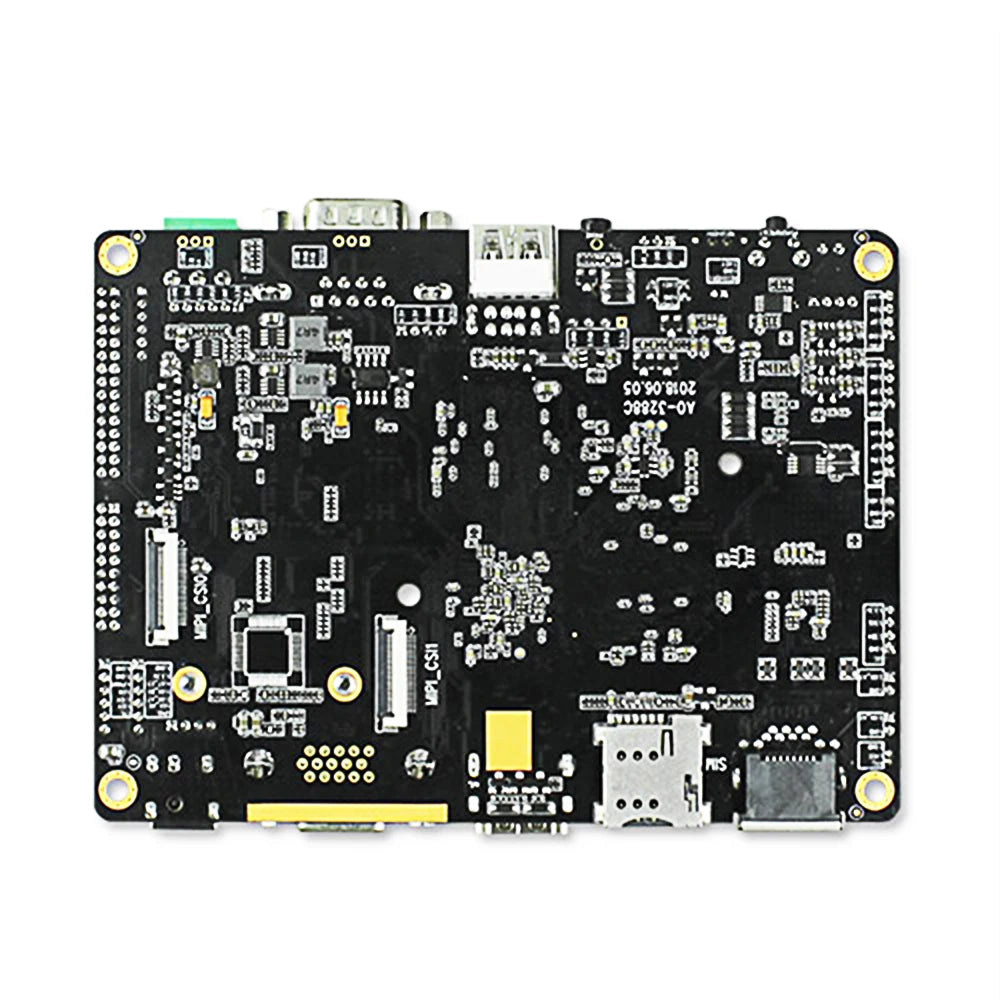

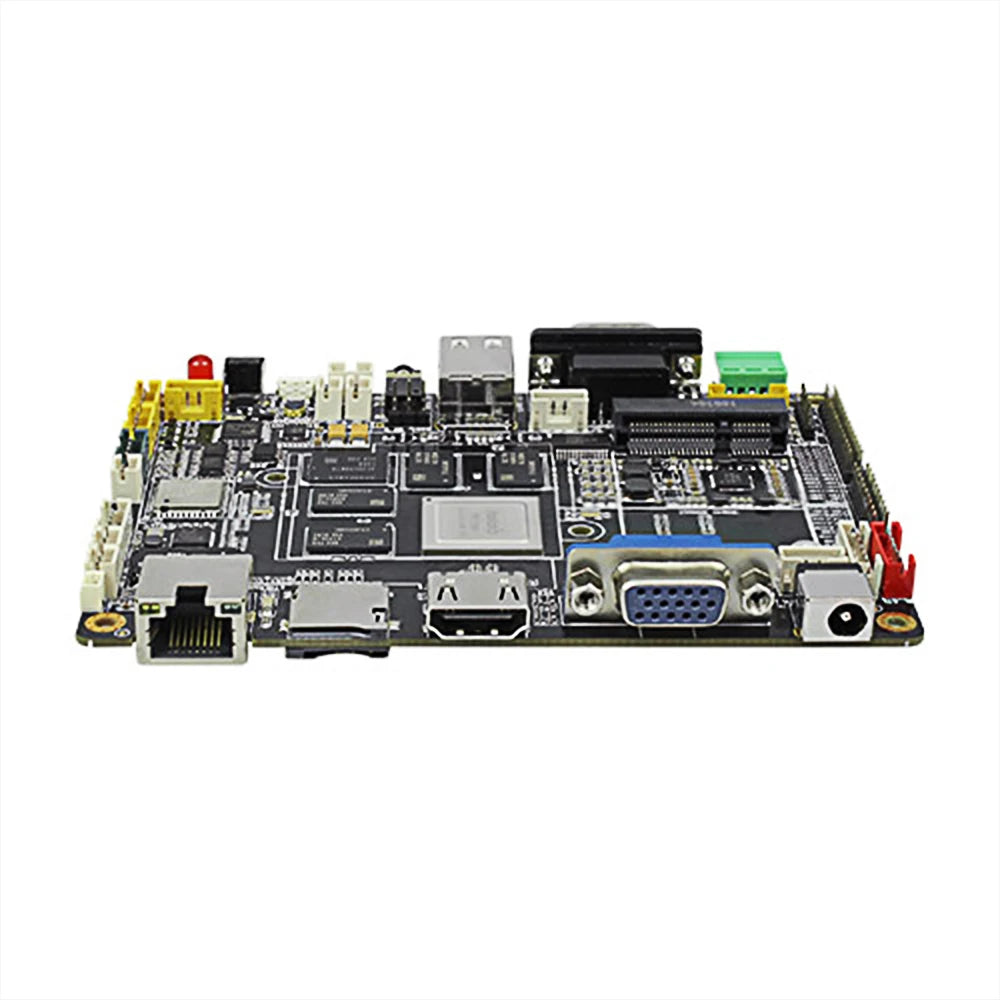

  AIO-3288C

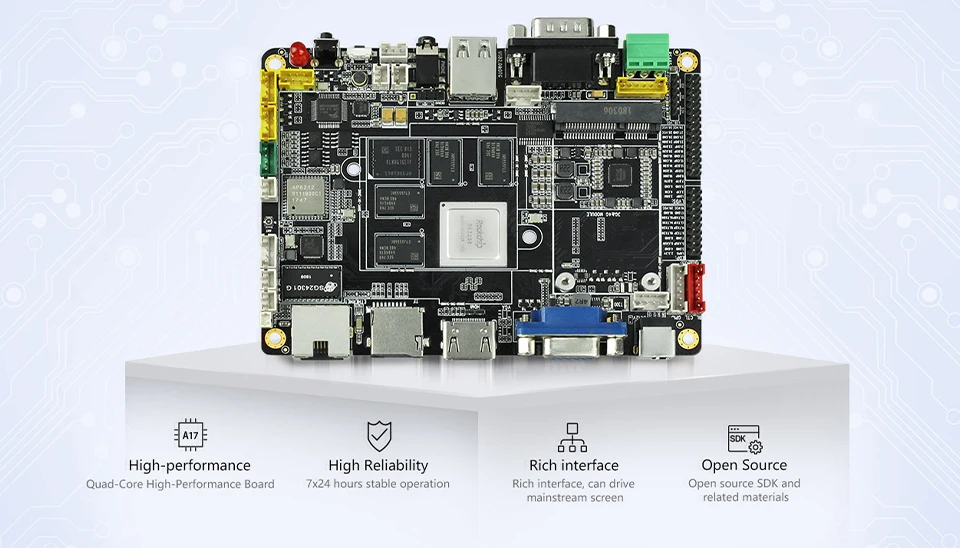

Quad-Core High-Performance Board
Uses RK3288 quad-core Cortex-A17processor, supports 4K hardware decoding, has a rich expansion interface, as well as compatible with mainstream displays. It adopts the immersion gold processand has passed various pressure tests, which can be applied to the productdirectly.

High-performance Core Configuration
AIO-3288C with RK3288 quad-core Cortex-A17 processor, frequency up to 1.8GHz, integrated quad-core Mali-T764 GPU. Its excellent performance makes products more possibilities.

Powerful Hardware Decoding Capability
It supports LVDS/EDP/MIPI/HDMI/VGA display interfaces, 4K hardware decoding, dual-screen identical display/dual-screen differential display, and can drive the mainstream 5~100 inch display directly.

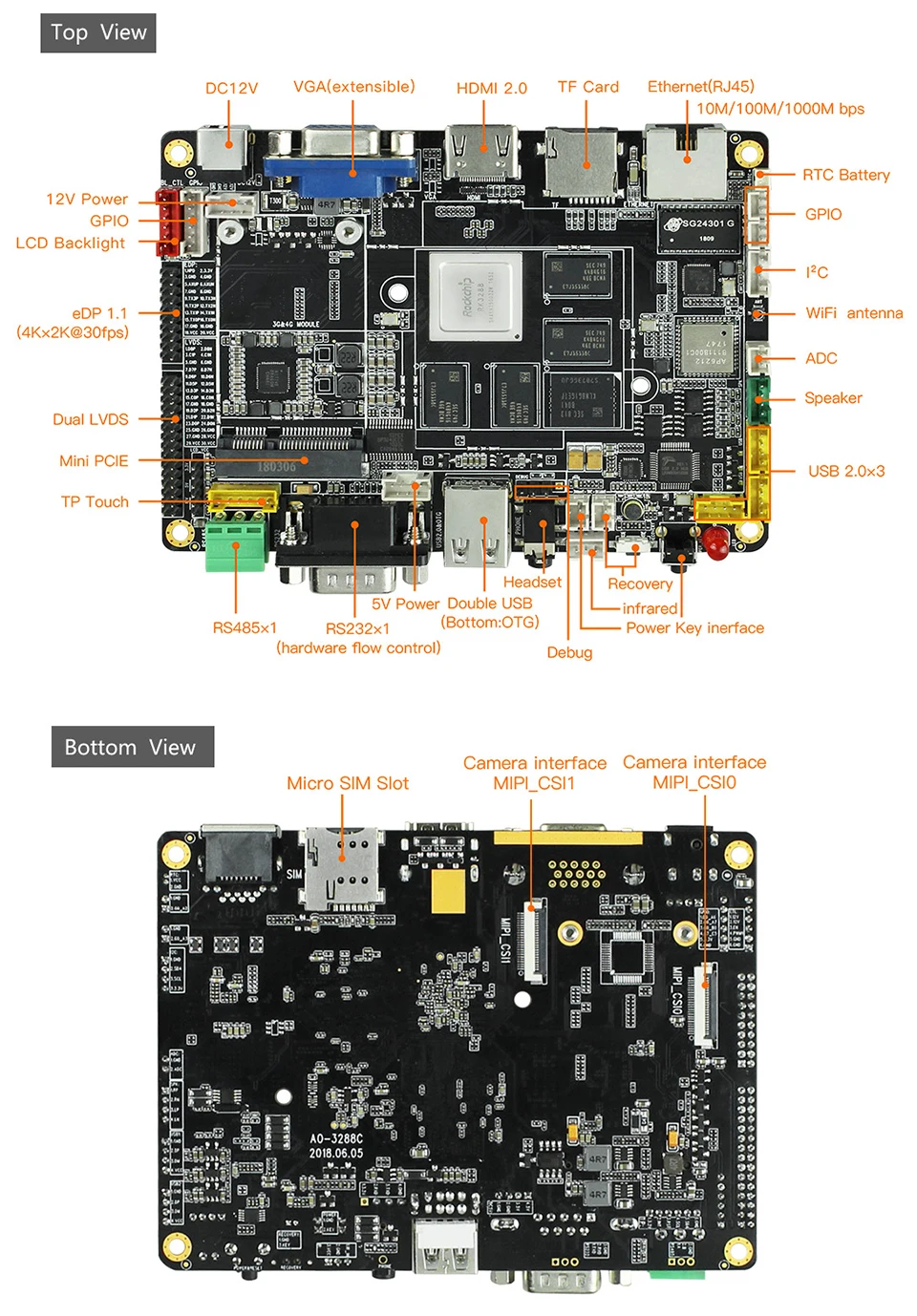

Rich Expansion Interface
With RS232 serial port (hardware flow control), RS485, dual LVDS, EDP, HDMI, VGA (expandable), 2-way CSI MIPI camera interface, 3G/4G LTE (Mini-PCIe) module and other interfaces to meet product development demand.

Open SDK
Open SDK, tutorials, technical materials and development tools to make development easier and more convenient.

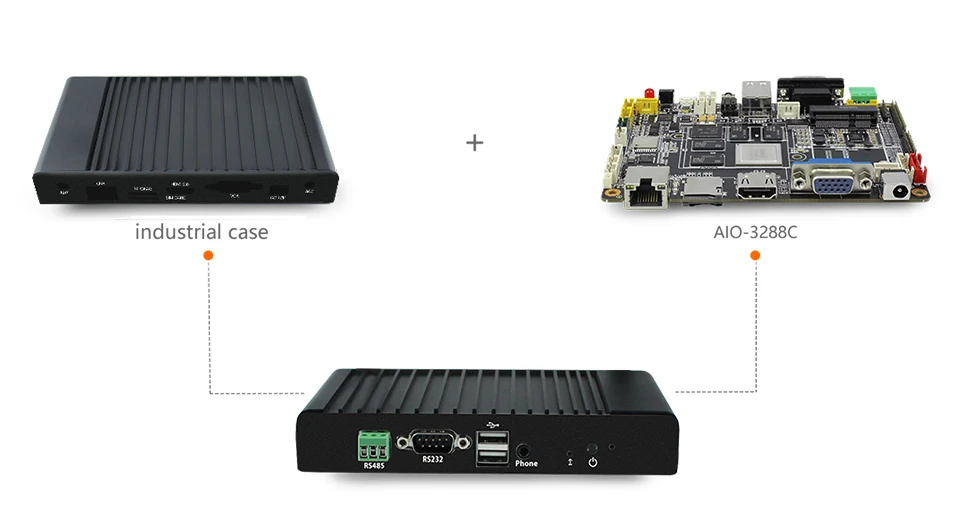

Combined With Case
Combined with the industrial case to embed various smart devices easily.

Application

AIO-3288C can be directly applied to a variety of products. Such as Computing Storage, Smart Robot, Game Equipment, Commercial Display, Medical Equipment, Vending Machine, Intelligent POS, Interactive Printer etc.

  Shipping list
