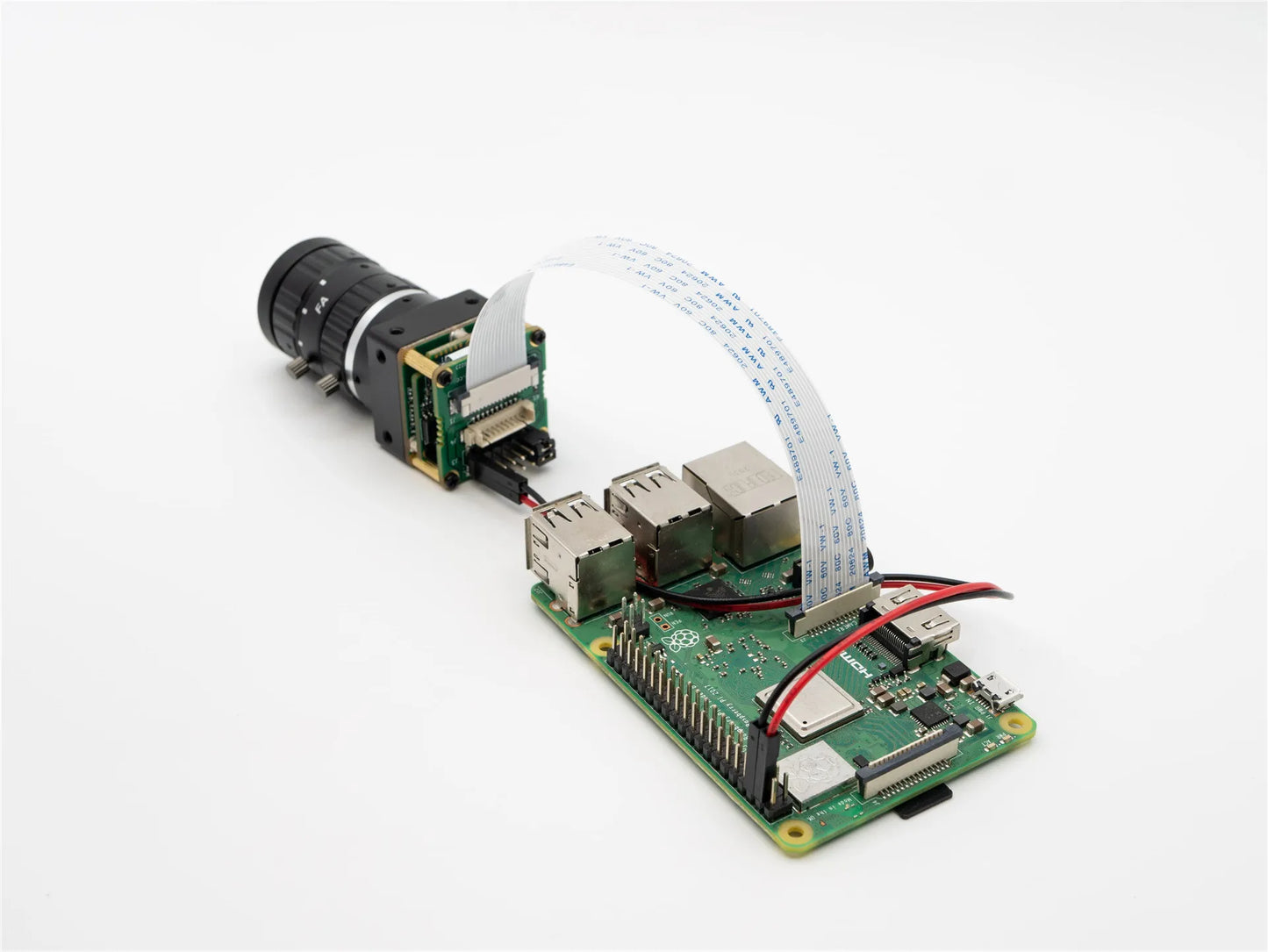

If you want to access Raspberry Pi, jetson nano/nx, please make sure to choose ADP-MV1.
Brief
MV-MIPI-IMX264M is a 5.06M MONO industrial camera with MIPI interface.
This camera has a small size (29*29mm) and rich functions, so it is suitable for integration as an image acquisition component.
Features
-
2/3'' 5.06M Pixel SONY IMX264LLR-C Pregius Global Shutter CMOS SENSOR
-
MIPI CSI-2 Interface
-
Mono-8,Mono-10,Mono-12 Data Format
-
Video streaming mode(Free Running),Trigger mode
-
Hardware and Software trigger source
-
Support trigger frame number, interval, delay, trigger filter function
-
Strobe synchronization
-
ROI
-
USER Output
-
Flexible frame rate settings
Thechnical Details
CAD drawing
-

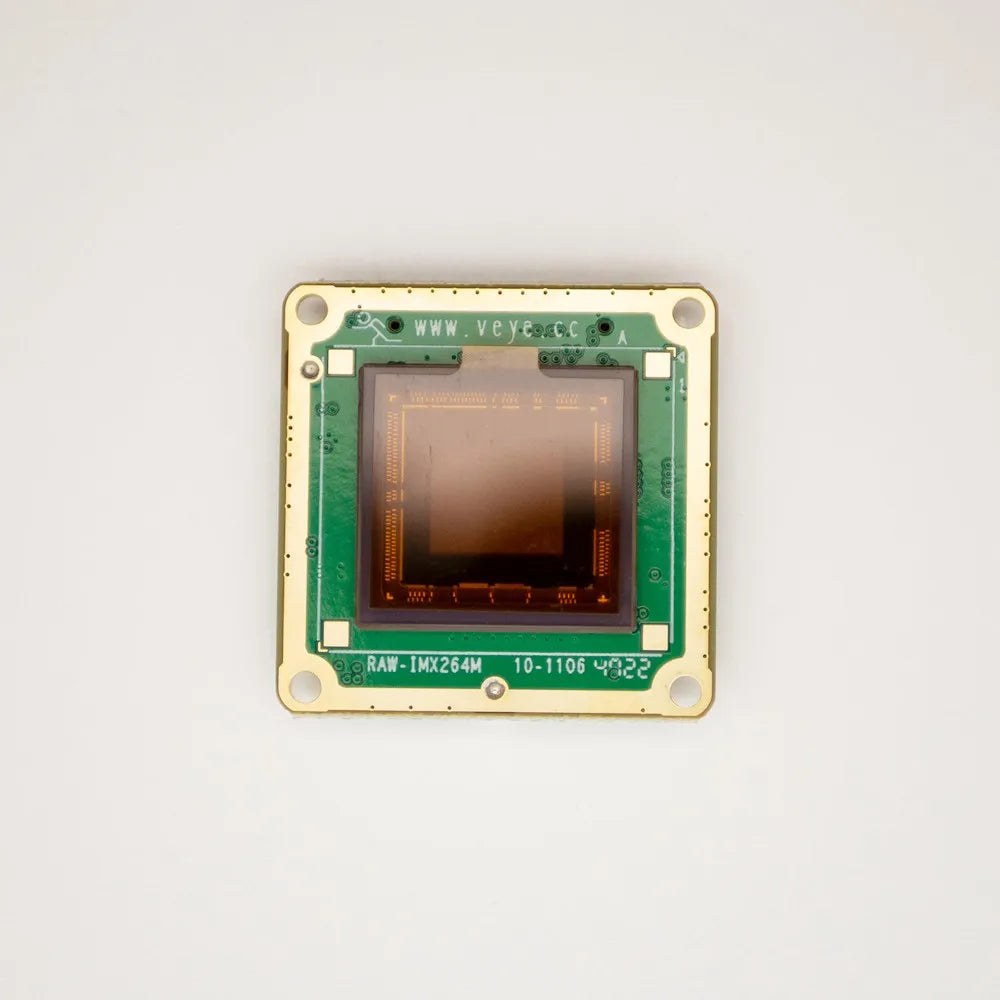

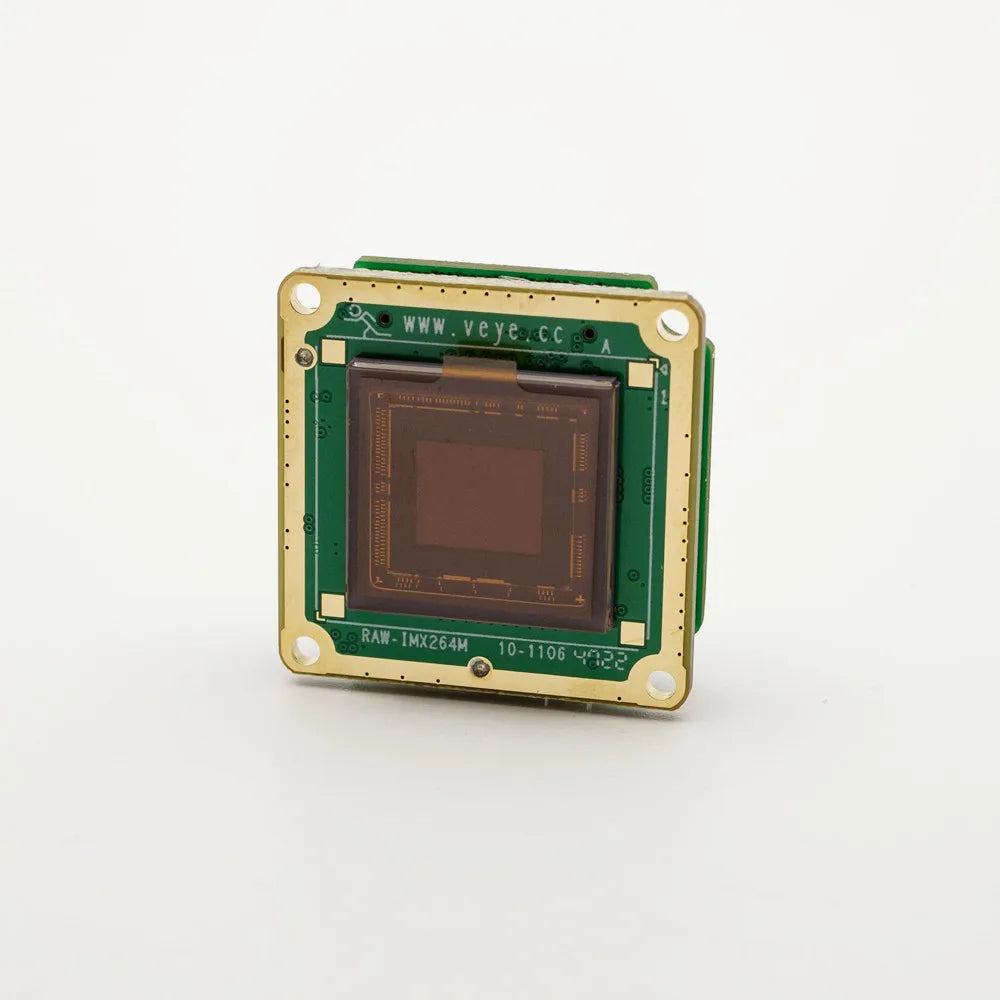

Sensor Board
-

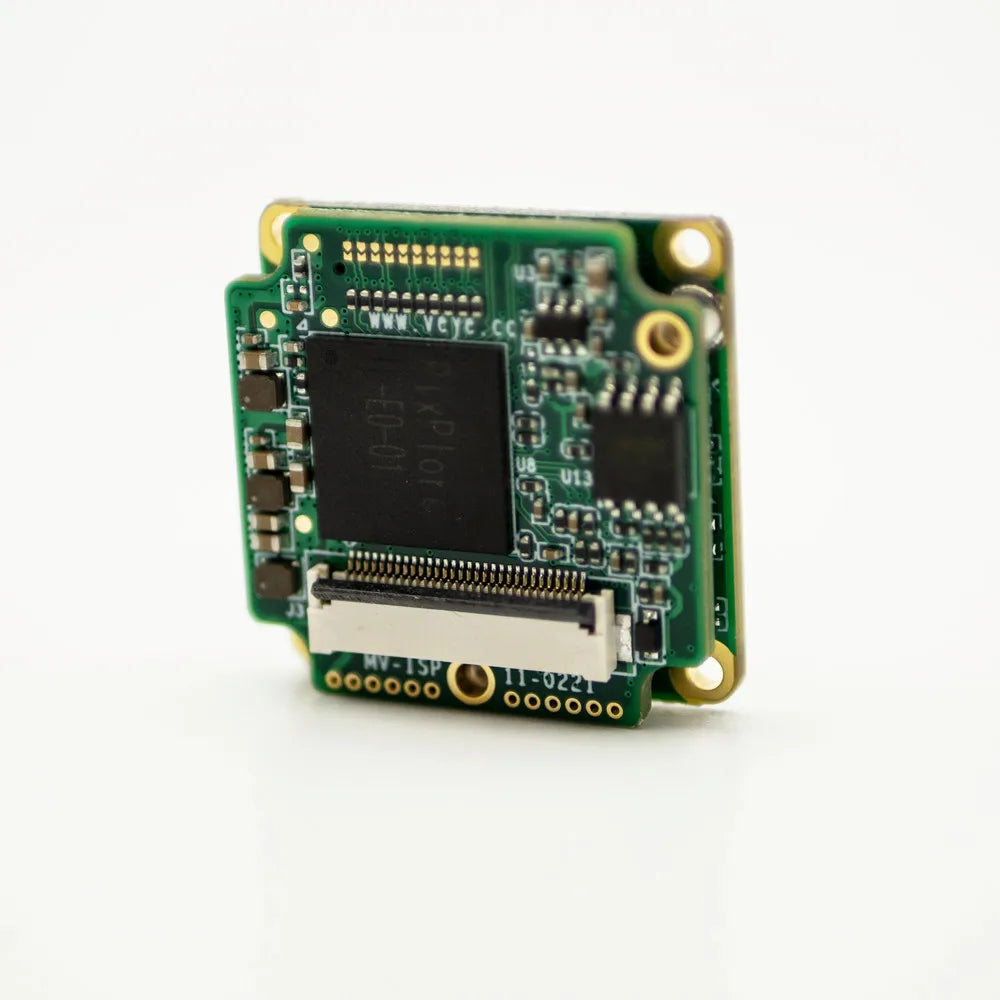

Main Board
-

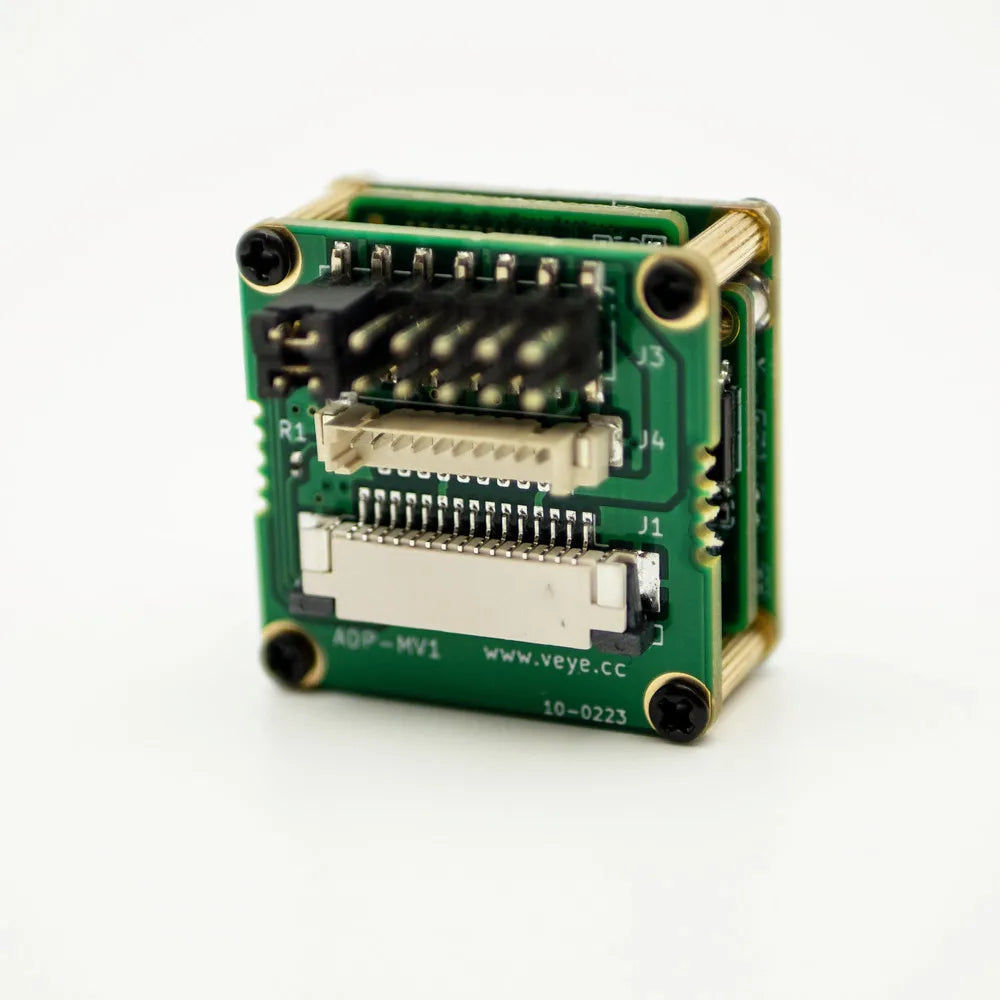

ADP-MV1 Board
-
C-MOUNT01
Lens select
http://wiki.veye.cc/index.php/Machine_Vision_Lenses
Important references links
+ wiki MV-MIPI-IMX264M
http://wiki.veye.cc/index.php/MV-MIPI-IMX264M_Index
+ How to use MV series camera module on Raspberry Pi
http://wiki.veye.cc/index.php/Mv_series_camera_appnotes_4_rpi
+ How to use MV series camera module on NVIDIA Jetson Platform
http://wiki.veye.cc/index.php/Mv_series_camera_appnotes_4_jetson
+ github
https://github.com/veyeimaging
+ website
www.veye.cc
+ Forum
http://forum.veye.cc
Packaging and accessories
We provide all the needed accessories and install them according to your purchase options and reliable packaging. Below is the schematic.
