Custom PCBA 4GB/32GB, 8GB/64GB RK3588 Development Board evk quick starter kit Manufacturer
Custom PCBA 4GB/32GB, 8GB/64GB RK3588 Development Board evk quick starter kit Manufacturer
Regular price
$100.00 USD
Regular price
$0.00 USD
Sale price
$100.00 USD
Unit price
per
Couldn't load pickup availability
Features
* 8K video codec, can support various codec forms;
* ISP3.0 up to 48MP;
* Various video outputs up to 8K@60Hz;
* 4 PCIe3.0 and 3 PCIe2.1, up to 8Gbps;
* Multiple USB3.1 Type-C, can support SATA3.1
* 8K video codec, can support various codec forms;
* ISP3.0 up to 48MP;
* Various video outputs up to 8K@60Hz;
* 4 PCIe3.0 and 3 PCIe2.1, up to 8Gbps;
* Multiple USB3.1 Type-C, can support SATA3.1
| Basic Parameters | | |
| Processor | Rockchip RK3588 CPU: quad-core Cortex-A76@2.4GHz + quad-core Cortex-A55@1.8GHz; NPU: 6TOPS, supports INT4/INT8/INT16/FP16 mixed operating; GPU: • Mail-G610 MP4 • OpenGLES 1.1, 2.0, 3.2, OpenCL 2.2, Vulkan1.2 VPU: Decode: • H.265, VP9: up to 8K@60fps • H.264 up to 8K@30fps • AV1 up to 4K@60fps Encode: • H.265/HEVC, H.264/AVC: up to 8K@30fps | |
| RAM | 4GB/8GB LPDDR4x | |
| ROM | 32GB/64GB eMMC | |
| Power Input | DC 12V | |
| Working Temperature | 0℃ ~ +80℃ | |

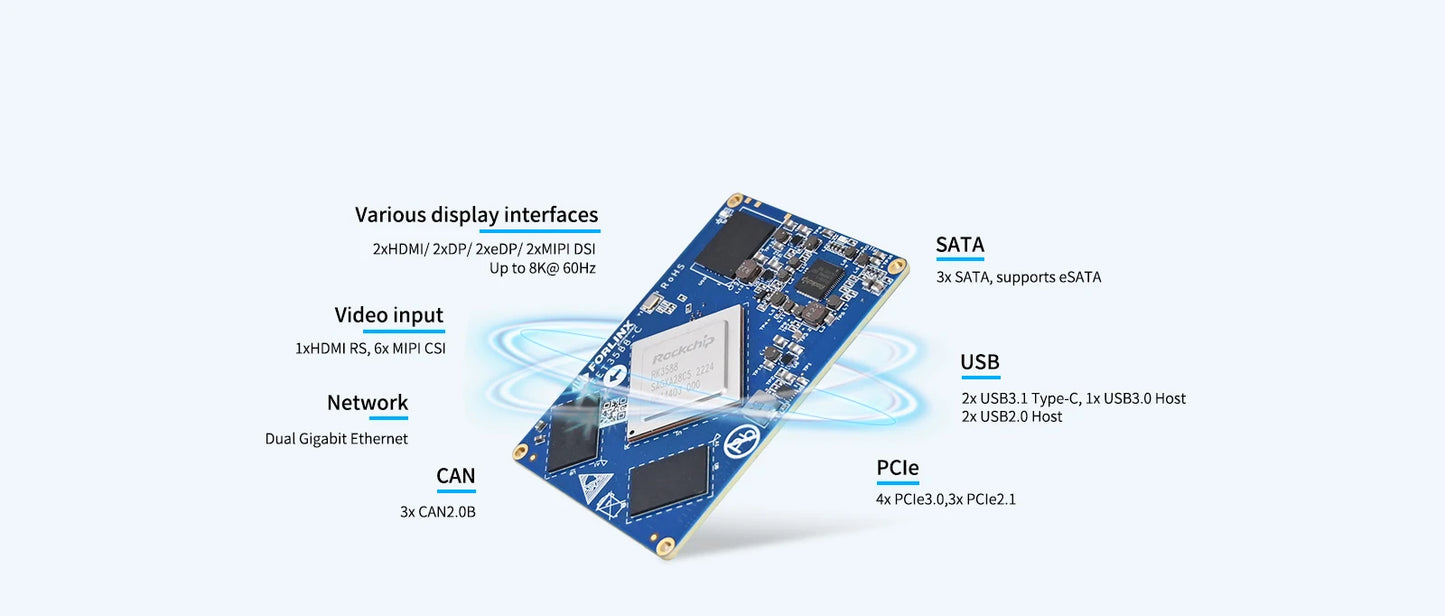

| Package | Board to board connector(4*100pin, 0.4mm pitch, combined height 1.5mm) | |
Specifications

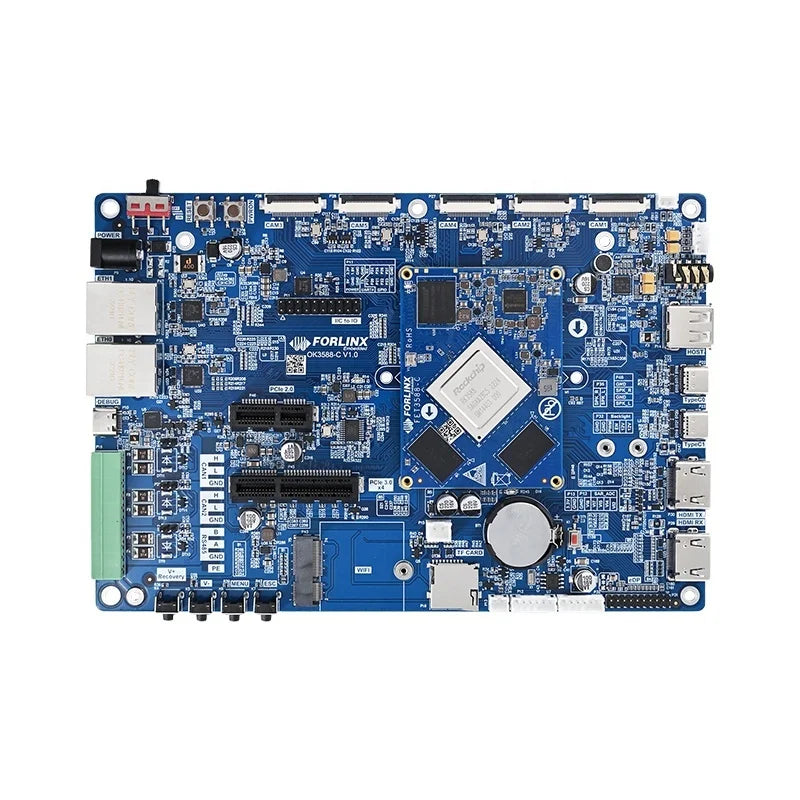

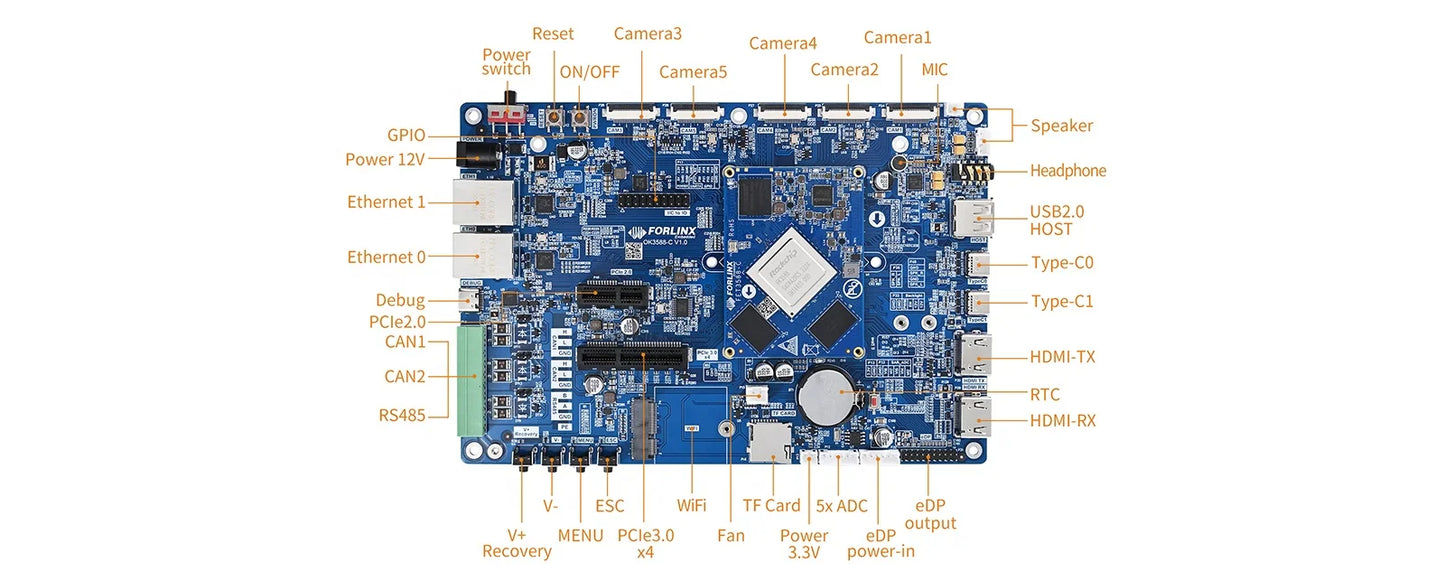

| OK3588-C Development Board Function Parameters | | | ||
| nterface | QTY | Spec. | ||
| MIPI CSI | 5 | · 2x MIPI DPHY V2.0 4 lanes, each lane up to 4.5Gbps; Available on carrier board by 2 26-pin FPC connectors, OV13850 is the default and recommended camera model; · 2x MIPI DPHY V1.2 2 lanes, each lane up to 2.5Gbps; Available on carrier board by 3 26-pin FPC connectors, OV5645 is the default and recommended camera model; · 1 x MIPI DPHY V1.2 4 lanes, each lane up to 2.5Gbps | ||

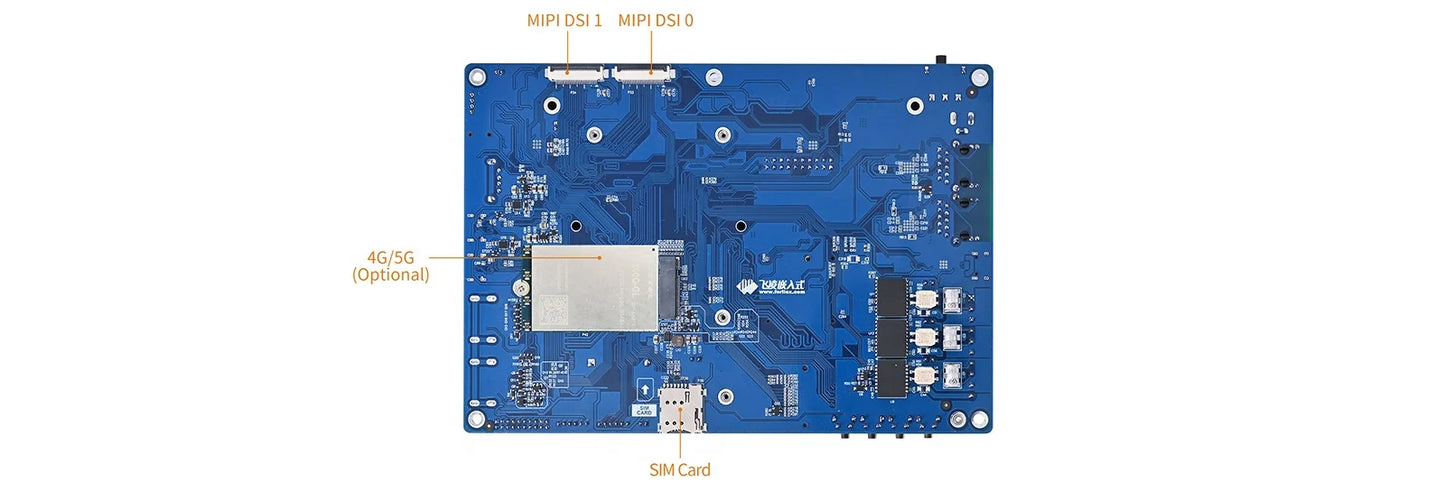

| MIP DSI | 2 | · Each MIPI-DSI supports 4 lanes output, up to 4K@60fps; · Forlinx default option: 7’’ MIPI DSI module, 1024x 600@30FPS | ||
| HDMI RX | 1 | · Standard HDMI connector, up to 4K@60Hz | ||
| HDMI | 1 | · Standard HDMI connector, up to 7680x4320@60Hz | ||
| eDP TX | 1 | · Can fit 1080p@60Hz display; · Up to 4K@60Hz | ||
| DP TX | 2 | · 2 DP used together with USB3.1 Gen1, available on carrier board by Type-C connector; · up to 7680x4320@30Hz; | ||
| USB3.1 Gen1 | 2 | · available on carrier board by Type-C connector; · used together with DP TX, up to 5Gbps | ||
| USB2.0 Host | 1 | · available on carrier board by Type-A USB connector; · supports high-speed(480Mbps), full-speed(12Mbps) and low-speed(1.5Mbps) | ||
| PCIe3.0 | 1 | · 1x4 lanes PCIe signal is available on carrier board by PCIe x 4 slot; · supports 2.5Gbps(PCIe1.1), 5Gbps(PCIe2.1), 8Gbps(PCIe3.0) | ||
| PCIe2.0 | 1 | · By PCIe x 1 slot, up to 5Gbps | ||
| Ethernet | 2 | · RJ 45 connector, 10/100/1000 Mbps | ||
| TF Card | 1 | · Up to 150MHz, supports SDR104 mode | ||
| Audio | 1 | · On-board codec chip, supports earphone output, MIC input and Speaker | ||
| CAN | 2 | · CAN2.0B | ||
| RS485 | 1 | | ||
| UART | 1 | · Headers with pitch of 2.54mm, baud rate up to 4Mbps | ||
| 4G/5G | 1 | · M.2 4G/ 5G module | ||
| WIFI&BT | 1 | · M.2, supports WI-FI 6 SU and MU-MIMO + BT 5.3 | ||
| ADC | 5 | · PH2.0 connector, up to 12-bit resolution and 1MS/ s sampling rate | ||
| RTC | 1 | | ||
| FAN | 1 | | ||
| GPIO | 9 | · Pin headers with pitch of 2.54mm(3.3V) for 9 GPIO and power of 5V/ 3.3V/ 1.8V | ||
