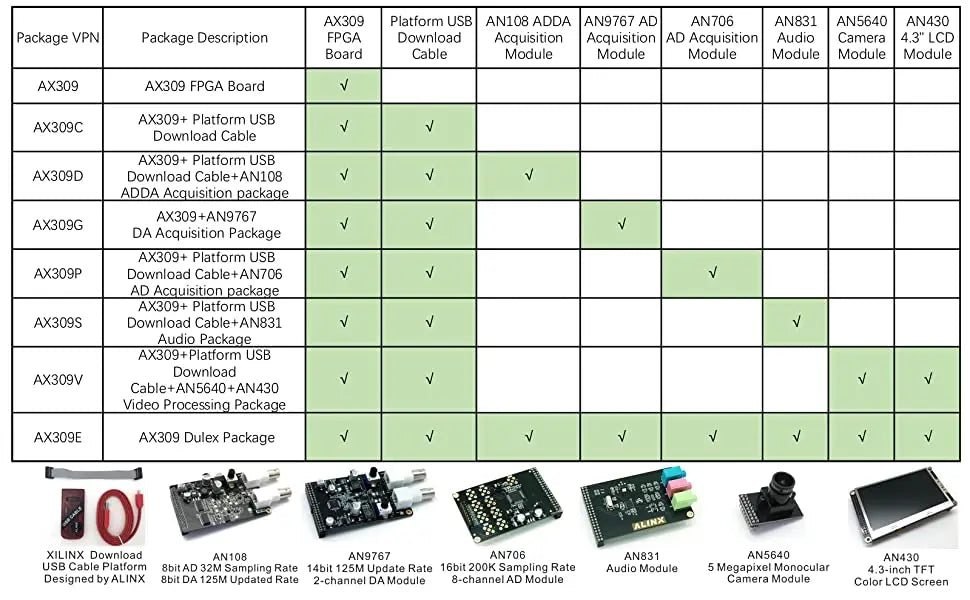

Spartan-6 XC6SLX9 Fpga Development Board, Entry-level for New Beginners Come with AN108 ADDA Module , AN9767 DA Module, AN706 AD Module , Camera and 4.3 inch LCD Module Come with Platform Cable USB (Download the programs) and Mini USB (Power the board) Verilog HDL coding examples, Tutorial, Schematics and User Manual saved in the dropbox. Good documentation and easy to use VGA Port support RGB565 16 Color Format, Fixed Transparent Case to protect components

Product Description

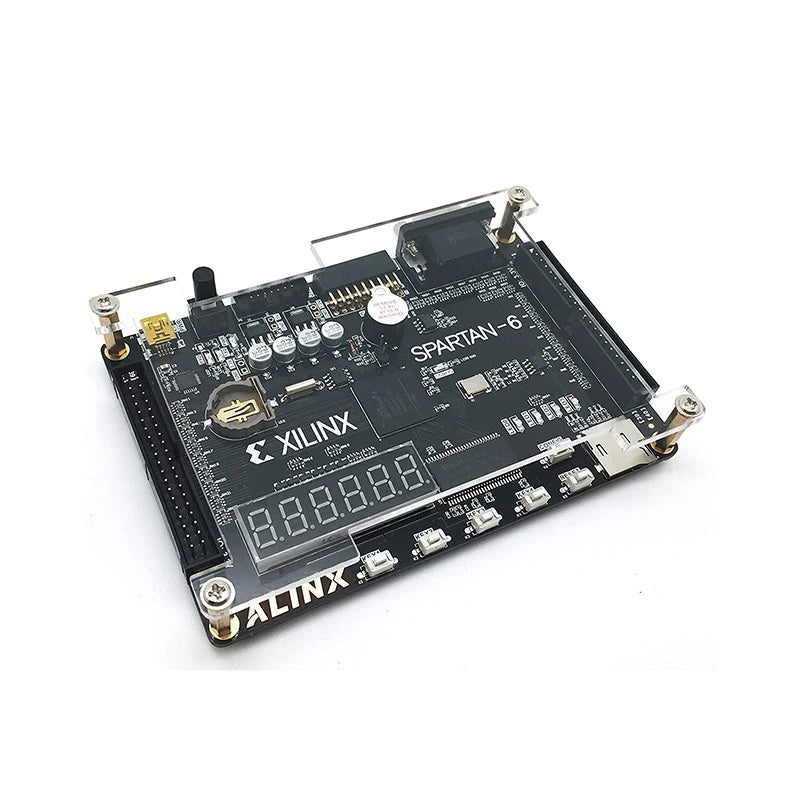

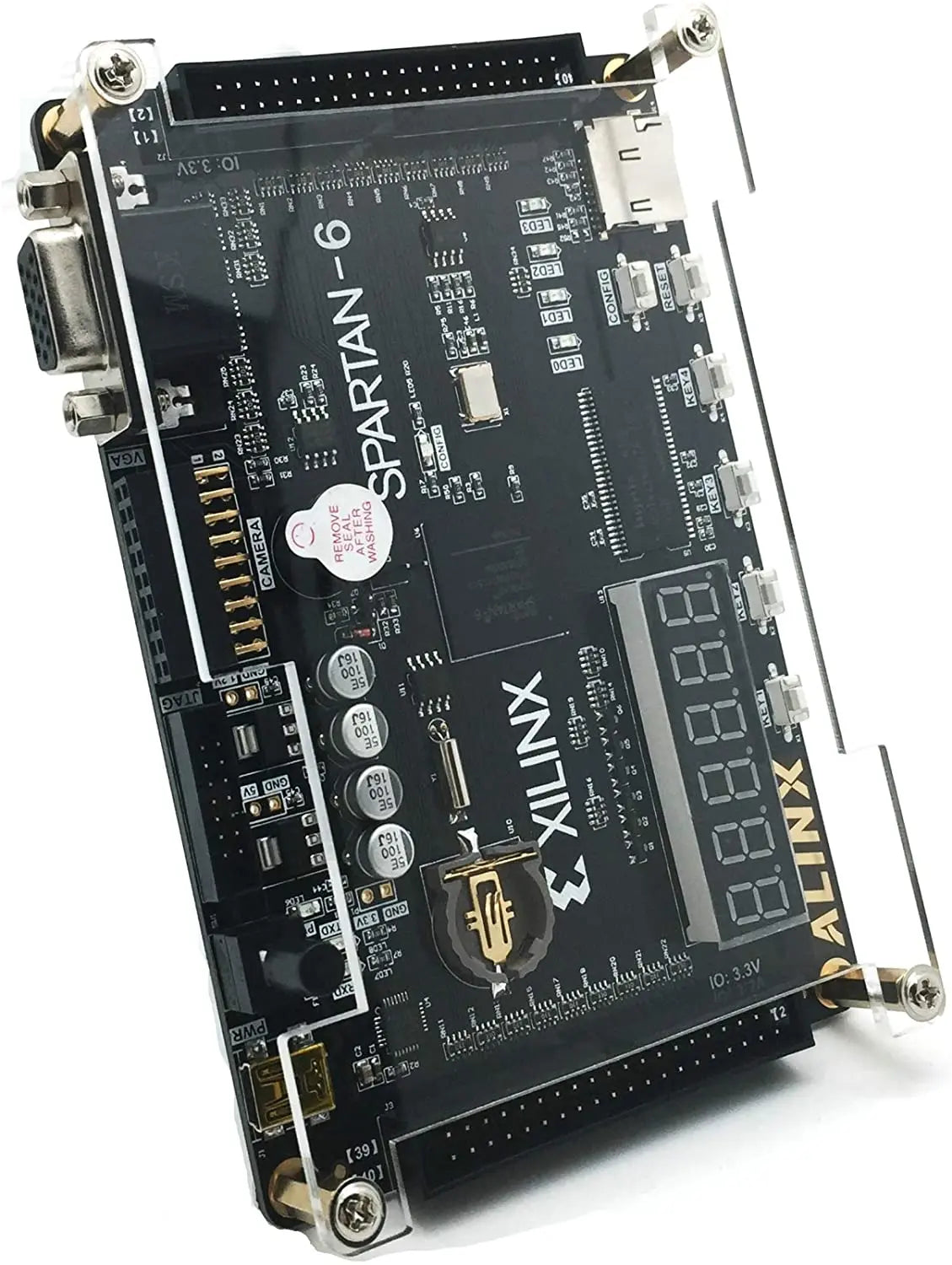

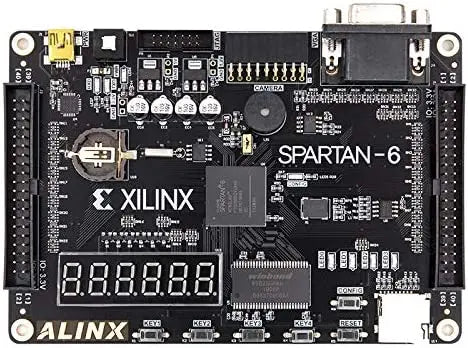

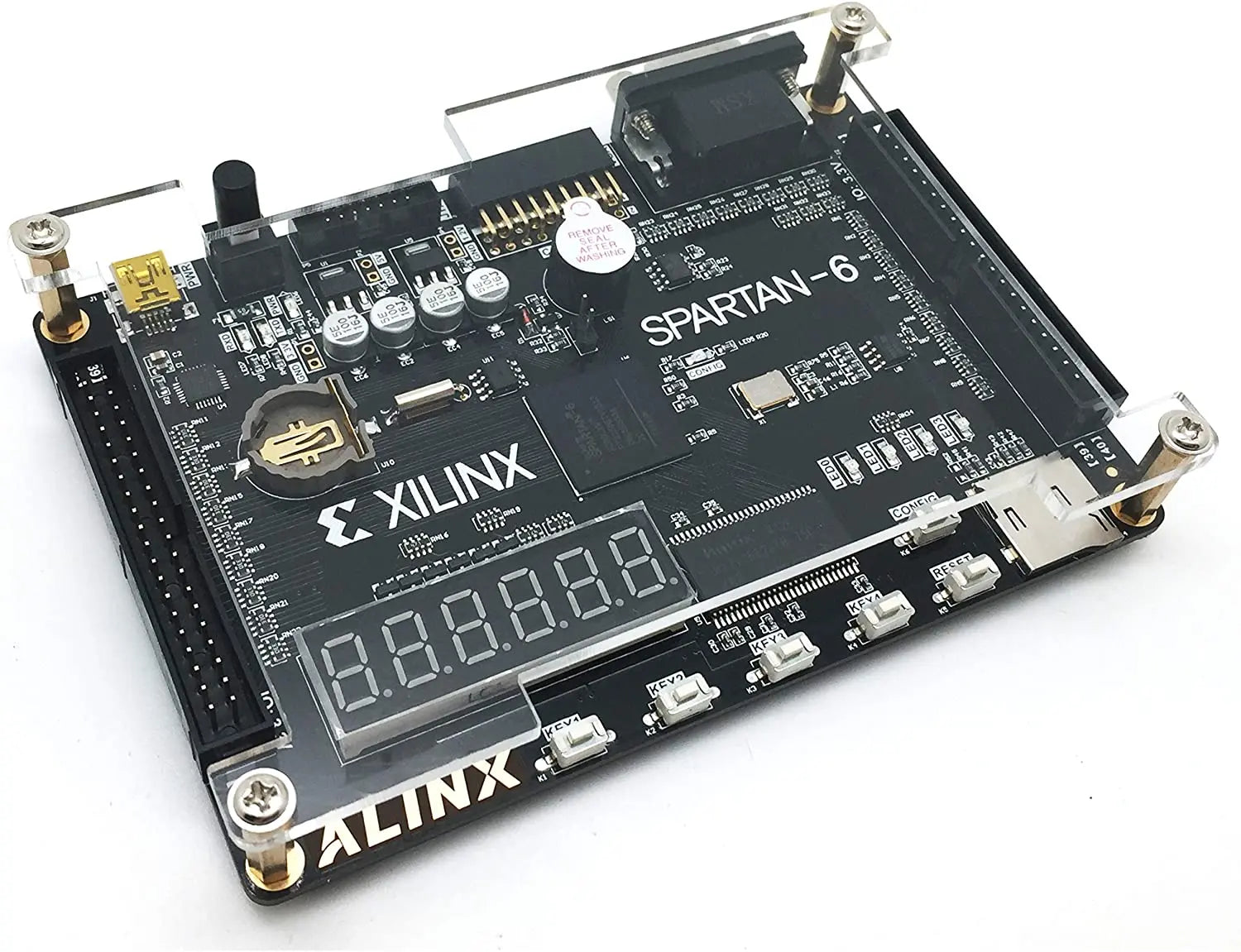

It is an entry-level product, mainly for FPGA beginners, FPGA chip is XILINX SPARTAN6 XC6SLX9-2FTG256C. Expand two 40-pins standard connectors, directly connect ALINX modules, such as ADDA/DA/AD module, LCD screen, audio module, camera module etc. Provide schematic in pdf, PCB in 4 layer in Altium, user manual, verilog HDL demos, Microblaze, software tools and technical support during use it. FPGA: Spartan-6 XC6SLX9-2FTG256C Clocking Fixed Oscillator with differential 50MHz output, used as the “system” clock for the FPGA Memory 256Mbit SDRAM (16M * 16bit), 16bit bus SPI Flash: 16Mbit IIC EEPROM 24LC04: 4Kbit (2*256*8bit) SD Card Slot Communication & Networking USB-to-UART Bridge Connector VGA Video Display interface CMOS cameral module interface Expansion Connectors: 2-port 0.1 inch spacing standard 40-pin expansion headers Configuration: Onboard JTAG header provided for use with ALINX Brand Xilinx download cables such as the Platform Cable USB II Display: 6 Keys, 4 User LEDs, Digital Tube Real Time Clock Buzzer Power: Mini USB interface.
