Build your NAS based on Raspberry Pi 3/4 or Rock Pi 4  with up to 4 HDD/SSD and up to a capacity of 20TB. (depending on your setup)

Dual/Quad SATA HAT utilizes the dual USB3 bus on the Raspberry Pi 4

Features

  • up to 4x HDD/SSD´s - 2.5 or 3.5inch storage is supported

  • utilizes two independent USB3 buses on Raspberry Pi 4

  • 12V DC Type power input for powering 2.5inch drives and Raspberry Pi 4

  • External standard ATX power supply support for 3.5inch HDD´s

  • PWM Fan and heatsink for Raspberry Pi 4 CPU cooling

  • HDD suspend mode supported

  • UASP support

  • Software RAID 0/1/5 support

  • Optional Top board with PWM controlled fan for HDD heat dispatch, OLED display for IP address, storage and status information and function assignable switch

For 3.5inch HDD setups, a 12V 5A DC PS or standard ATX PSU is recommended to power the HDD´s and the Raspberry Pi. With 4x 3.5inch HDD´s the PSU should provide at least 60W or more.

PLEASE NOTE: ! DOES NOT FIT THE PREVIOUS CASE KIT !

For 2.5inch HDD setups the 12V DC 4A power adapter ( >=30W power adapter ) is sufficient to power the disk drives and the Raspberry Pi 4 together.

It is important to mention that the power connector on the SATA HAT must be used to power up the NAS with Raspberry Pi 4.



Performance

The Quad SATA HAT utilizes two high performance JMS561 (one JMS561 for the Dual SATA HAT) and provides up to 400MB/s read/write performance with four disks in RAID0 mode.

Product Content

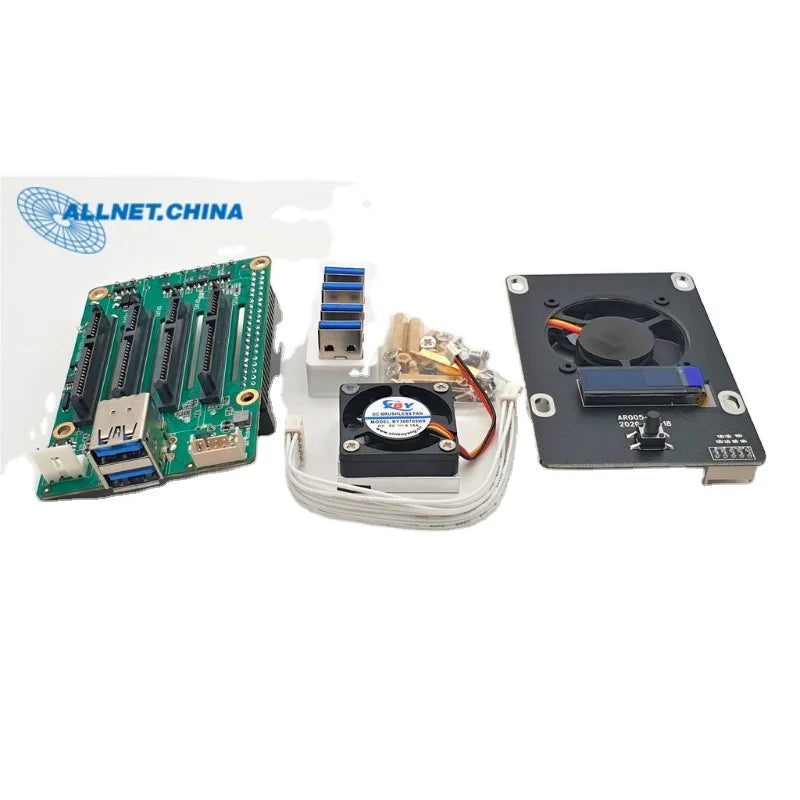

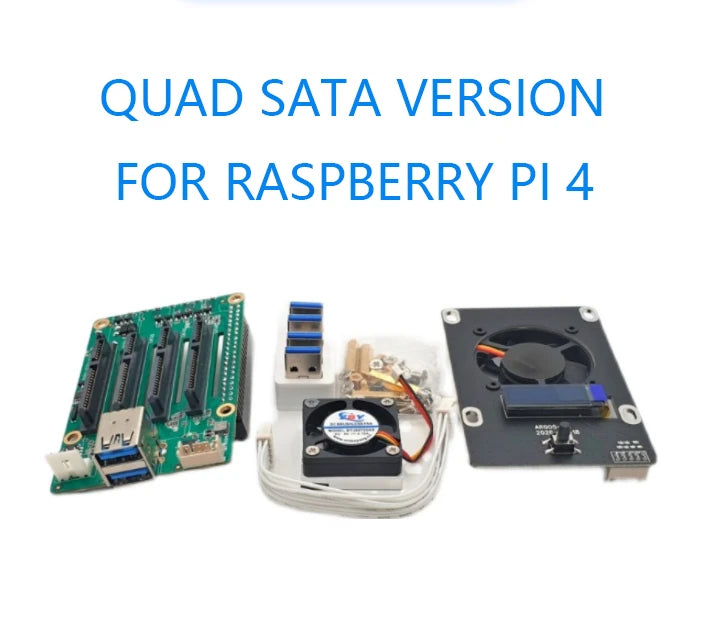

Dual or Quad SATA HAT board
USB3.0 Connection adapter
Screws and brass bolts for mounting the HAT on top of the RASPI4
PWM controlled active heat-sink for the Raspi 4 CPU

optional:   SATA HAT Top Board


What you need to run this NAS?

For 2.5inch HDD operation

12V DC 4A/5A Power adapter
2.5inch HDD/SSD
Raspberry Pi 4 with OS running

For 3.5inch HDD operation

12V DC 5A or ATX PSU > 60W
3.5inch HDDs

SATA cables
Raspberry Pi 4 with OS running

 PLEASE NOTE: ! DOES NOT FIT THE PREVIOUS CASE KIT !



 Welcome Customize Order!
