Custom Custom Mini Electrical Motor Control Switch LED Dimmer Module pcb assembly 94v0 smd pcba custom multilayer pcb Manufacturer

Description:

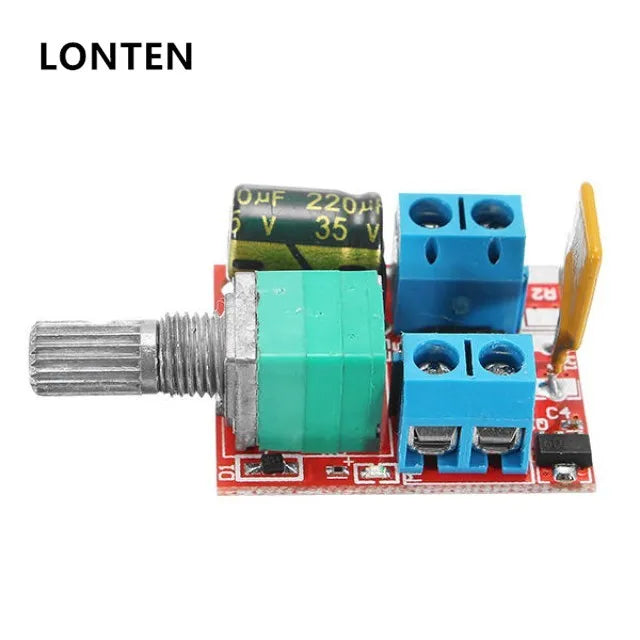

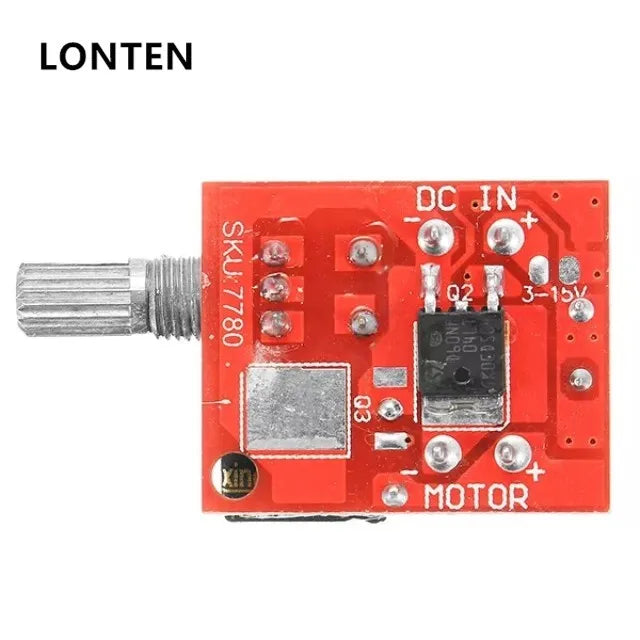

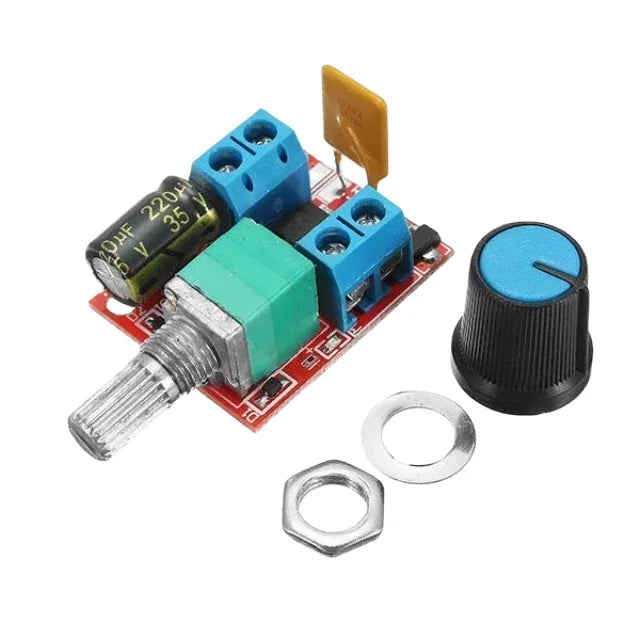

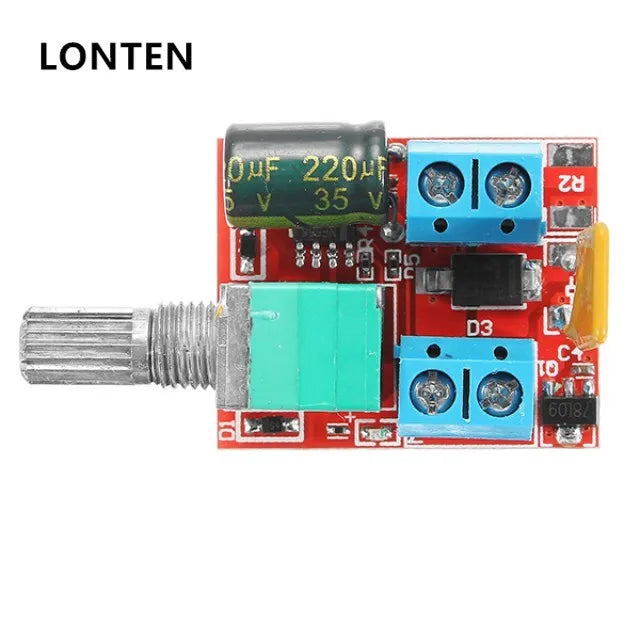

ZS-X4B 90W DC 3V-35V Motor PWM Speed Controller Switch LED Fan Dimmer

Specifications:
: Excellway
Model: ZS-X4B
Operating Voltage: DC 3 V- 35 V
Control Power: 90 W (Max)
Quiescent Current: 0.015 A (Standby)
PWM Duty Cycle: 1% -100%
PWM Frequency: 10khz
Size: 45 x 25 x 15 mm (L*W*H)

Feature:

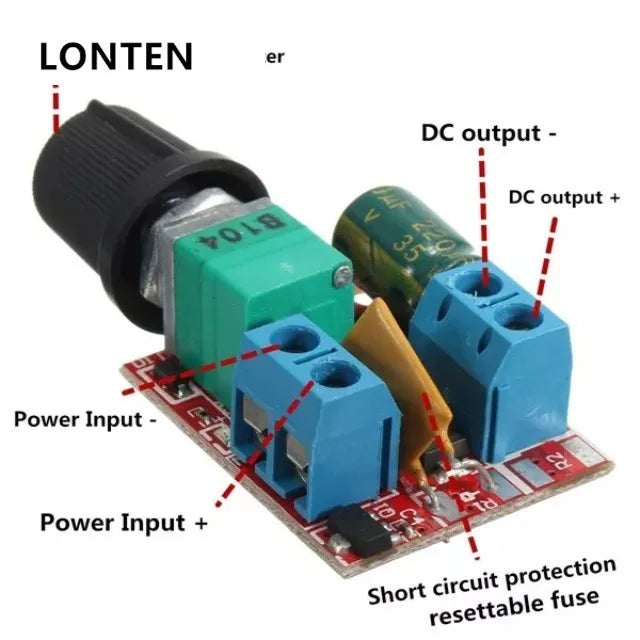

With high voltage and high current resettable fuse, overcurrent automatic disconnection, cooling off a few seconds after the
automatic recovery fuse, almost never have to change a fuse.
