Product features Ultra-clear input, high performance, high configuration, customizable, expandable 4K-HDMIx11080P-HDMIx8 12x1080P or 3×4K simultaneous real-time encoding and decoding 2GB DDR3256MB Nand Flash open source system supports secondary development, expandable touch screen, audio board, battery pack, etc. interface layout performance Parameters core performance Main chip: Hi3531DV100 CPU: ARM Cortex A9 dual-core @1.4GHz Memory: 2GB DDR3 Fl





Product Features





Ultra-clear input	high performance	High profile	customizable	Scalable
4K-HDMIx1 1080P-HDMIx8	12x1080P or 3×4K simultaneous real-time encoding and decoding	2GB DDR3 256MB Nand Flash	Open source system supports secondary development	Expandable touch screen, audio board, battery pack, etc.

---

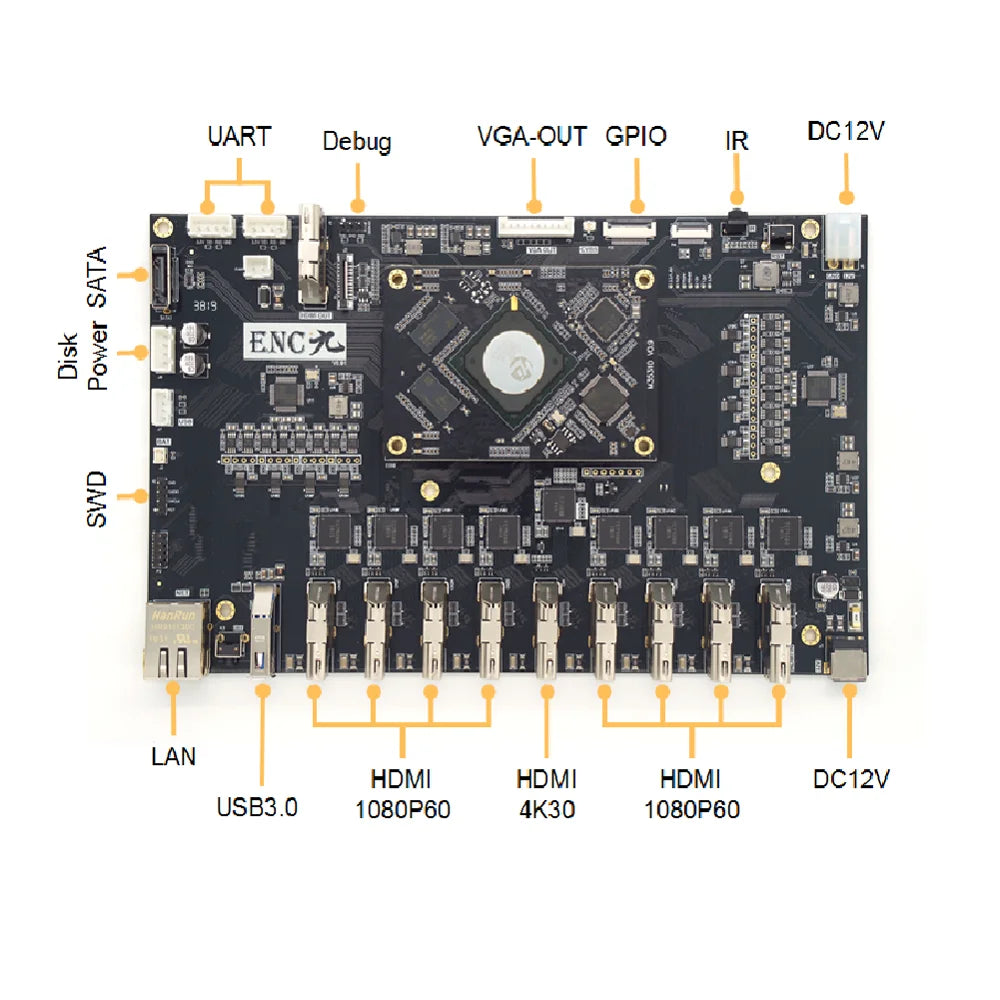

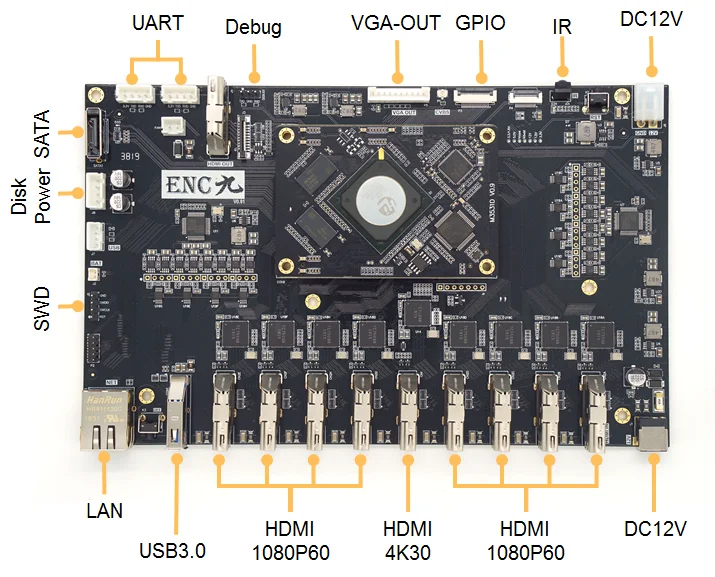

Interface layout









Performance parameter





Core performance

input interface

Output Interface

Codec performance

other

Software function

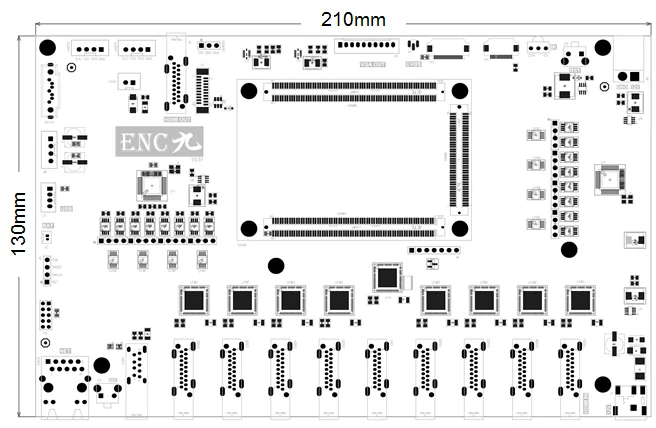

Note: The PCB location map is included in the development data, please refer to the actual measurement.

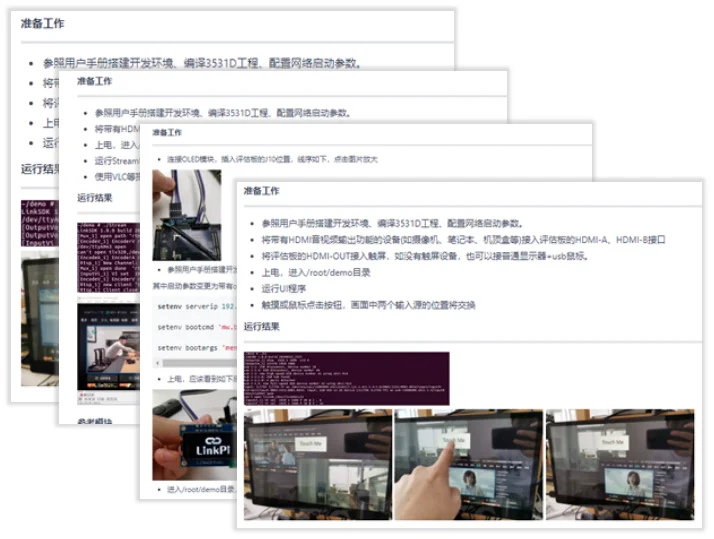

We have carefully produced a wealth of sample tutorials, covering audio and video input and output, audio and video codec, screenshots, streaming, recording, video mixing, special effects overlay, USB camera, GPIO operation, power management, touch screen operation, OLED screen control, etc. Links to help you remove all the problems that may be encountered in the product development process. We will continue to update sample projects and tutorials.

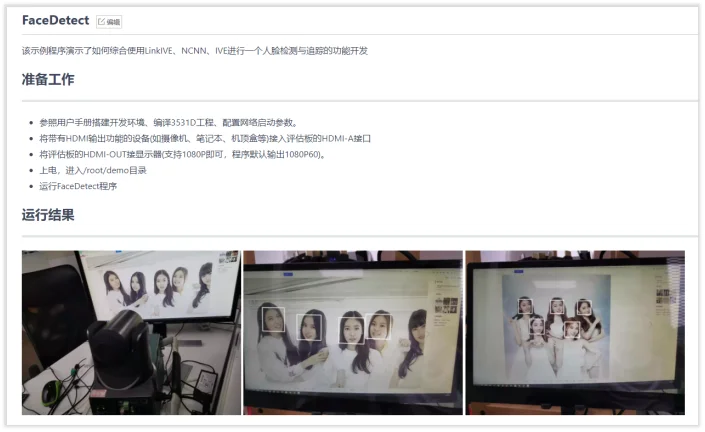

In order to facilitate users to develop products in the field of machine vision and AI, we have developed the LinkSVP framework to simplify the upstream and downstream development process and allow developers to focus on core algorithms. At the same time, several sample programs have been made to help users easily get started. Even in the scheme with NNIE unit, we provide tools for the acceleration of embedded optimization and can also run deep learning algorithms.

We have cross-compiled common third-party libraries and placed them in the virtual machine to facilitate user development and use.

• Development framework: QT5

• Media related: ffmpeg, fdkaac, lame, alsa

• WEB development: php, nginx (nginx-rtmp+http-flv)

• Network related: iperf, ppp, wpa, hostap, iw, libnl, ssl

• Graphics processing: Opencv, NCNN

• Others: freetype, icu, libts, zlib, libxml...

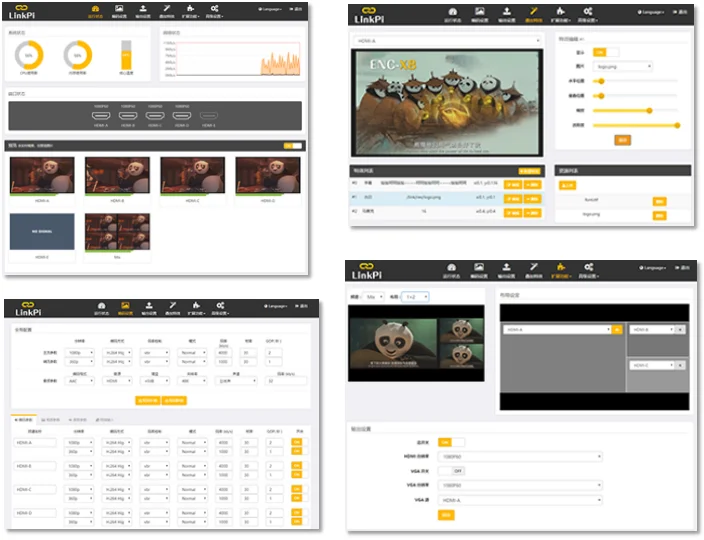

In order to demonstrate the basic capabilities of the evaluation board so that users can fully evaluate the solution before starting to develop it, we have produced an "encoder system" that demonstrates all the interface capabilities and codec performance of the solution in the form of a universal encoder. The product is completely open source, including main program source code, file system, webpage source code, etc.
If the user's target product is similar to the open source product, it can be modified directly on the basis of the product source code.
