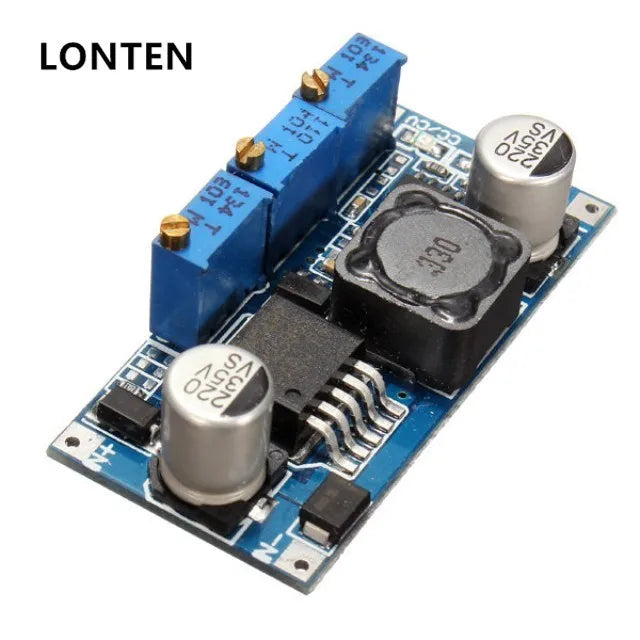

Feature:

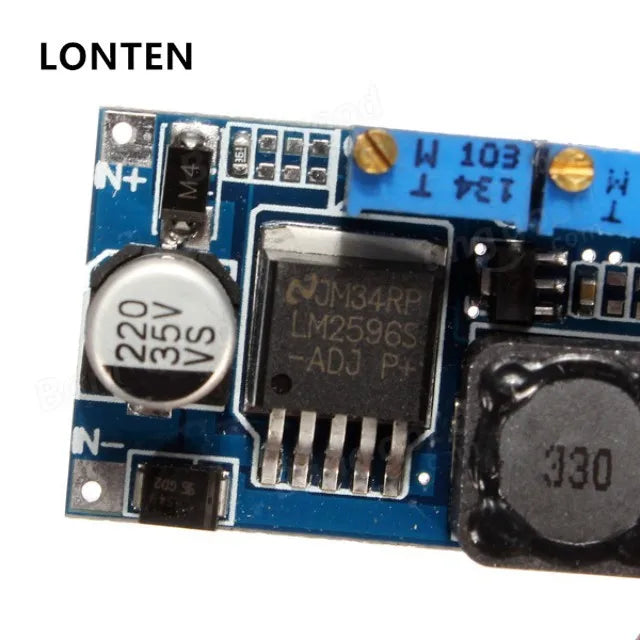

This module uses the LM2596 chip, high efficiency (up to 92%), low heat, can be very easily used to above 3A current, in
conjunction with the original TI op amp control output current, so the overall output is very stable.
This module uses the original Sanyo low ESR filter capacitor, you can make low ripple voltage to 50mV!
This module uses machine placement, reflow soldering.

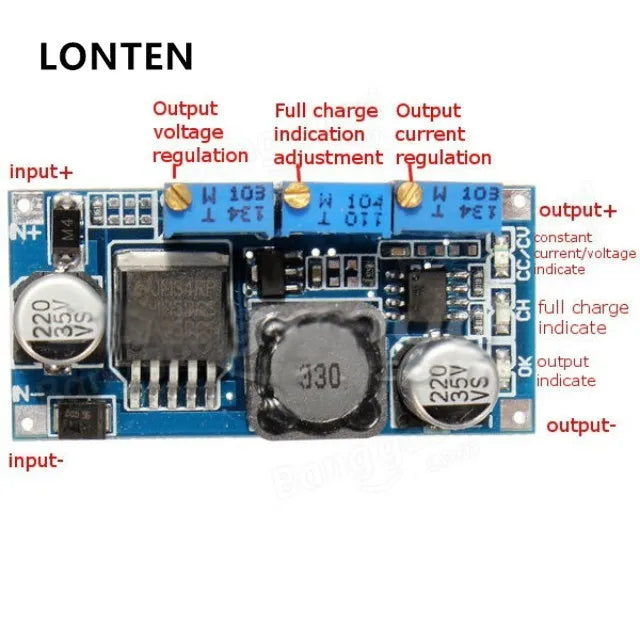

This module is an adjustable buck module, the module can be adjusted from the blue adjustable resistor to change the output
voltage. Input and output differential pressure is 2V, the minimum can be output 1.23V.

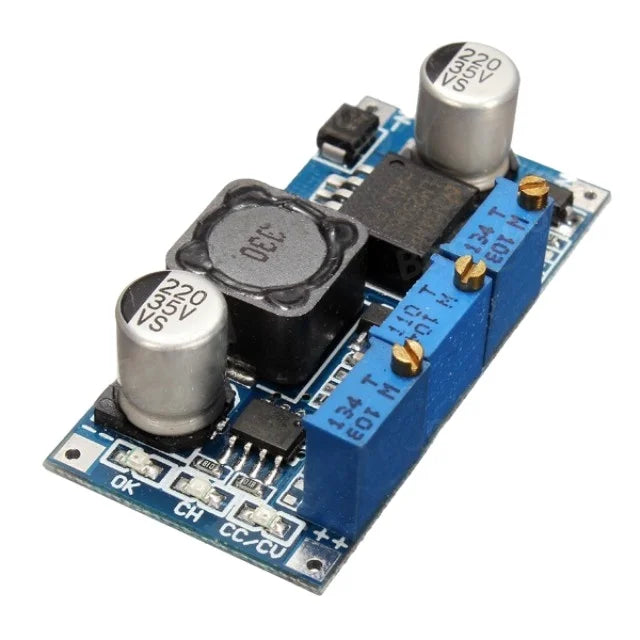

Module indicated IN - (negative input), IN + (positive input), OUT - (negative output), OUT + (positive output), please note must
be correct connected, otherwise may cause damage to the module.

Description:

Nature of the module: Non-isolated step-down module
Rectification: Non-synchronous rectification
Input voltage: 7V - 35V
Output voltage: 1.25V - 30V
Output current: Adjustable, 3A (maximum)
Transfer efficiency: 92% (maximum)
Switching frequency: 150KHz
output ripple: 50mV (maximum) 20M Kbps
Load regulation: ±0.5%
Voltage regulation: ±2.5%
Operating temperature: -40°C to +85°C
Dimension: 48 x 23 x 14mm (L x W x H)
