Custom Custom HC-06 RF Transceiver RS232 With Backplane Wireless Serial 4P 4 Pin Module Board Manufacturer
Custom Custom HC-06 RF Transceiver RS232 With Backplane Wireless Serial 4P 4 Pin Module Board Manufacturer
Regular price
$5.80 USD
Regular price
$5.80 USD
Sale price
$5.80 USD
Unit price
per
Couldn't load pickup availability
Features:
Allows your device to both send or receive the TTL data via technology without connecting a serial cable to your
computer.
Commercial Series: module board Series
With LED indicator light, use 150mA and 3.3V regulation chip.

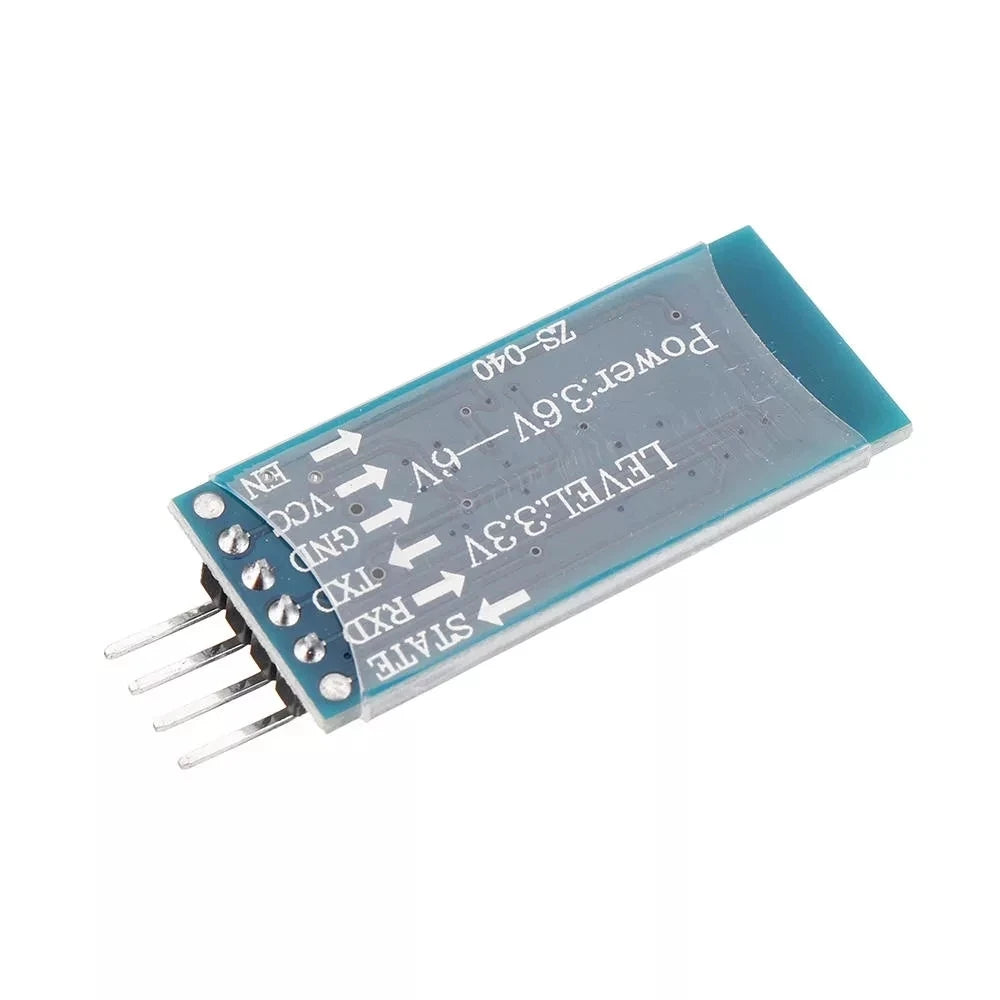

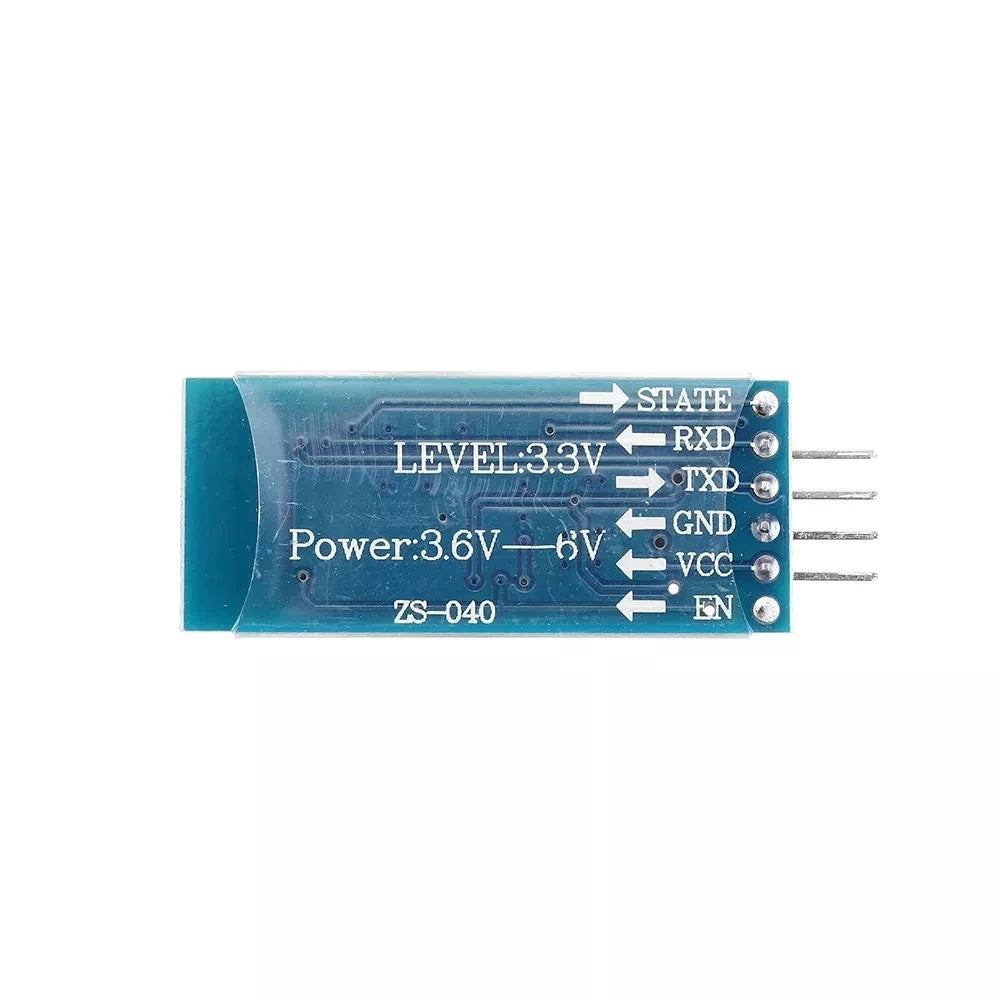

With VCC. GND. TXD. RXD foot
With "Research" (ON/OFF/WAKE foot for it, external MCU output "High level" can control module to research)
Compatible with master module". slave module"or master-slave(whole) module.
Input voltage: 3.3~6V
Size: 1.55 x 3.98cm
Specification:
Works with any USB adapters.
Default Baud Rate: 9600,8,1,n.
Built-in antenna.
Coverage up to 30ft.
version: V2.0+EDR
Operating voltage: 3.3V
Default Baud Rate: 9600,8,1,n.
Signal coverage: 30ft

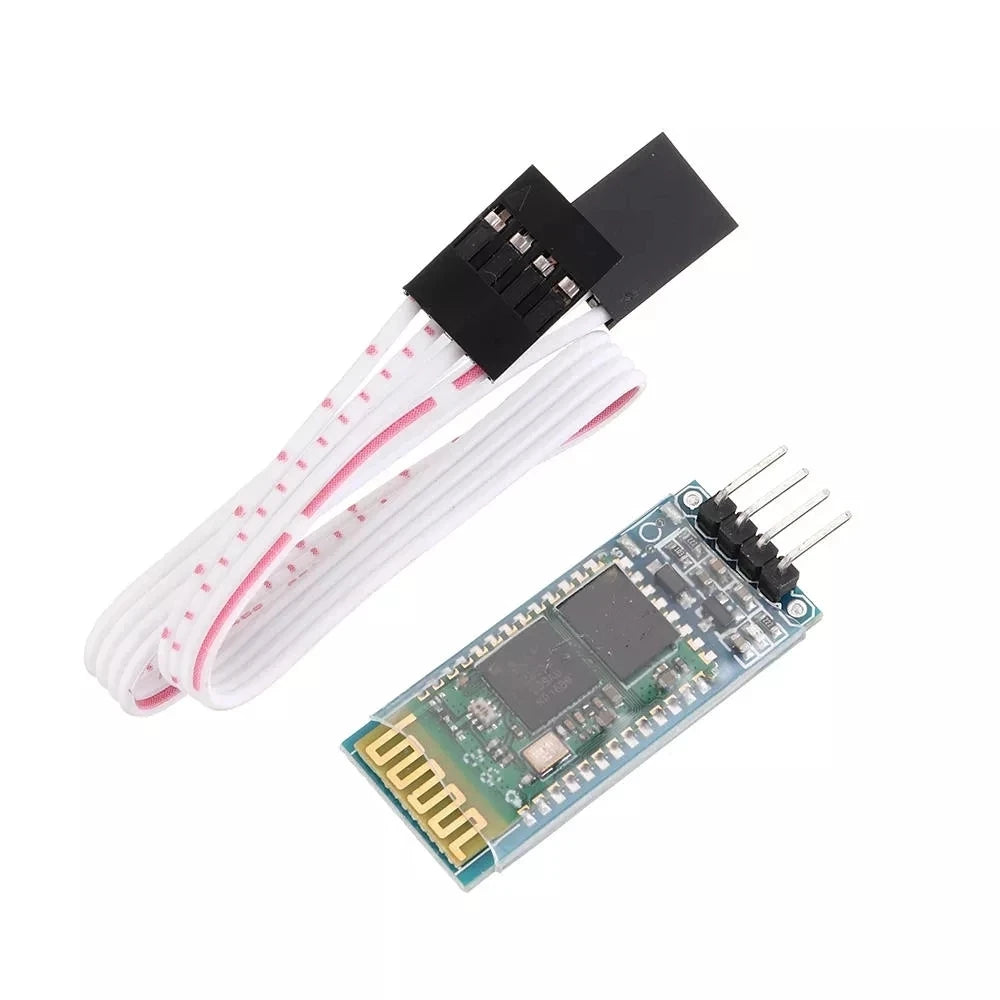

Cable length: about 21.5cm

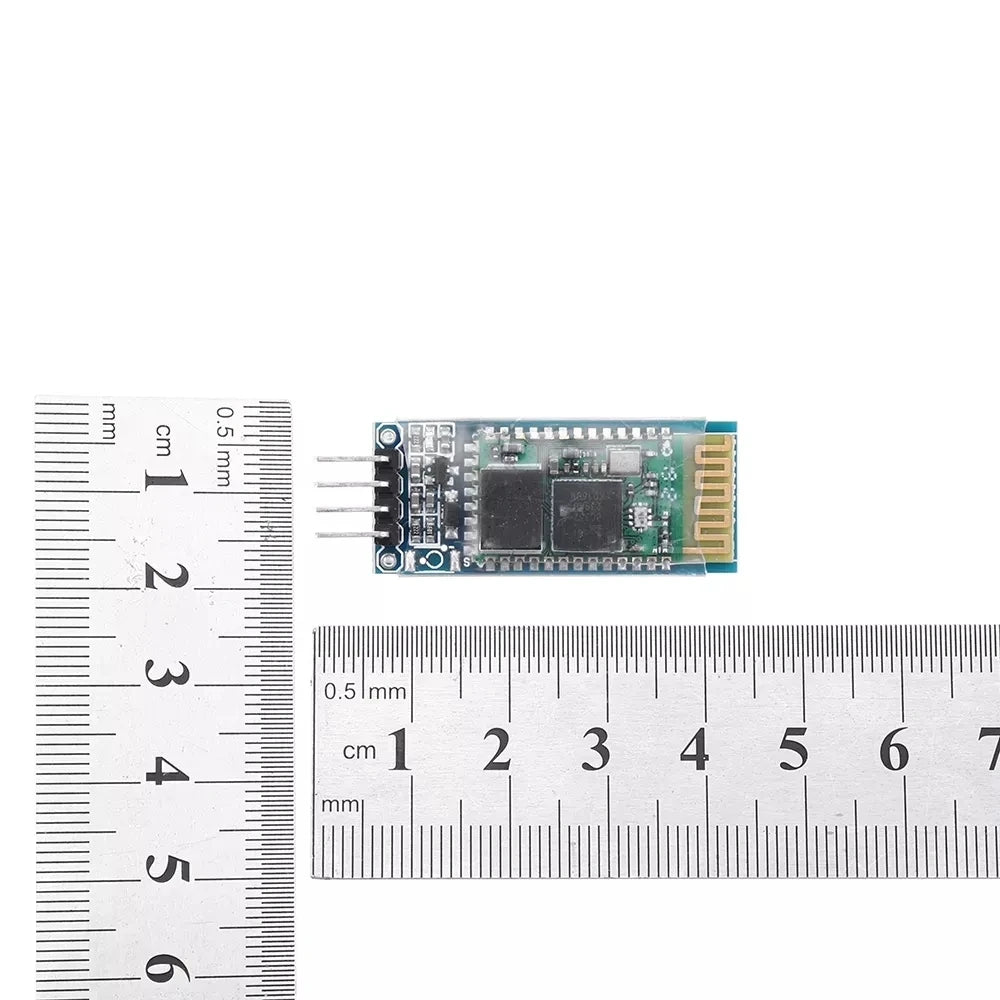

Item size: about 3.5 * 1.5 cm
Item weight: 7g
Package weight: 9g
Note:
input power supply 3.3~6V, Prohibit more than 7V
No "Automatically prevent power supply reversing function", so please correctly connect the power supply
We advise installing " master module"
The "State" is output foot for LED status, when "Unconnected", output "Pulse"; when "connected", output "High
level", we can determine the states from "MCU"
If only the board, No any " Function "
Package includes:
1 x Module
