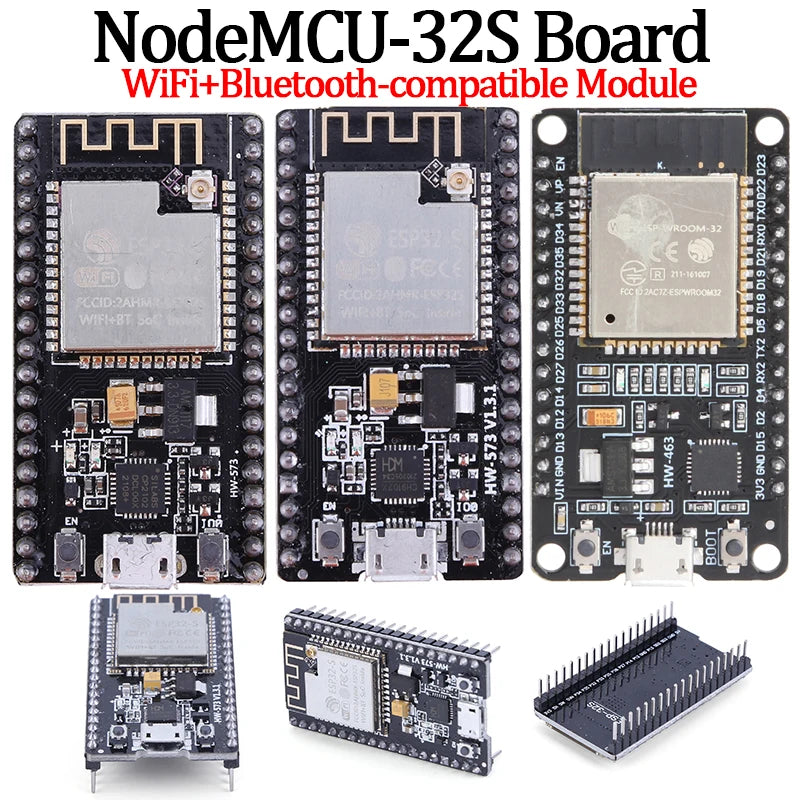

Custom ESP32S Development Board WiFi+BT-compatible Ultra-Low Power Consumption NodeMCU-32S Board Wireless Module 38/30Pin Manufacturer

NodeMCU-32S Development Board Wireless Module WiFi+BT-compatible Serial Port Module Ultra-Low Power Consumption
Feature:
1. Module-based Design: NodeMCU-32S is a core development board designed based on module and inherits the classic design of NodeMCU 1.0, making it versatile for various applications.
2. Versatile Connectivity: The board features a variety of I/O pins that can be connected to external peripherals according to developers' needs, enabling flexible and customizable designs.
3. Easy to Use: With standard headers on both sides, using a breadboard for development and debugging becomes more straightforward and convenient.
4. Low Power Consumption and High Stability: The development board has low power consumption and high stability, making it suitable for long-term use in various applications.
5. Secure Encryption: The board's serial module supports WPA/WPA2/WPA2 Enterprise/WPS encryption, ensuring secure communication between devices.


Specification:
Specifications: HW-573B (CP2102 module), HW-573C (CH9102X) (optional)
Power supply voltage: DC 5V
Packaging size: about 105mm * 70mm * 10mm/4.13inch * 2.75inch * 0.39inch
Packaging weight: 12g
Micro USB power supply
Wireless network and BT-compatible

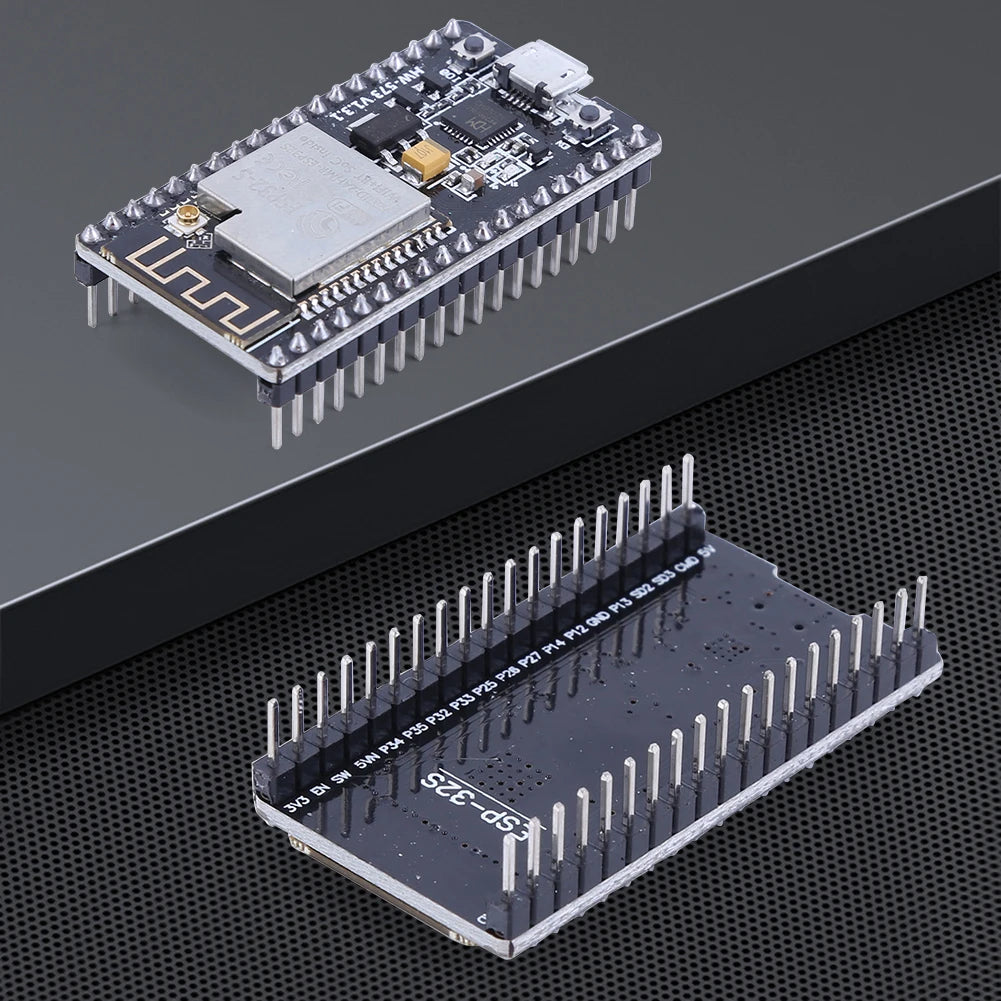

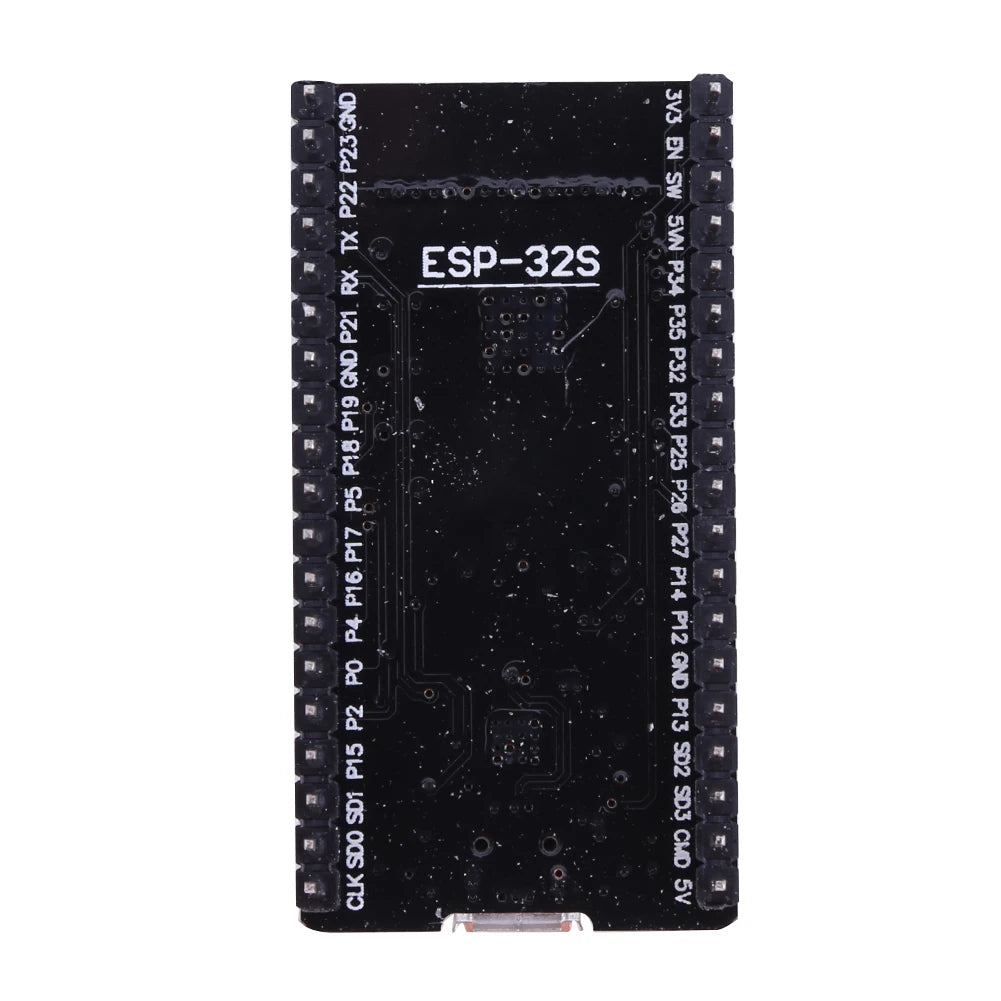

Extract 38 module pins from the board
Supports I2C, SPI, and UART communication protocols
WIFI working mode: 802.11 B/g/N/E/I
Wireless internet frequency: 2.4 GHz
Low power consumption, high stability, and strong universality
Support WPA/WPA2/WPA2 Enterprise/WPS Encryption


Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.



1 x Development Board
