Custom ESP32 4.3inch RGB LCD TFT Module 800X480/480x272 Smart Display Screen WiFi BT-compatible Module 8M PSRAM 16M Flash Manufacturer

ESP32 ESP-WROOM-32 Development Board Dual Core CPU WiFi BT-compatible Module 4.3inch 800x480/480x272 TFT RGB LCD Smart Display Screen 8M PSRAM 16M Flash Module
Feature:
1. Powerful and Efficient: The ESP32 development board features a dual-core MCU, integrated Wi-Fi, and BT-compatible functionality. With a main frequency of up to 240MHz, 512KB SRAM, 384KB ROM, and 16MB flash memory, it provides powerful and efficient performance.
2. High-Quality Display: The board includes a 4.3-inch IPS or TN color screen with 16-bit RGB 65K color display capability, providing stunning and vivid colors. With a resolution of 480x272 or 800x480, it delivers sharp and clear images.
3. Ready-to-Use: This development board comes with factory-installed sample programs, making it easy to use right out of the box.
4. Expandable Storage: The module includes a TF card slot, providing convenient and easy-to-expand storage options.

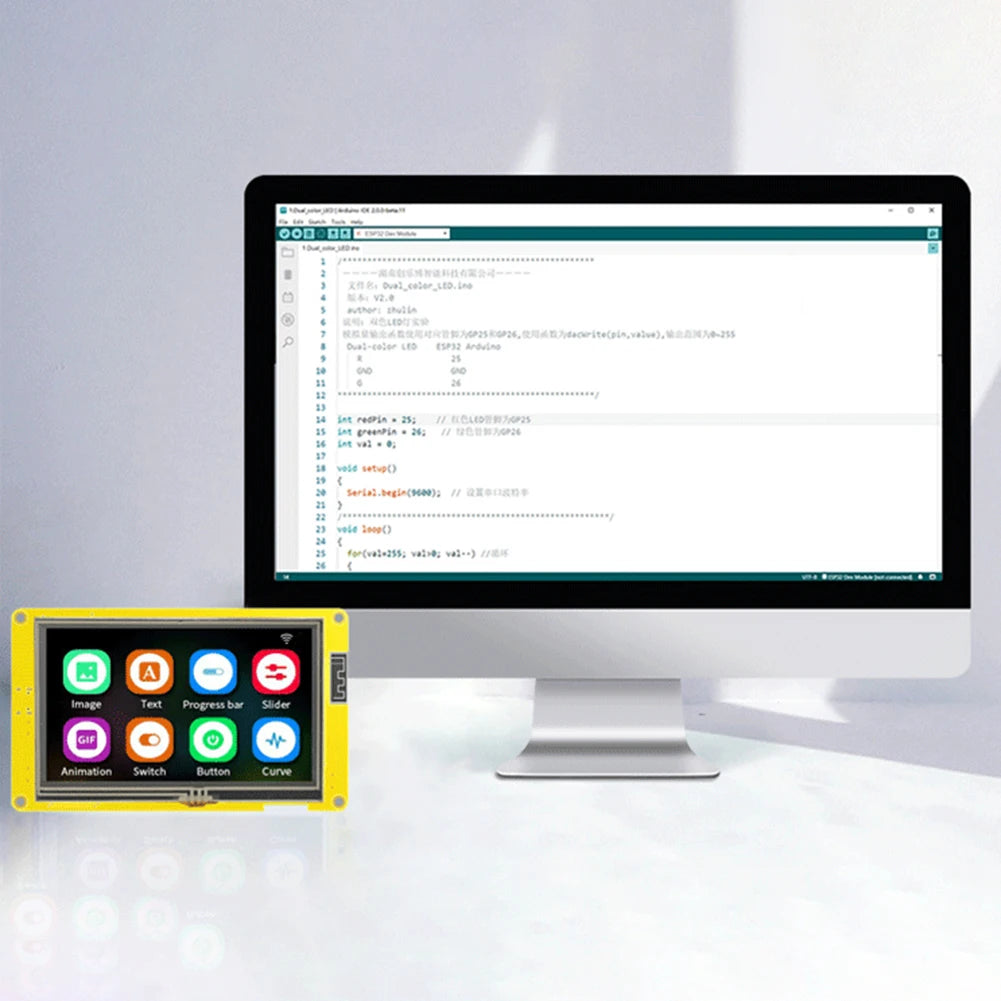

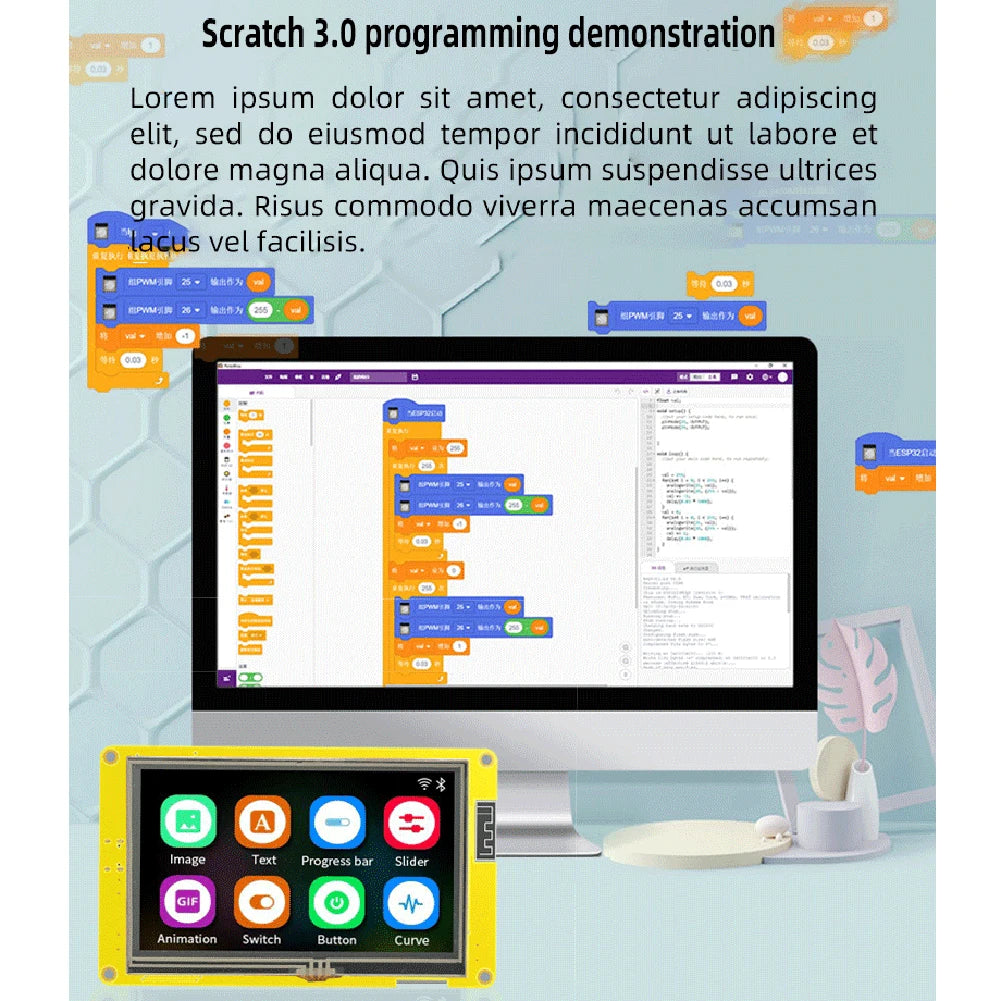

5. Easy to Develop: The board supports programming in the for Arduino IDE, ESP IDE, Micropython, and Mixly. It also comes with an for Arduino library function and sample program, making it easy to develop and customize. Additionally, one-click download ensures quick and easy programming.


Specification:

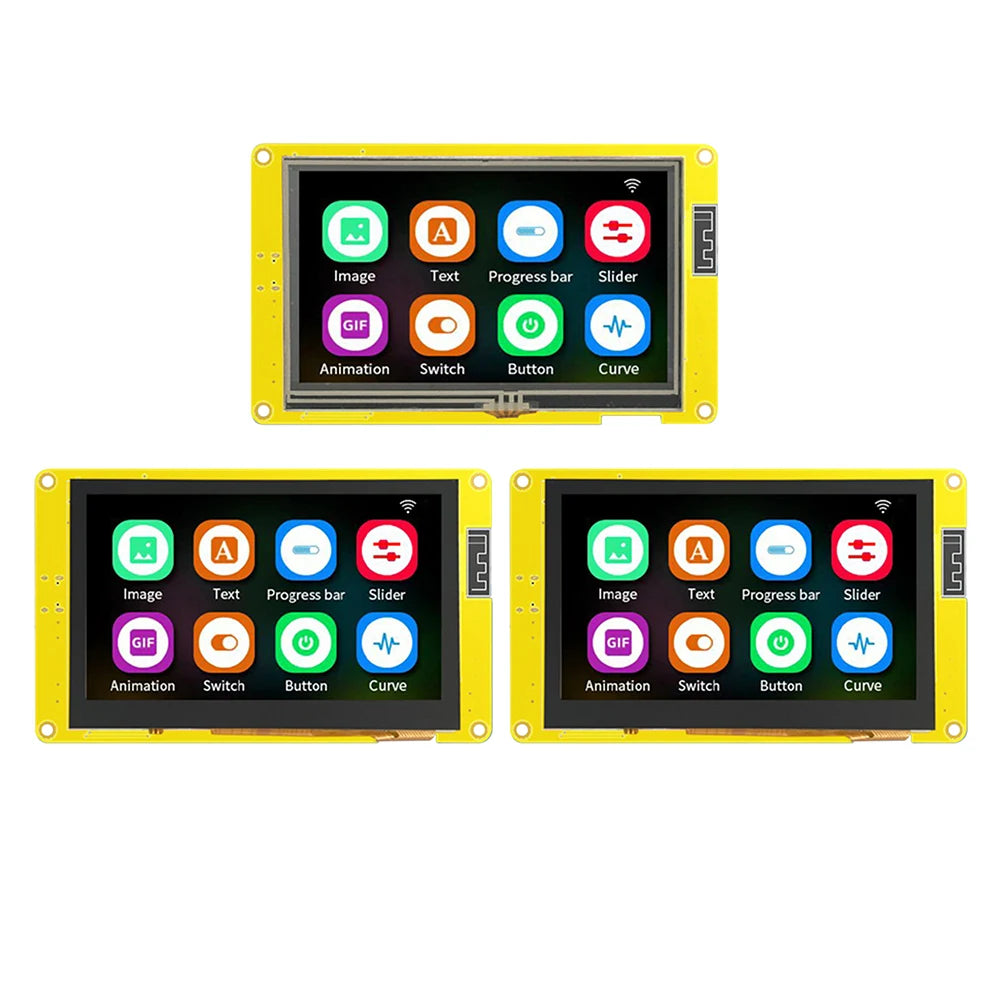

Options: IPS capacitive touch screen, TN resistive touch screen, TN capacitive touch screen (optional)
Resolution (optional):
IPS capacitive touch screen: 480X272
TN capacitive/resistive touch screen: 800X480
Size: 4.3inch
Type: TFT
Display color: RGB 65K
Driver chip: ILI9485
Effective display area: 95.04 * 53.86 (mm)
Perspective:>60 °
Working temperature: -20 ℃~70 ℃
Storage temperature: -30 ℃~80 ℃
Working voltage: 5V
Power consumption: approximately 260mA

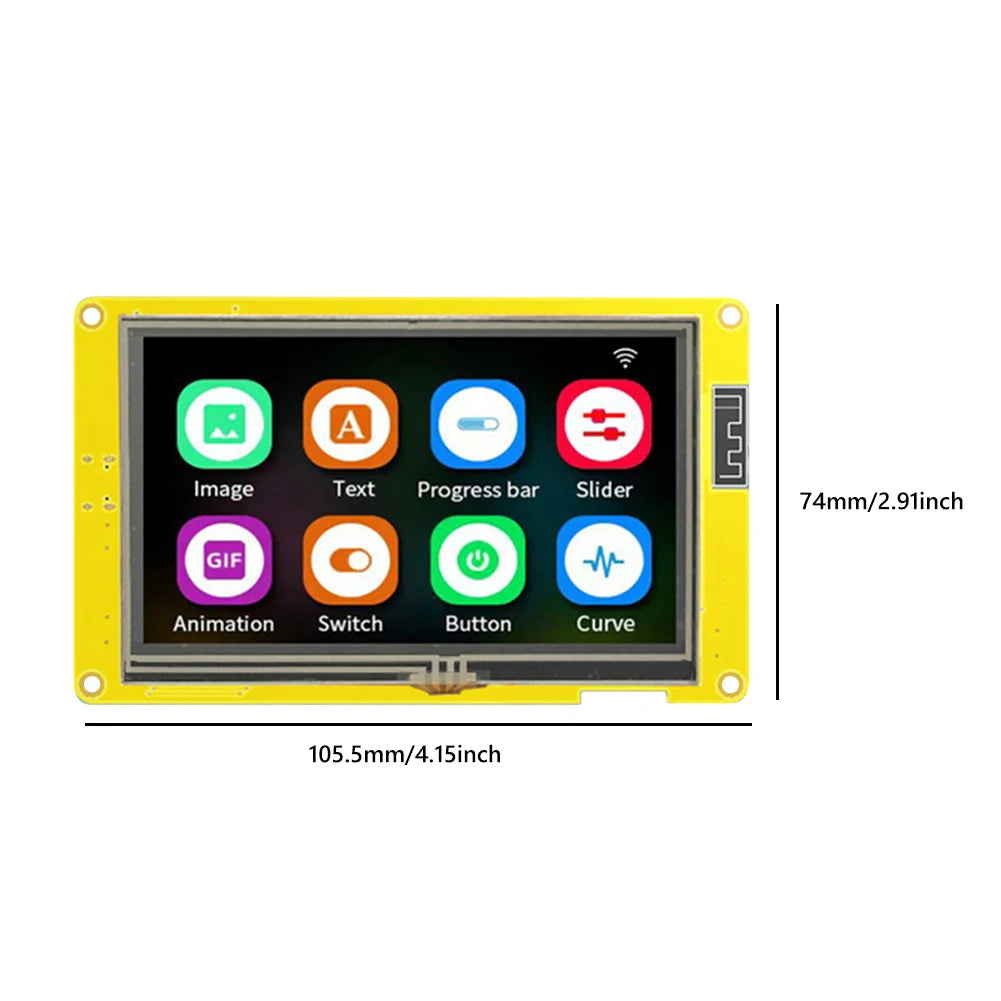

Module size: 105.5 * 74mm/4.15 * 2.91 inch
Weight: approximately 130g

If you need to use this product yourself, you can download the driver manual and other files from this website. If you cannot open it, please contact our customer service.
download link: http://pan.jczn1688.com/directlink/1/ESP32%20module/4.3inch_ESP32 -8048S043.zip


Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.



1 x Display Screen Module with Cable
