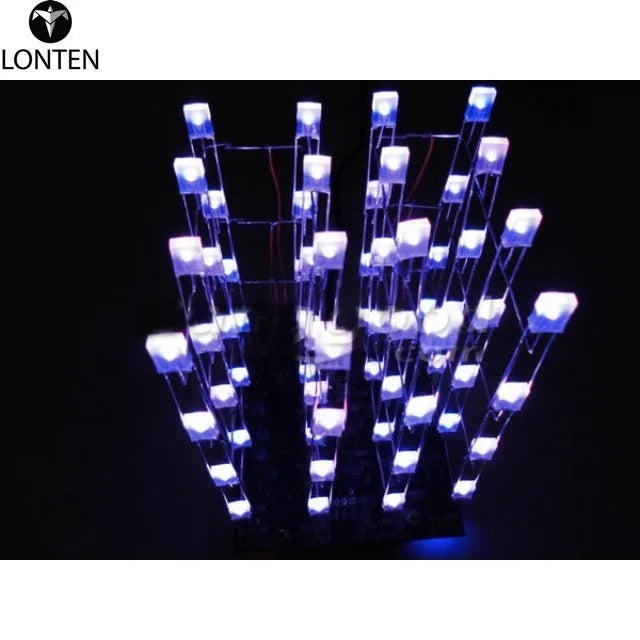

DIY 4x4x4 LED Cube Blue Red LED Electronic Learning Kit

Feature:

The PCB board has printed component parameters, even though without reference to the circuit diagram, can be soldered directly, very convenient.
1. Double-sided wiring, can withstand repeatedly desoldering, not easy to fall off;
2. The bending is not easy to happen (Refers to the non-human bending), poor plate will bending by time goes and the environment change.
3. Impedance more stable and reliable;

Specification:

Supply voltage: 5V
Board size: 71 x 73mm
Kit Weight approx: 90g
Type: Double color (blue + red LED) kit

Note:

The components are soldering from small to larger.
Some individual components such as resistor capacitor is temporarily out of stock, we will send the others near the value of the element instead, it will not affect the function, please don't worry about this.
After welding, please self-help debugging, if the welding no error generally can be successful, if welding failure, we can't guarantee you 100% success, but we are committed to achieve full after-sales service.

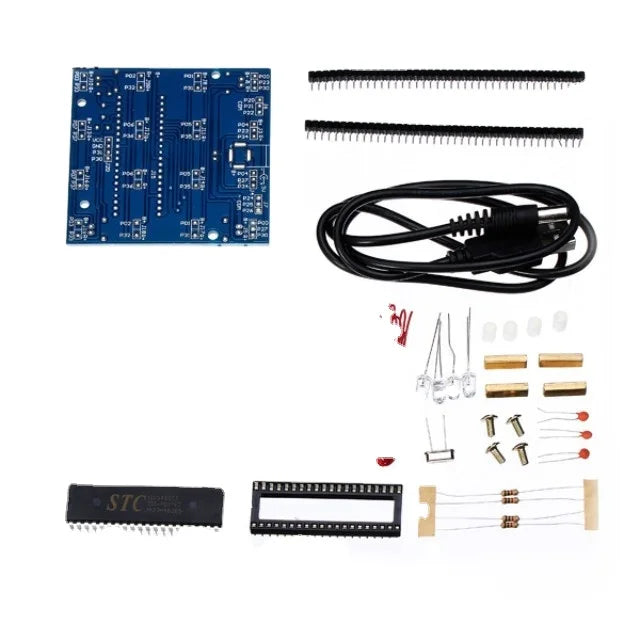

Package included:

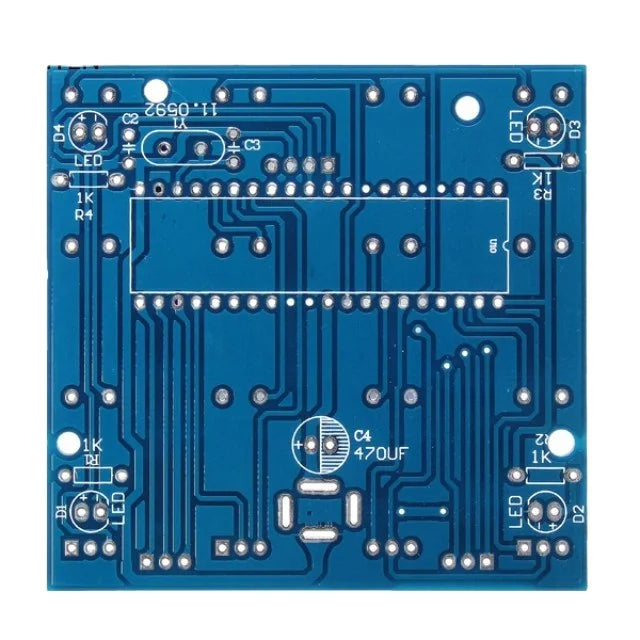

1 x PCB board
64 x Super bright long leg LED
2 x 40P round female
5 x 5mm LED space pillar
4 x 5mm colorful LED
4 x 15mm copper pillar
1 x DC005 to USB power cable

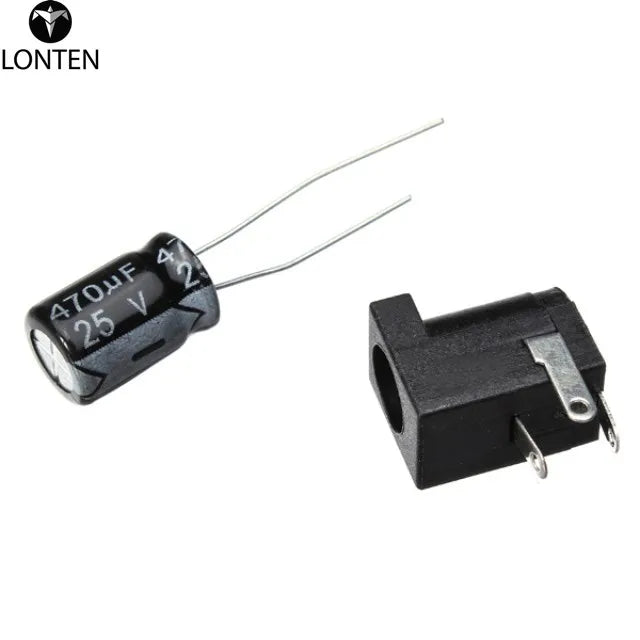

1 x DC005 seat
1 x 25V 470UF electrolytic capacitors
4 x 1K resistor
1 x 40P chip seat
1 x STC12C5A60S2 programmed procedures
3 x 22P ceramic capacitors
1 x 11.0592M crystal

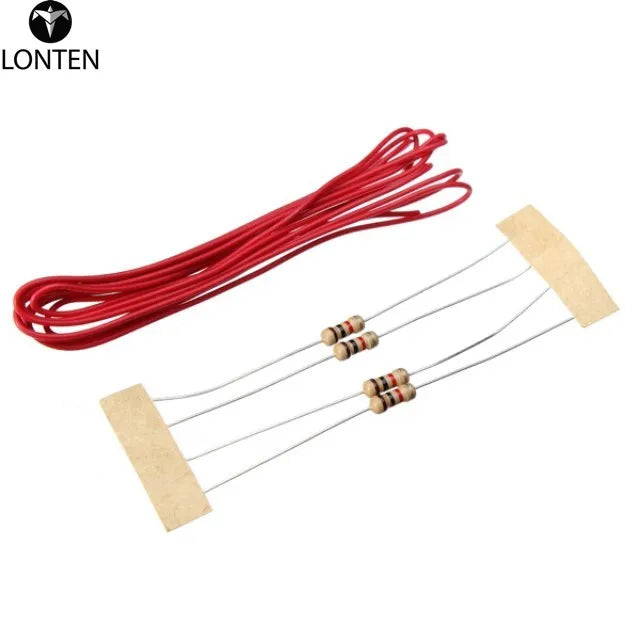

1 x 1m single conductor

How to welding:

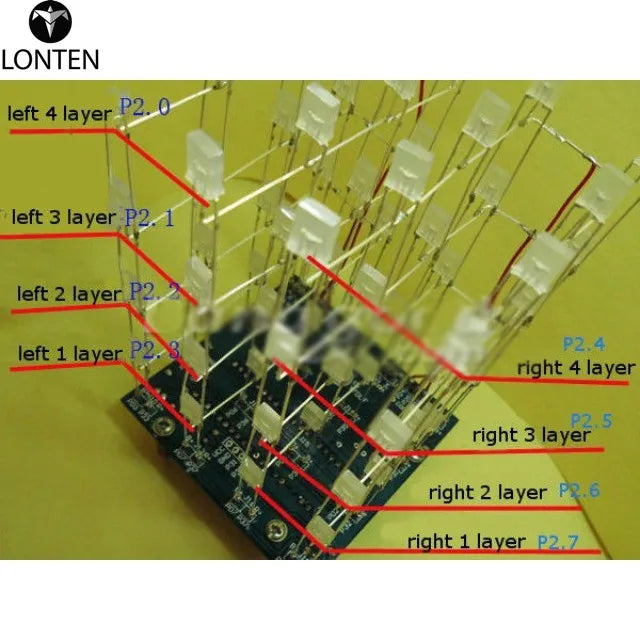

This kit is using beams and layer of common anode common cathode connection.
