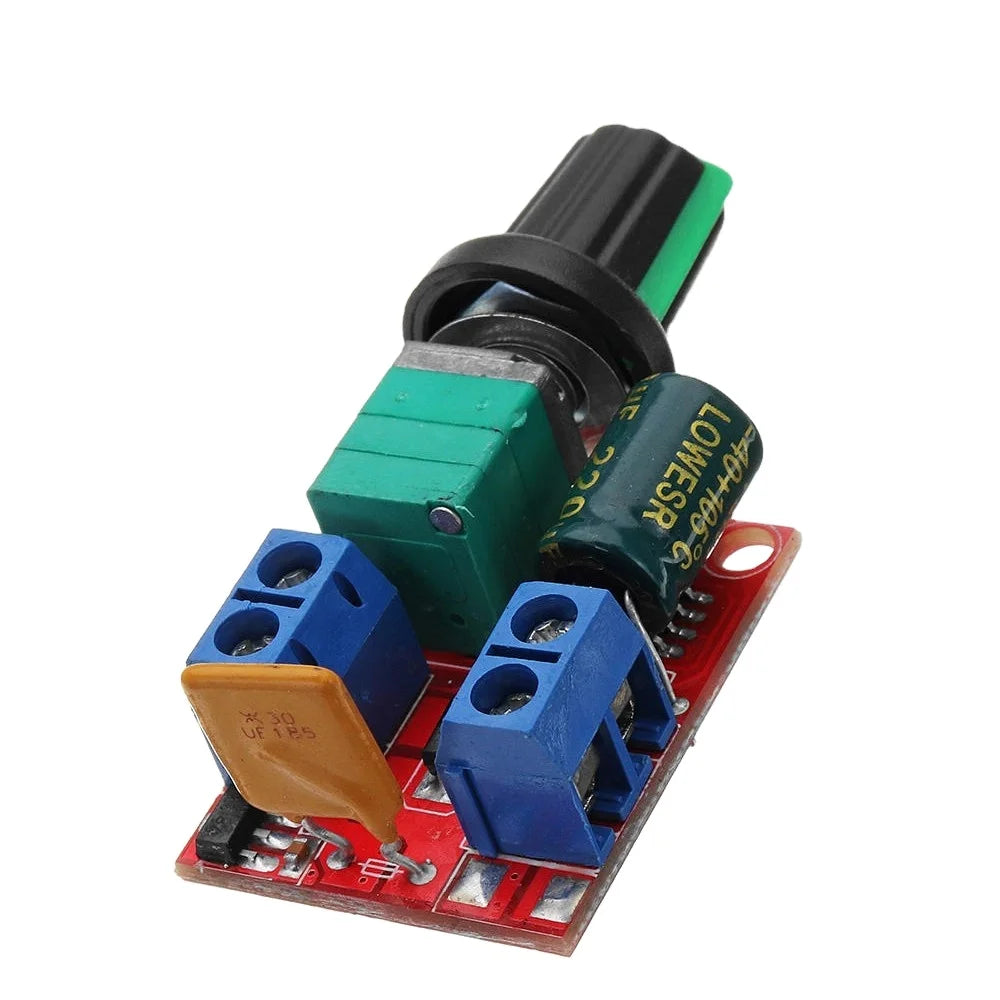

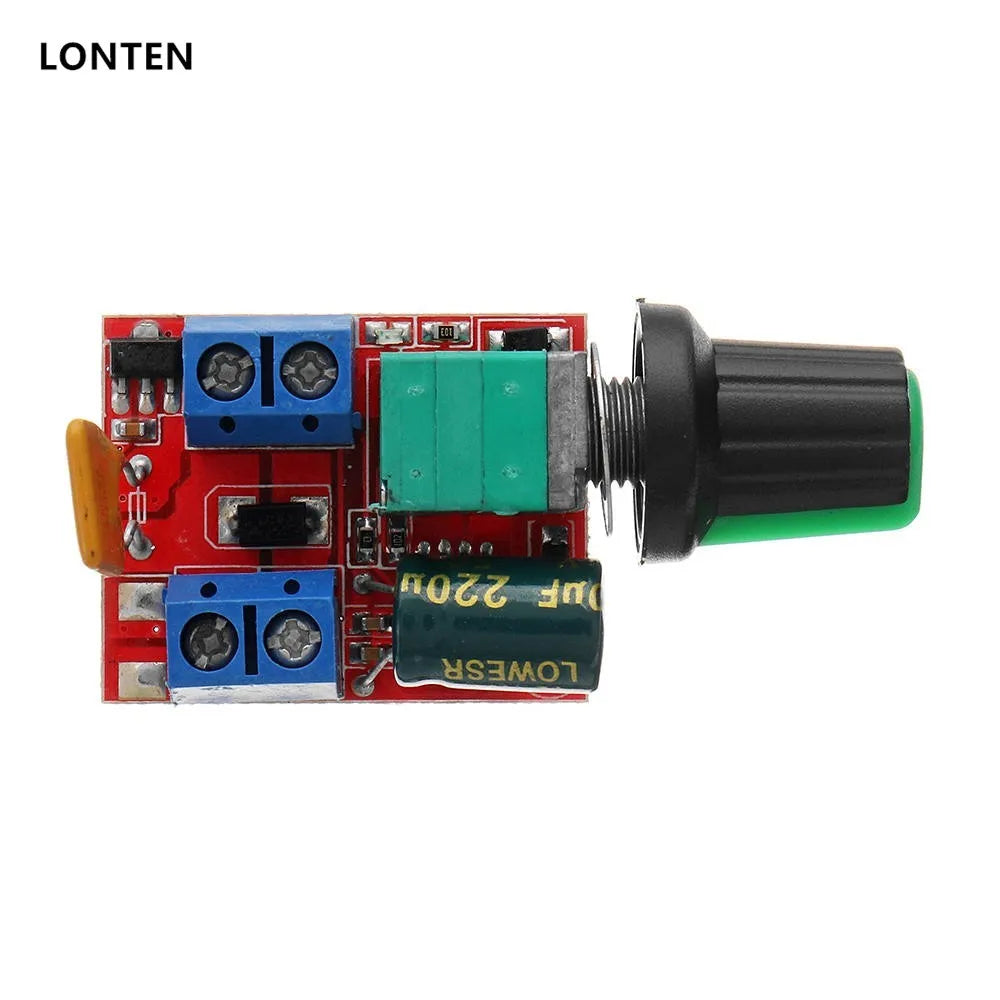

Custom Custom DC Motor PWM Speed Controller Module pcb assembly led pcb circuit board manufacturer pcba Manufacturer

Specifications:

Operating voltage: DC 4.5V- DC 35V
Output current: 0-5A
Output power: 90W (max)
Quiescent current: 7uA (standby)
PWM duty cycle: 1% -100%
PWM frequency: 20khz

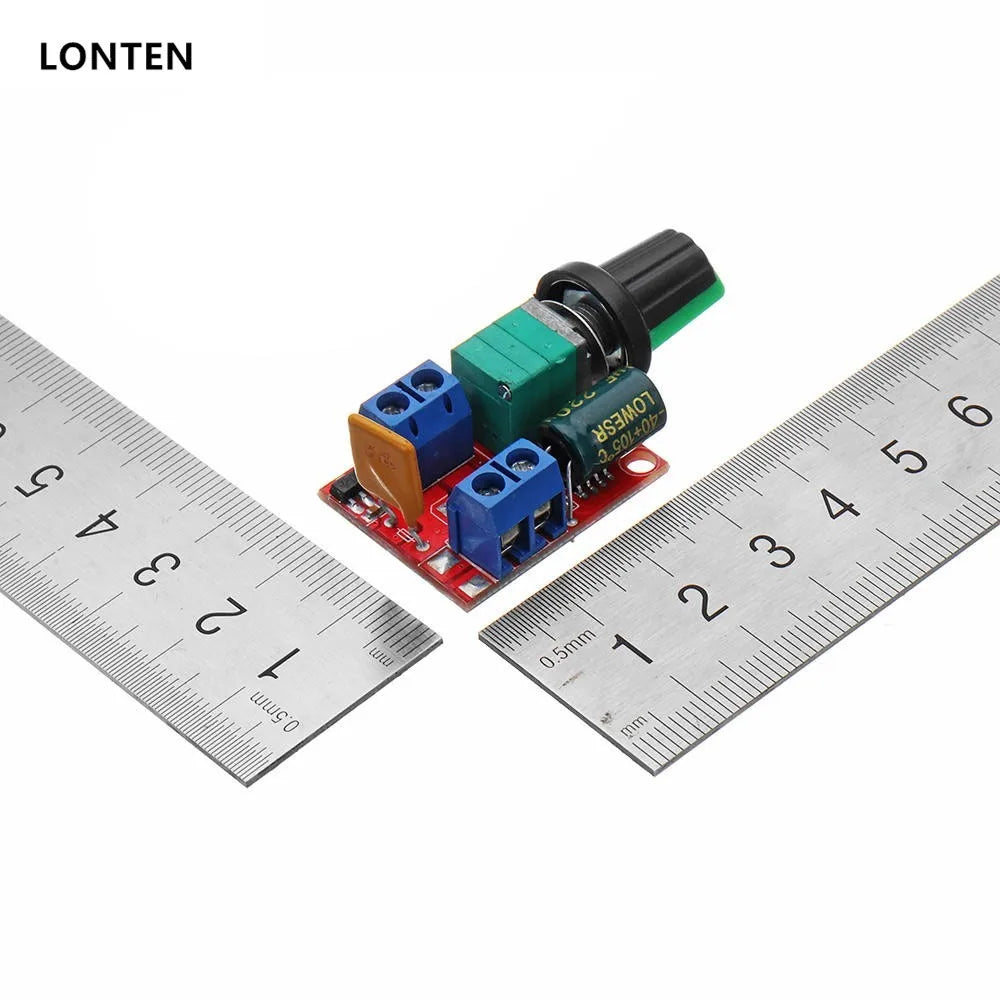

Size: 30mm x 26mm x 14mm

Precautions:

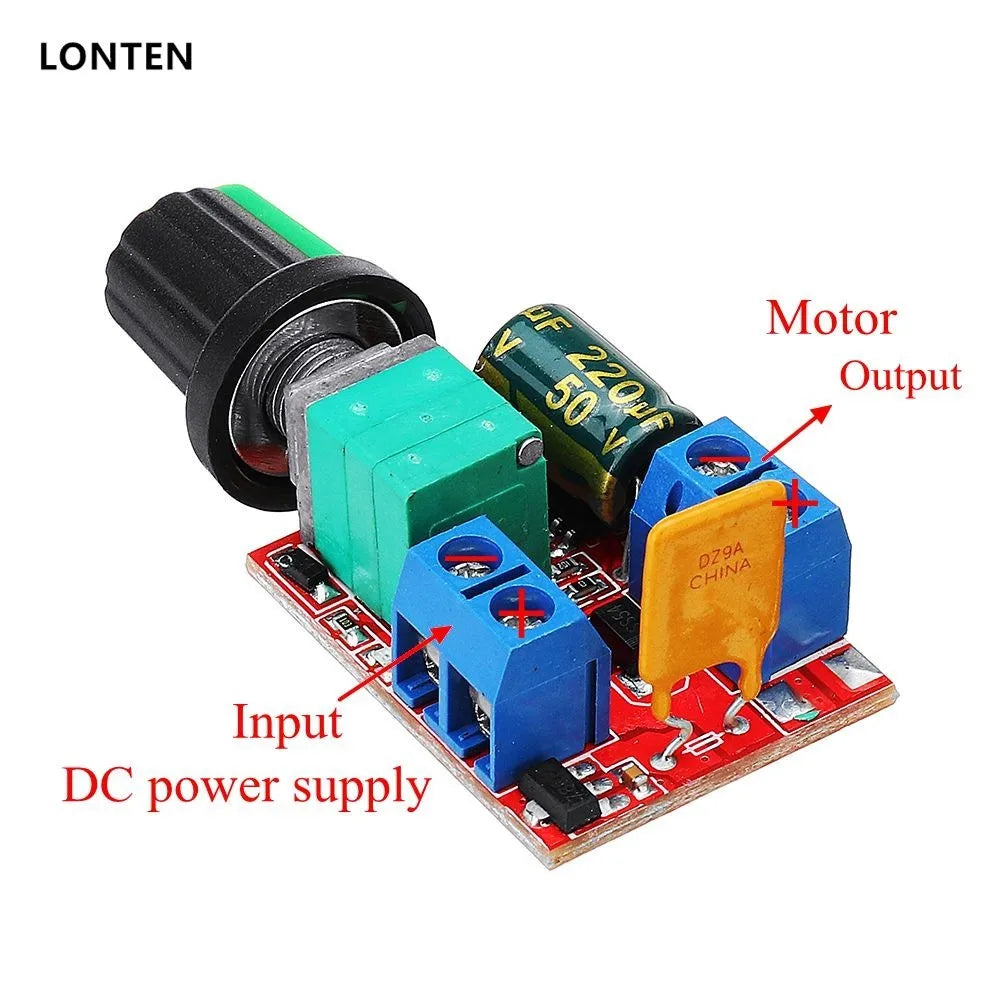

-DC motor governor input is DC, can not directly connected to the AC (for example: home 220V AC), otherwise it will burn!
-DC power supply positive and negative terminals do not reverse, otherwise the governor may be damaged.
-The motor can be positive or negative, when the direction of operation and expectations do not match, you can adjust the line
order to change the direction.

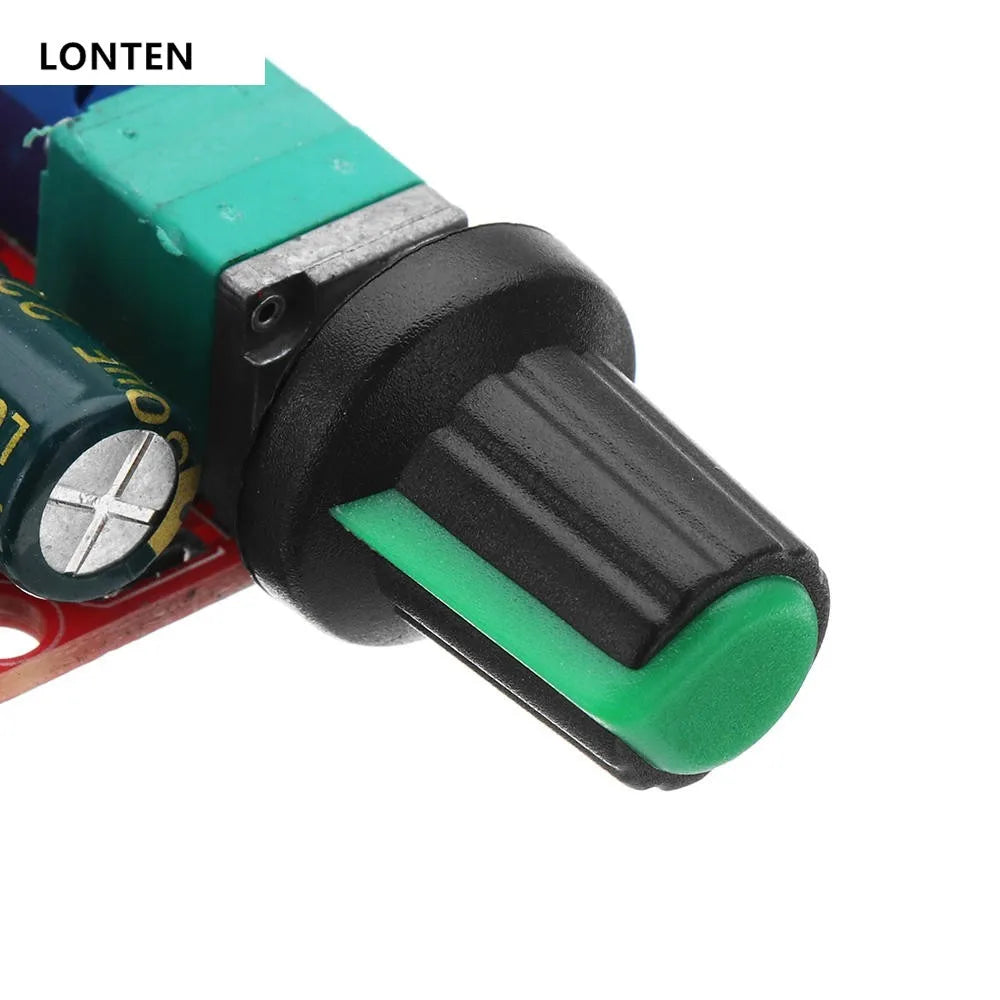

-Adjust the potentiometer knob to change the governor output duty cycle, the motor speed changes.
