Custom Custom China Printed Circuit Board 1-40 layer PCB and PCBA Prototype 12V 24V 300W 20A DC-DC Buck Converter Step Down Module Manufacturer
Custom Custom China Printed Circuit Board 1-40 layer PCB and PCBA Prototype 12V 24V 300W 20A DC-DC Buck Converter Step Down Module Manufacturer
Regular price
$6.00 USD
Regular price
$6.00 USD
Sale price
$6.00 USD
Unit price
/
per

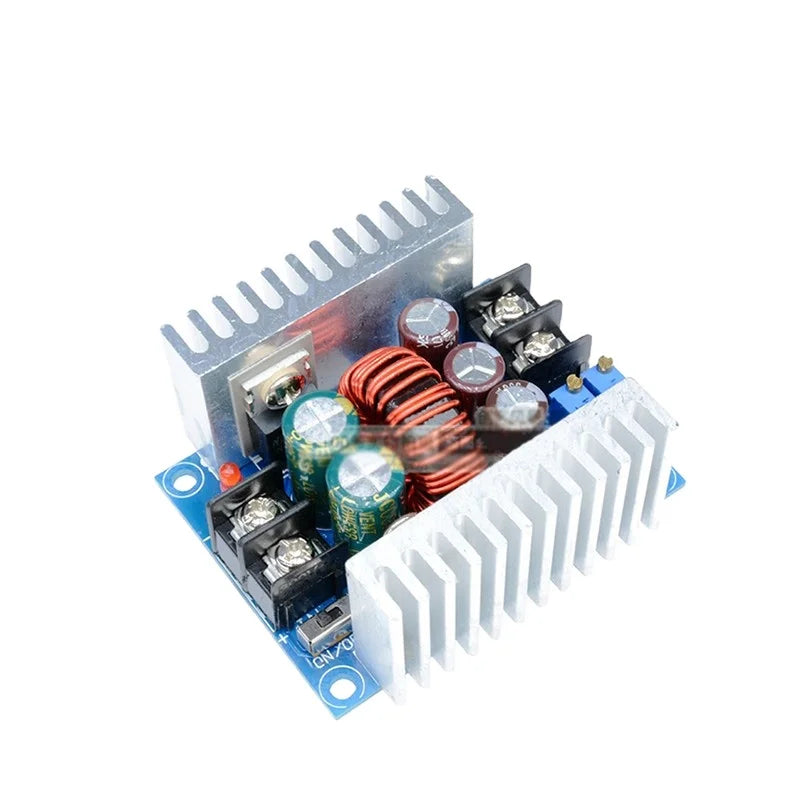

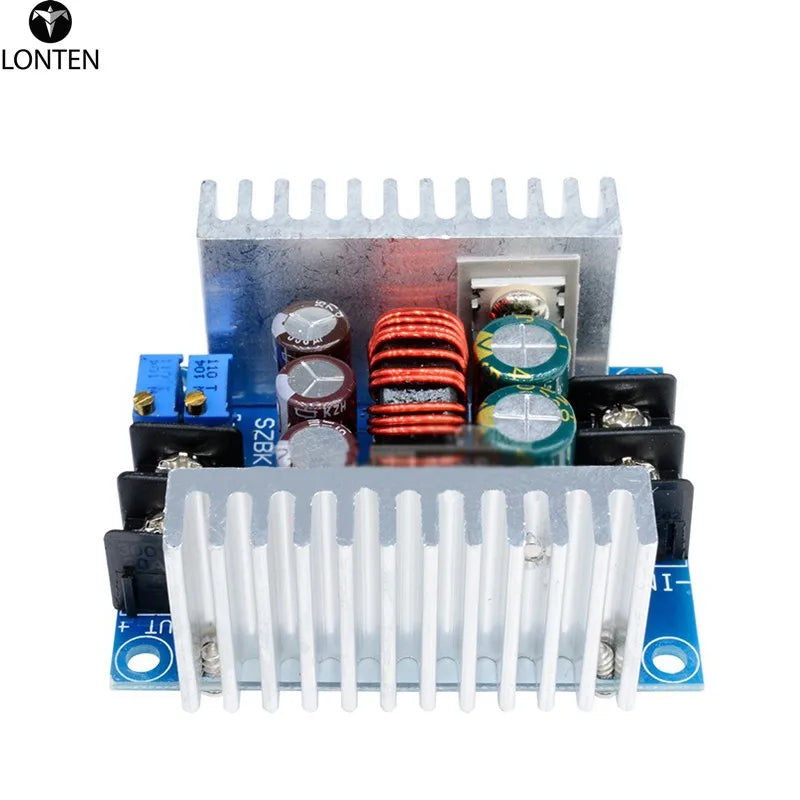

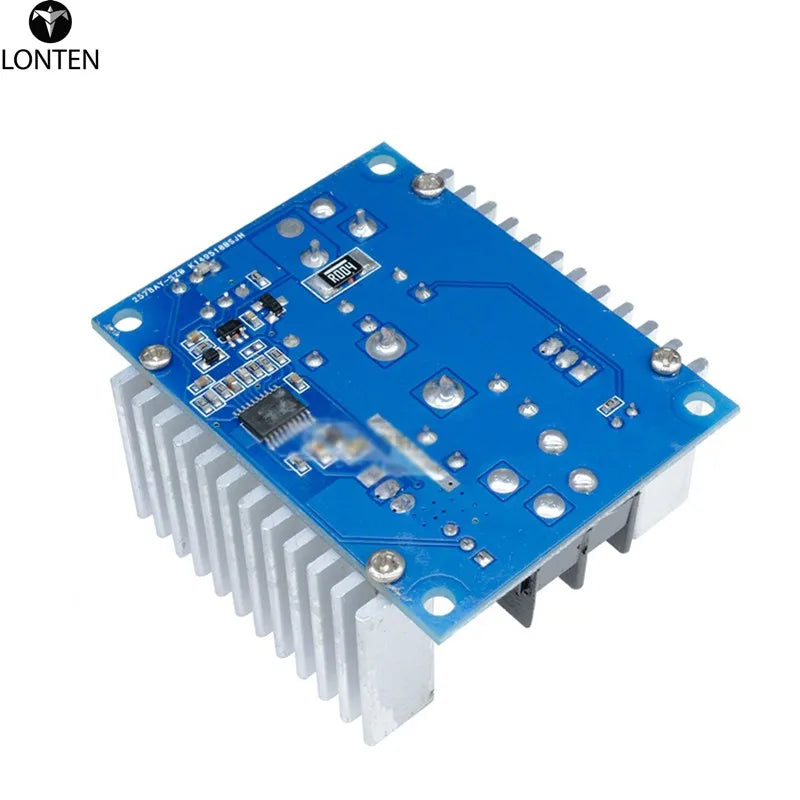

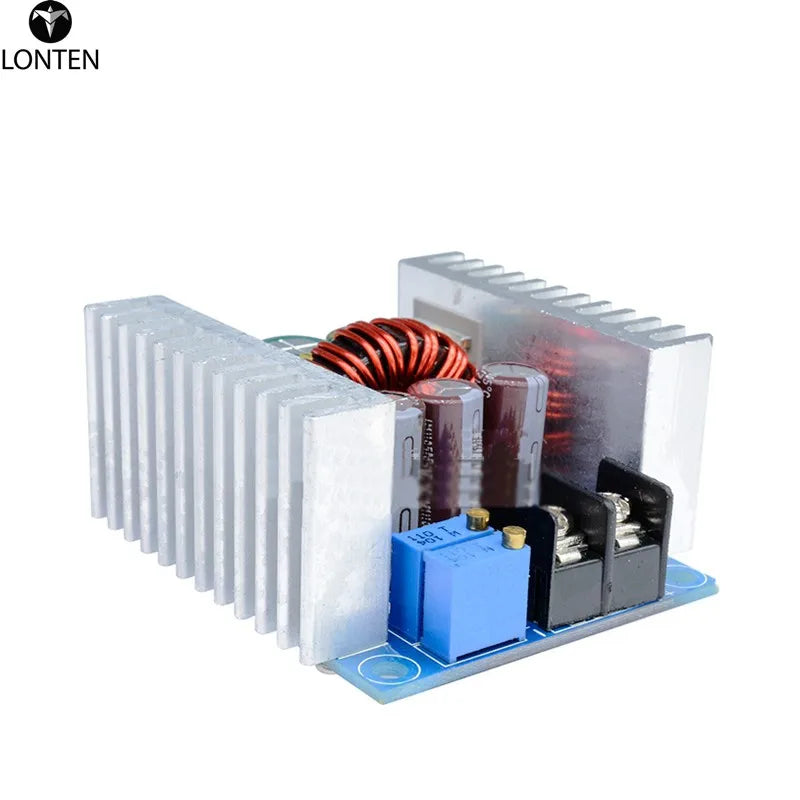

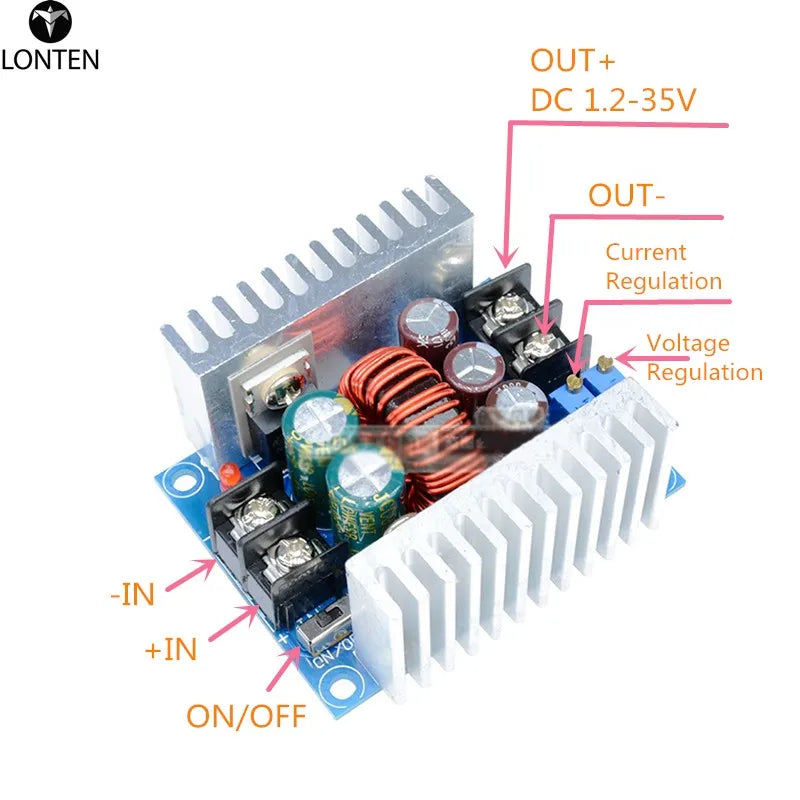

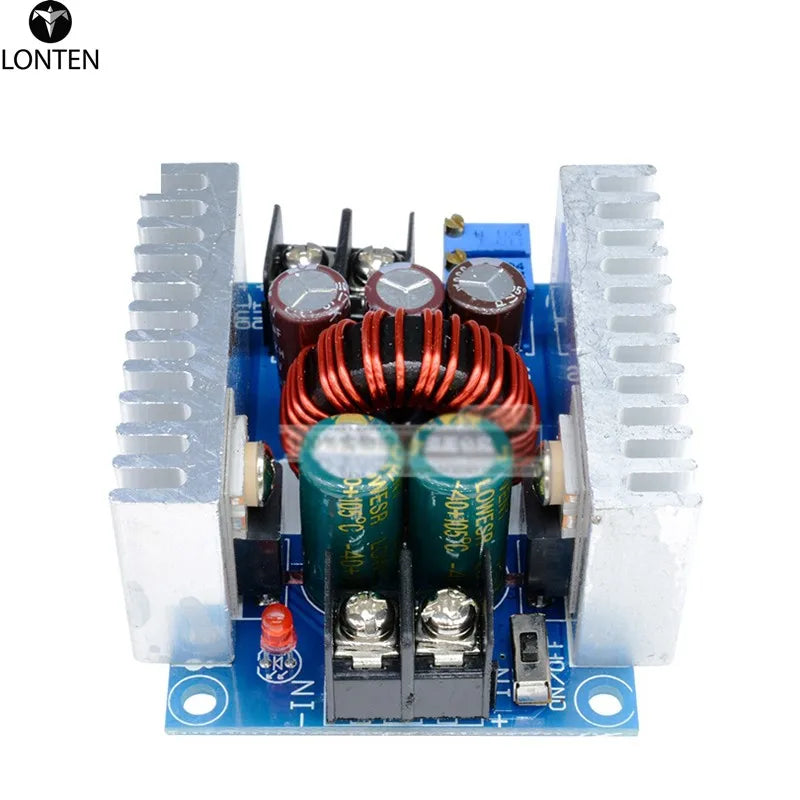

Feature: With a wide input voltage range from 6V to 40V, the step-down converter can accurately adjust output voltage and current. The efficiency can be up to 96%, measured at 20A, converting 24V to 12V. It is designed with 75V/80A large current dual MOS tube. Input and output use high frequency low resistance electrolytic capacitor, low ripple, stable output. Wiring is convenient with these large current 30A screw terminals. The buck module has 2 heat sink that could enhance heat dissipation. When there is a big difference between input and output voltage, please decrease power and current. Specification: Input Voltage: 6V to 40V DC(10V to 40V is suggested) Output Voltage: 1.2V to 36V DC Output Current: 20A(max.), 15A(suggested) Efficiency: 95%(24V to 12V, 20A) Output Ripple: 50mV Wiring Method: Terminal Short Circuit Protection: Self-recovery(cannot short circuit for long time) Size: 60 x 53 x 27mm / 2.36 x 2.08 x 1.06" VO+: Output positive VO-: Output negative +IN: Input positive -IN: Input negative CV: Output voltage adjustment CC: Output current adjustment EN: Enable, low voltage level shut off output; suspension, high voltage level is effective When input and output is common grounded, no-load CV output constant voltage,CC output constant current |
||||||||
LonTen is a professional PCB and PCBA manufacturer. Shenzhen, China, one-stop OEM solution provider. Provide high quality PCB and PCBA assembly services, including component procurement. Injection parts and metal parts assembly, MCU programming and functional testing, a large number of wholesale sales of global buyers. |
||||||||
