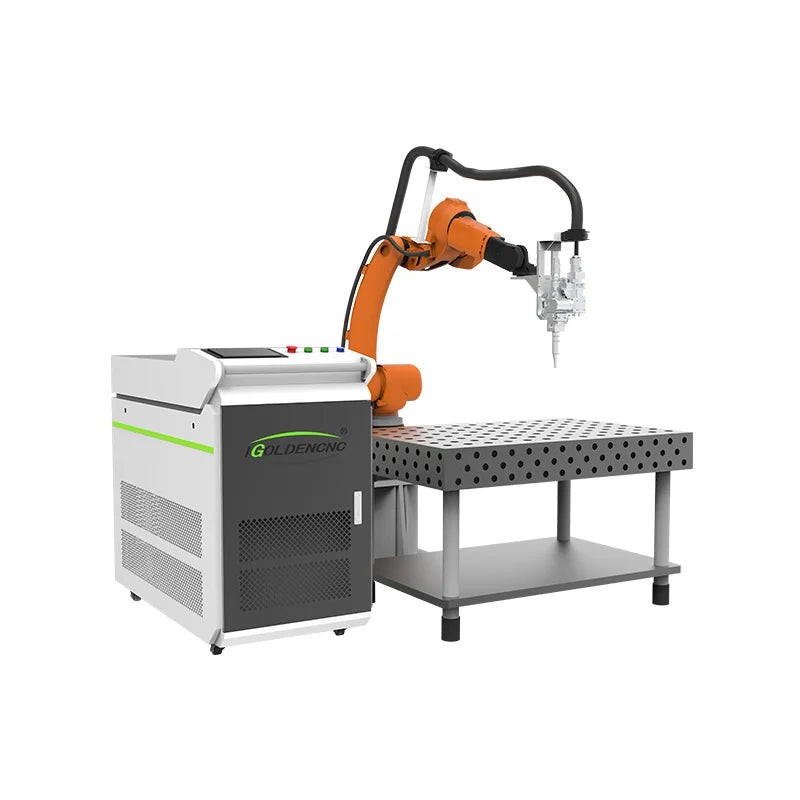

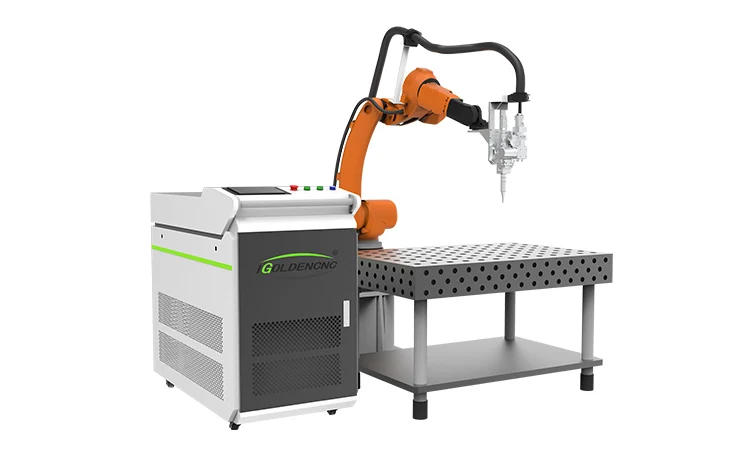

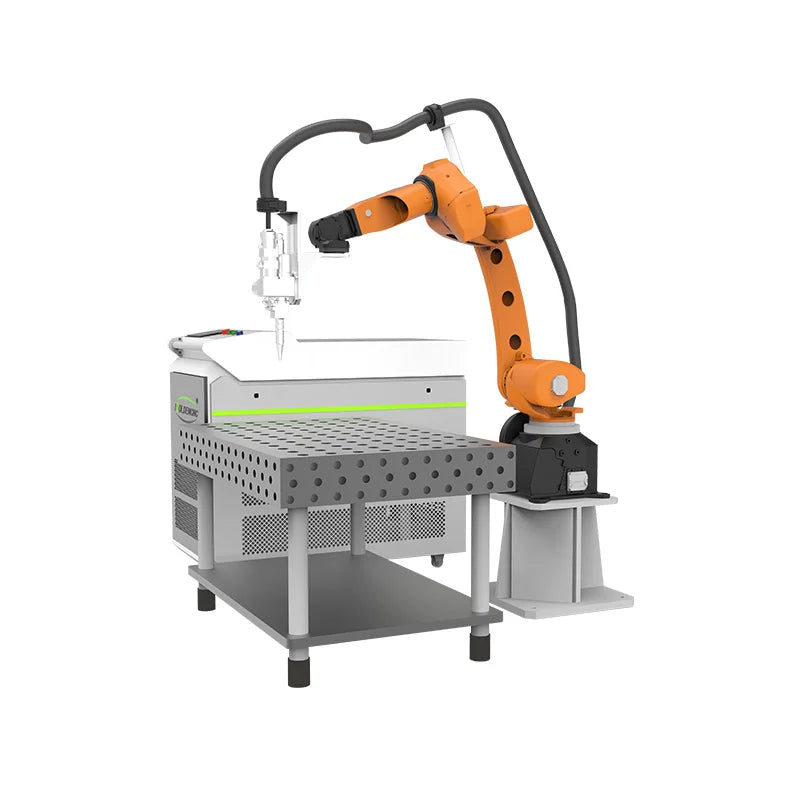

Custom Custom Automatic 6 Axis Robot Arm Laser Welding Machine 1500w 2000w 3000w Laser Welder for Galvanized Sheet Corner Welding Manufacturer
Custom Custom Automatic 6 Axis Robot Arm Laser Welding Machine 1500w 2000w 3000w Laser Welder for Galvanized Sheet Corner Welding Manufacturer
Regular price
$100.00 USD
Regular price
$0.00 USD
Sale price
$100.00 USD
Unit price
per
Couldn't load pickup availability
Product Description
1. The robot has six-axis linkage, high positioning accuracy, large processing range, and easy welding of three-dimensional workpieces.
2. Compared with the traditional argon arc welding, the laser welding speed is increased by 5 to 10 times, and the power consumption and the consumption of consumables are lower, and the welding quality is very stable.
3. The heat affected area of welding is smaller, which can better guarantee the quality of welding products.
4. Robot laser welding has good adaptability to the size and shape of welding materials and welding parts, and can realize automatic control and long-distance welding
2. Compared with the traditional argon arc welding, the laser welding speed is increased by 5 to 10 times, and the power consumption and the consumption of consumables are lower, and the welding quality is very stable.
3. The heat affected area of welding is smaller, which can better guarantee the quality of welding products.
4. Robot laser welding has good adaptability to the size and shape of welding materials and welding parts, and can realize automatic control and long-distance welding
Specification
| Model | iGWL-RW- 1500 | iGWL-RW- 2000 | iGWL-RW- 3000 | |
| Laser power | 1500W | 2000W | 3000W | |
| Laser wavelength | 1080±10nm | |||

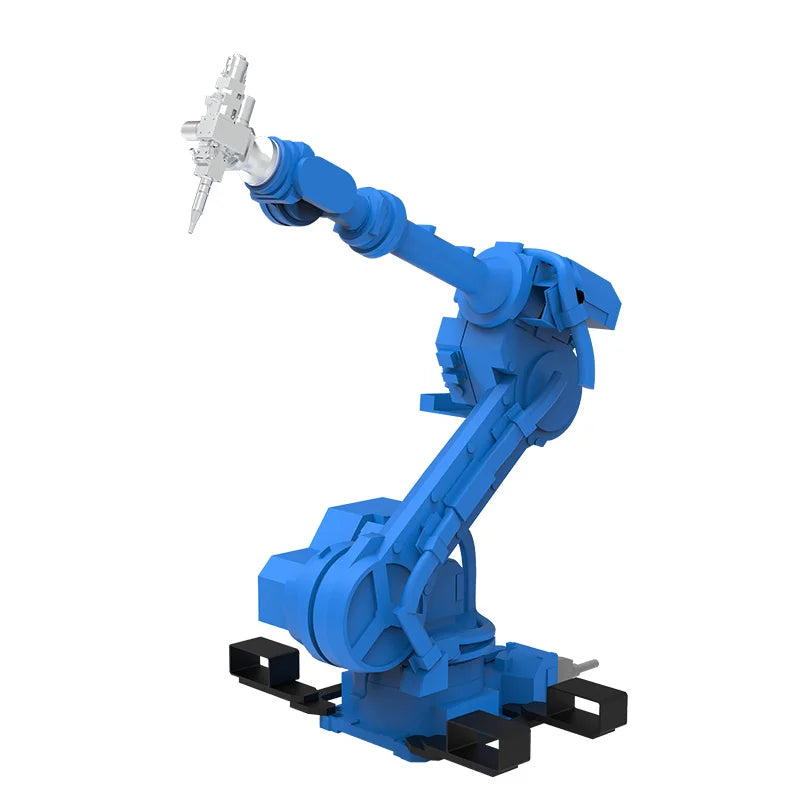

| Robot | Six-axis welding robot | |||
| Maximum load on wrist | 12KG | |||
| Repositioning accuracy | ±0.03mm | |||

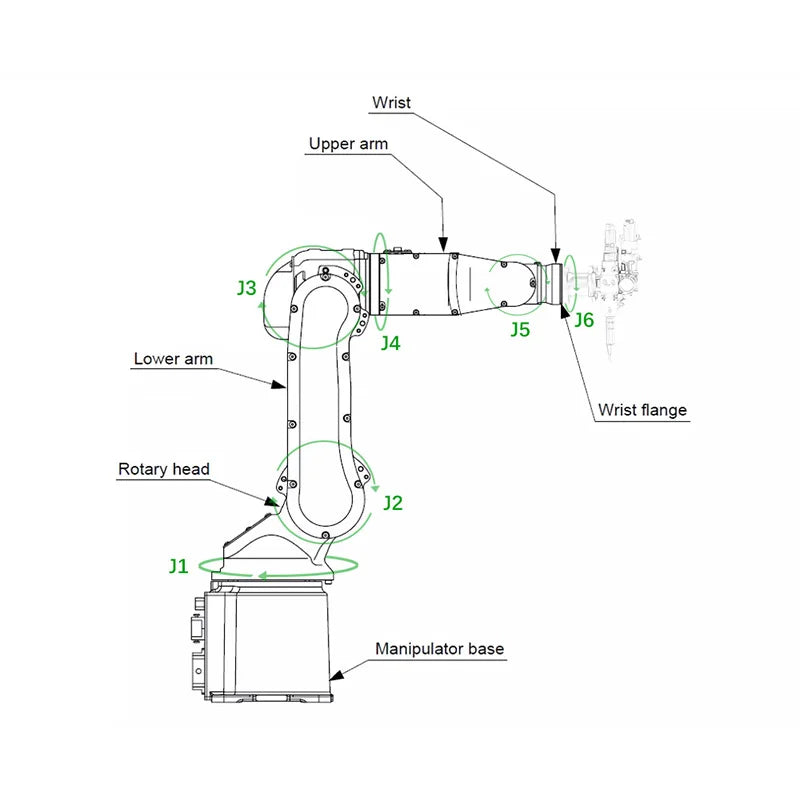

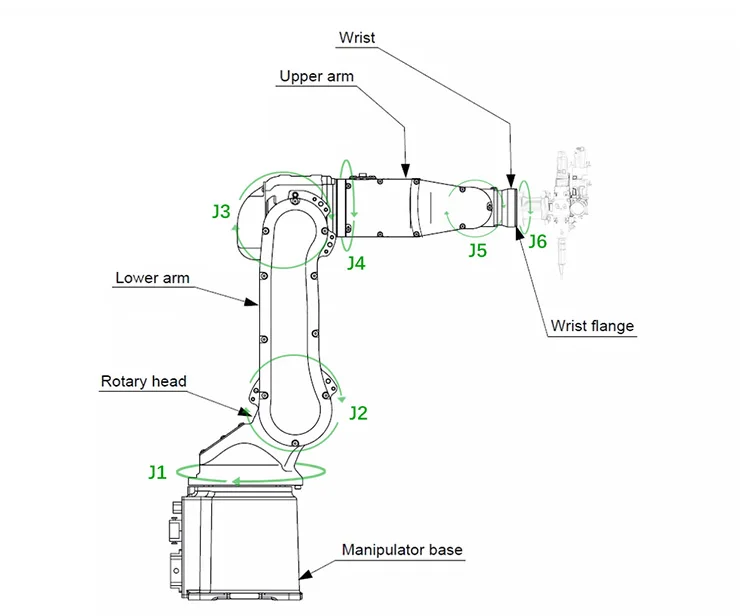

| Range of motion | Lower arm | J1 | 340º/370º | |
| J2 | 235º | |||
| J3 | 455º | |||
| Upper arm | J4 | 380º | ||
| J5 | 380º | |||
| J6 | 900º | |||
| Max speed | Lower arm | J1 | 260º/s | |
| J2 | 240º/s | |||
| J3 | 260º/s | |||
| Upper arm | J4 | 430º/s | ||
| J5 | 450º/s | |||
| J6 | 720º/s | |||
| Thickness of welding material | ≤4mm | ≤6mm | ≤8mm | |
| Welding gap requirements | ≤0.3mm | |||
| Voltage | 380V±10% | |||
| Total power | ≤8kw | ≤10kw | ≤12kw | |
| Gross weight | 200KG | |||
CONTACT US :
sale069@igoldencnc.com we chat/ whats app 008617615816792
Details Images
JPT Laser
We use advanced fiber lasers with a service life of more than 10w hours, low energy consumption, low
failure rate, flexible fiber up to 10-15m, flexible and convenient, outdoor welding, equipped with a hard protective layer.
failure rate, flexible fiber up to 10-15m, flexible and convenient, outdoor welding, equipped with a hard protective layer.
Water cooler
Environmentally friendly refrigerant, perfectly
compatible with all lasers
Stable and reliable performance, low failure rate, energy saving and power saving
compatible with all lasers
Stable and reliable performance, low failure rate, energy saving and power saving
Welcome Customize Order!
