Custom 5V/12V/24V FRM01 Multifunctional Relay Module Loop Delay Timer Switch Self-Locking 3 kinds for choosing Manufacturer
Custom 5V/12V/24V FRM01 Multifunctional Relay Module Loop Delay Timer Switch Self-Locking 3 kinds for choosing Manufacturer
Regular price
$8.76 USD
Regular price
$8.76 USD
Sale price
$8.76 USD
Unit price
per
Couldn't load pickup availability

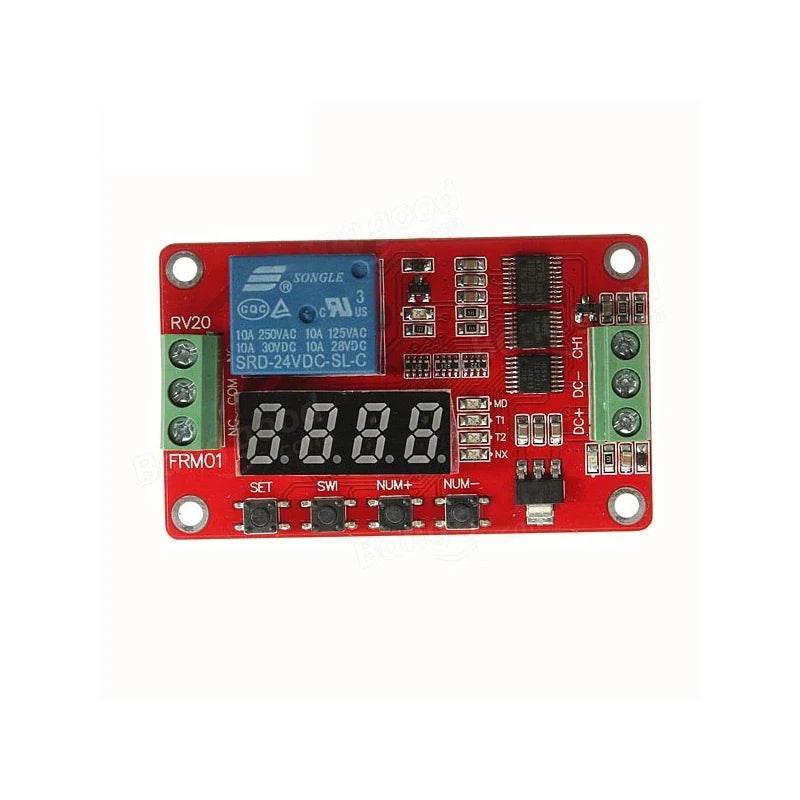

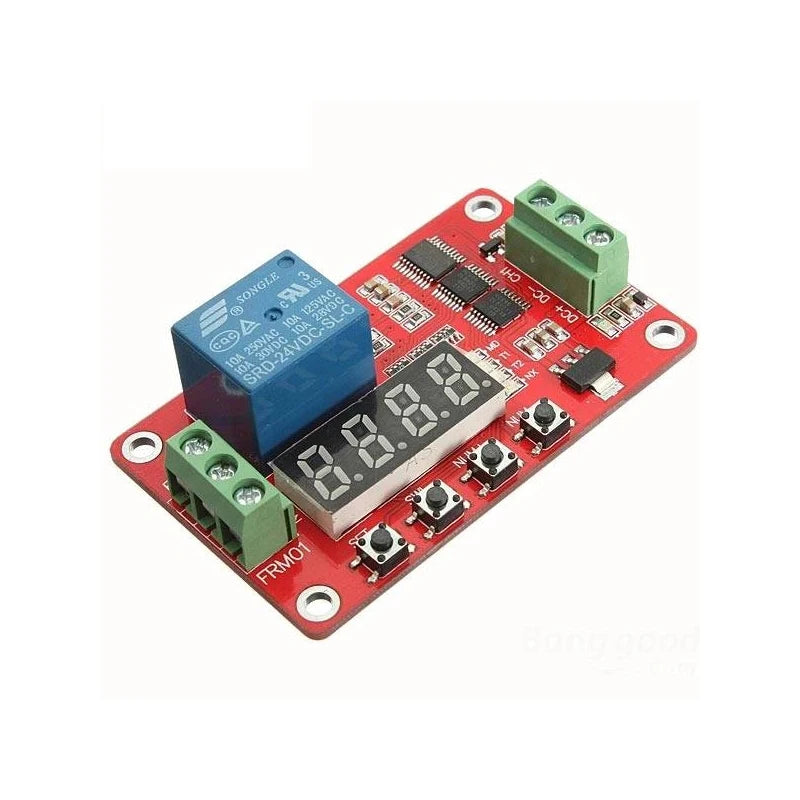

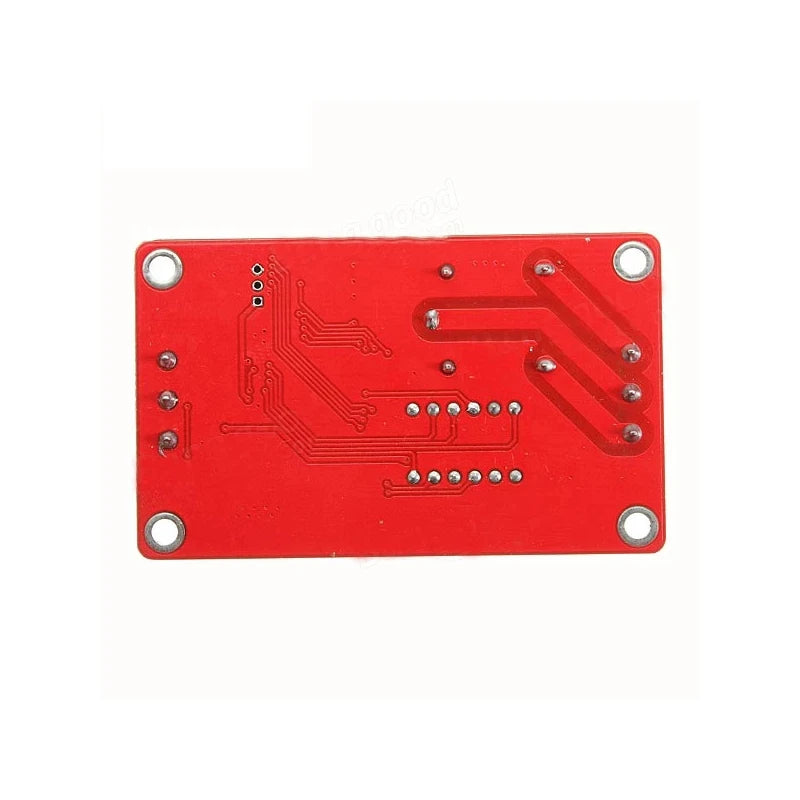

5V/12V/24V FRM01 Multifunctional Relay Module Loop Delay Timer Switch Self-Locking
Instruction: http://img.banggood.com/file/products/20161107000707SKU120311-FRM01-Timer-Module-User-Manual.pdf
Description:

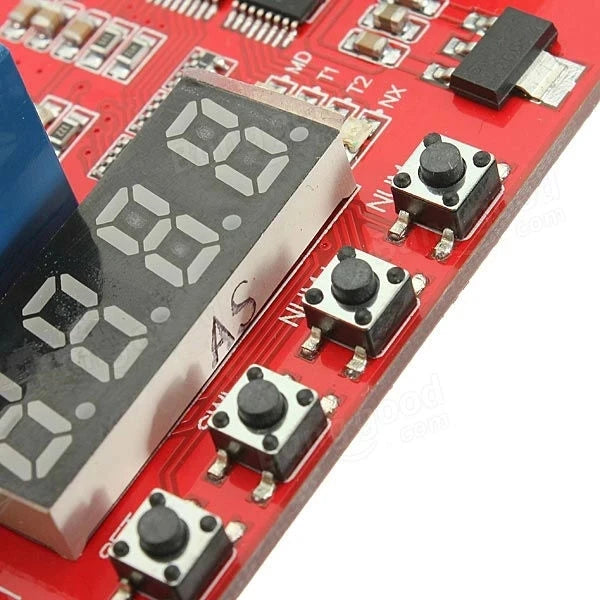

Users can display the buttons and select the following nine kinds of functions in one, you can set and save 9 kinds of function
parameters, you can also view the current function parameters, time parameter sets the minimum one second adjustable accuracy of
better than 0.1 seconds.
Feature:
Function 1:
Timing Pick: After power relay delay time T1, T1 in 0 seconds adjustable between -270 hours, give CH1 connector is a high pulse
signal(high duration is greater than or equal 20ms, hereinafter the same), repeat the above functions
Function 2:
Timed disconnect: On power relay, time relay off delay time T1, T1 in 0 seconds adjustable between -270 hours, giving a high level
pulse signal CH1 connector, repeat the above functions
Function 3:
Loop Timing Mode 1: After power on, to not pull the relay, the delay time T1 after arrival relay; pull the relay off time T2 after
arrival, and then repeat the above state, the delay time T1 and T2 in 0 seconds adjustable between -270 hours, giving a high level
pulse signal CH1 connector, you can resume these functions
Function 4:
Loop Timing Mode 2: After power, the relay immediately pull, delay time T1 after arrival relay off; off time T2 arrives relay, and
then repeat the above state, the delay time T1 and T2 in 0 seconds - adjustable between 270 hours and give CH1 connector is a high
pulse signal, these functions can be re-started
Function 5:
Latching relay mode: CH1 connector to relay a high level pulse signal, the relay, to give a high level pulse signal relay
disconnected
Function 6:
Trigger relay mode: CH1 connector to a high signal relay, relay, high disappeared, relay disconnected
Function 7:
Finite loop timing mode 1: Function 3, based on the number of cycles increased functionality, then T1 and T2 in 0 seconds -9999
seconds adjustable between 1-9999 times in between cycles adjustable
Function 8:
Finite loop timing mode 2: In function 4, based on the number of cycles increased functionality, then T1 and T2 in 0 seconds -9999
seconds adjustable between 1-9999 times in between cycles adjustable
Function 9:
Self-locking relay mode: Send a high-level pulse signal to the relay CH1 interface, the relay pull, and then give a high pulse
signal to relay disconnect.
Function 10:
Trigger relay mode: Send a high-level signal to the relay CH1 interface, the relay pull, high-level disappear, the relay is
disconnected.
Function 11:
Trigger timing pull: After power-on, send a high-level pulse signal to the CH1 interface, delay T1 time relay, the relay pull, T1
is adjustable between 0.1 seconds - 270 hours, repeat sending a high level Pulse signal to CH1 interface, repeat once again the
above function;
Function 12:
Trigger timing disconnect: After power-on, send a high-level pulse signal to CH1 interface, relay pull-in, delay T1 time, relay is
disconnect, T1 is adjustable between 0.1 second and 270 hours, repeat send a high-level pulse signal to CH1 interface, repeat once
again the above function;
Function 13:
Trigger timing pull and then disconnect: After power-on, send a high-level pulse signal to CH1 interface, after delay time reach
to T1 the relay pull; after delay time reach to T2 the relay disconnect, delay time T1 and T2 is adjustable between 0.1 seconds
-270 hours, repeat send a high pulse signal to the CH1 interface, repeat once again the above function;
Function 14:
Trigger timing disconnect and then pull: After power-on, send a high-level pulse signal to CH1 interface, relay pull immediately,
after delay time reach to T1 the relay disconnect; after disconnect time reach to T2 the relay pull, delay time T1 and T2 is
adjustable between 0.1 seconds -270 hours, repeat send a high-level pulse signal to CH1 interface, repeat once again the above
function;
Function 15:
Infinite Loop Timing Mode 1: After power-on, send a high-level pulse signal to CH1 interface, delay time reach to T1 the relay
pull-in, time reach to T2 the relay disconnect, then repeat the above state, the delay time T1 and T2 is adjustable between 0.1
seconds -270 hours, repeat send a high pulse signal to the CH1 interface, you can restart the above functions;
Function 16:
Infinite loop timing mode 2: After power-on, send a high-level pulse signal to CH1 interface, the relay immediately pull-in, the
delay time reach to T1 the relay disconnect; disconnecting time reach to T2 the relay pull-in, and then again repeat the above
state, delay time T1 and T2 is adjustable between 0.1 seconds -270 hours, repeat send a high pulse signal to CH1 interface, you
can restart the above functions;
Function 17:
Limited cycle time mode 1: Based on the function 15, increase function of cycles, at this time T1 and T2 is adjustable between 0.1
seconds -9999 seconds, the number of cycles NX is adjustable between 1-9999 times, repeat send a high pulse signal to the CH1
interface, you can restart the above functions;
Function 18:
Limited cycle timer mode 2: Based on the function 16, increase function of cycles, at this time T1 and T2 is adjustable between
0.1 seconds -9999 seconds, the number of cycles NX is adjustable between 1-9999 times, repeat send a high pulse signal to the CH1
interface, you can restart the above functions;
Two module interface:

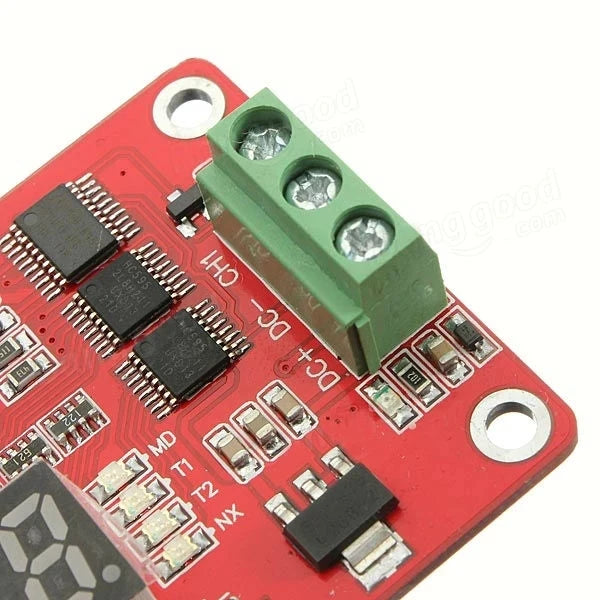

Module control side: there are 3-wire interface, all interfaces are terminal, user-friendly
DC+: DC power supply positive(with 5V, 12V and 24V modules to choose from)
DC-: DC power cathode
CH1: Hold Input Detection Interface
Relay outputs: A 3-wire interface, all interfaces are terminals
NO1: normally open relay interface, the relay becomes vacant before, pull shorting after the COM1
COM1: Relay Common Interface
NC1: normally closed relay interface relay shorted before and COM1, pull vacant post
Module: 5V / 12V / 24V (please choose one you need)
Package included:
1 x Multifunctional relay module
