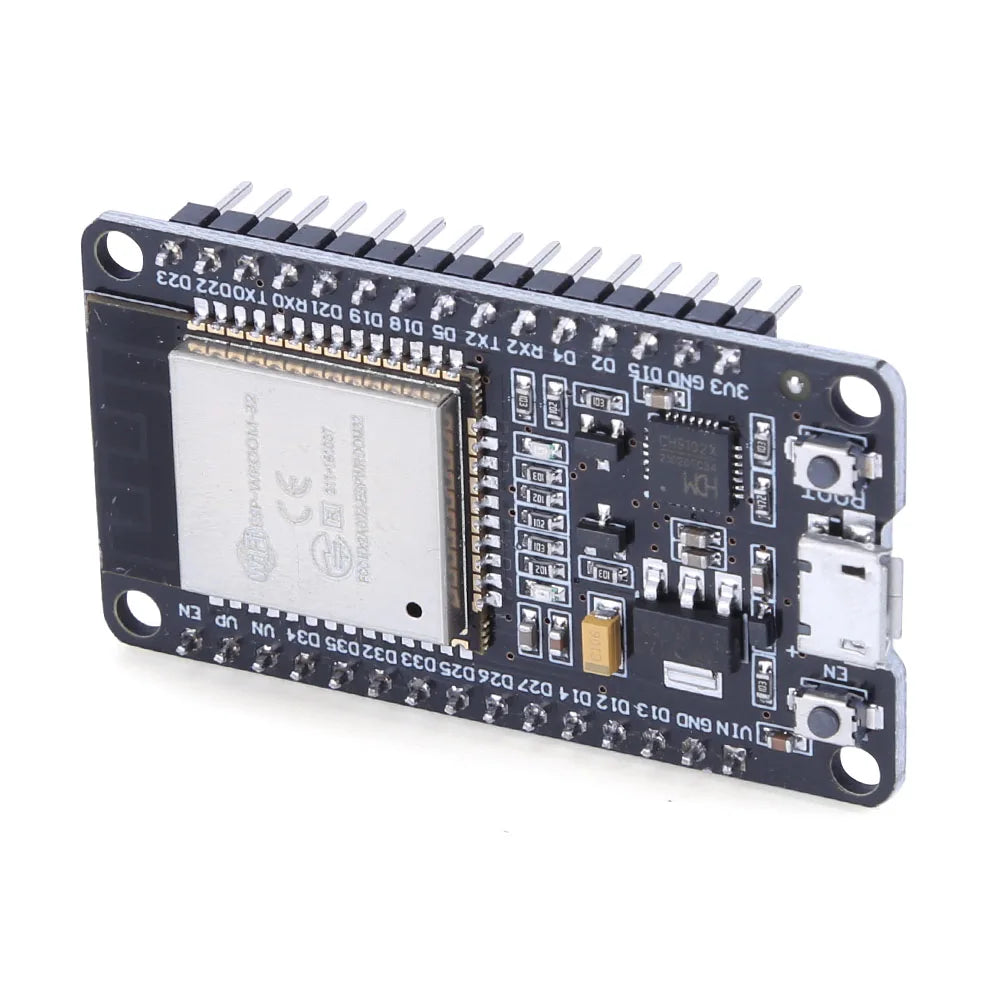

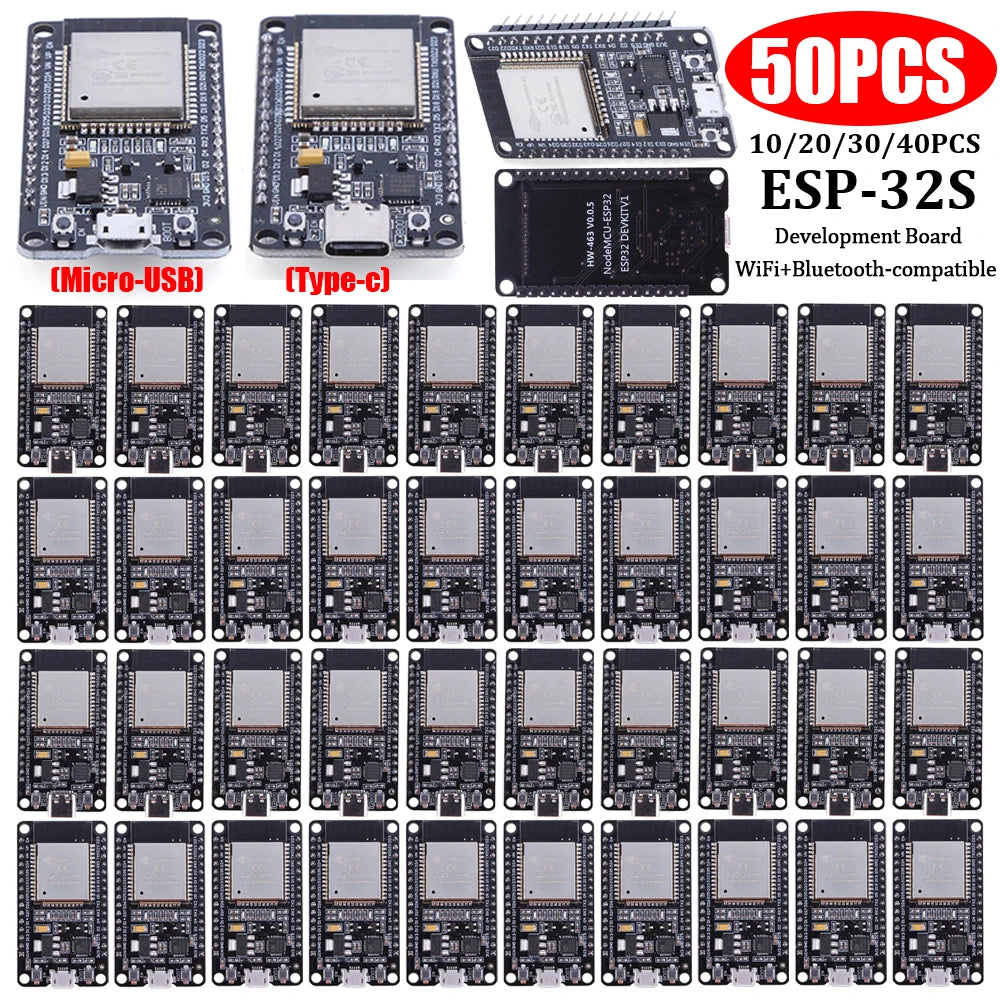

Custom 50-1PCS ESP32 Development Board WiFi+BT-compatible Wireless Ultra-Low Power Consumption Dual Core Support STA/AP/STA+AP Manufacturer

ESP32 Development Board WiFi+BT-compatible Wireless Module Base On ESP32 Low Power Consumption Support STA/AP/STA+AP Mode
Feature:

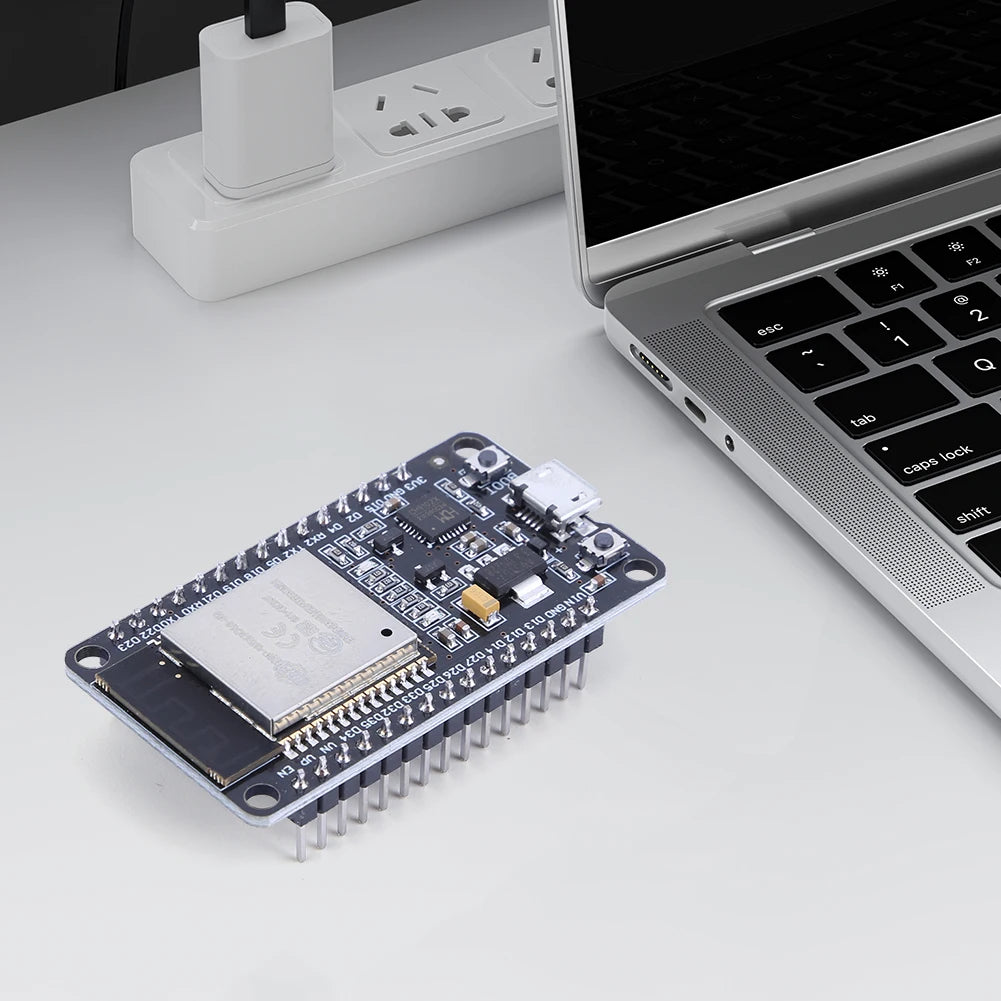

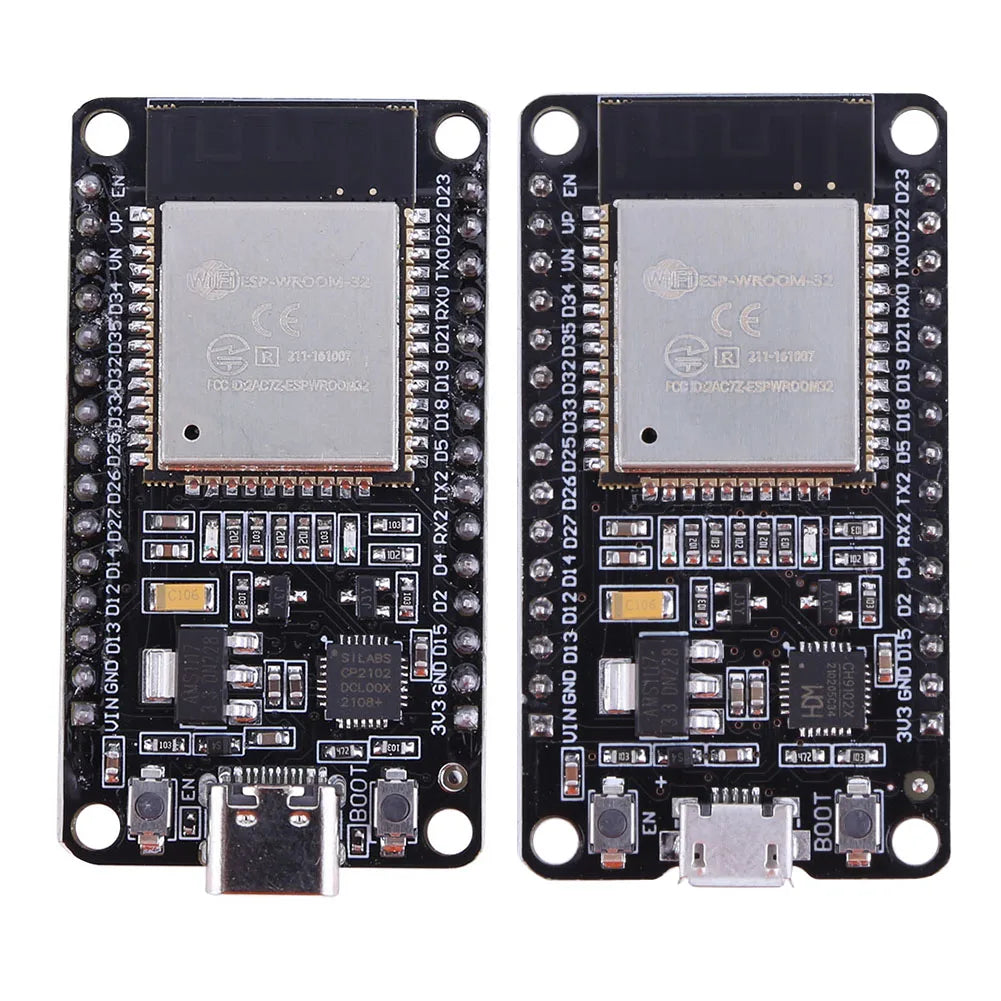

1. Versatile USB Connectivity: With micro-USB and Type-C interfaces, the ESP-WROOM-32 module can be easily connected to a computer for debugging and fast data transfer using USB-to-serial chips such as CP2102/CH9102.
2. Convenient Button Controls: Two touch buttons on the board allow developers to easily reset the module or enter download mode, making it more user-friendly.
3. Clear Status Indicators: The board has power and status indicator lights that provide real-time feedback on the current state of the module, making it easier to monitor and troubleshoot.
4. Powerful BT-compatible and WiFi Capabilities: This development board has excellent BT-compatible and WiFi capabilities, making it perfect for various IoT applications, including home automation, wireless industrial control, wireless positioning systems, and more.
5. Wide Compatibility: The module is compatible with popular development environments like for Arduino and NodeMCU and provides easy access to abundant resources from the official website of Espressif and other manufacturers, making it easy to use and learn.


Specification:

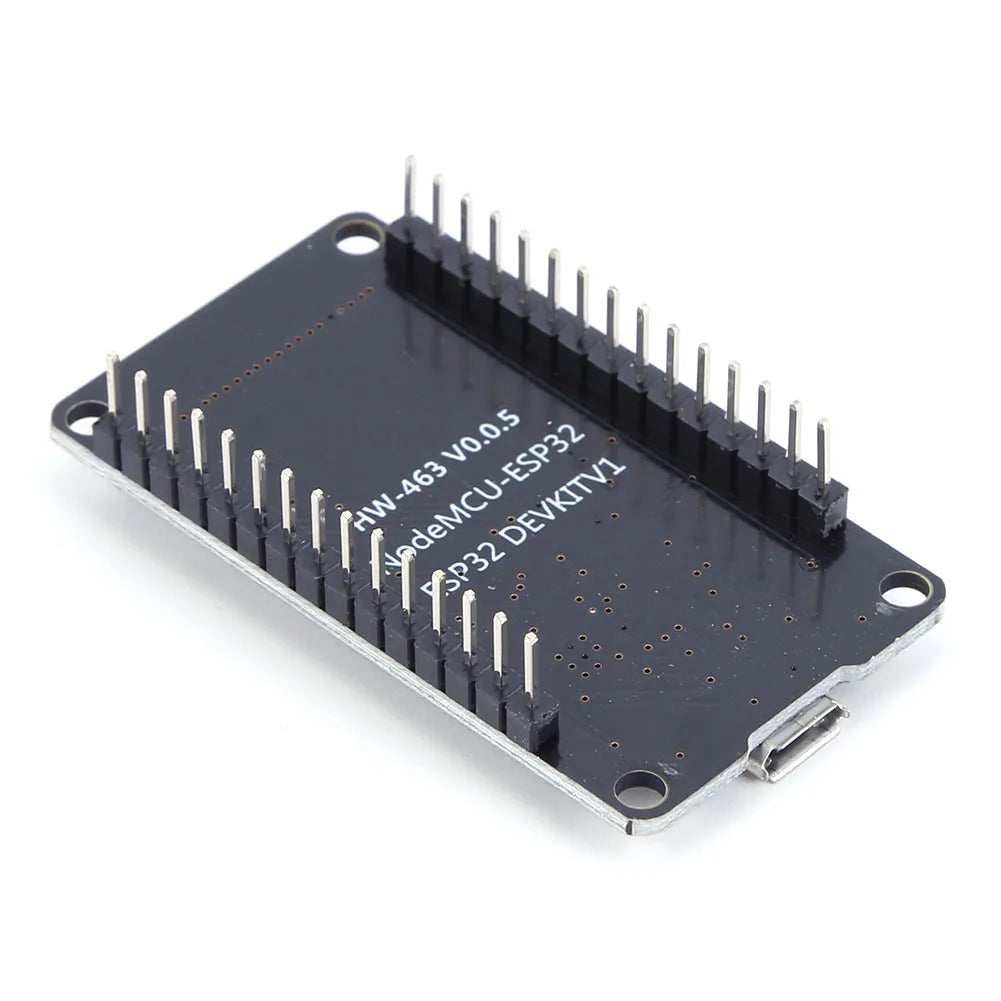

Specifications: 463B (CH9102X), 463C (CP2102 TYPE-C) (optional)
SPIFlash: default 32Mbit
BT-compatible: BT-compatible 4.2 BR/EDR and BLE standards
WiFi: 802.11 b/g/n/
Supported interfaces: UART, SPI, SDIO, I2C, PWM, I2S, IR, ADC, DAC
On chip sensors: Hall sensors, temperature sensors, capacitive touch sensors
Serial port speed: default 115200 bps
Spectrum range: 2412~2484MHz
Antenna form: onboard PCB antenna with a gain of 2dBi
Transmission power:
802.11b:17±2dBm(@11Mbps)
802.11g: 14+2dBm(@54Mbps)
802.11n:13±2dBm(@MCS7)
Receiving sensitivity:
CCK, 1Mbps:-90dBm
CCK, 11Mbps: -85dBm 6Mbps(1/2BPSK): -88dBm 54Mbps(3/464-QAM):-70dBm
MCS7(65Mbps, 72.2Mbps):-67dBm
power waste: 300mA@3.3V
Security: WPA/WPA2/WPA2 Enterprise/WPS
Power supply range: USB power supply: 5V Vin pin power supply: 5.0V~12V
Working temperature: -20~85 ℃
Storage environment: -40~90,<90% RH
Product size: about 52 * 29 * 15mm/2.04 * 1.14 * 0.59inch

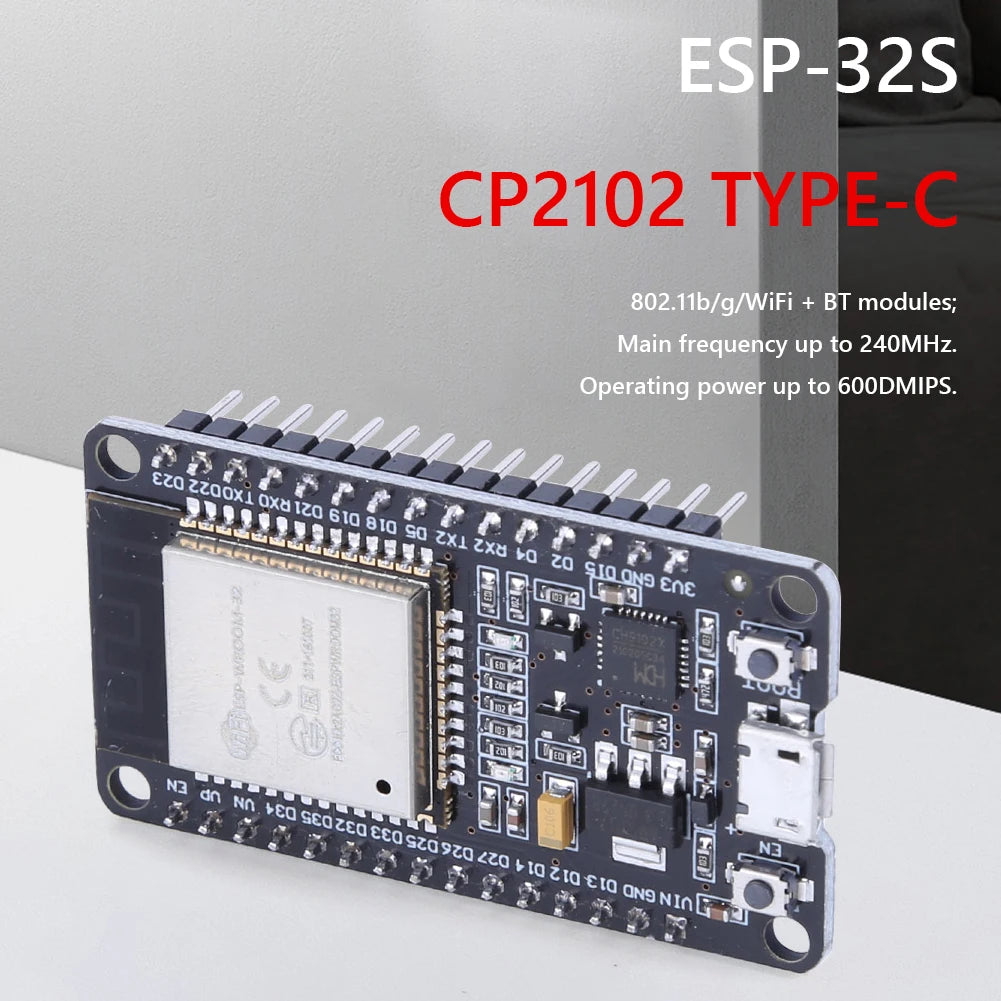

1. 802.11b/g/g WiFi+BT module;
2. Low power dual core 32-bit CPU, which can be used as an application processor;
3. The main frequency can reach up to 240MHz, and the computing power can reach up to 600DMIPS;
4. Built in 520 KB SRAM;
5. Support interfaces such as UART/SPI/I2C/PWM/DAC/ADC;
6. Support openOCD debugging interface;
7. Supports multiple sleep modes, with a current of 6.5uA during deep sleep;
8. Embedded Lwip and FreeRTOS;
9. Support STA/AP/STA+AP mode;
10. Support Smart Config/Airkiss one click network distribution;
11. Universal AT command, easy to use;
12. Support local serial port upgrade and remote upgrade (FOTA).


Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.



1 x ESP32 Development Board
