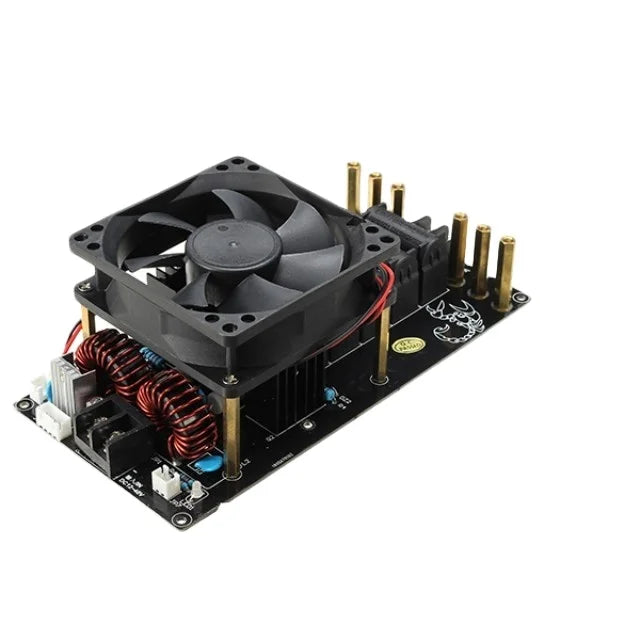

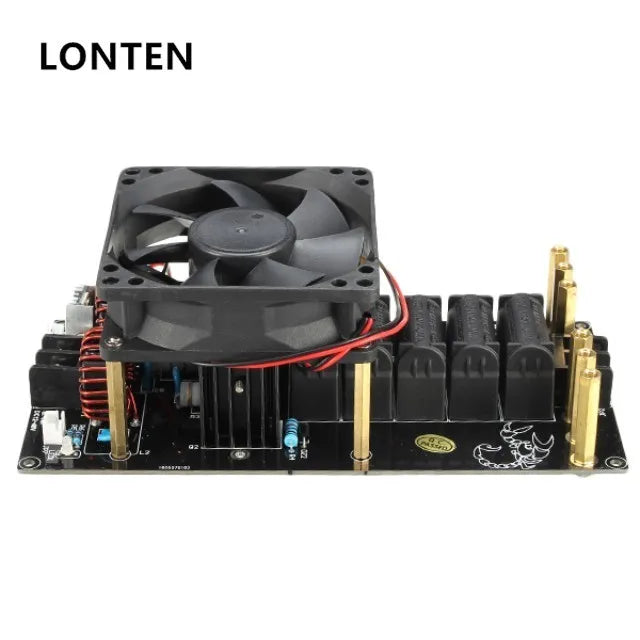

1000W ZVS High Frequency Induction Heating Machine DC 12V-40V Heater

Note: You must need to pay attention to safety, will produce high pressure / high temperature when using this product.

Feature:

Suitable heating brass: 24V / 48V (package does not includes)
Suitable heating brass: 30 x 30mm (this size can melted about 50g copper)
Default input voltage: DC 12V ~ 40V
Cooling fan rated voltage: DC 24V
Maximum input current: 20A, short working time 25A, long working time 15A
PCB board size: 181.10 * 88.46 * 1.60mm


Note:

Must ensure that the operating voltage is 11V above, note: this is the working voltage, that is the input voltage of connected to the heating coil or an heated object, not the no-load voltage. Whenever possible, as far as possible use protection power supply.
It does not recommend to use adjustable power supply, if you must need to use the adjustable power supply, voltage and current must reach scope of the note!
Recommended input voltage range is DC 24V ~ 36V, need to melt steel recommended input voltage is DC 48V ~ 55V.
To melt the metal, you must need to use a graphite crucible.
This board can melt iron, copper, aluminum:
Can melt copper is about 100g, need to split adds, can melt about 50g once, until melted and then added again.
Must confirm that the wiring is correct, correct the negative power input not reversed, it must be connected to the load (ie, the heating coil) before power on! Be sure to connect the load before power on, it can not load!
Do not use batteries, battery-powered!
When using the induction heating, you must need to use copper pipes as coil and water-cooled! Cooling fan must be turned on!

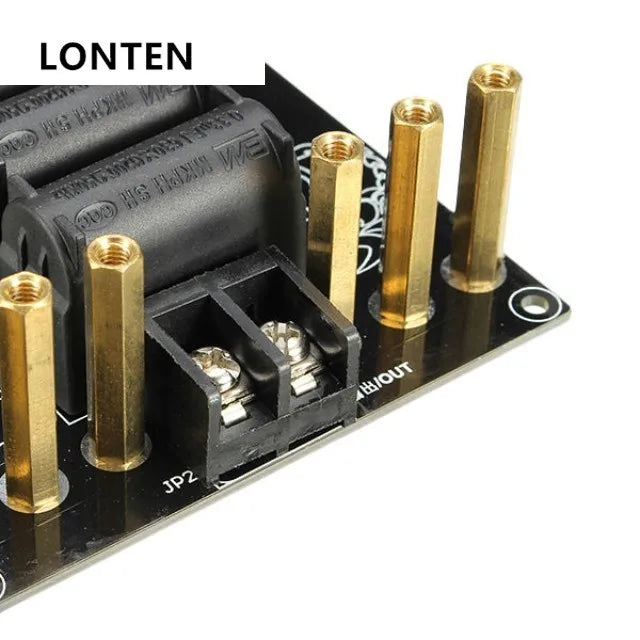

The maximum output of the pillars can be installed max. 10mm diameter copper pipe, copper pipe diameter 4mm can be soldered to the copper brass clip and then fixed pillars, diameter 2mm can be connected to the output terminals.
Do not touch any place after power on!

Package includes:

1 x 1000W ZVS High Frequency Induction Heating Machine
