ESP32-CAM-CH340 Development Board WiFi BT-compatible Wireless Module Supported UART SPI I2C PWM Interface for Smart Home
Feature:
1. Versatile Application: This module is widely used in various IoT applications, including home automation, industrial wireless control, wireless monitoring, QR wireless recognition, and wireless positioning systems.
2. High Memory Capacity: With 32Mbit SPI flash and internal 520KB+external 4MPSRAM, the module has high memory capacity, allowing it to handle complex data processing and storage tasks efficiently.
3. BT-compatible Connectivity: The module supports both BT-compatible 4.2 BR/EDR and BLE standards, making it easy to connect to a variety of BT-compatible devices and access real-time data.
4. WiFi Features: With built-in 802 II b/g/n/e/i WiFi support, the module can be easily connected to the internet, allowing for seamless wireless communication and data transfer.
5. Multiple Interface Support: The module supports multiple interfaces, including UART, SPI, I2C, and PWM, providing versatile connectivity options for different applications.


Specification:

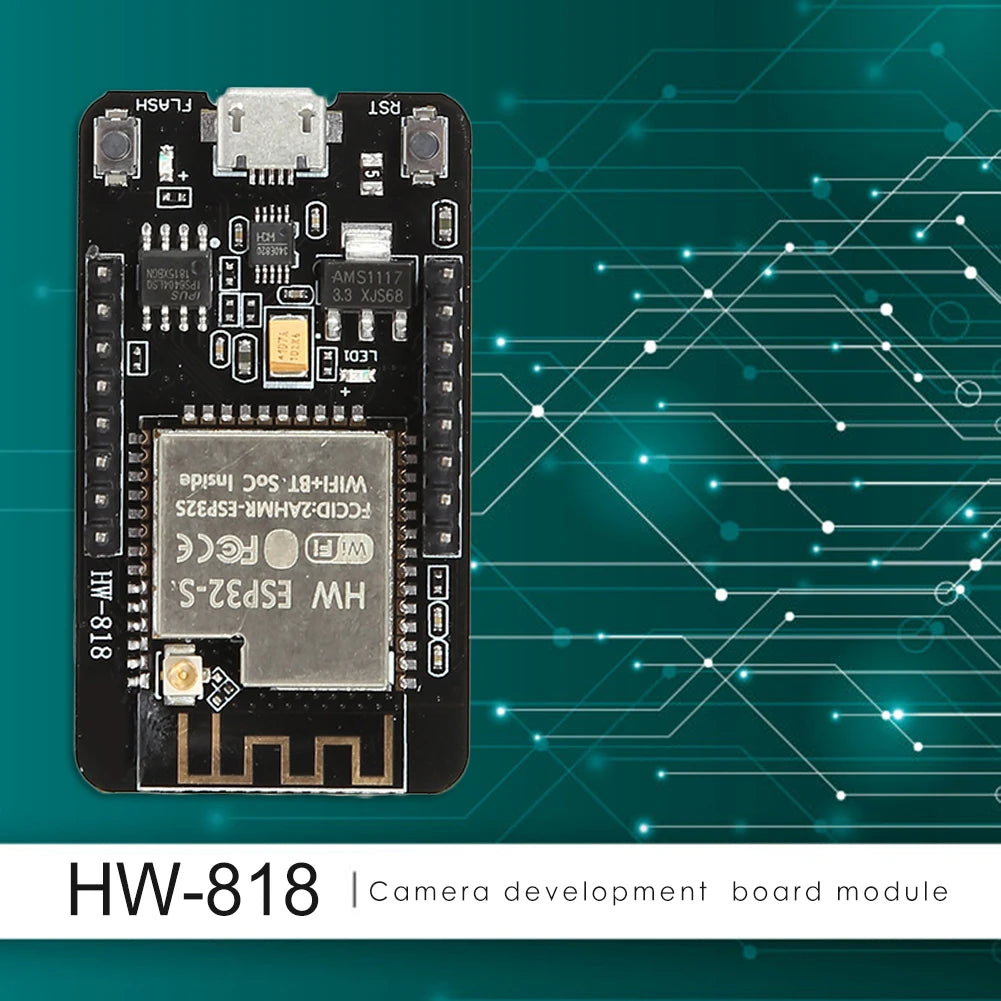

Module model: HW-818
SPI Flash: default 32Mbit
RAM: Internal 520KB+External 4MPSRAM
BT-compatible: BT-compatible 4.2 BR/EDR and BLE standards
Wi-Fi:802 II b/g/n/e/i

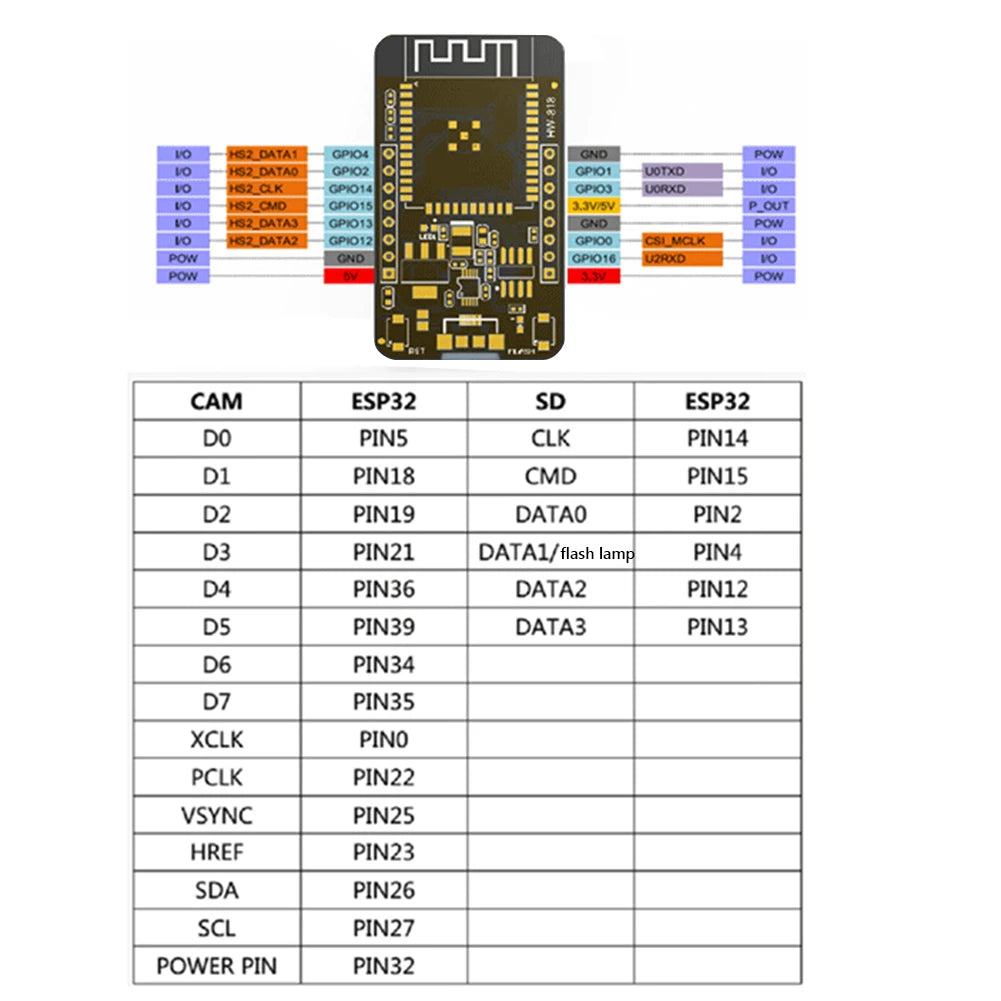

Supported interfaces: UART, SPI, I2C, PWM
TF card support: up to 4G
IO ports: 9
Serial port speed: default 115200 bps
Image output format: JPEG (only supported by OV2640), BMP, GRAYSCALE
Spectrum range: 2412-2484MHz
Antenna form: onboard PCB antenna with a gain of 2dBi
Transmission power:
802.l1b:17±2dBm (@1lMbps)
802.l1g:14±2dBm (@54Mbps)
802.l1n:13±2dBm (@MCS7)
Product size: about 27 * 48.5 * 4.5mm/1.06 * 1.90 * 0.17inch (excluding pins)


Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.



1 x Development Board
