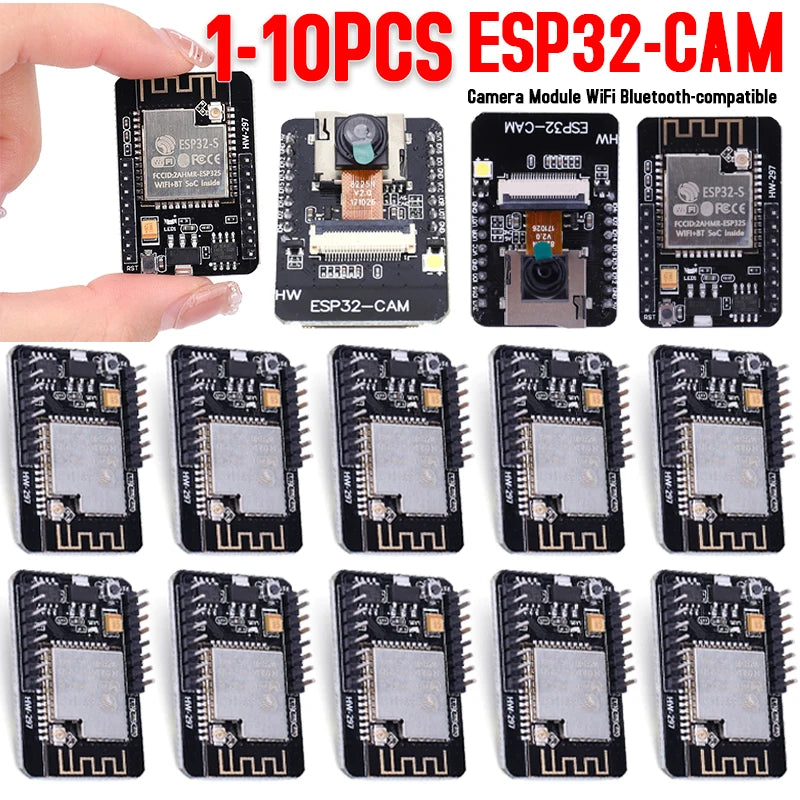

Custom 1-10PCS ESP32-CAM Development Board Support TF Cards Module WiFi BT-compatible UART/SPI/I2C/PWM for Smart Devices IoT Manufacturer

Custom 1-10PCS ESP32-CAM Development Board Support TF Cards Module WiFi BT-compatible UART/SPI/I2C/PWM for Smart Devices IoT Manufacturer

$100.00 USD
$0.00 USD $100.00 USD
Sale Sold out

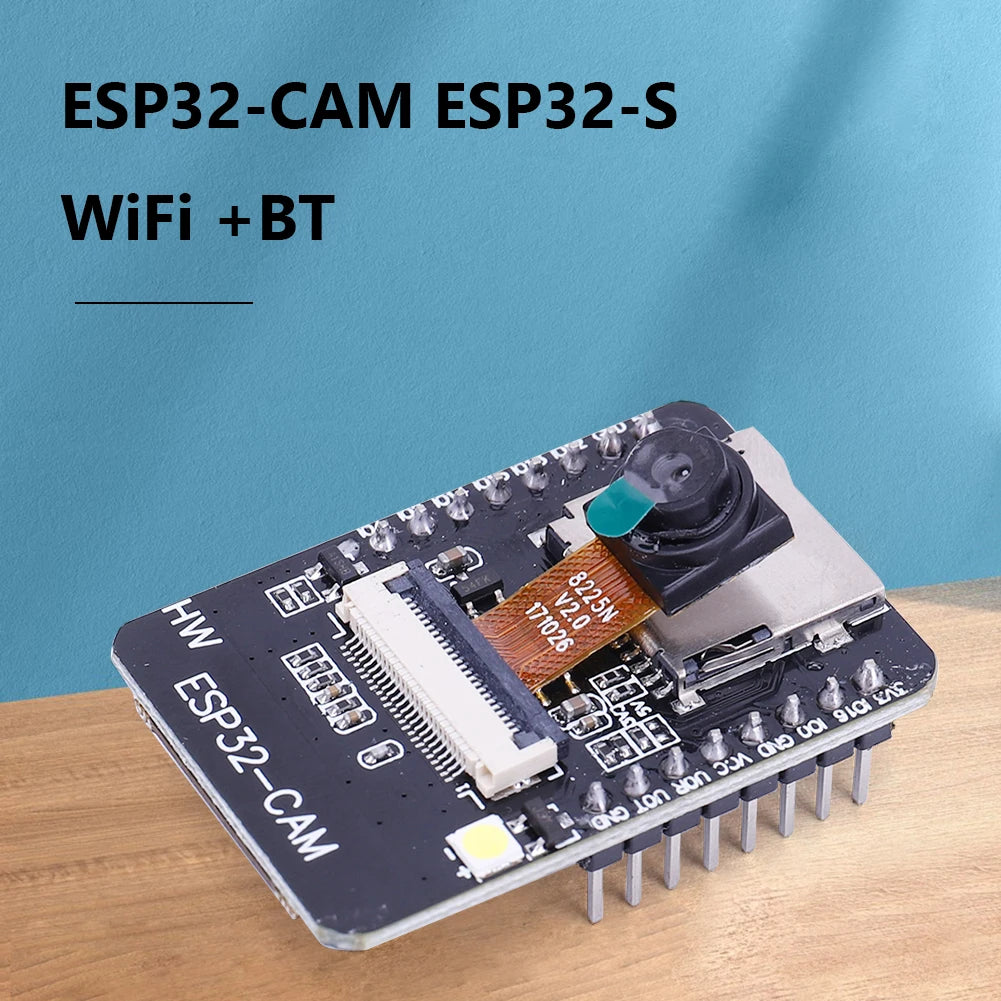

ESP32-CAM Camera Programmable Module Support TF Cards Development Board WiFi BT-compatible 115200bps for Home Smart Devices IoT
Feature:
1. High-performance Connectivity: From Wi-Fi 802.11 b/g/n/e/i and BT-compatible 4.2 BR/EDR and BLE standards ensuring reliable, high-speed connectivity.
2. Versatile Connectivity Options: Enjoy the flexibility of interfacing with UART, SPI, I2C, PWM interfaces, and support for up to 9 GPIO pins and a maximum 4G TF card.
3. Effortless and Effective Image Output: Capture and output your images in multiple formats, including JPEG (0V2640 only), BMP, and Grayscale, making it easy to use in different applications.
4. Enhanced Memory Capacity: With internal 520KB and external 4M PSRAM, you can streamline your workflow by having ample memory capacity to store data.
5. Wide Frequency Range: The device has an exceptional frequency range spanning from 2412MHz to 2484MHz allowing you to effortlessly connect to multiple devices and networks within that spectrum.


Specification:
Origin: Mainland China
SPI Flash: Default 32Mbit
RAM: Internal 520KB+External 4M PSRAM
BT-compatible: BT-compatible 4.2 BR/EDR and BLE standards
WiFi: 802.11 b/g/n/e/i
Supported interfaces: UART, SPI, I2C, PWM
TF card support: up to 4G
I0 port: 9
Serial port speed: default 115200 bps
Image output format: JPEG (only supported by 0V2640), BMP, GRAYSCALE
Spectrum range: 2412~2484MHz
Antenna form: onboard PCB antenna with a gain of 2dBi
Transmission power: 802. 11b: 17+2 dBm (@ 1 lMbps),
802.11g: 14+2 dBm (@ 54Mbps),
802.11n: 13+2 dBm (@ MCS7),
Receiving sensitivity: CCK, 1 Mbps: -90dBm,
CCK, 11 Mbps: -85dBm,
6 Mbps (1/2 BPSK): -88dBm,
54 Mbps (3/4 64 QAM): -70dBm,
MCS7 (65 Mbps, 72.2 Mbps): -67dBm
Power consumption: Turn off flash: 180mA@5V ,
Turn on the flash and adjust the brightness to maximum: 310mA@5V ,
Deep sleep: The minimum power consumption can reach 6mA@5V ,
Modern sleep: minimum achievable 20mA@5V ,
Light sleep: minimum achievable 6.7mA@5V ,
Safety power supply range: WPA/WPA2/WPA2 Enterprise/WPS5V
Working temperature: -20C-85 "C
Storage environment: -40 C-90 ° C,<90% RH
Product application: This module can be widely used in various IoT scenarios, suitable for home intelligent devices, industrial wireless control, wireless monitoring, QR wireless recognition, wireless positioning system signals, and other IoT applications. Adopting DIP packaging, it can be directly inserted into the bottom plate for use

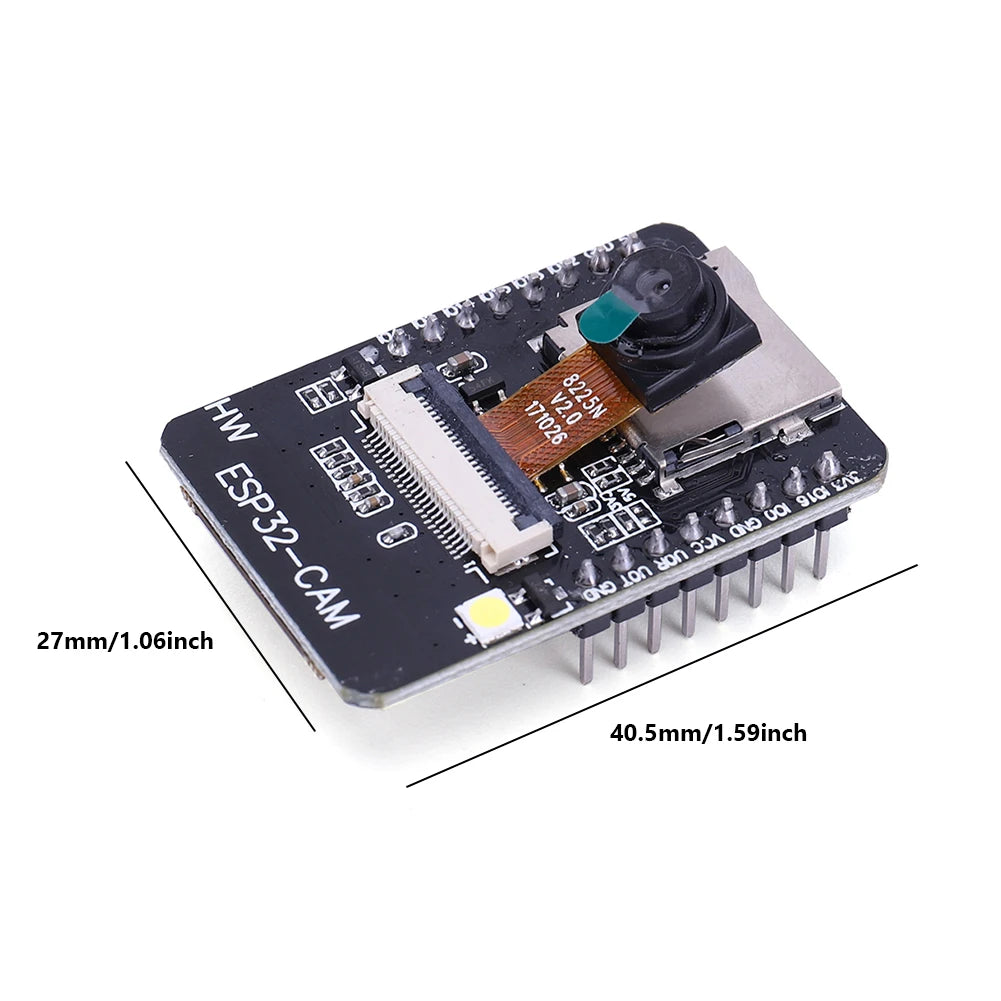

Product size: About 40.5x27x4.5mm/1.59x1.06x0.17inch
Packaging weight: 10g


Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.




1 x ESP32-CAM Development Board
