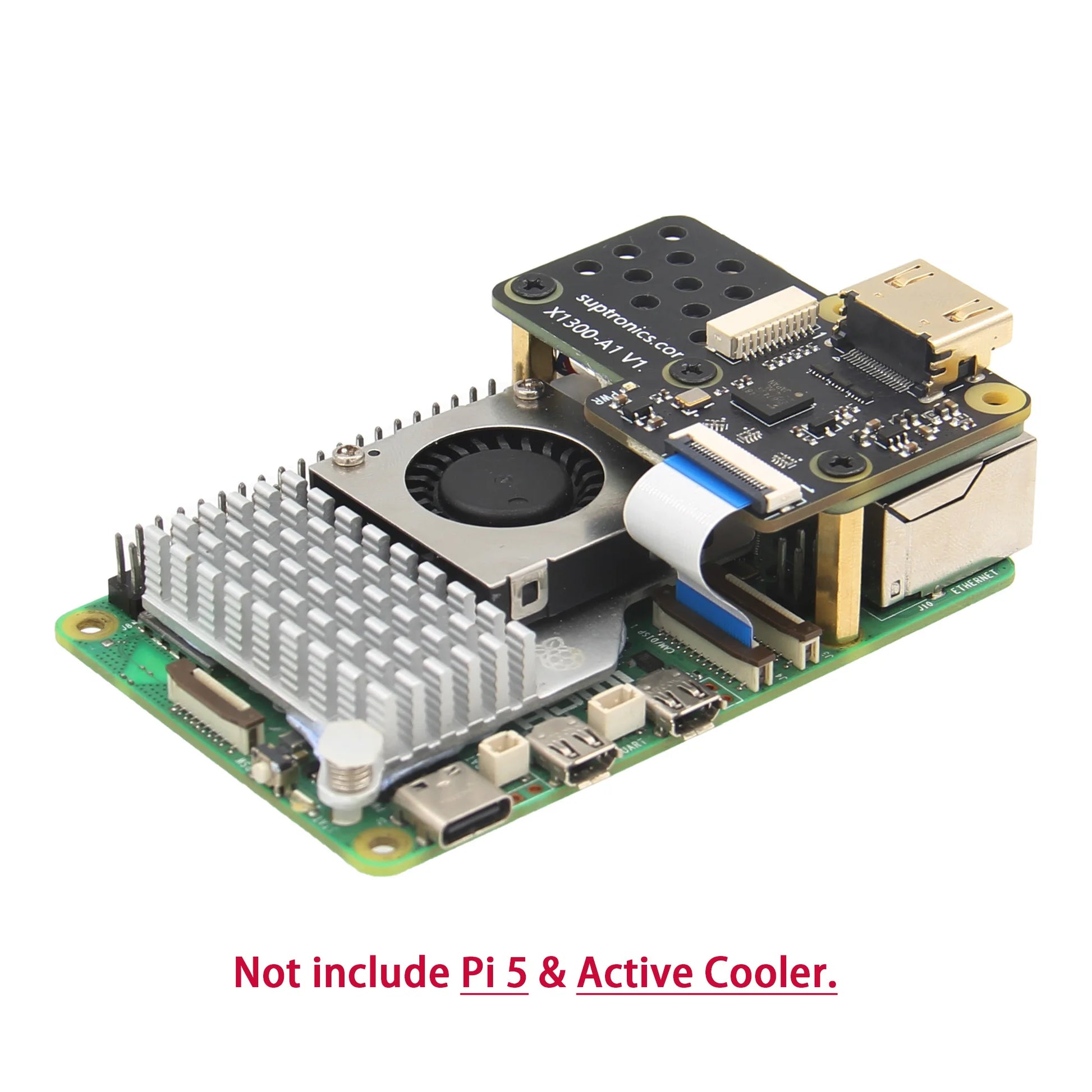

Not include Raspberry Pi 5 & Active Cooler & Case.

[User Manual]

https://wiki.geekworm.com/X1300

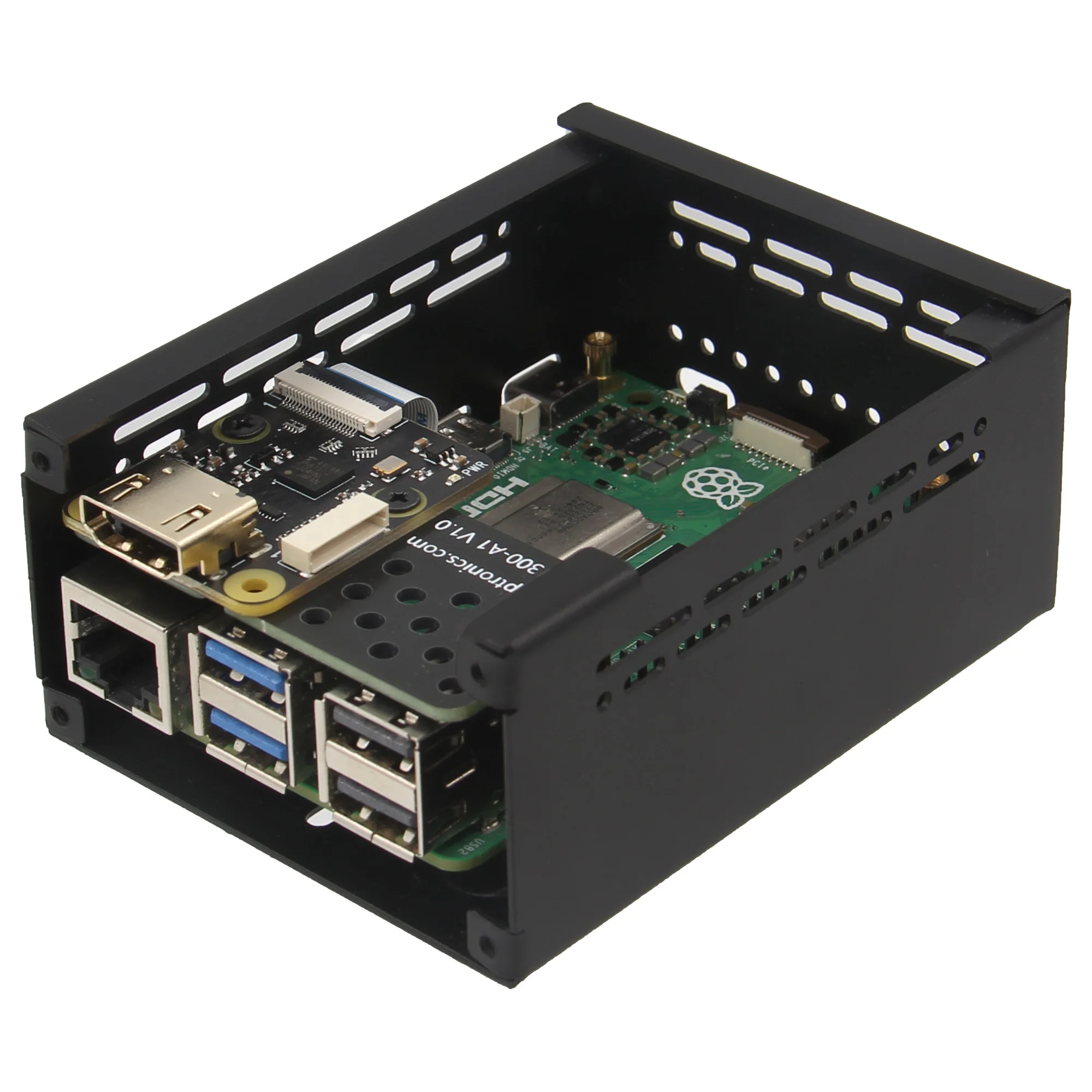

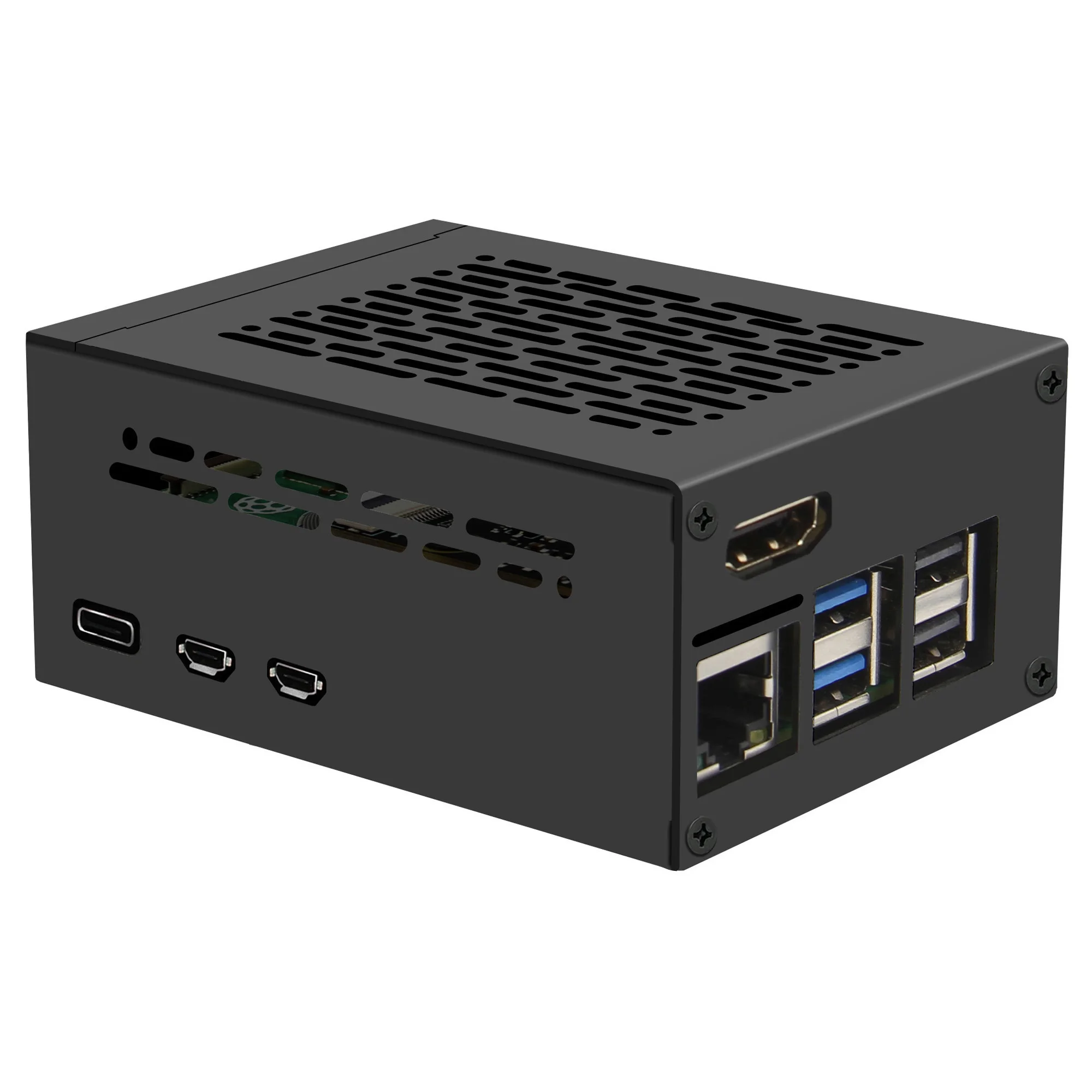

[Metal Case X1300-C1]

https://www.aliexpress.com/item/1005007545335278.html

[Overview]

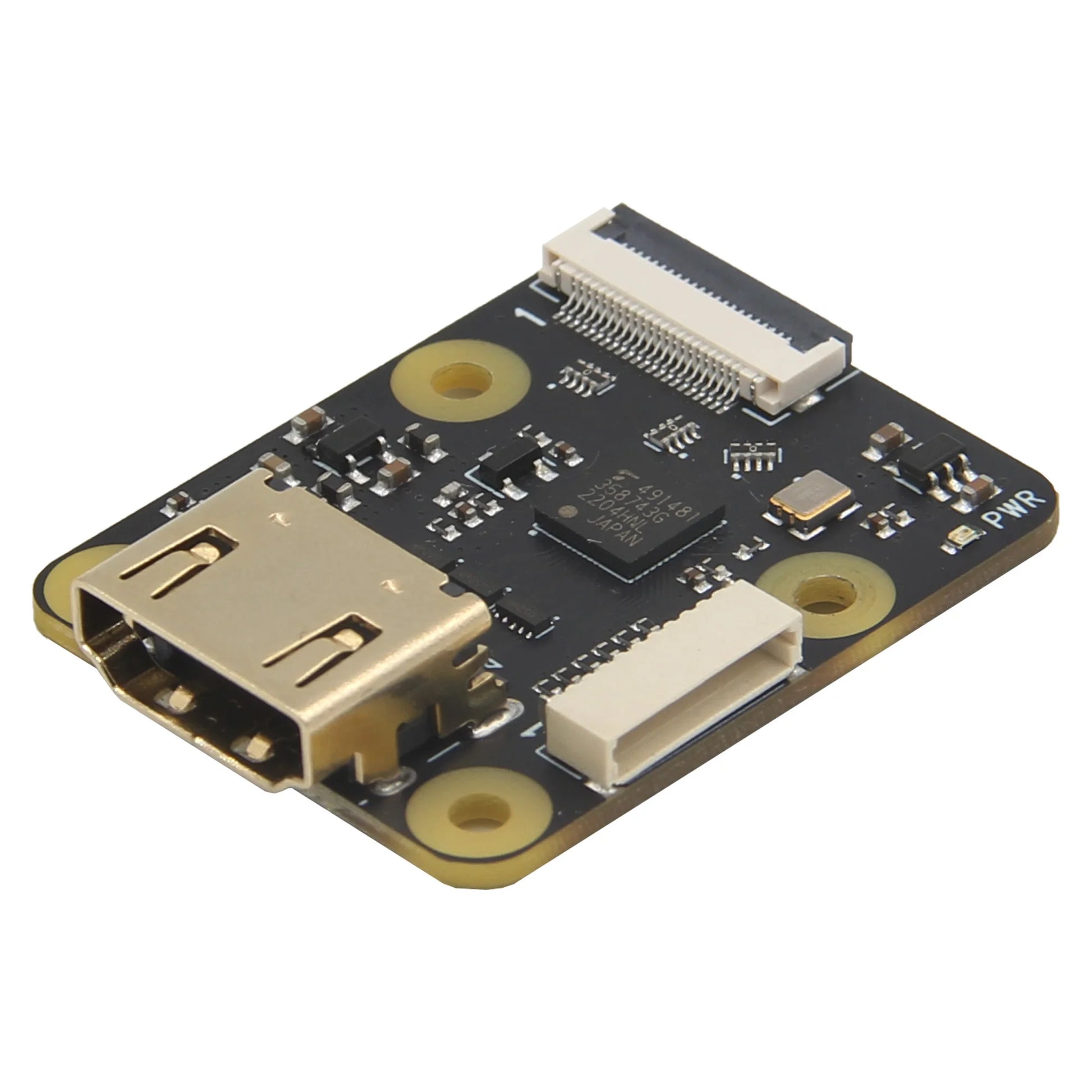

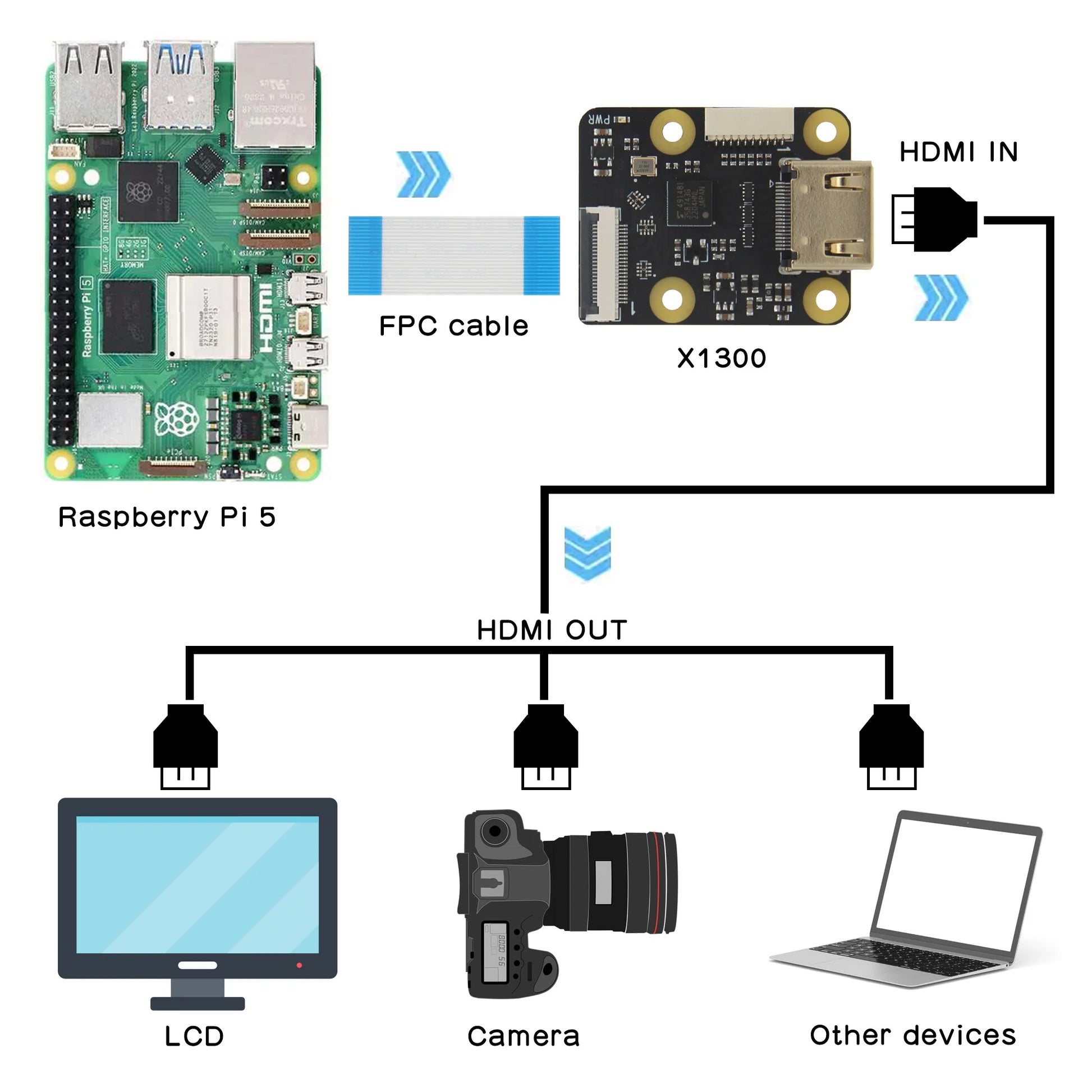

• The X1300 HDMI to CSI-2 bridge with I2S audio interface has been specifically designed for the Raspberry Pi 5. It features the Toshiba TC358743XBG bridge chip, supporting HDMI input up to 1080P at a refresh rate of 60 fps.

Note: To capture HDMI audio via I2S, additional wiring or the X1300-A2 accessory board is necessary.

[Features]

• Compatible With : Raspberry Pi 5B

• Capable of handling video formats up to 2K Full HD (1920x1080, 60fps).

• Equipped with the HDMI to CSI-2 bridge chip: Toshiba TC358743XBG

• Supports MIPI CSI-2 with 4 data lanes, each with speeds of up to 1 Gbps per lane

• Enables HDMI audio input and transmission over I²S - (Note: To capture HDMI audio via I2S, additional wiring or the X1300-A2 accessory board is necessary.)

• Prevents HDMI backpowering to the Raspberry Pi CSI

• Features a CSI-2 connector: 22-pin FPC with 0.5mm pitch

• Boasts an ultra-compact design: 30 x 37.5 mm (PCB size)

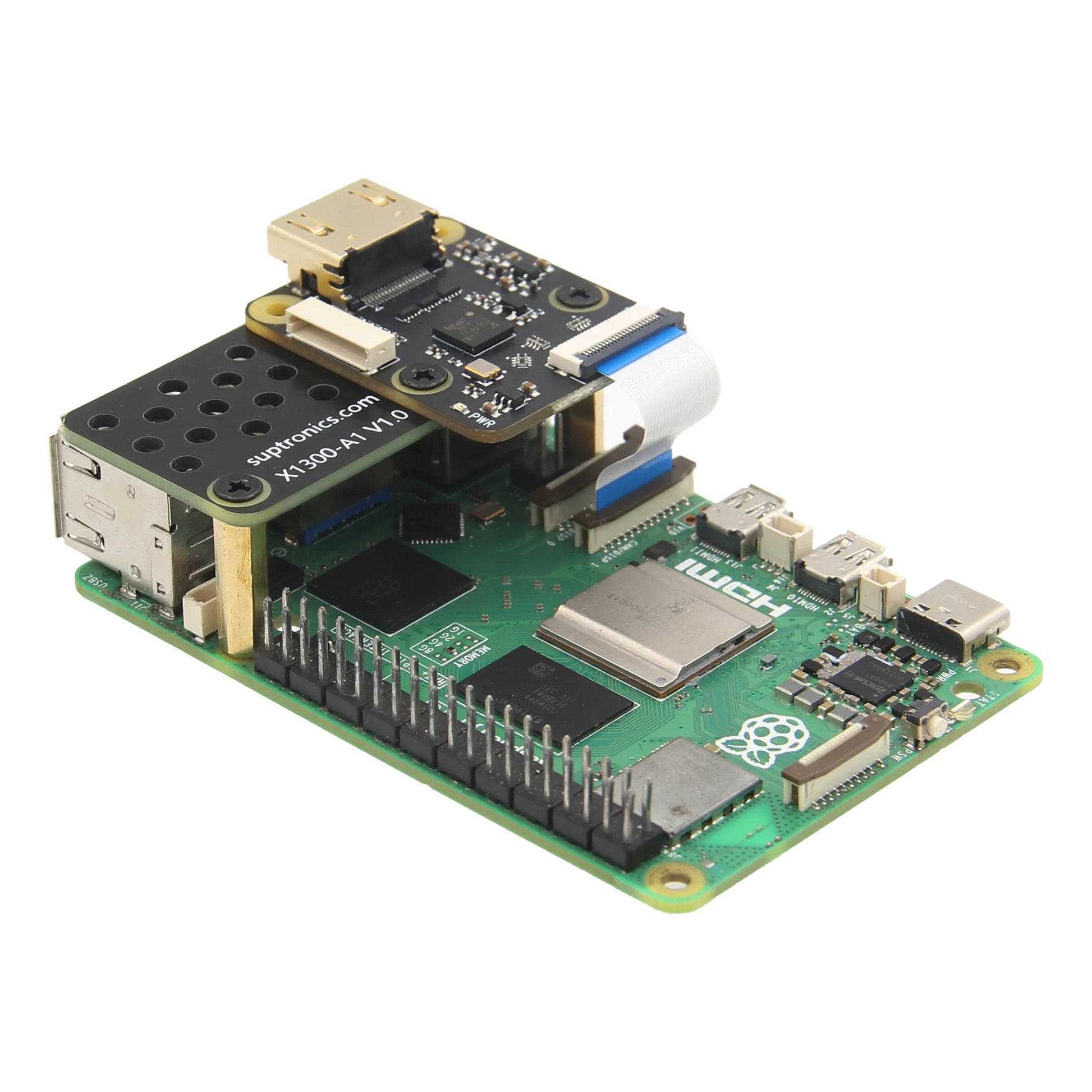

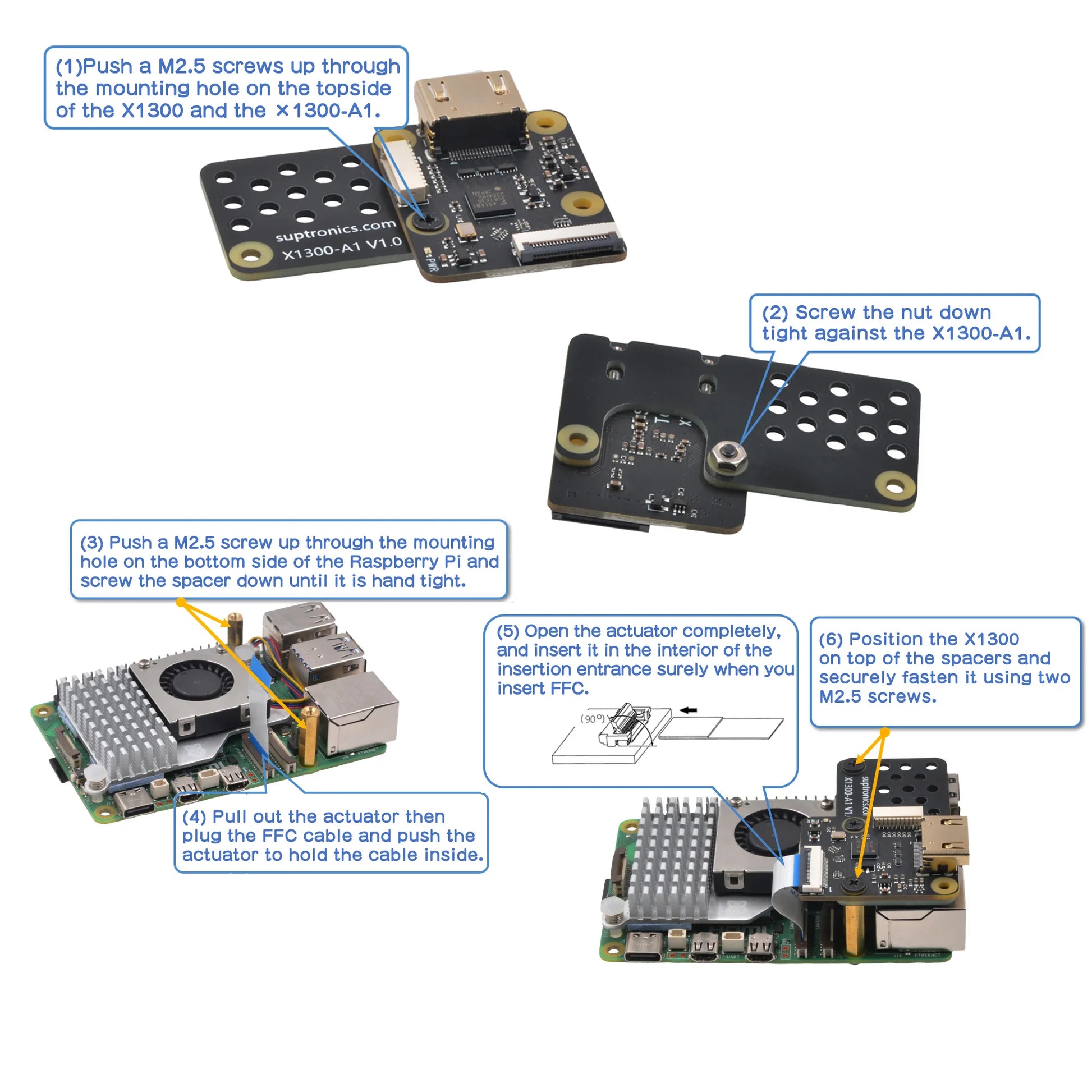

• Easily mountable on the Raspberry Pi 5, allowing you to customize your perfect case

[Applications]

Here are some applications of HDMI to CSI (Camera Serial Interface) conversion:

1. Digital Media Adapters: HDMI to CSI adapters allow HDMI cameras to be used just like standard Raspberry Pi CSI cameras. This is useful for digital media adapters that need to process HDMI input.

2. Smart Monitors: Smart monitors can benefit from HDMI to CSI conversion, enabling them to accept HDMI video streams and integrate them into their display systems.

3. Set-Top Boxes (STBs): STBs often require video input from various sources. HDMI to CSI conversion allows STBs to handle HDMI signals efficiently.

4. Smart TVs: Some smart TVs may need to process HDMI input for features like picture-in-picture or video conferencing. HDMI to CSI bridges facilitate this integration.

5. Entertainment Screens: Whether it's for gaming consoles, streaming devices, or other entertainment systems, HDMI to CSI conversion ensures compatibility with HDMI sources.

6. KVM over IP: IP-KVM (Keyboard, Video, Mouse over IP) solutions using a Raspberry Pi, This bridge allows you to capture full HD video with low latency and supports H.264 video encoding of your desktop.

Remember that HDMI to CSI adapters are particularly useful when interfacing HDMI cameras with Raspberry Pi boards. They provide a seamless way to incorporate HDMI video streams into various applications.

[Technical Specification]

Power supply        3.3Vdc via FFC

Ports & Connectors HDMI video input connector x1 - Type-A 19-pin

                                        MIPI connector x1 - 22pin 0.5mm pitch

                                       10-pin functional connector x1 - 10-pin 1.0pitch

MIPI cable length       30mm

PCB Size                       37.5mm x 30mm

[Packing List]

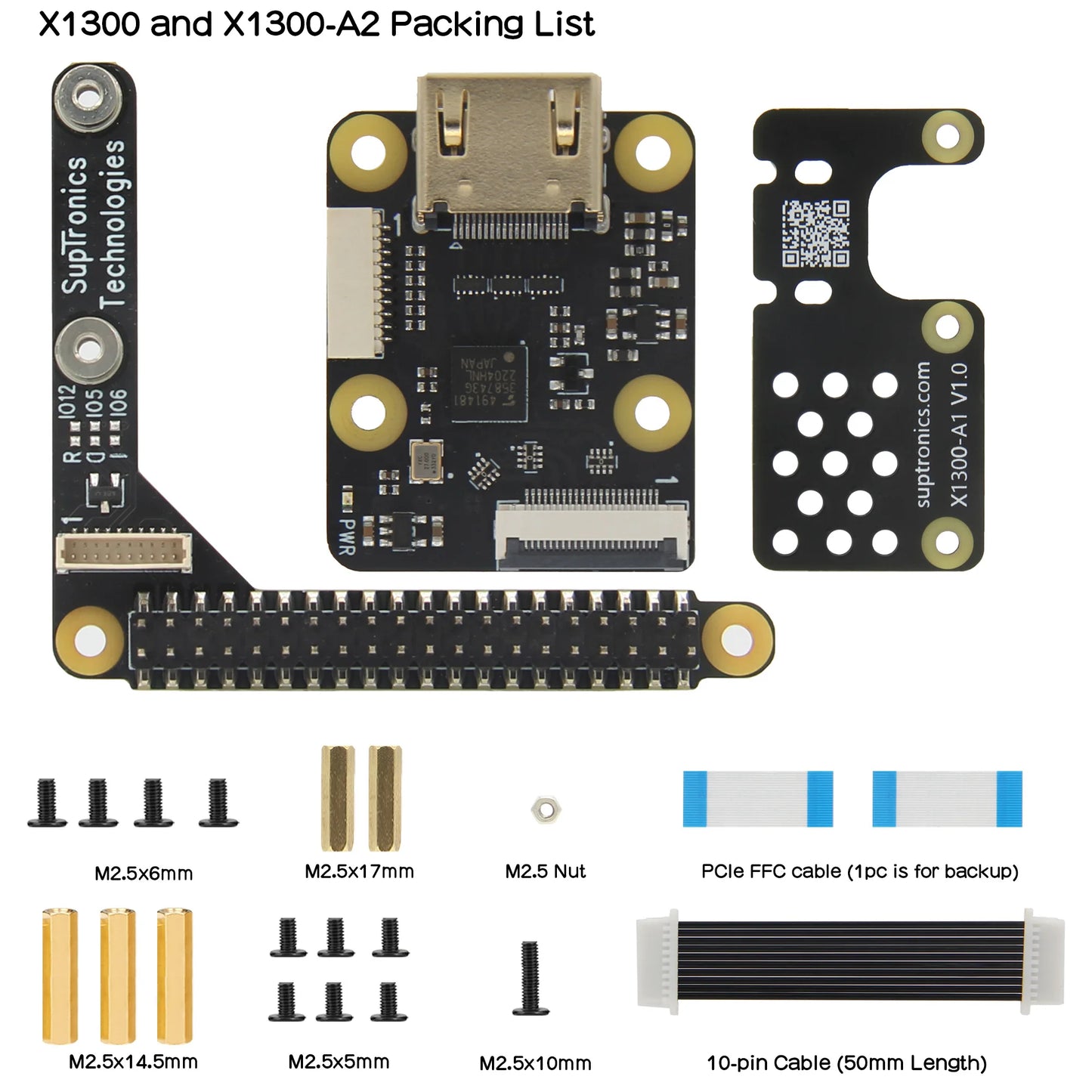

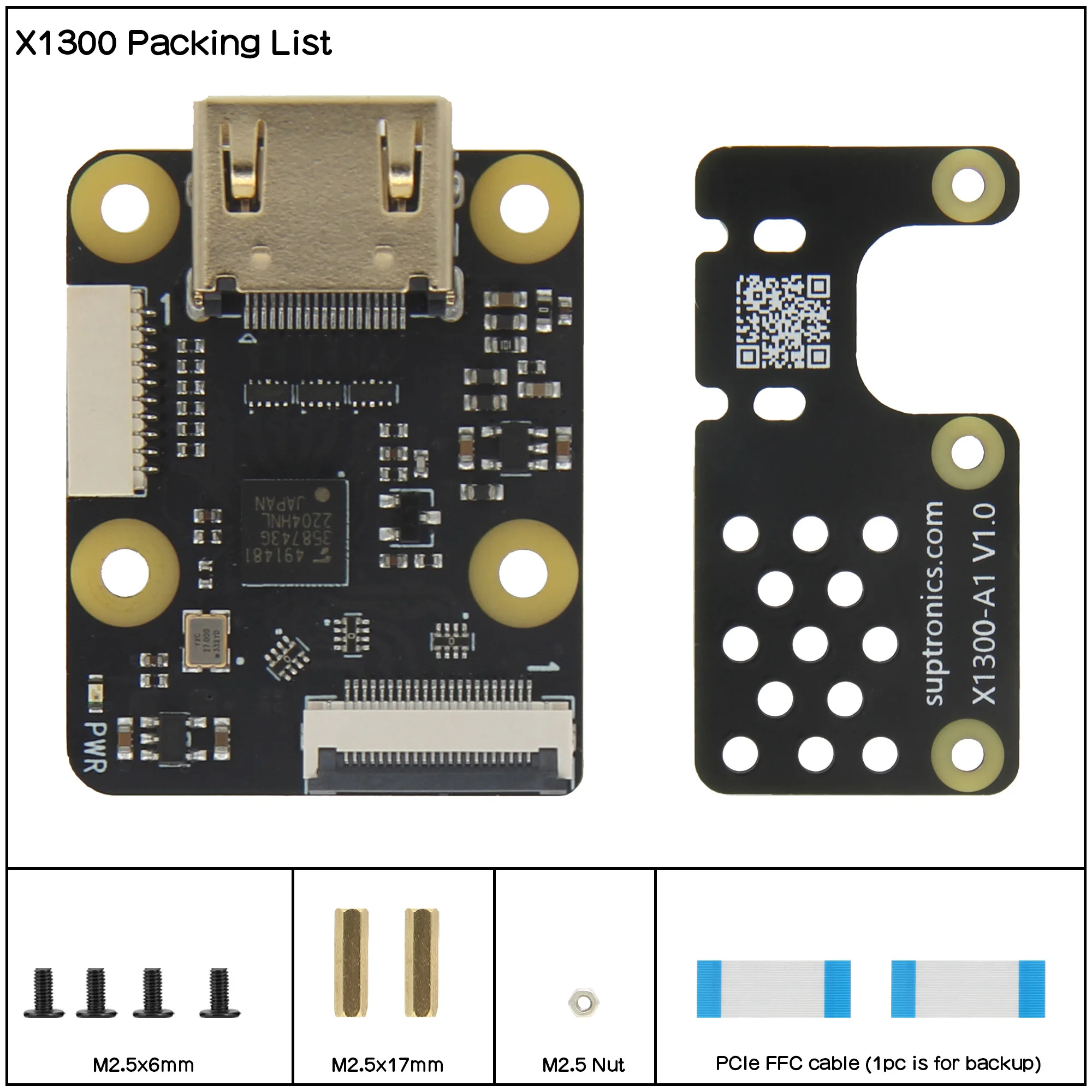

Bundle 1

1x X1300 V1.0 HDMI to CSI-2 module

2x 22-pin MIPI FFC 30mm

1x Screw pack

Bundle 2

• 1x X1300 V1.0 HDMI to CSI-2 module

• 2x 22-pin MIPI FFC 30mm

• 1x Screw pack

• 1x X1300-A2 V1.0 accessory board

• 1 x 10-pin I2S cable

• 3 x M2.5* 14.5 F/F Spacers

• 6 x M2.5* 5 Screws

• 1 x M2.5* 10 Screw
