Custom CSI 2 Adapter C790 | Support Video & Audio | Up to 1080p60fps | for Pi 5 / 4 B / 3 B+ / 3B / CM4 / Zero KVM
Custom CSI 2 Adapter C790 | Support Video & Audio | Up to 1080p60fps | for Pi 5 / 4 B / 3 B+ / 3B / CM4 / Zero KVM
Couldn't load pickup availability
[Overview]
This module takes the incoming HDMI signal and converts it into a separate CSI signal and I2S audio signal. HDMI input supports up to 1080P60Hz. It works well on raspberry pi, there are three versions of this module in history (C779、C780、C790). C790 is the latest version. C790 has mitigate HDMI back powering, also has two csi channels.
[Features]
Model: C790 - supports CSI video & I2S audio
HDMI input: supports up to 1080P60Hz on Raspberry Pi
HDMI to CSI-2 bridge chip: Toshiba TC358743XBG
4 CSI-2 channels & clock (Raspberry Pi 4 and Pi Zero only support 2 lan, max 1080P@50fps; CM4 supports 4 lan, max 1080P@60fps)

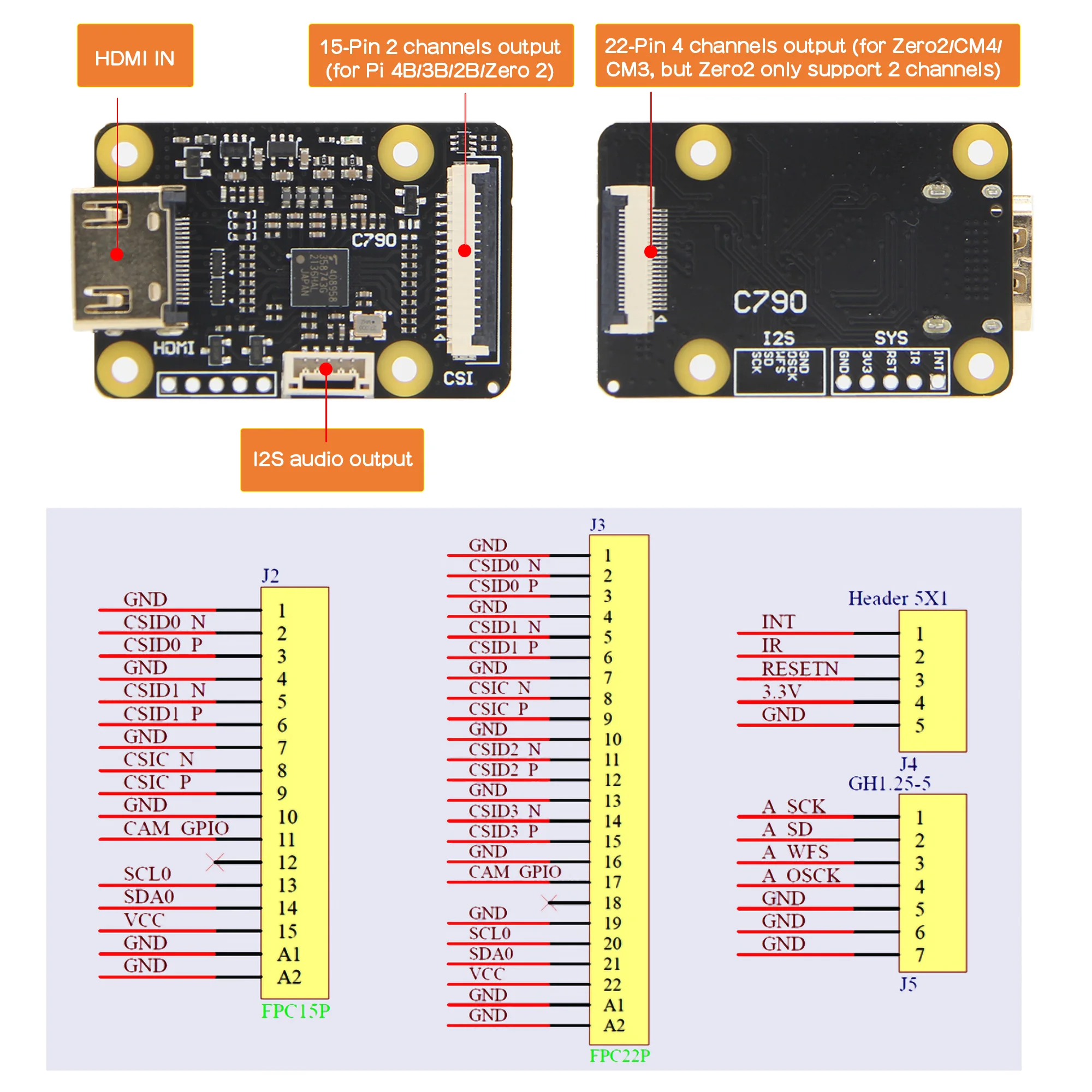

The CSI-2 interface, with 15 pin FPC seat, spacing 1.0 mm, is located on the front of the C790 module.
The CSI-2 interface, with 22 pin FPC seat, spacing 0.5 mm, is located on the back of the C790 module.
Usage: Same as standard Raspberry Pi camera

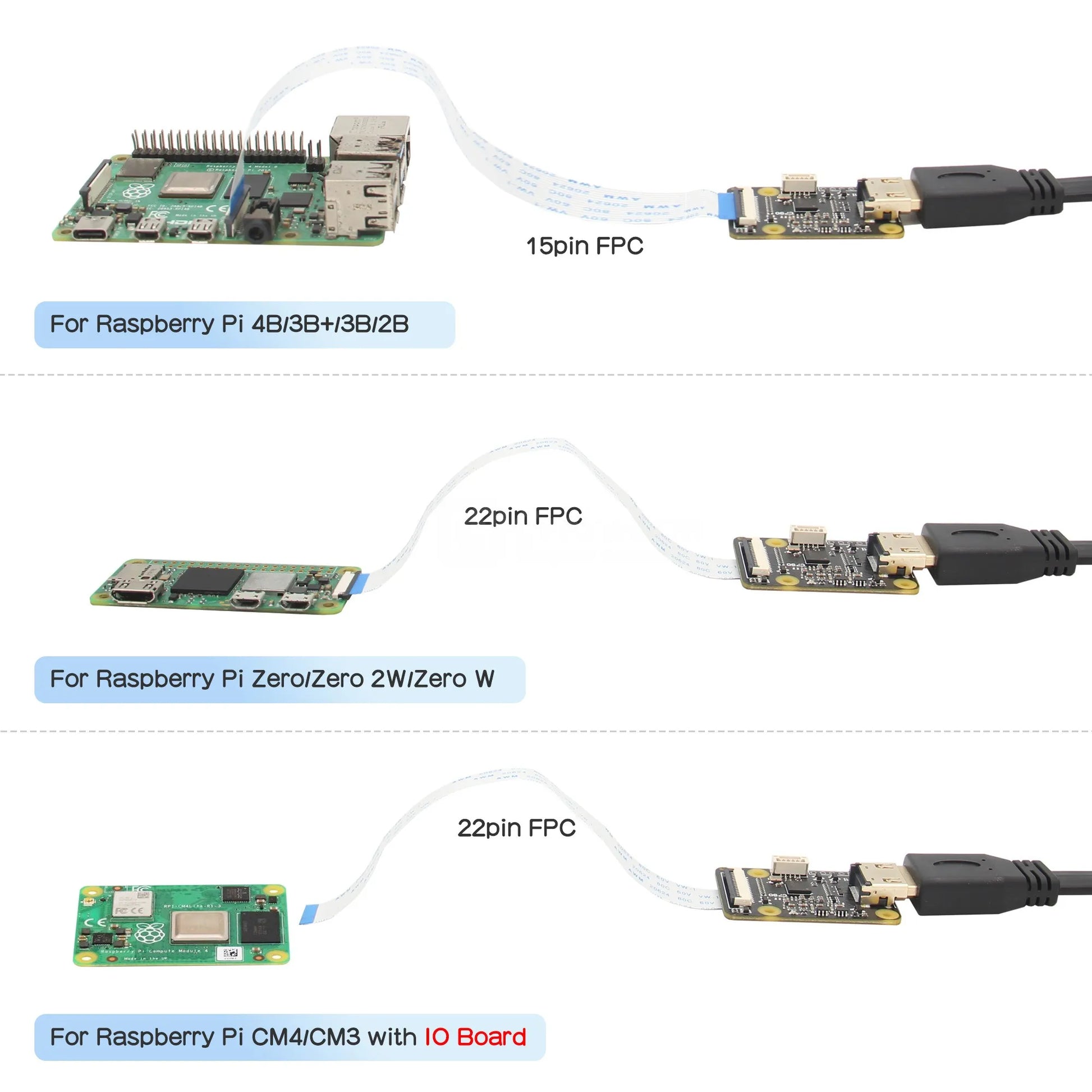

Compatible with all Raspberry Pi version: Raspberry Pi 5 / 4 B / 3 B+ / 3B / 2B / B+ / 3A+ / Pi Zero / Zero W / CM4

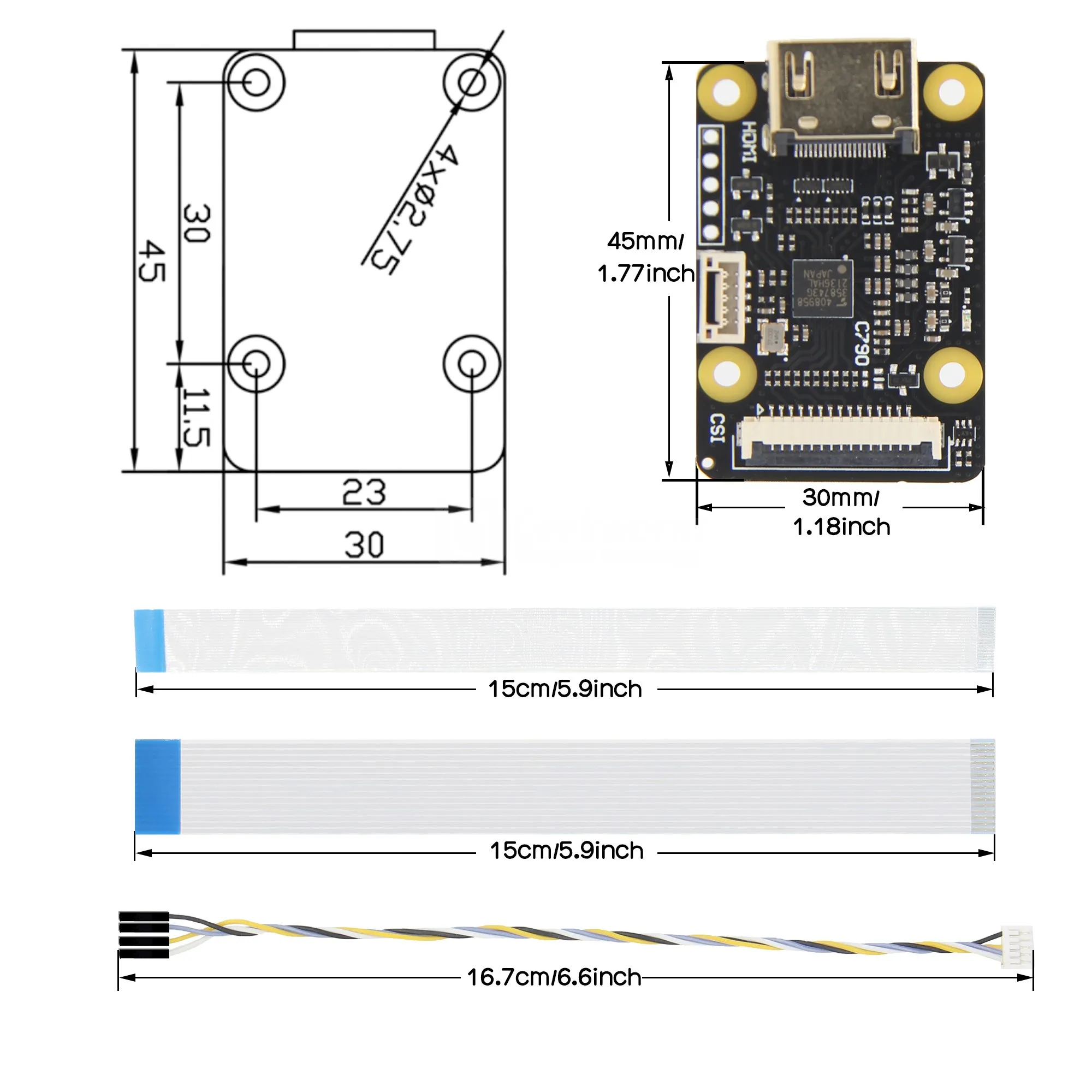

Size: 30 x 45 mm
Power supply: 3.3V
[Packing List]

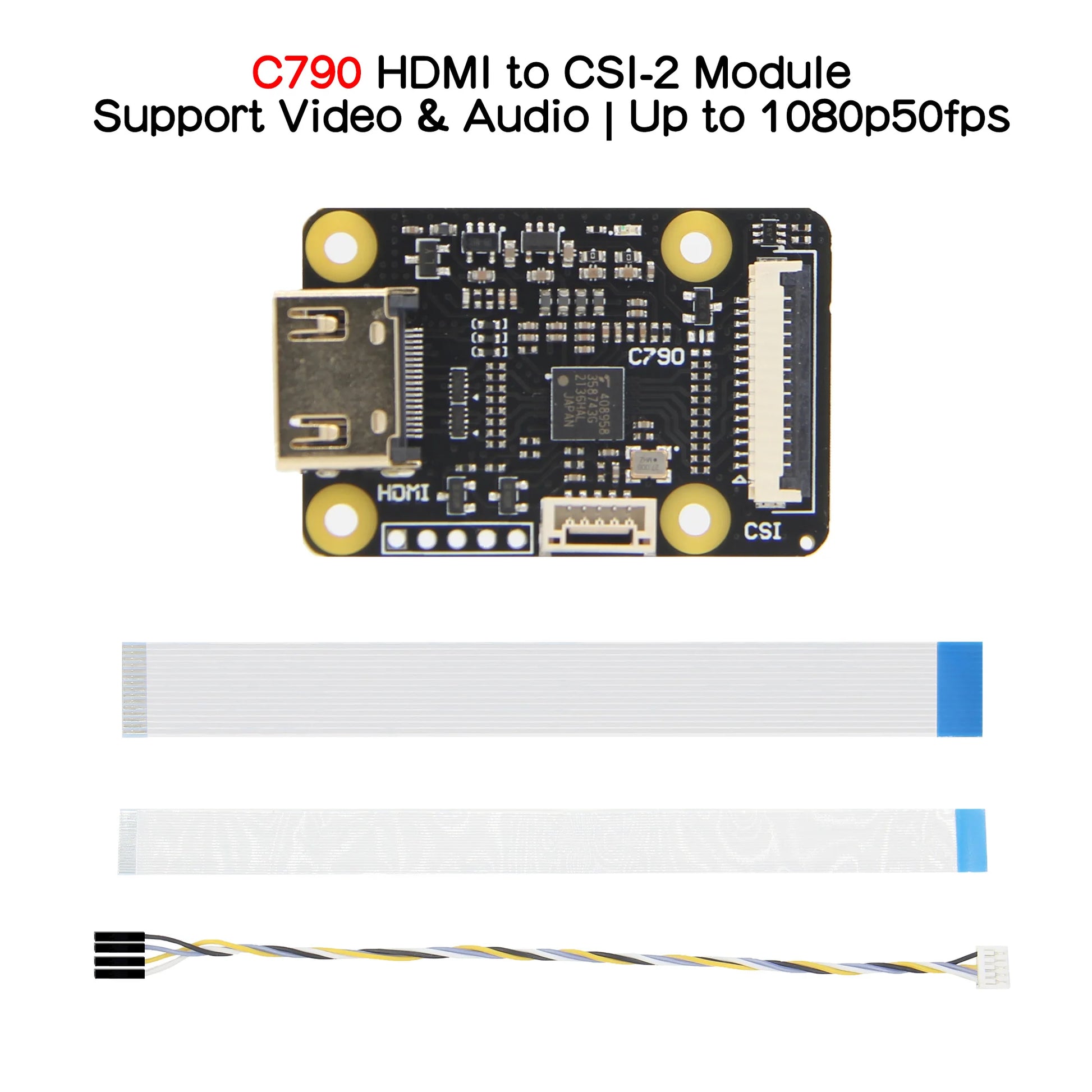

1 x C790 HDMI to CSI-2 Module (supports video and audio)
1 x FPC 15pin 1.0mm cable (15cm length)
1 x FPC 22pin 0.5mm cable (15cm length)
1 x I2S cable
