Custom CS-MIPI-IMX307 for Raspberry Pi and Jetson Nano XavierNX,i.MX8m Maaxboard, IMX307 MIPI CSI-2 2MP Star Light ISP Camera Module Manufacturer

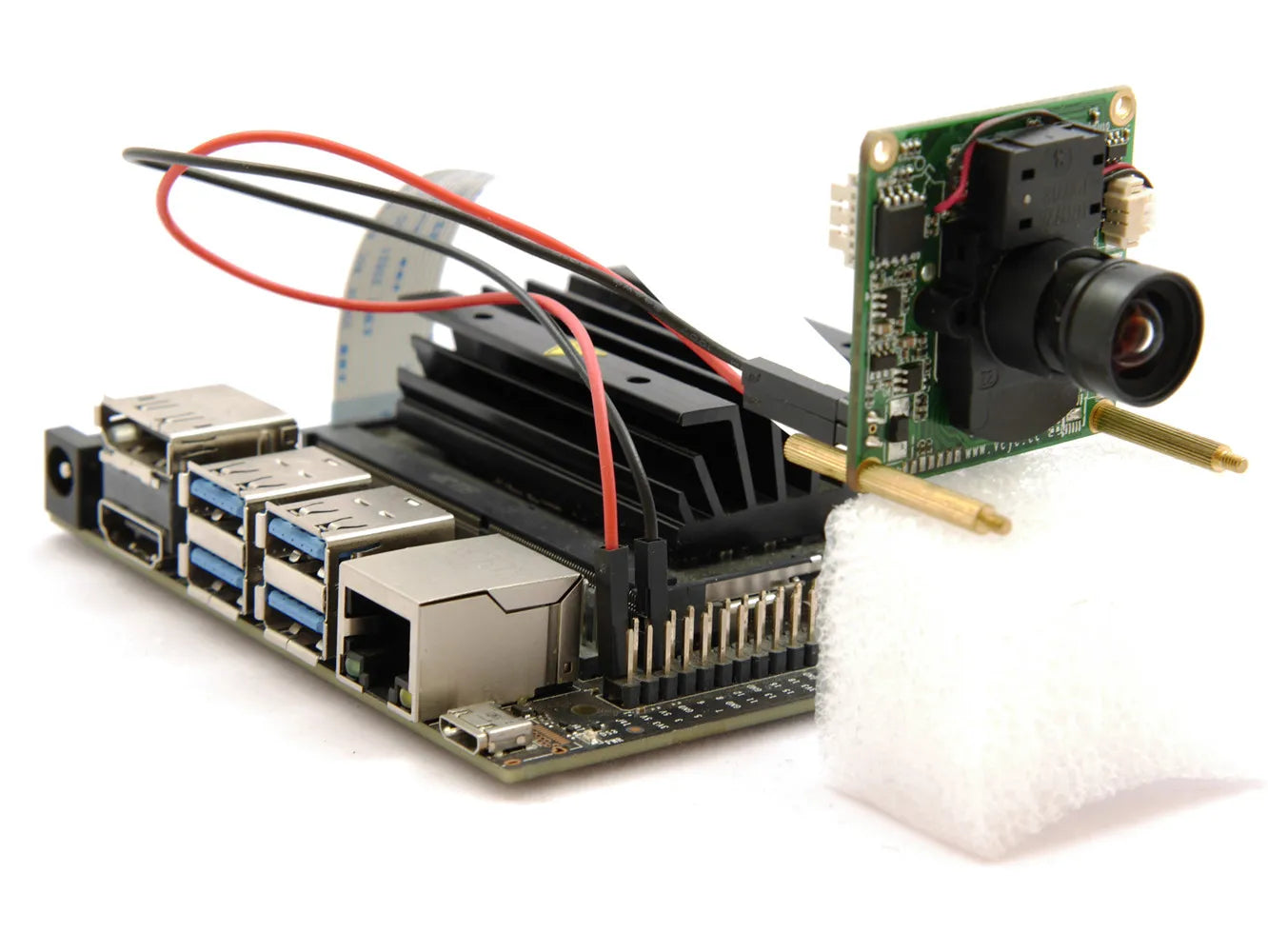

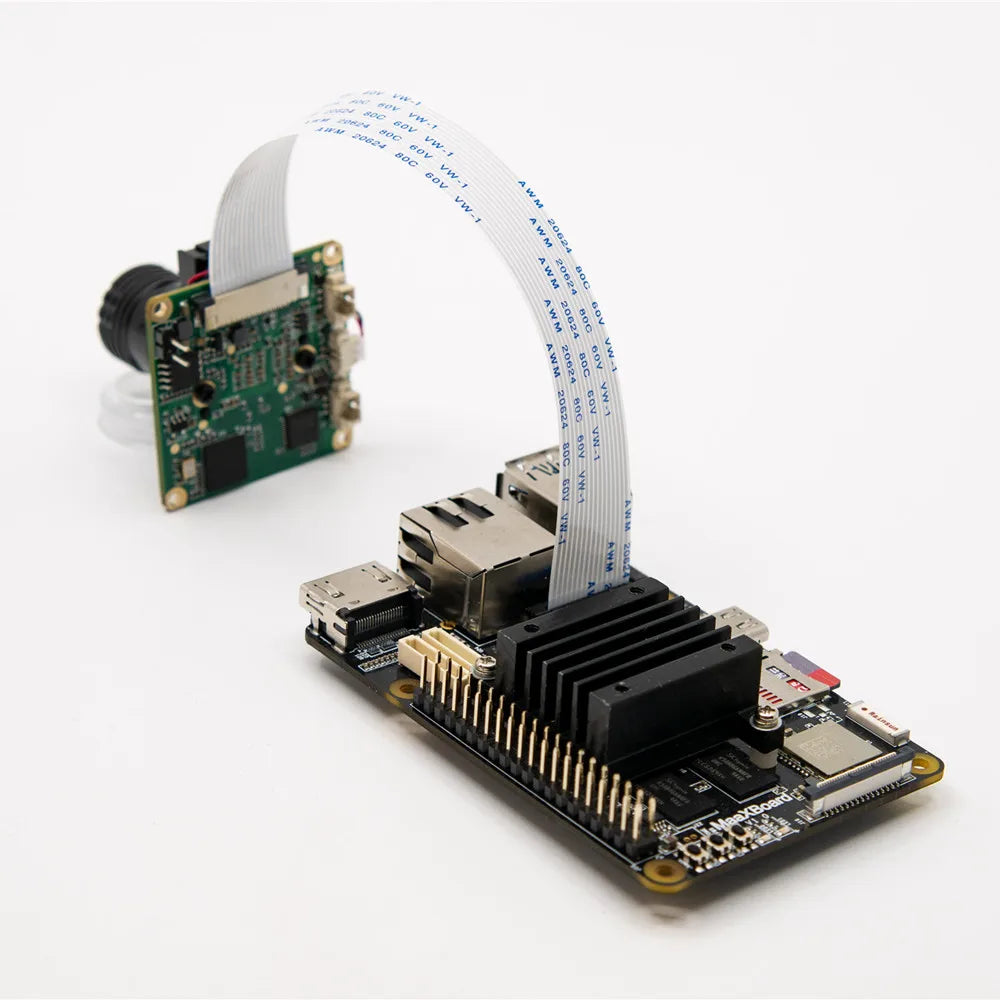

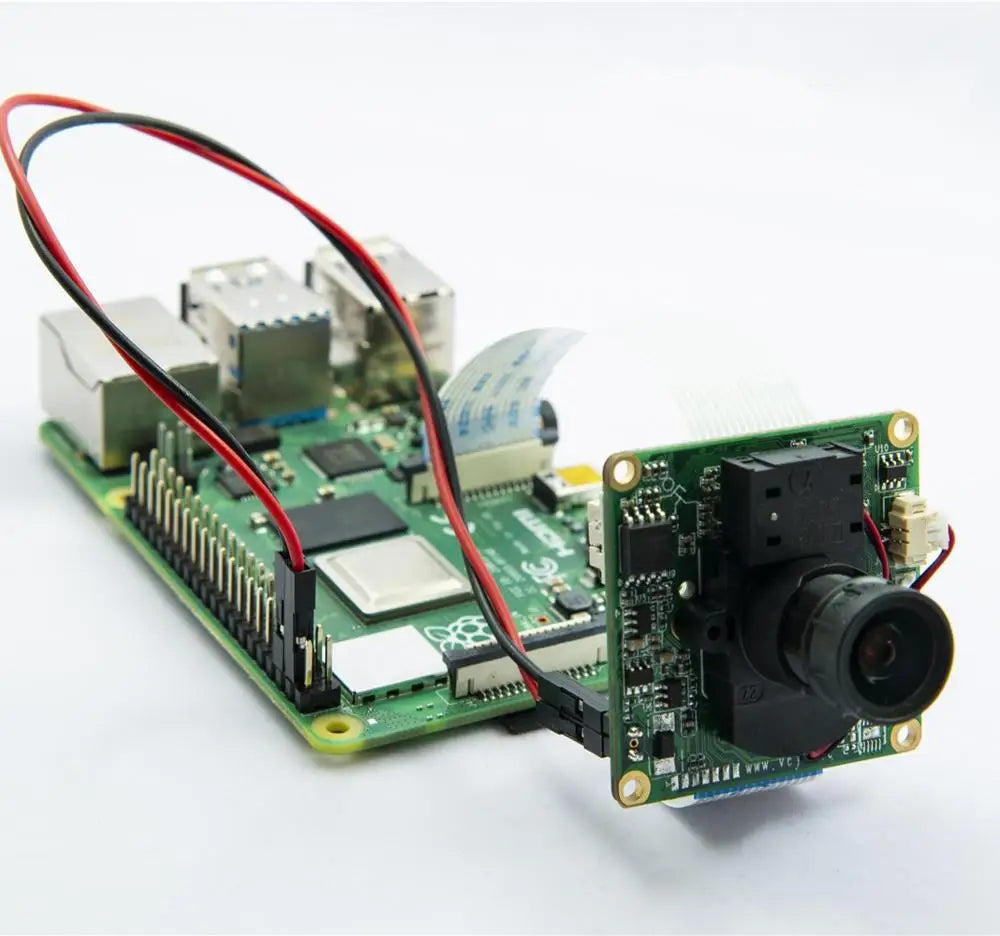

This package is compatible with Raspberry Pi 4/3B+/3/zero/cm3 and Jetson Nano NX and i.MX8m Maaxboard.

Features

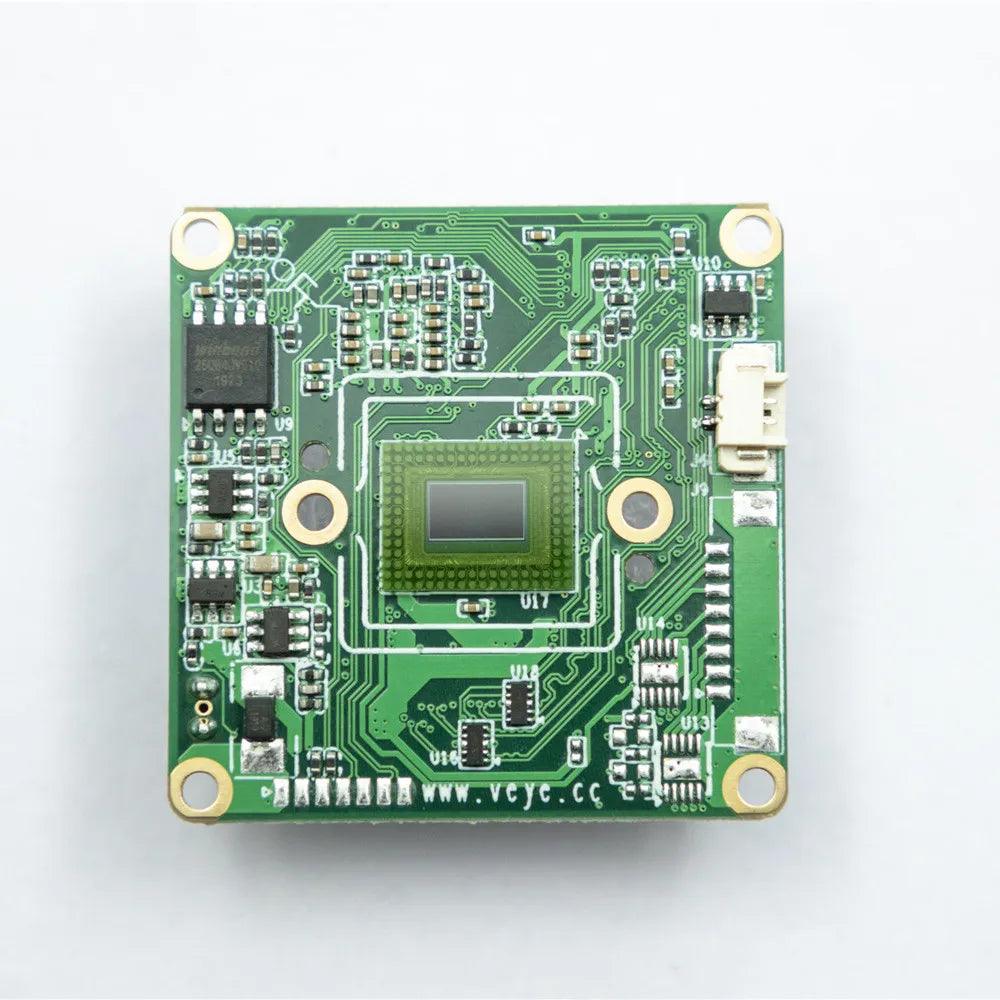

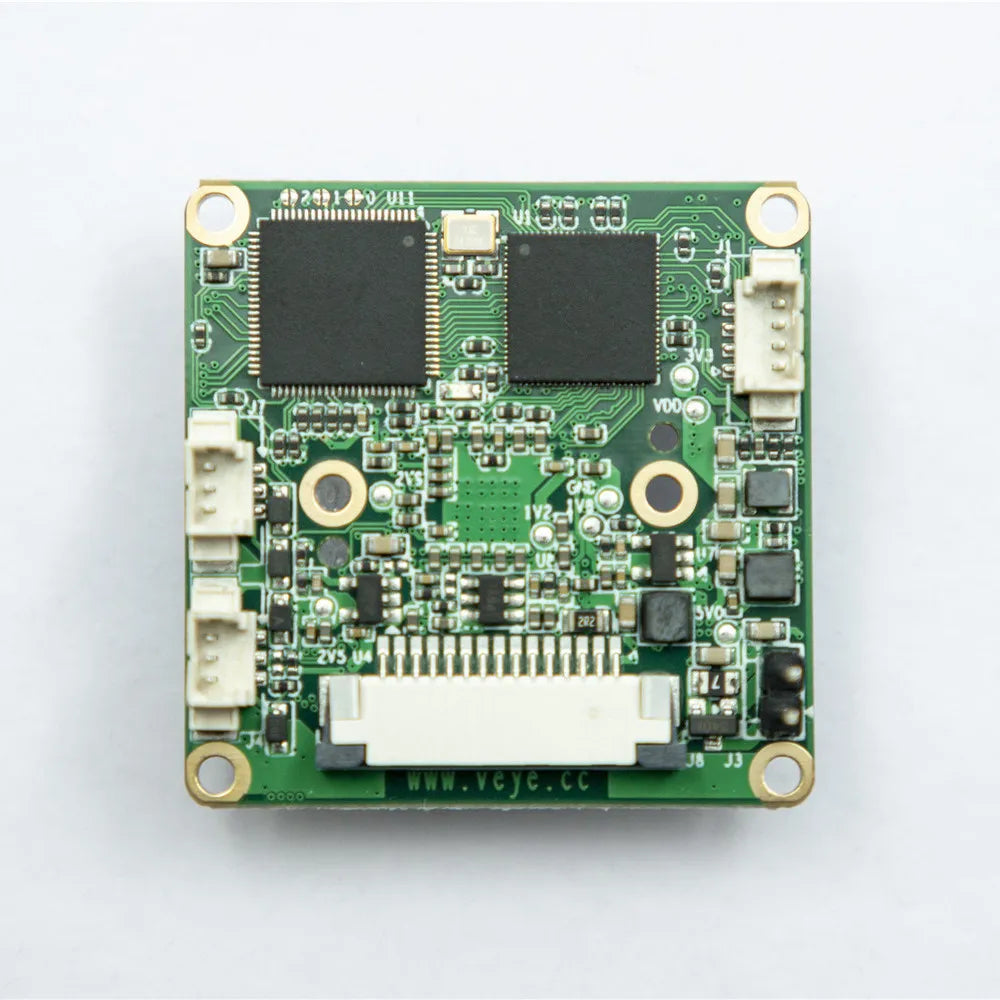

CS-MIPI-IMX307 is a camera module with excellent low illumination performance.This module only is 38*38*8mm, which is convenient for integration and can be connected to various embedded motherboards with adapter board.Suitable for machine vision, intelligent analysis, industrial control, face recognition, ADAS etc...
+ 1/2.8 inch 2 Mega STARVIS sensor IMX307 by SONY
+ MIPI output: CSI-2
+ Uncompressed UYVY format, YUV422-8bit
+ Standard lens mount
+ IR-CUT circuit
+ Framerate Continuously Adjustable
+ Support Multi-camera Module Video Stream Synchronization
+ BLC, 2D/3D noise reduction, Anti-fog,Brightness, Contrast, Sharpness, Saturation adjustable
+ Support Raspberry Pi, JETSON NANO NX,i.MX8m Maaxboard
+ Open source drivers and applications for all platform supported
+ Support firmware upgrade by USB disk

Thechnical Details

CAD drawing

Lens select

http://wiki.veye.cc/index.php/Lens_select

Packaging and accessories
