Custom Compatible FOR ST-link OB ARM simulation debugger SWD programmer STM32 download JFOR ST-link generation V8

Data FOR ST-link: https://pan.baidu.com/s/1RdSbtvFxqKC7f9Is-Bq9Sg extraction code: 5 KSV

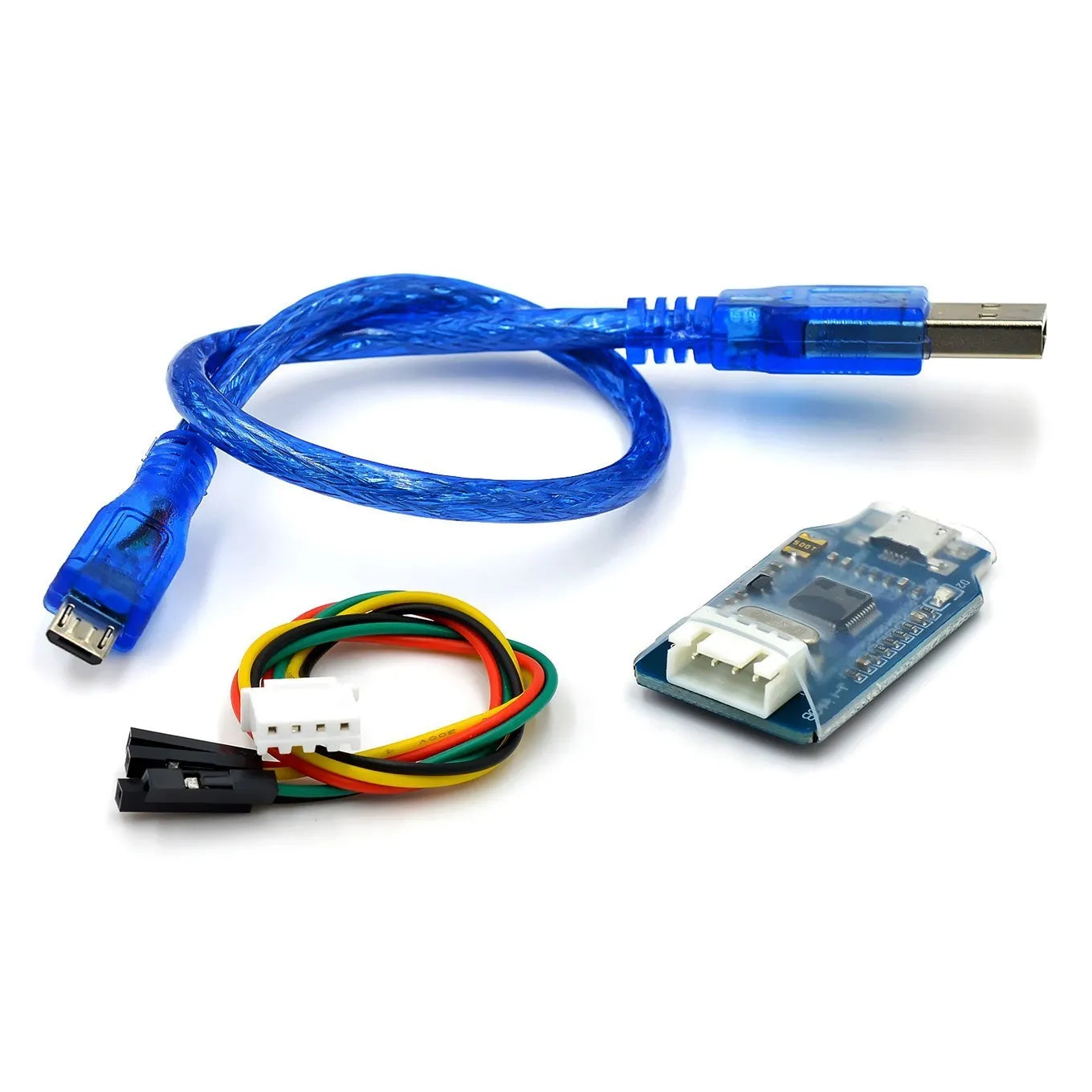

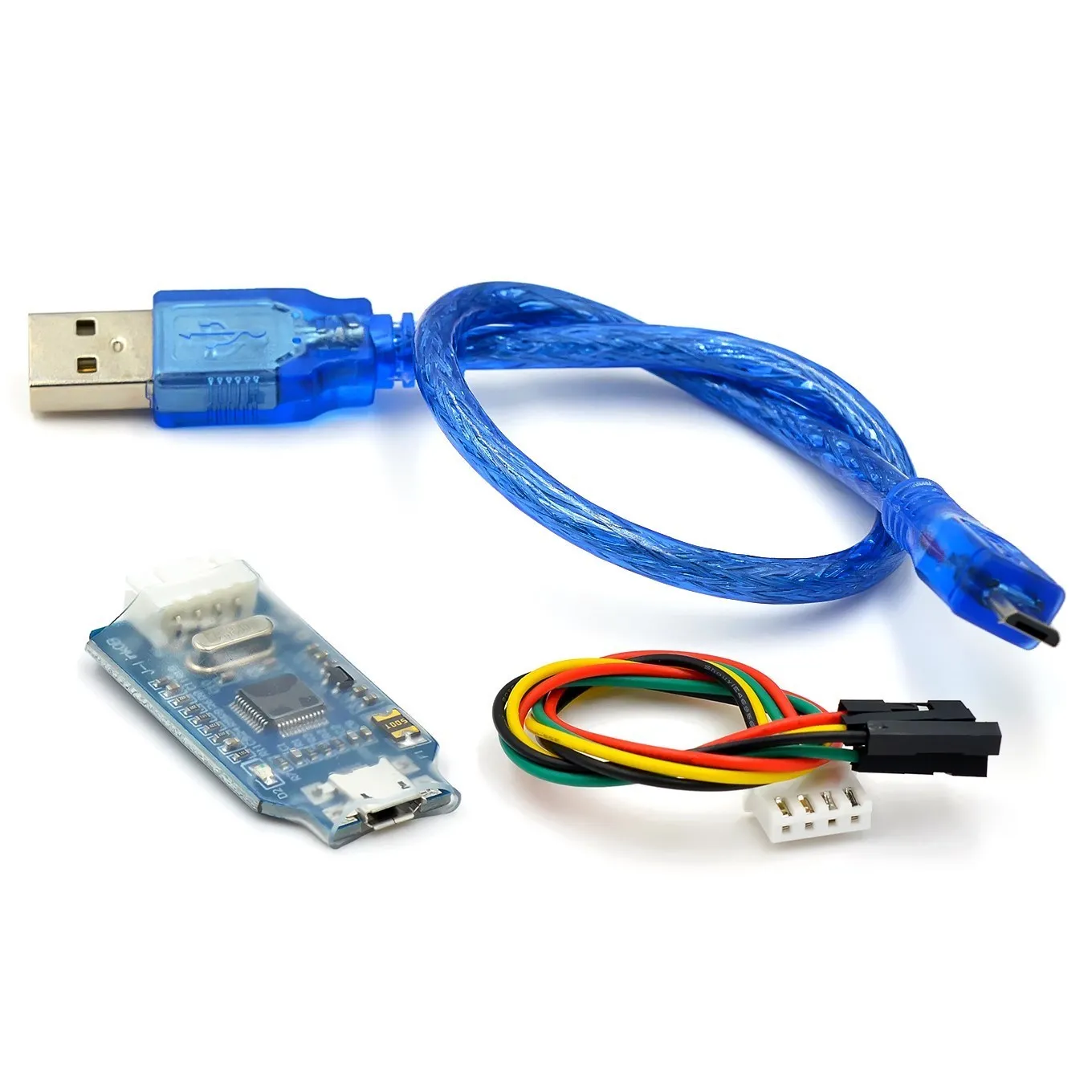

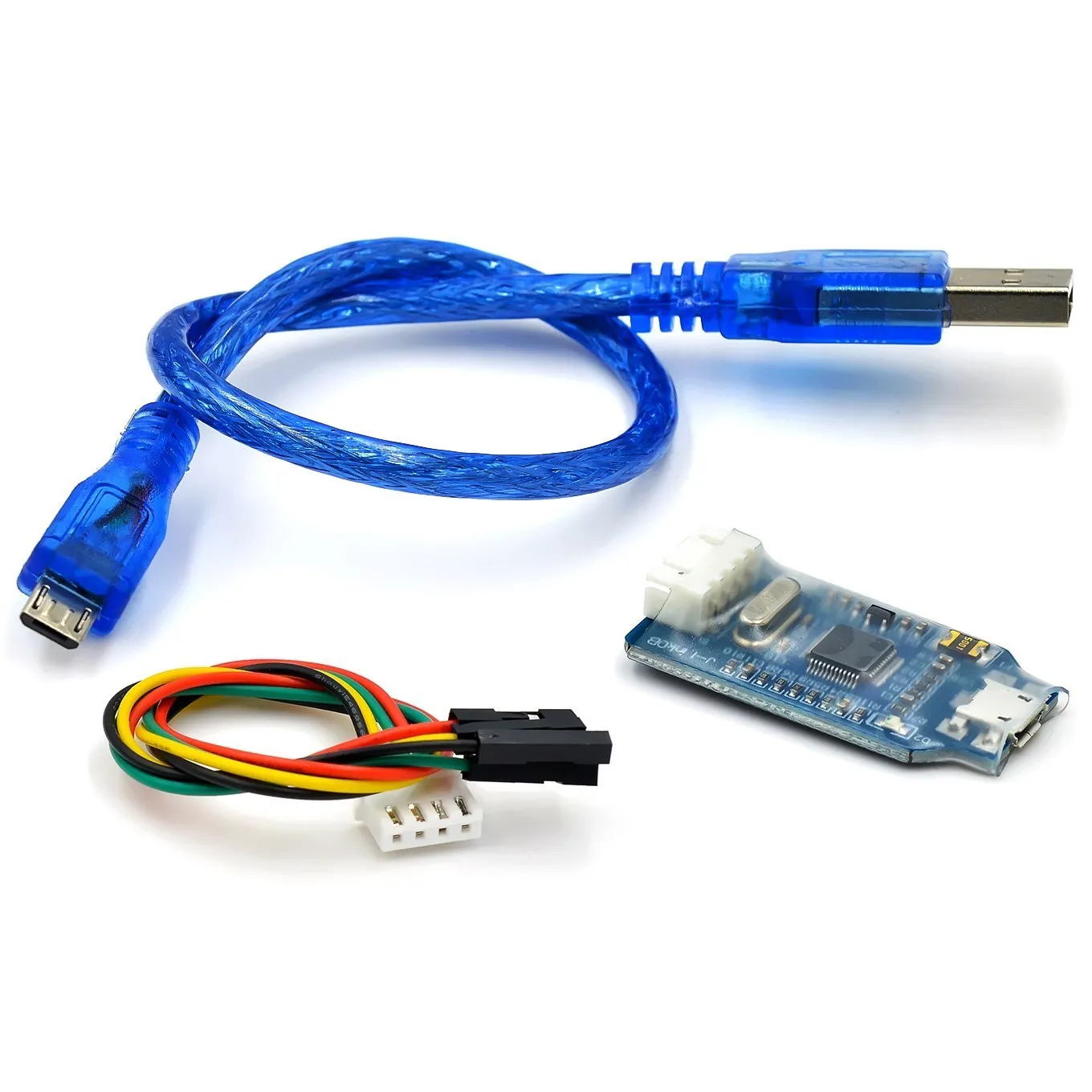

Delivery list: 25g/ set

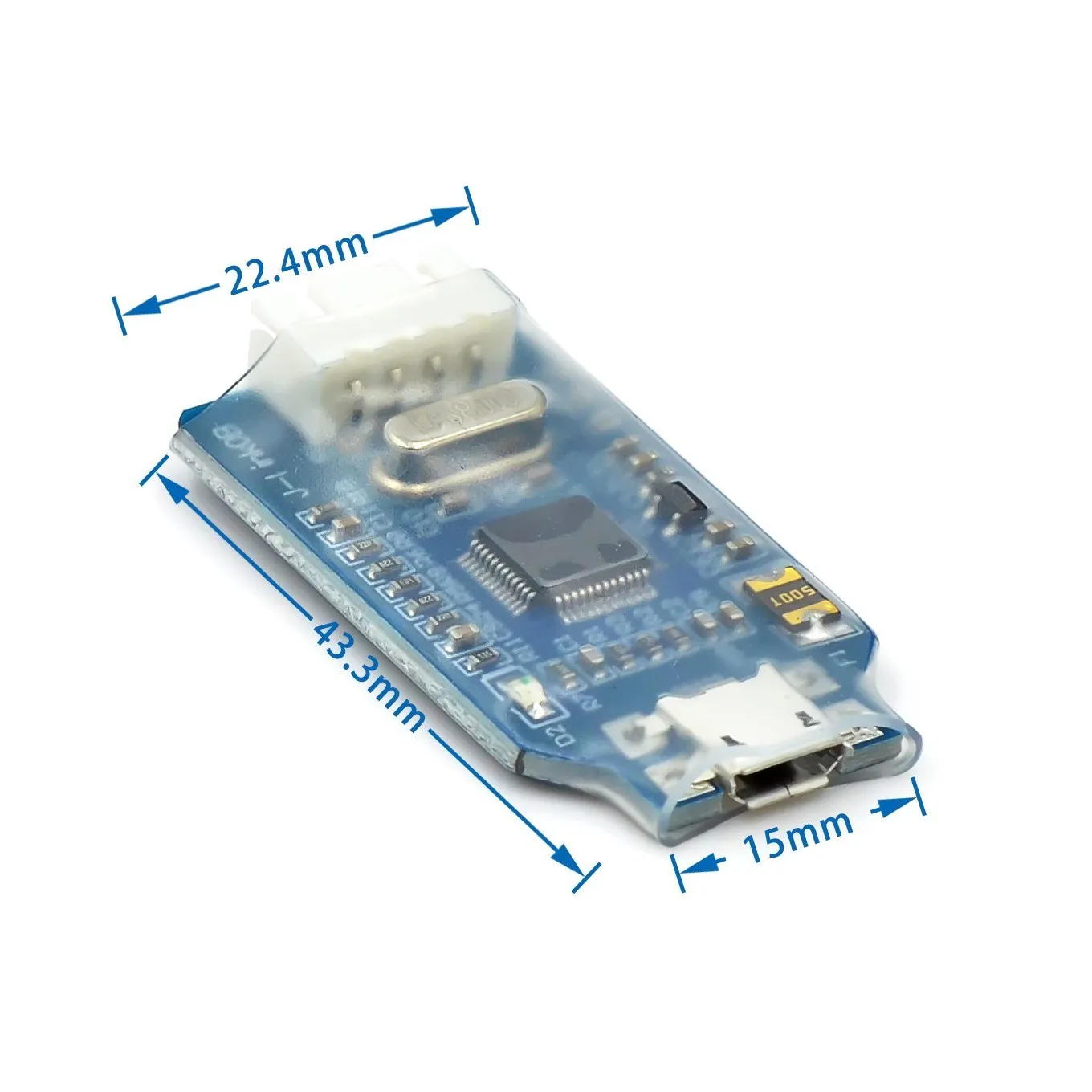

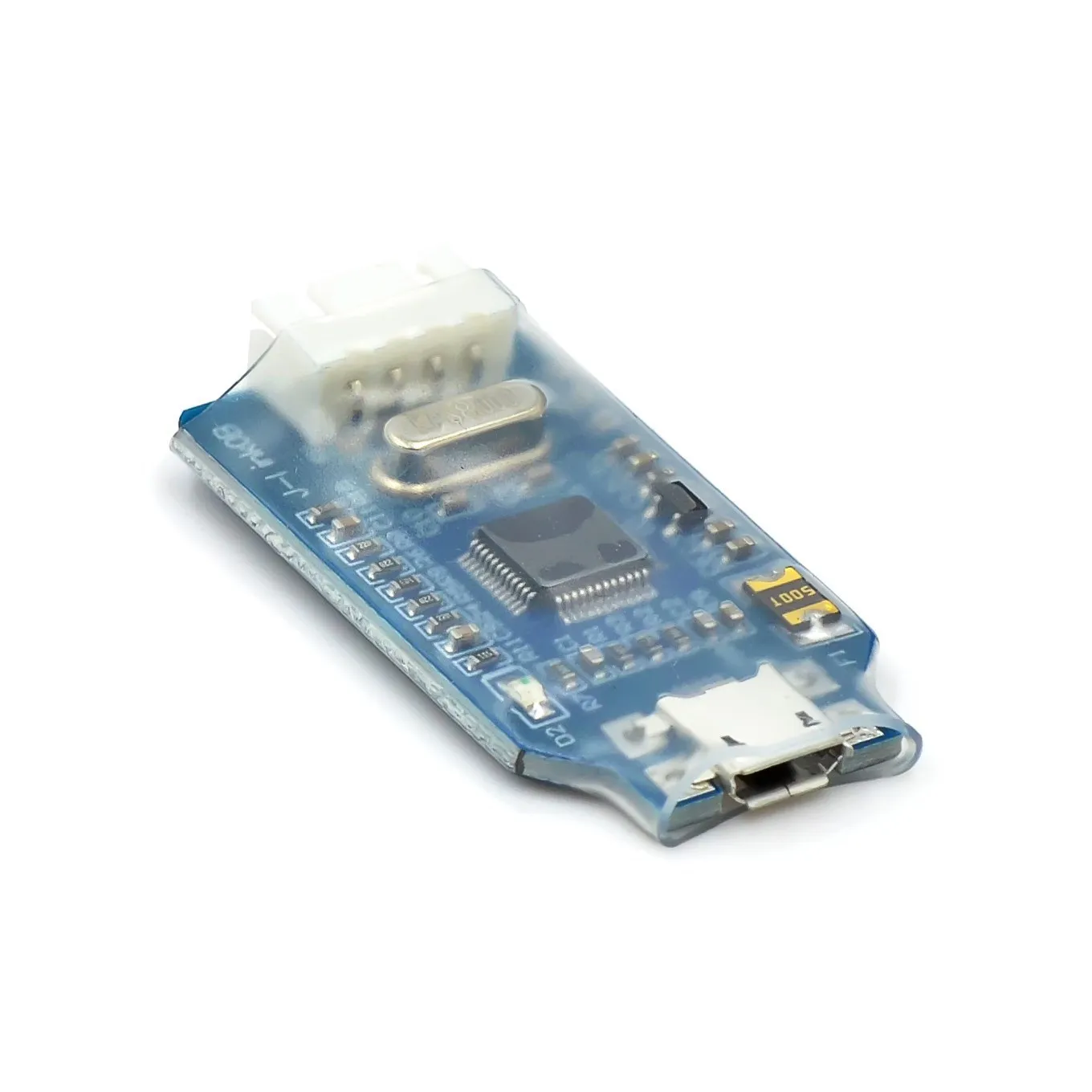

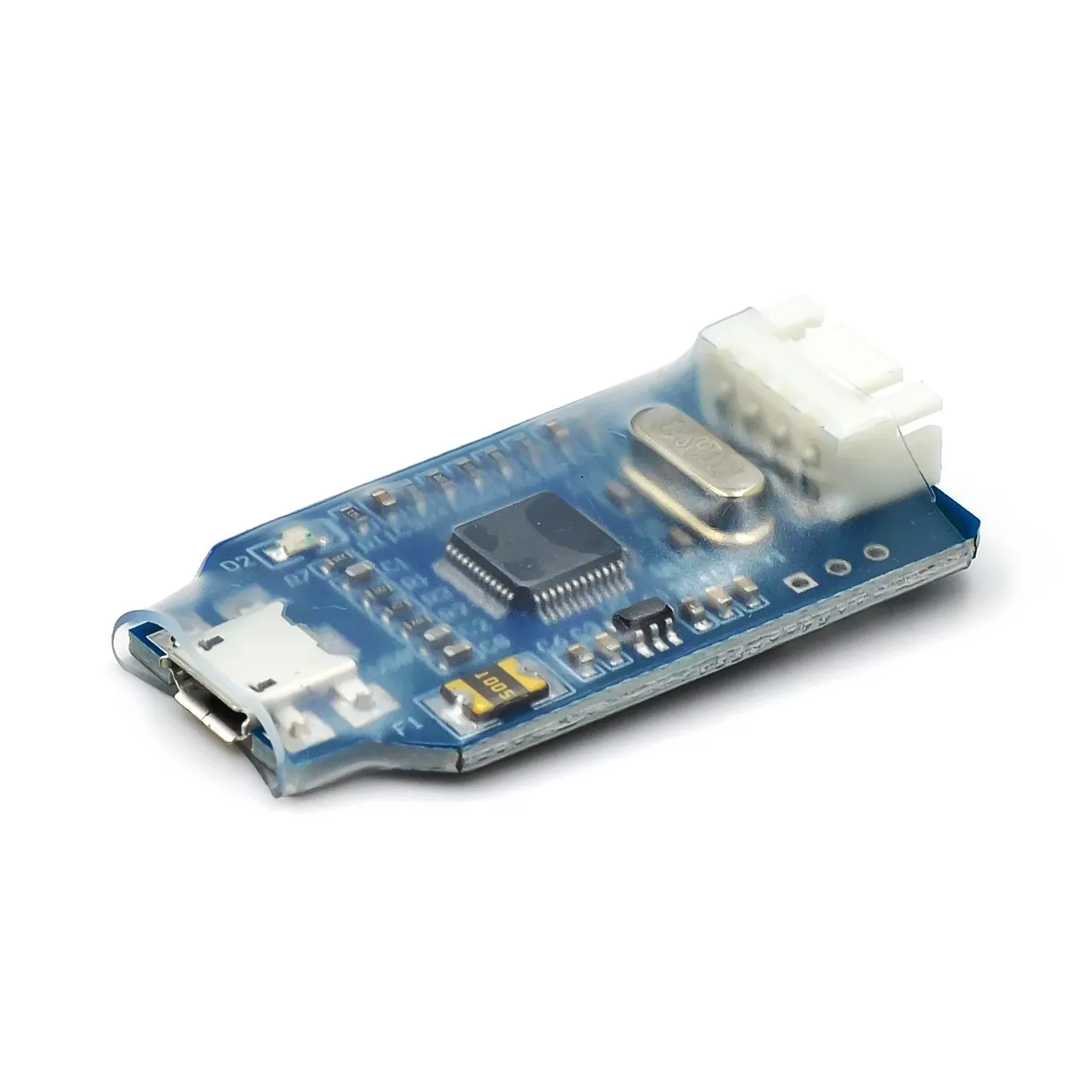

1. One ARM OB motherboard

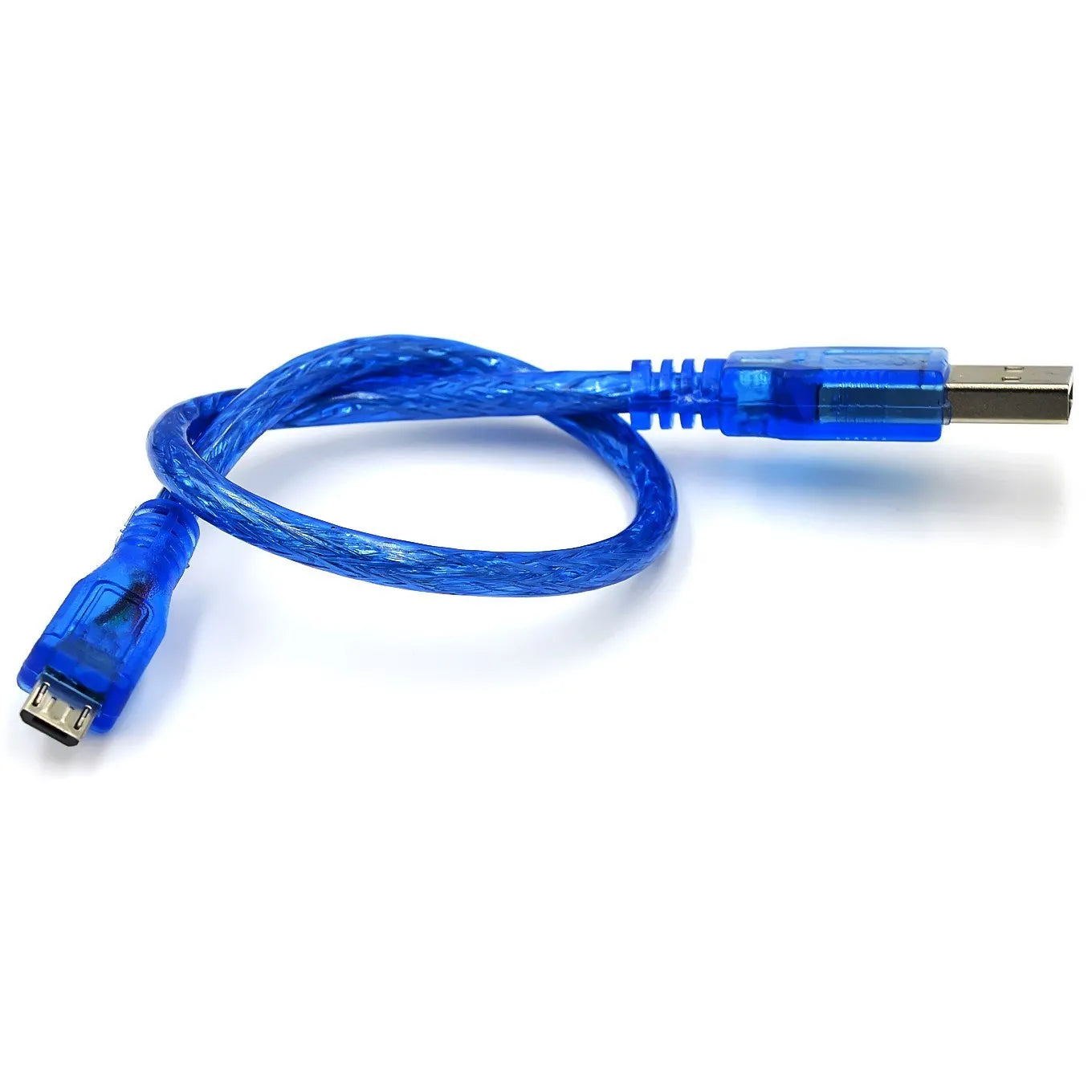

2, high quality microUSB line 1

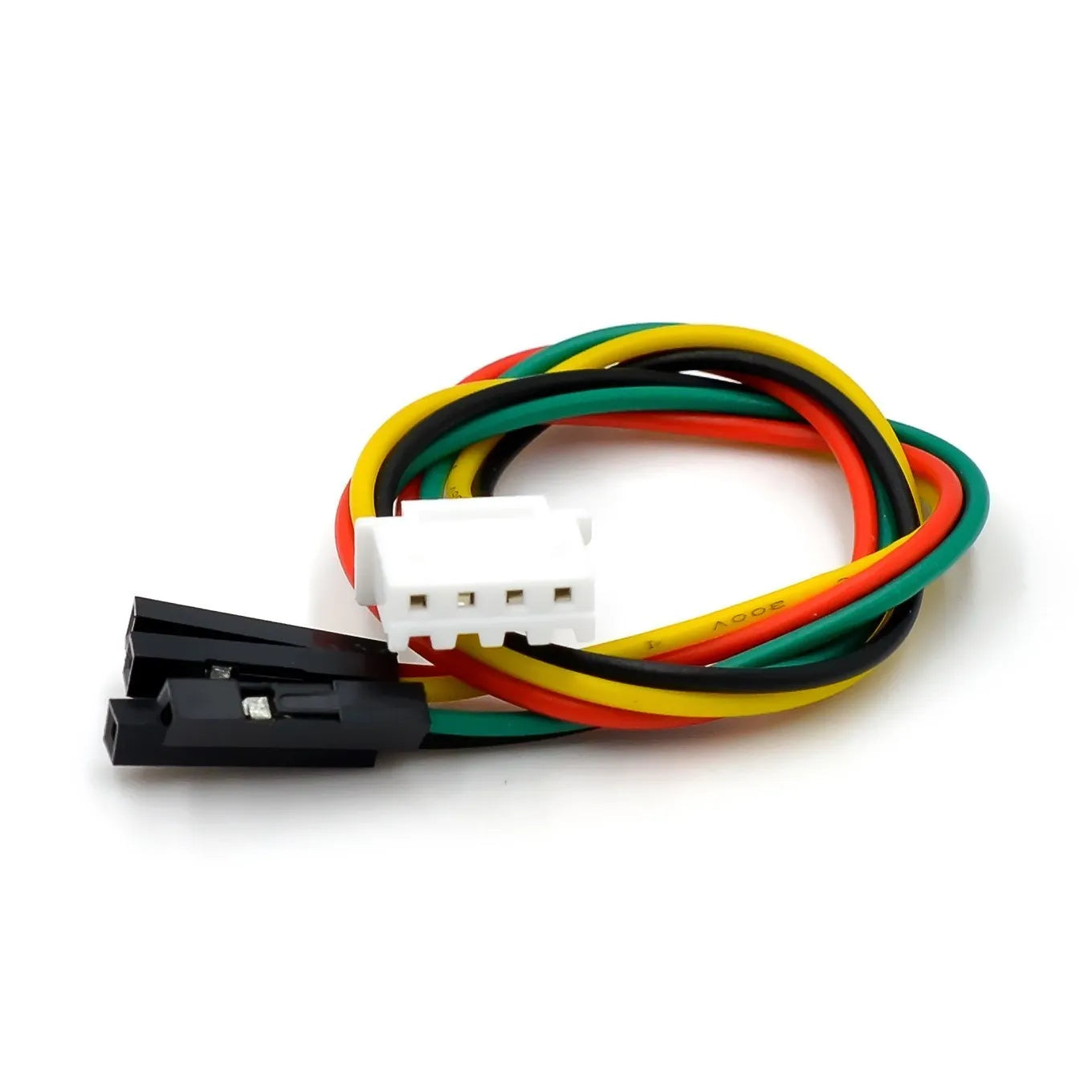

3. One 4PIN SWD download line

Interface description:

VCC(=3.3V),GND,SWDIO(=TMS=DIO),SWCLK(=TCK=CLK)

Product introduction

It is usually designed to be placed on the evaluation board (" on-board ") of major companies, which is why the suffix is "OB". This set of simulation download debugging device named "ARM-OB" has USB communication function, can communicate with PC, the other end through SWD /JTAG way to communicate with supported devices, to complete the debugging simulation download debugging task. Compared with the original OB debugger, our ARM OB simulation debugger lacks JTAG interface and only retains SWD interface, so as to debug and download the MCU of many companies using ARM kernel.

Supported kernels

All with SWD interface ARM7911, Cortex-M0M1M2M3M4A5A8A9 and other embedded MCU series.

Support MCU producer

ST(Stmicroelectronics), Freecale(Freescale), Nuvoton (New Tang), NXP(NXP), TI(Texas Instruments)

Cypress, Atmel, Analog, Fujitsu, Toshiba

Energy Micro, etc.

The connection method

SWD mode

Function and performance

Programming function: can burn FLASH ROM, EEPROM, AFR and so on.

Simulation function: support full speed running, single step debugging, breakpoint debugging and other debugging methods, you can view IO status, variable data and so on.

Programming performance: USB2.0 interface, SWD download, download fast!

Simulation performance: USB2.0 interface for simulation debugging, single step debugging, breakpoint debugging, fast response!

Product features

1, simplified interface, using 4-line SWD interface: VCC, SWDIO, SWCLK, GND, high-speed download simulation.

2, compatible with the traditional V8 simulator, the function is completely consistent.

3, the use of universal micro USB interface, easy to use (common Android phone universal interface).

4, support 3.3V output, maximum output 300MA current, convenient for users to debug and download the target board.

5, the new onboard self-recovery fuse, effective short circuit protection, debugging more safe.

6, ESD protection device, more stable.

7, transparent heat shrinkable tube packaging.

8, the firmware is stable, can be automatically upgraded, there will be no firmware damage phenomenon (full function V8 firmware problems).

9, U disk size, convenient engineering is to carry on business trips.
