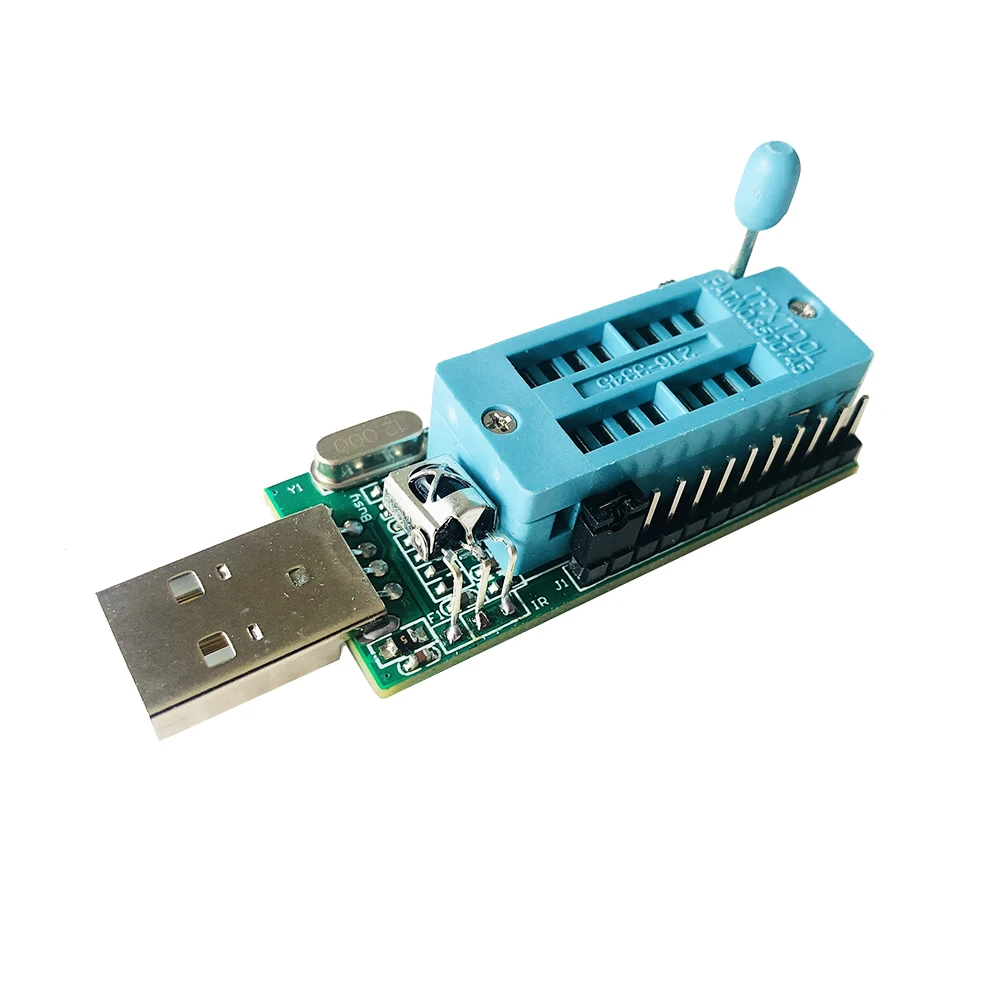

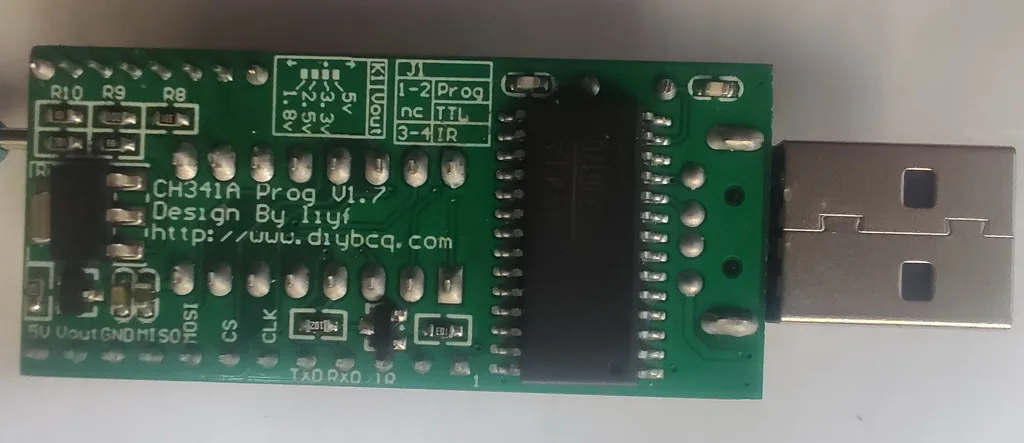

ch341a programmer v1.7

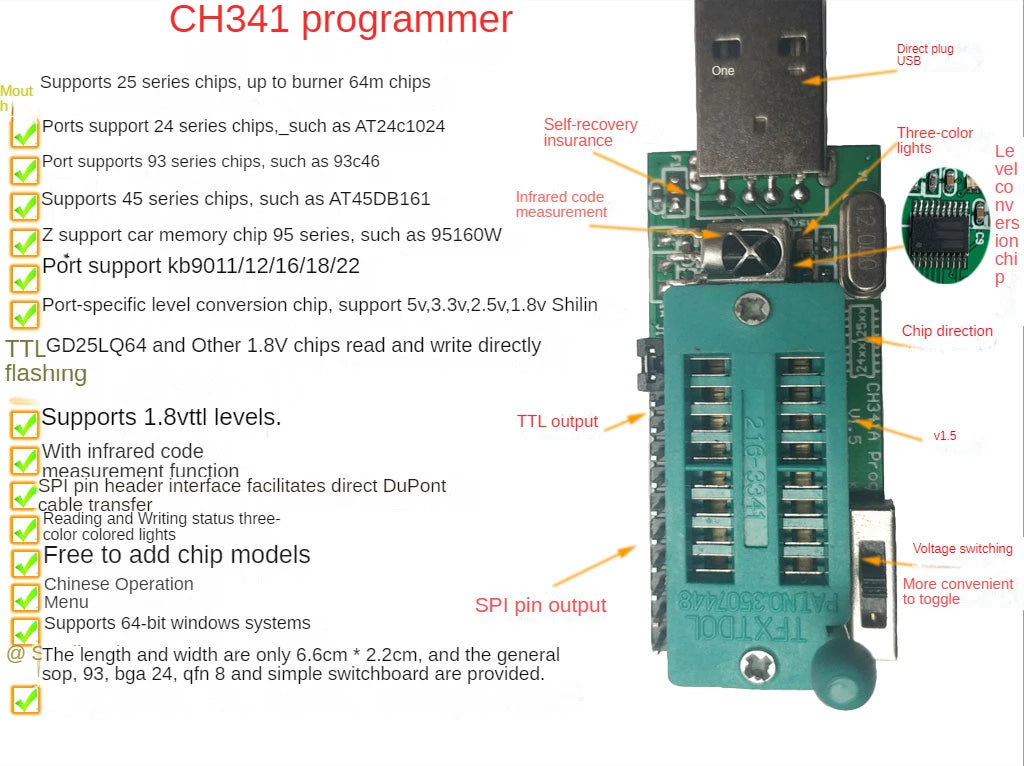

* Integrated special level conversion chip, directly read and write 5v, 3.3v, 2.5v, 1.8v chips
*Integrated infrared code measurement module
*Supports programming 24, 25/26, 93, 45, 95 chips, and ours also supports ec data reading and writing of kb9010 kb9012 kb9016 kb9018 kb9022
*The software is open source, you can add the chip type yourself, or the software source code, so you won't be stuck by others
*TTL can support up to 1.8v level, suitable for special occasions
*Read and write status light, TTL status light
* Support TTL self-check
* Support to open ASUS cap files directly

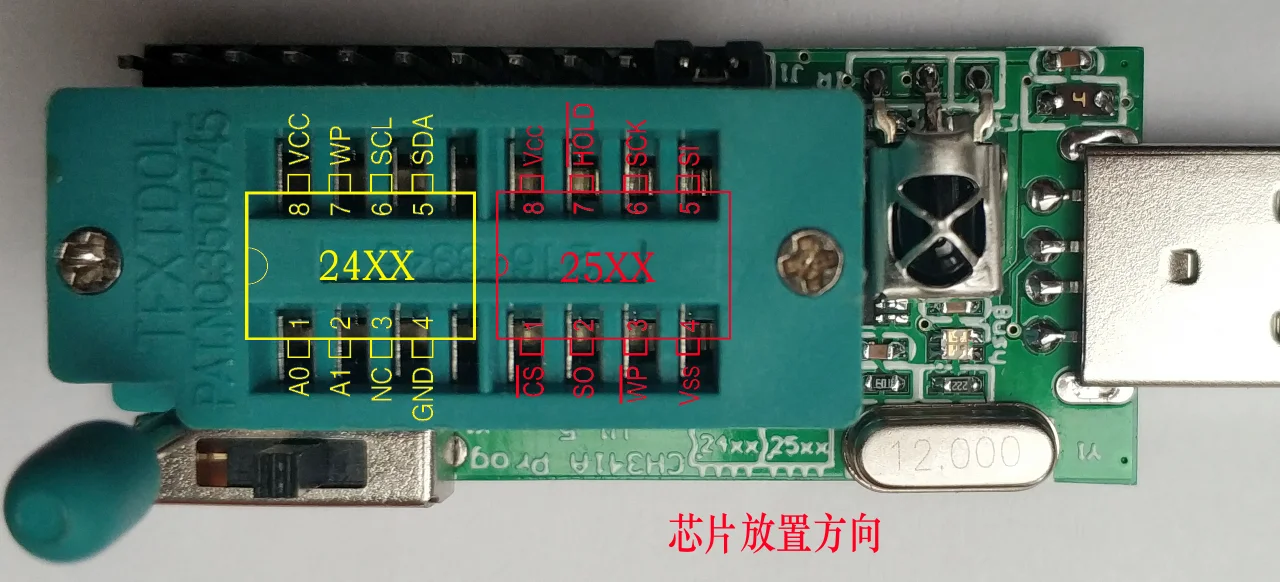

*In the locking seat part, 24xx add a strong pull-down resistor, 25xx add a pull-up resistor

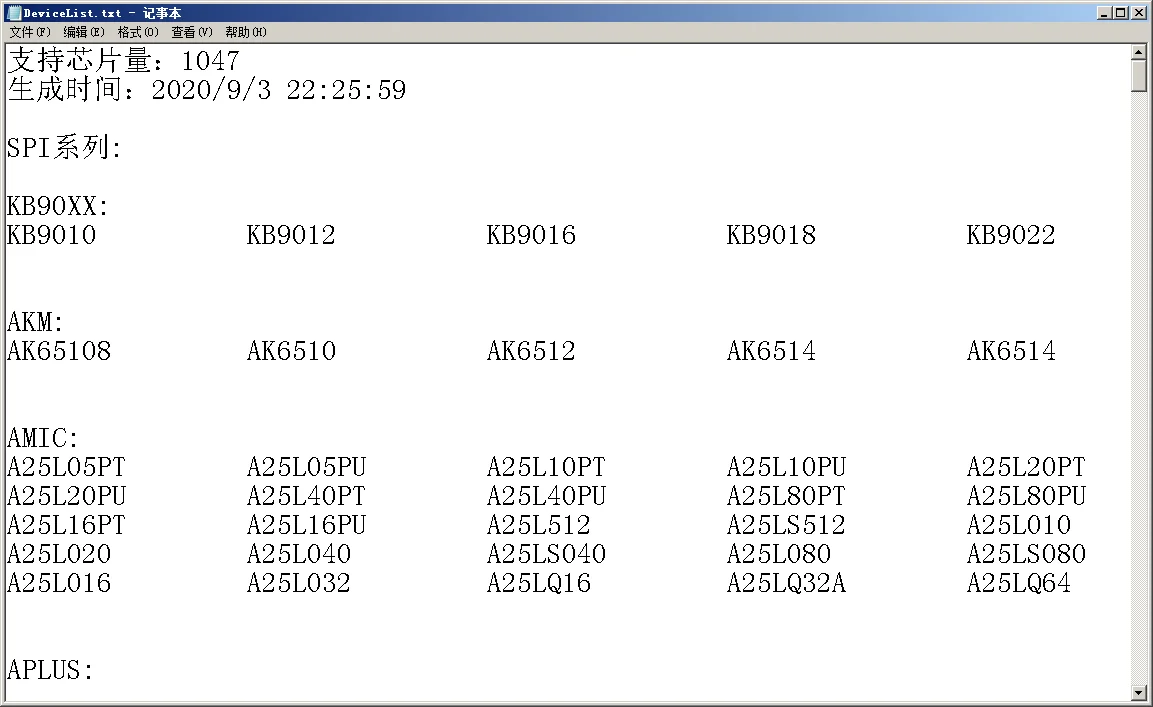

The support list is out, see for yourself, it is still being added, copy the link in parentheses to the browser (http://www.diybcq.com/thread-144983-1-1.html)
(Source: DIY Programmer Network)

Instructions for use https://pan.baidu.com/s/1wHAaUIwwBlsQGrOlb8M8Fw E
xtraction code: 1234

Now supports 64M spi, such as MX25L51245GZ, and will continue to add it later (if you have unsupported 25 chips, you can send it to test)
Do other 341 programmers support the programming of 93, 95, and 45 chips?

It is more convenient to use a toggle switch to switch the voltage, just dial it

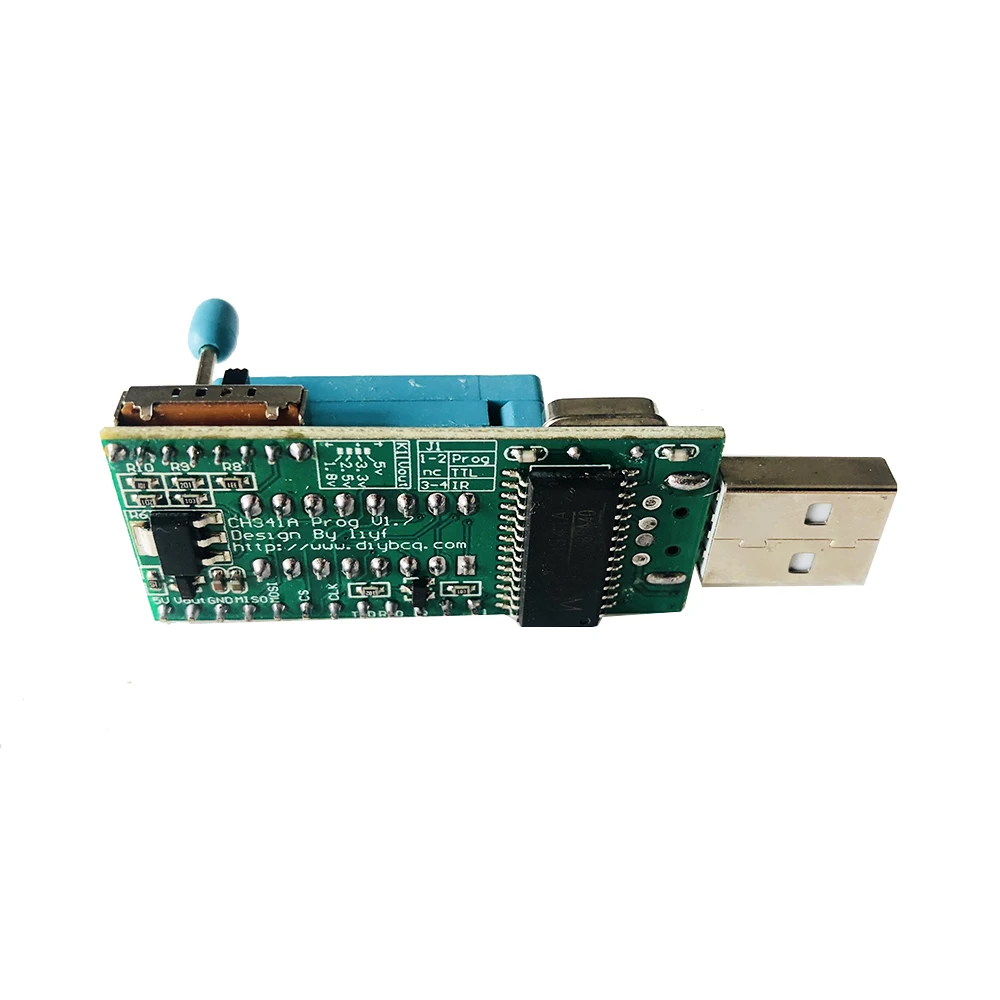

Using a high-current adjustable voltage regulator chip, it can output 5v, 3.3v, 2.5v, 1.8v and other voltages, just flip the switch.

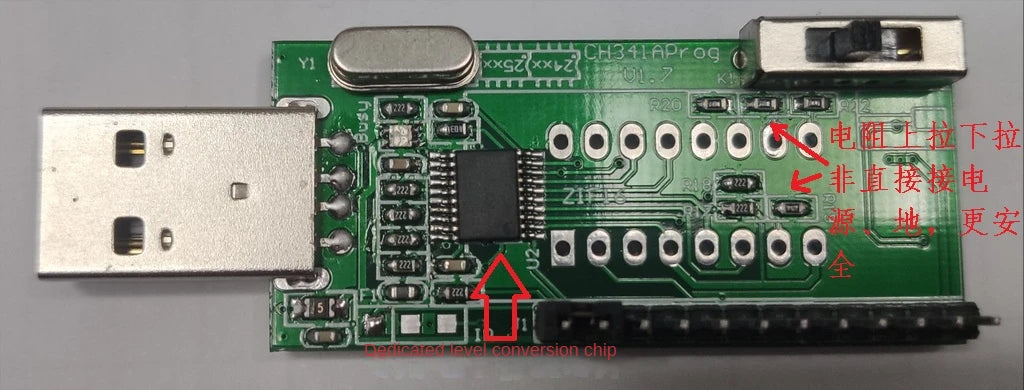

It is realized by a special level conversion chip, which is stable and reliable, and converts all the functions of 24 and 25.

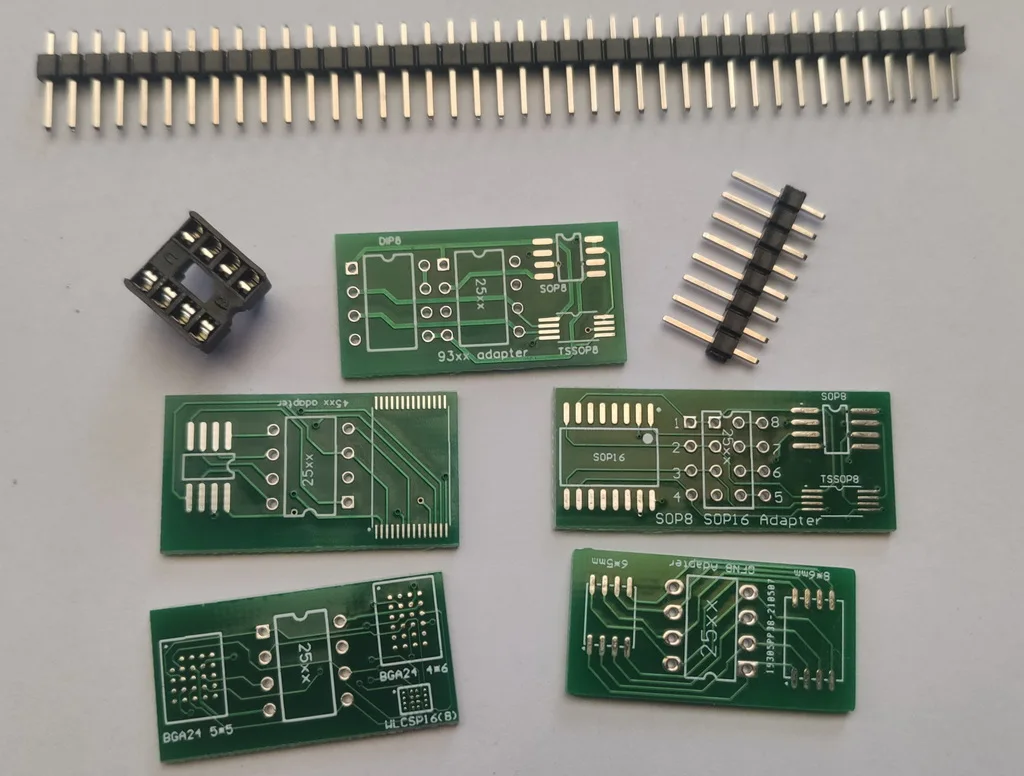

Directly equipped with a full set of adapter boards: universal sop adapter board, 93, 45, bga24, wson8, etc.

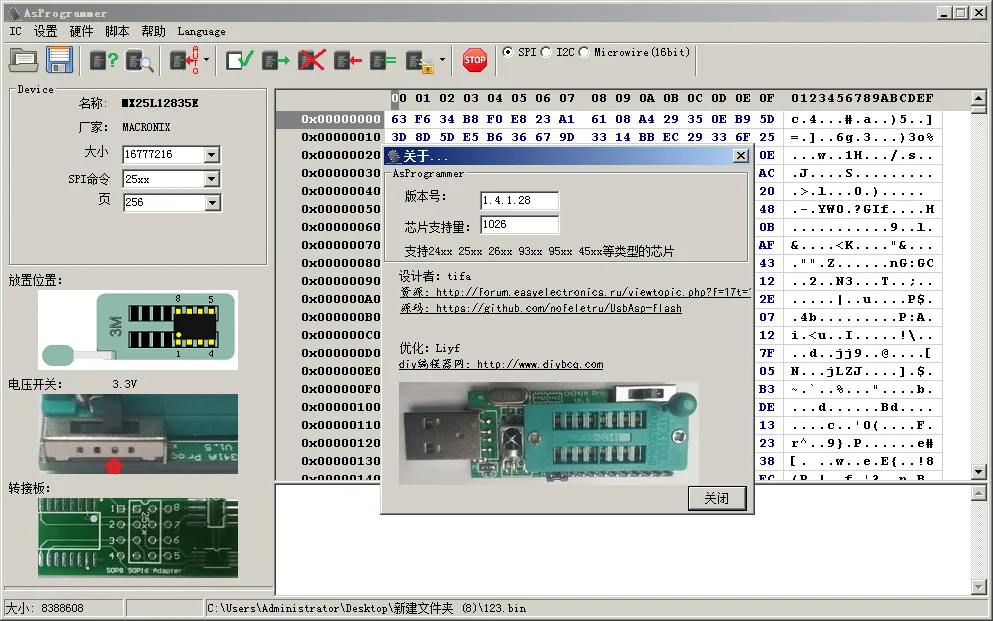

Mainly use our own optimized AsProgrammer software, which is more in line with everyone's usage habits, supports up to 64M chips, and can also add chip support by yourself. 25 chip one-key recognition is better. A full set of usage tutorials and video tutorials are also available.

The software directly prompts the location of the chip, the voltage switch and the adapter board used, which is more convenient.

CH341A: http://www.diybcq.com/thread-144131-1-1.html

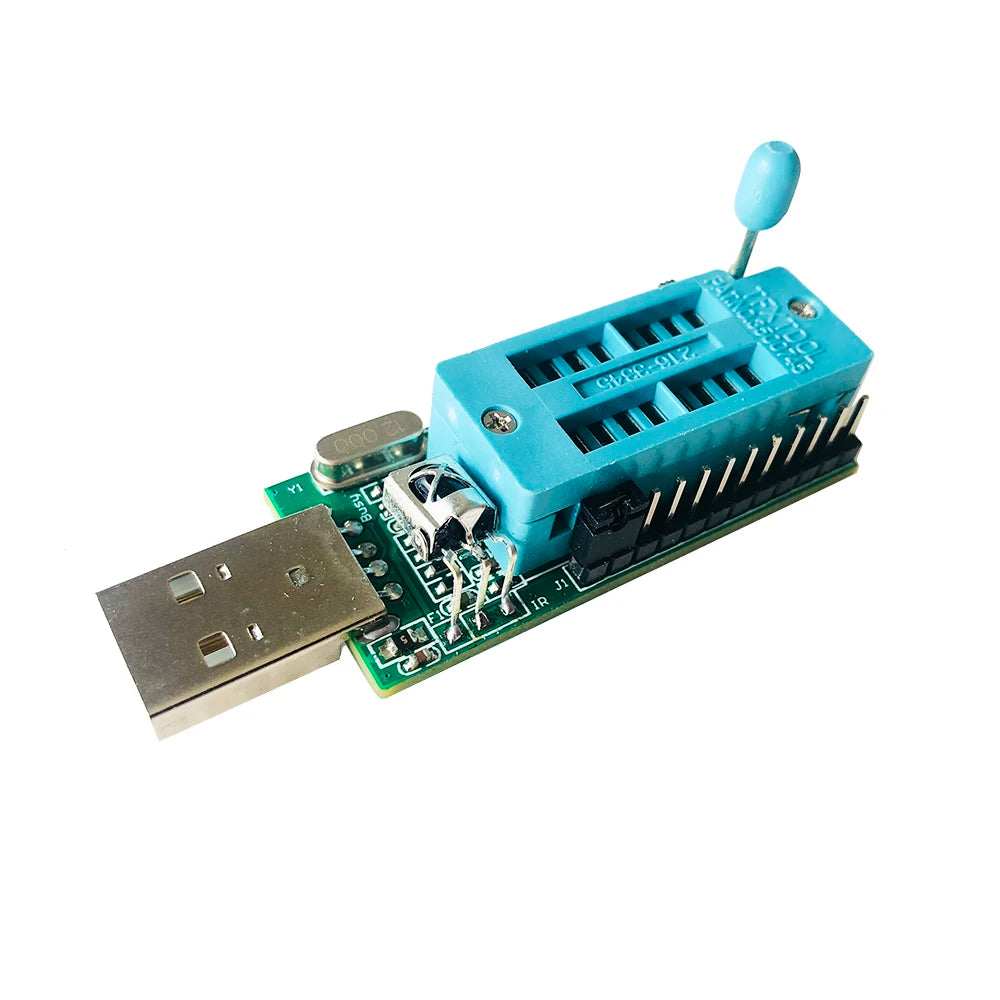

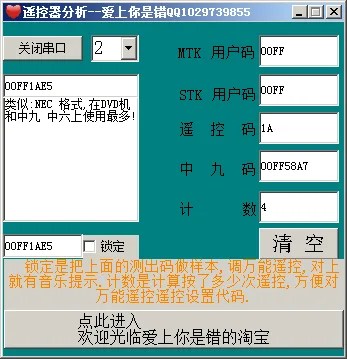

Integrated infrared code measurement function. Follow the instructions to easily read the remote control code.

Run the code measurement software, set the serial port number of 341, and click to open the serial port. The remote control can automatically recognize it as long as it is within the range of the receiving head, and display and sound prompts at the same time.

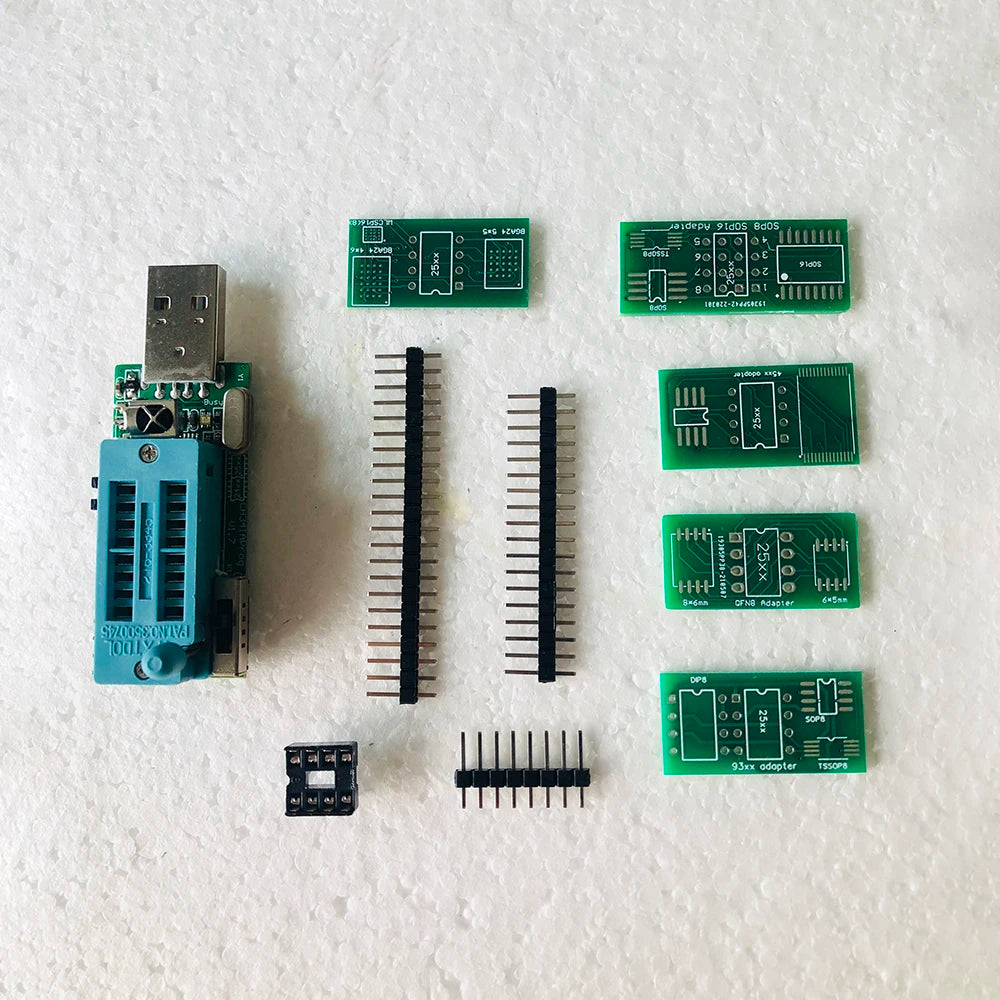

Programmer Shipping List

ch341a programmer 1 block

24 25 Universal adapter plate kit 1 set

93 adapter board kit 1 set

45 adapter board kit 1 set

qfn8 adapter board kit 1 set

bga24 adapter board kit 1 set

Several pin headers

The software scans the QR code in the package to download or upload it online

Use the tutorial on the website
