Custom CE024*8 8pcs 500MA 0.8-3.3V to 3.3V DC DC Boost Switch power Supply Module Manufacturer
Custom CE024*8 8pcs 500MA 0.8-3.3V to 3.3V DC DC Boost Switch power Supply Module Manufacturer
Regular price
$9.79 USD
Regular price
$9.79 USD
Sale price
$9.79 USD
Unit price
per
Couldn't load pickup availability
Lonten provide electronic component ,welcome OEM CUSTOM ,ODM,for more please contact.

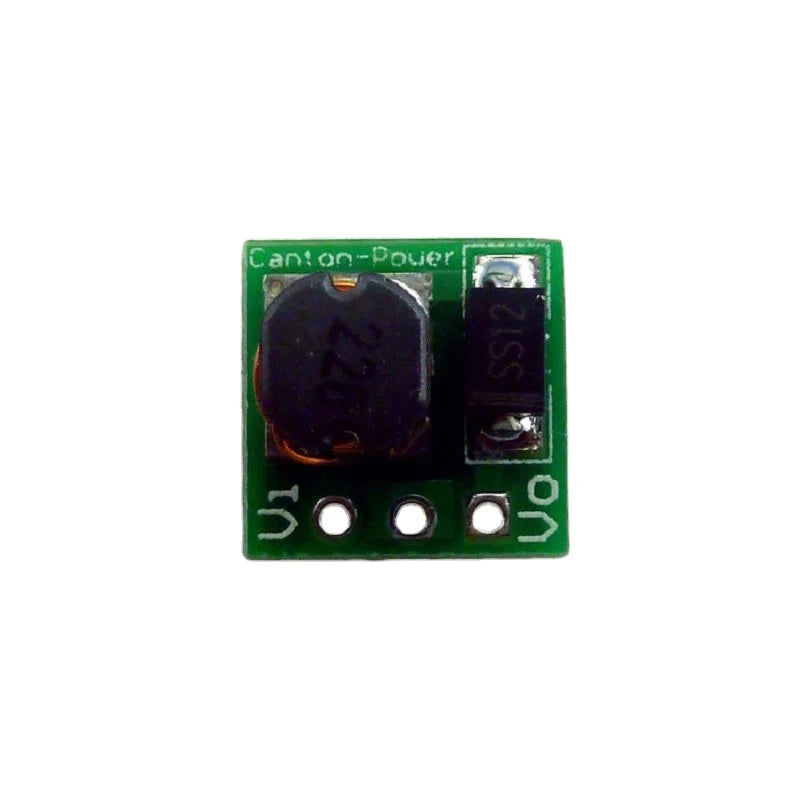

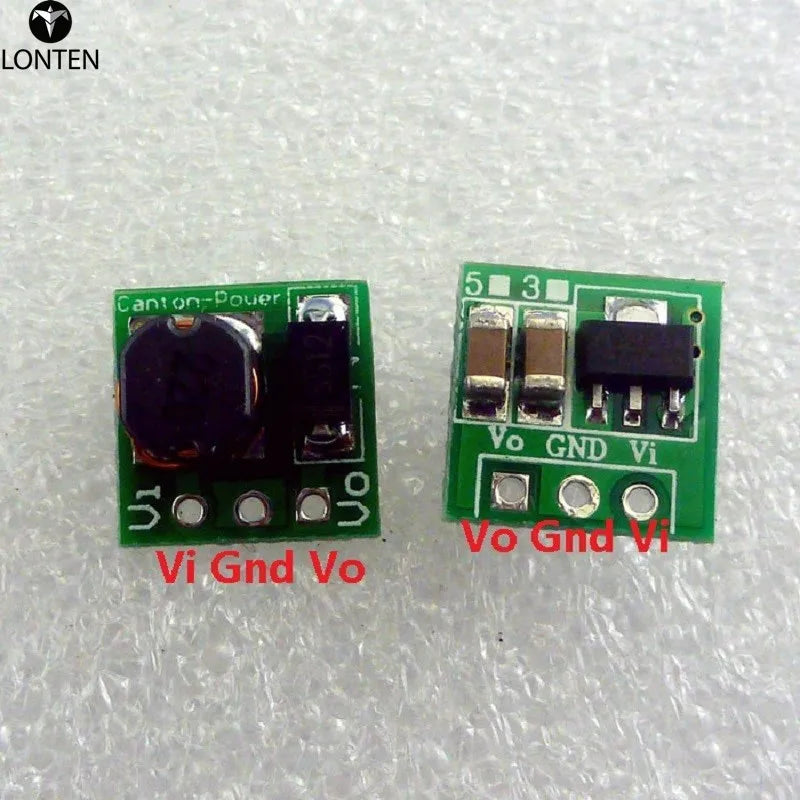

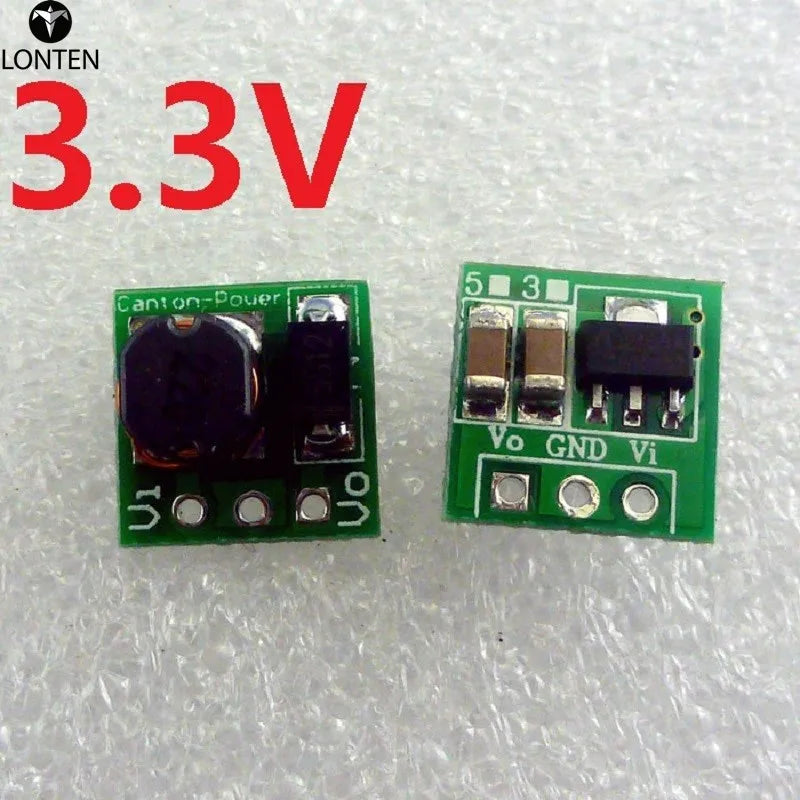

Product Name: CE024*8 8pcs 500MA 0.8-3.3V to 3.3V DC DC Boost Switch power Supply Module
Packing list:

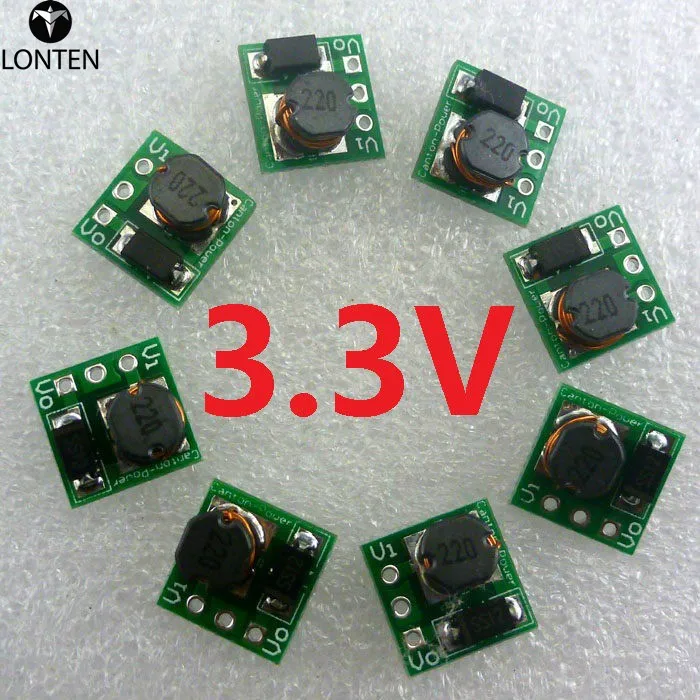

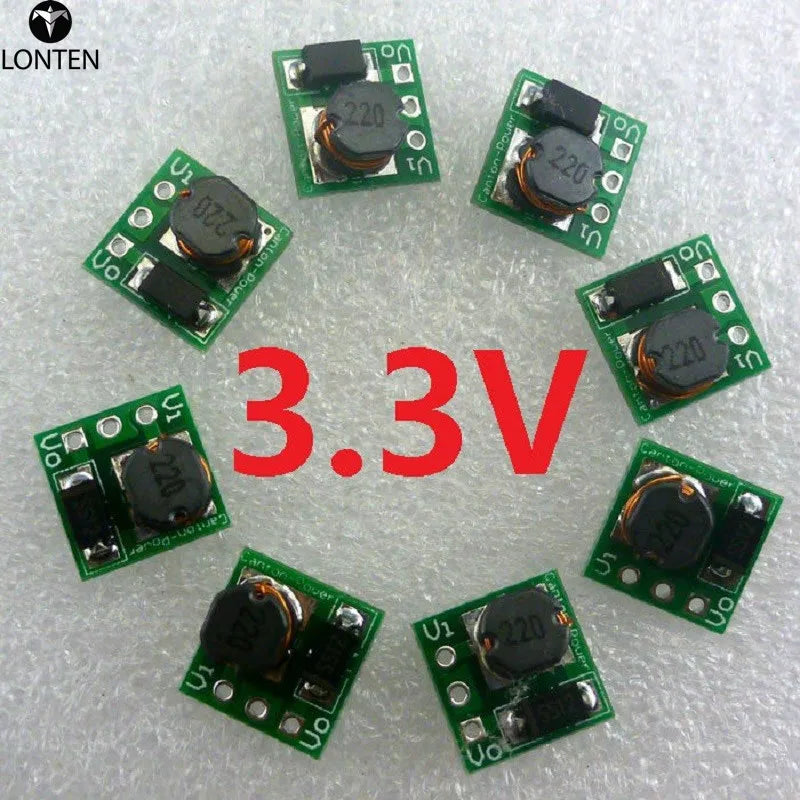

8 pcs 500MA 0.8-3.3V to 3.3V DC DC Boost Switch power Supply Module
Description:

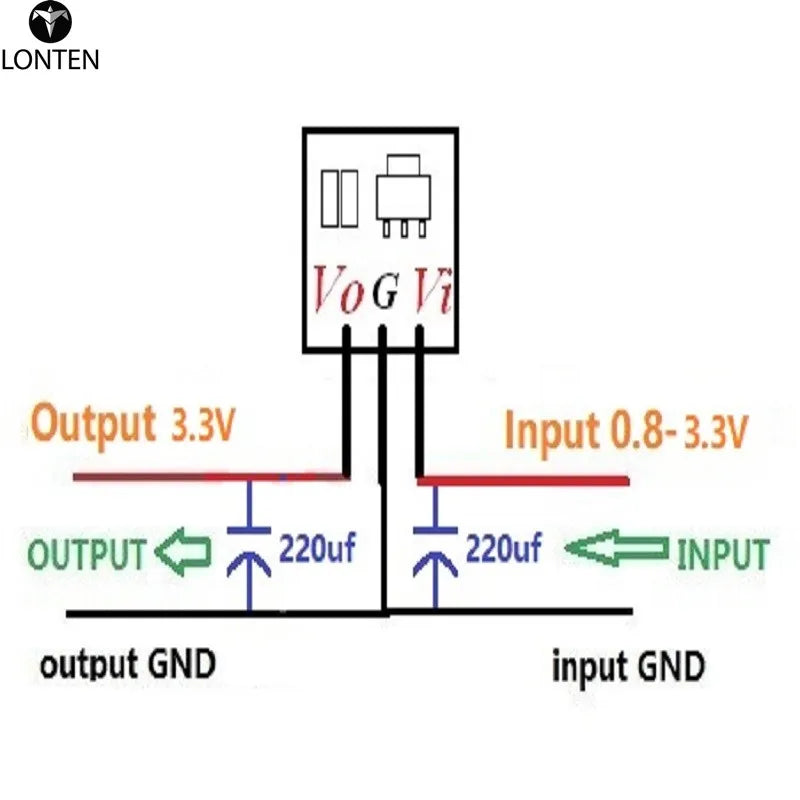

Input voltage 0.8 ~ 3.3V,output 3.3V
Maximum output current: 500 MA,
Start Voltage 0.8V, Output Current 8MA
INPUT 1-1.5V, OUTPUT 3.3V 50-110MA;
INPUT 1.5-2V, OUTPUT 3.3V 110-160MA;
INPUT 2-3V, OUTPUT 3.3V 160-400MA;
INPUT above 3V, OUTPUT 3.3V 400-500MA;
DC-DC Boost module working frequency 150KHZ. efficiency <85%( Recommended high efficiency version ) .
2.54mm pin pitch.

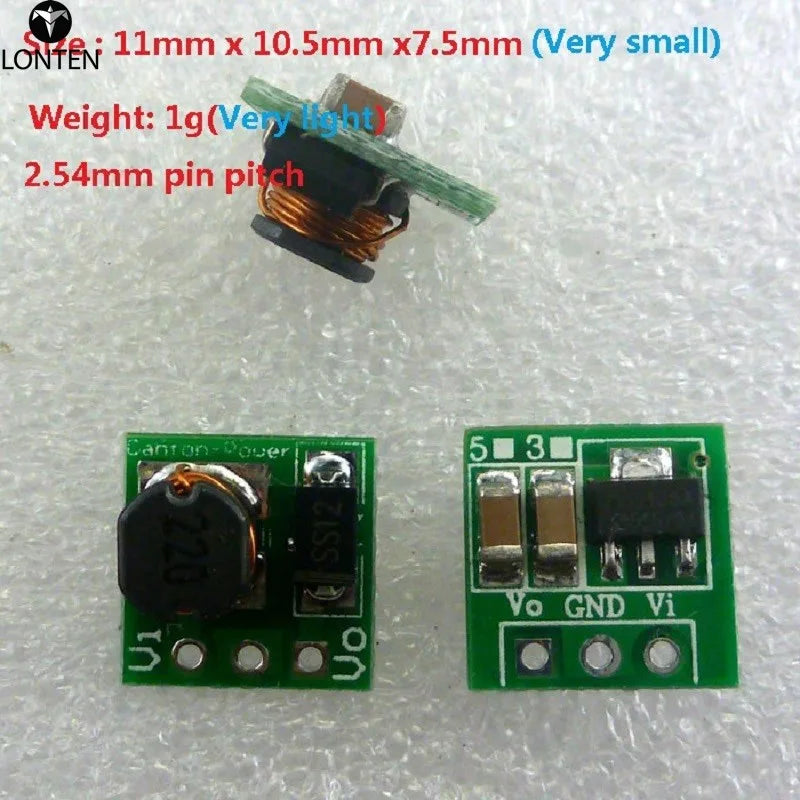

Excluding Pin Size 11mm x 10.5mm x 7.5mm(Very small).
Excluding Pin Size 11mm x 10.5mm x 7.5mm(Very small).
Weight : about 1g( Very light)
Applications:
Battery equipment
Wirels Module,NRF24L01 CC1101 CC2500 SI4432 SI4463 etc.
3.3V MCU Development Board,Xilinx Altera FPGA/CPLD ARM AVR PIC
Camera, Video camera
3.3V Low power motors
PDA
LED Lighting
Wireless communication equipment
MP3/MP4 player
o equipment
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
Q & A:
Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter, a t this time of the input voltage is very low
