Custom CE021*5 5pcs 1.2mhz mini 1.8V 3V 3.7V 5V to 3.3V Boost & Buck Low Noise Regulated Charge Pump DC/DC Converter Manufacturer

Custom CE021*5 5pcs 1.2mhz mini 1.8V 3V 3.7V 5V to 3.3V Boost & Buck Low Noise Regulated Charge Pump DC/DC Converter Manufacturer

$4.74 USD
$4.74 USD $4.74 USD
Sale Sold out

Lonten provide electronic component ,welcome OEM CUSTOM ,ODM,for more please contact.



Applications:

Low Power Wifi Module:ESP8266
Low-power Bluetooth module : HC-05 HC-06
Low-power Wireless UART module : HC-11 HC-12
Low-power wireless module : CC1101 CC2500 Nrf24l01+
Low-power LED Driver
2 AA Cell to 3.3V
USB On-The-Go Devices
Handheld Devices



Product Name: CE021*5 5pcs 1.2mhz mini 1.8V 3V 3.7V 5V to 3.3V Boost & Buck Low Noise Regulated Charge Pump DC/DC Converter



Packing list:

5 PCS  2 in 1 DC-DC Boost & Buck Converter 1.8V-5V to 3.3V module
aeProduct.getSubject()


This is a micro-power( only 150MA ) DC-DC Step-Down & Step-Up Converter module.
If you need 500MA  0.8V-3.3V to 3.3V Boost module ,Click here.
If you need 2A  4.75V-23V to 3.3V Buck module ,Click here.


Description:


Low Noise, Regulated Charge Pump DC/DC Converter

2 in 1 DC-DC Step-Down & Step-Up Converter module

Fixed 3.3V+-4% Output

Voltage Input Range: 1.8~5V

Long time maximum output current 100mA

Short time maximum output current 150mA

working frequency 1.2MHz.

Short-Circuit Protection

No load input current : 0.65mA

2.54mm pin pitch, Arduiuo Breadboard MCU Development Board friendly

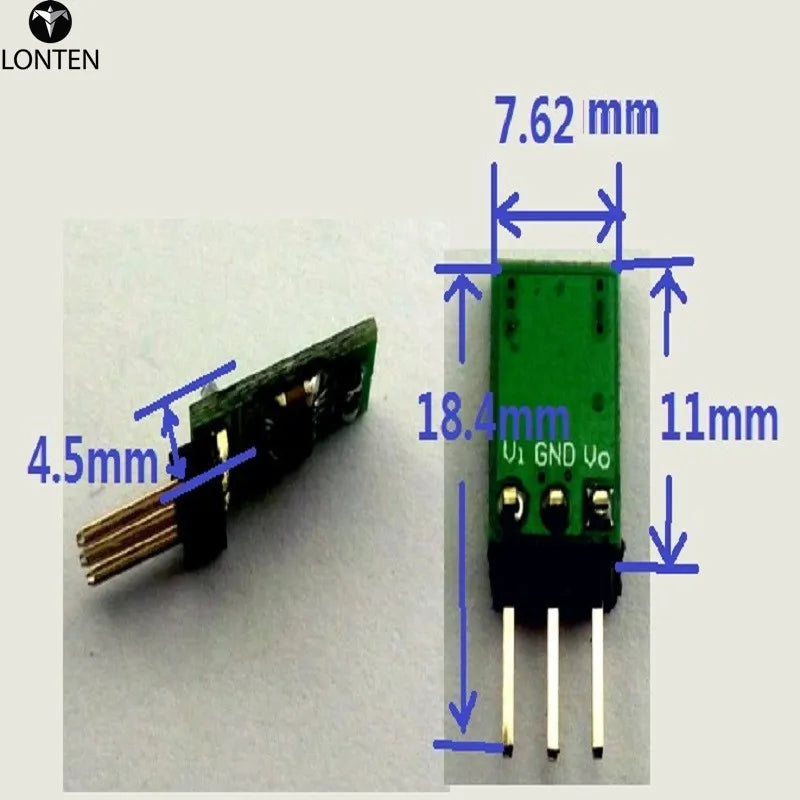

Excluding Pin Size 11mm x 7.62mm x 4.5mm(small)

Weight : about 0.5g(Very very light)

Attention :


This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself



 Welcome Customize Order!
