Custom CE019 1200MA Small DC DC Converter 5V-23V to 3.3V Step Down Buck Regulator Module replace AMS1117 LDO Manufacturer
Custom CE019 1200MA Small DC DC Converter 5V-23V to 3.3V Step Down Buck Regulator Module replace AMS1117 LDO Manufacturer
Regular price
$1.89 USD
Regular price
$1.89 USD
Sale price
$1.89 USD
Unit price
/
per
Couldn't load pickup availability
Lonten provide electronic component ,welcome OEM CUSTOM ,ODM,for more please contact.
Product Name : CE019 1200MA Small DC DC Converter 5V-23V to 3.3V Step Down Buck Regulator Module replace AMS1117 LDO
Packing list:
1 PCS mini 1.2A DC DC Converter Step Down 4.75V-23V to 3.3V
Description:

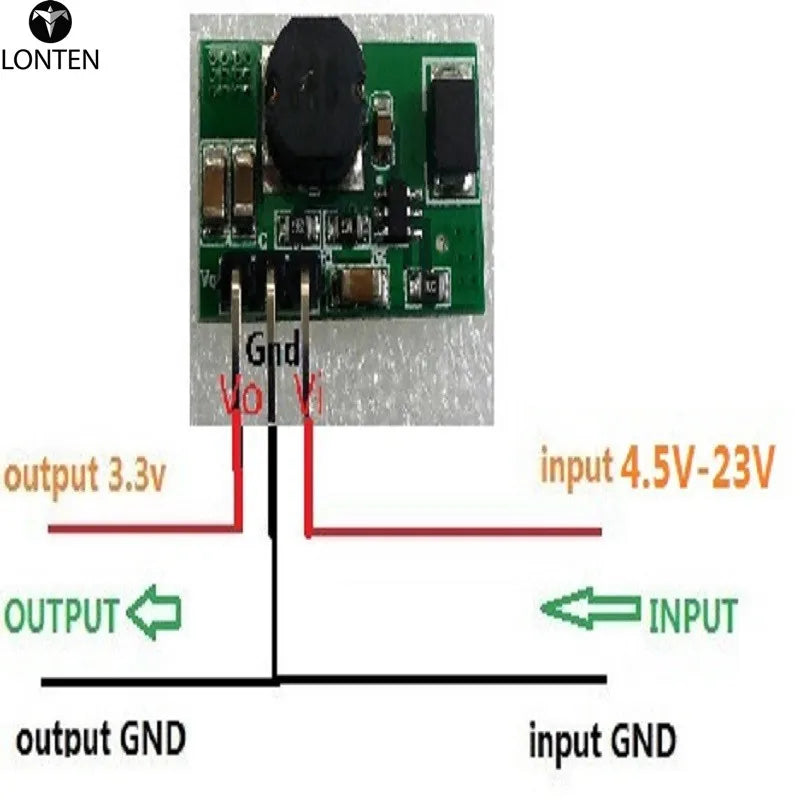

Input voltage 4.75~23V,output 3.3V
Maximum output current 1.2A,Short time maximum output current 2A
DC-DC Step-Down Converter module working frequency 1.4MHz. efficiency is 78-92% .
2.54mm pin pitch, Arduiuo Breadboard MCU Development Board friendly

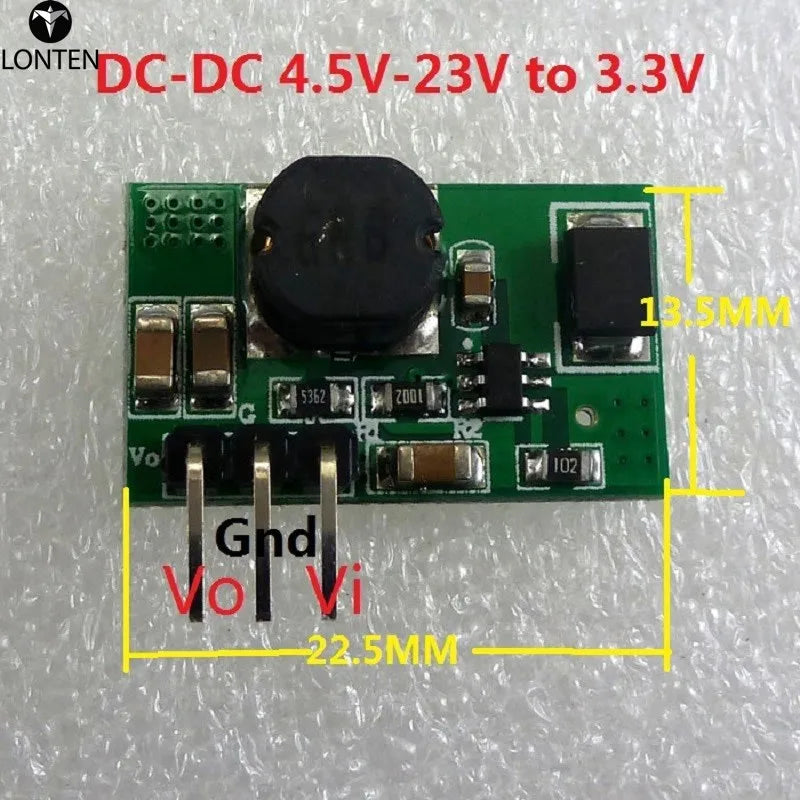

Excluding Pin Size 22.5mm x 13.5mm x 6.5mm( small)
Weight : about 2.2g( Very light)
Applications:
MCU Development Board,FPGA/CPLD UNO MEGA2560 DUE 8051 AVR C8051 etc
3.3V LED Lighting
3.3V Motor
esp8266
Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee
Smart home / home automation
315M 433M Wireless remote controller
Distributed Power Systems
Battery Charger
Pre-Regulator for Linear Regulators
DSL Modems
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
