Custom CE017*2 2pcs DC DC Converter USB 5V to 12V Step Up Boost Module With XH2.54 2 Pin 20cm Power Wire Cable Manufacturer
Custom CE017*2 2pcs DC DC Converter USB 5V to 12V Step Up Boost Module With XH2.54 2 Pin 20cm Power Wire Cable Manufacturer
Couldn't load pickup availability
Lonten provide electronic component ,welcome OEM CUSTOM ,ODM,for more please contact.
| Product Name:CE017*2 2pcs DC DC Converter USB 5V to 12V Step Up Boost Module With XH2.54 2 Pin 20cm Power Wire Cable

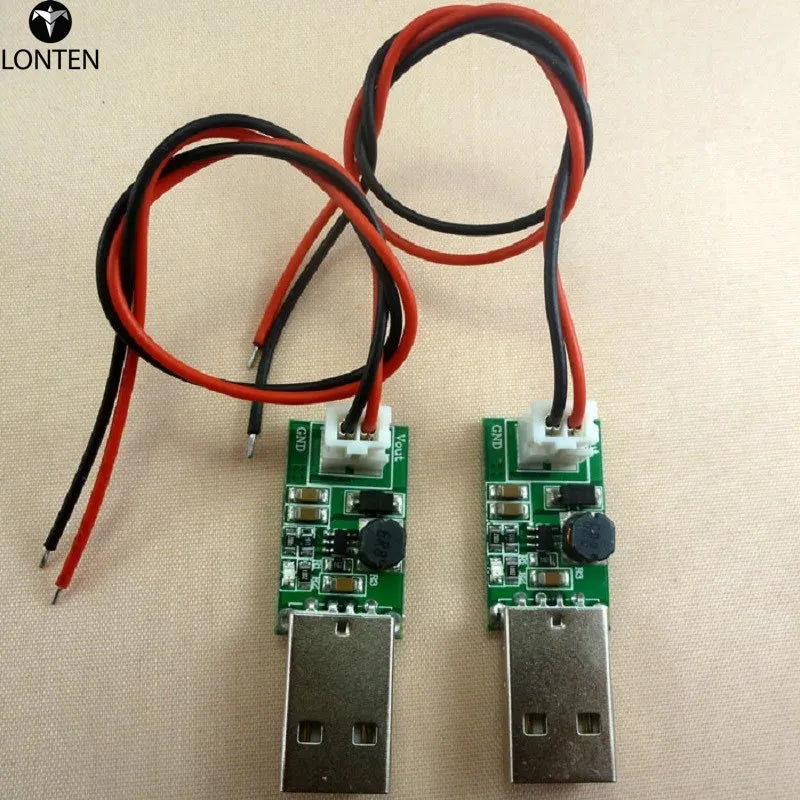

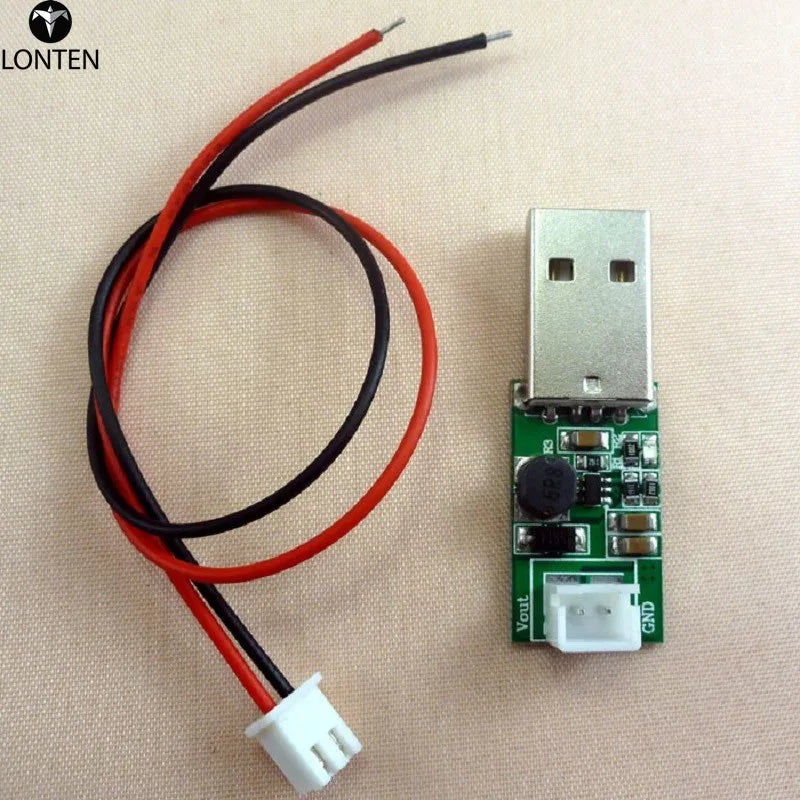

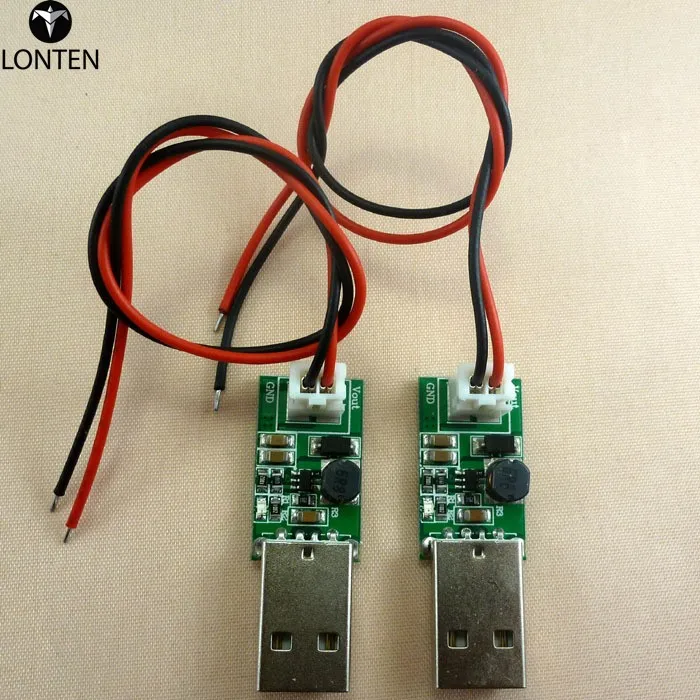

Packing list 2 pcs XH2.54 2 Pin 20cm Power Wire Cable

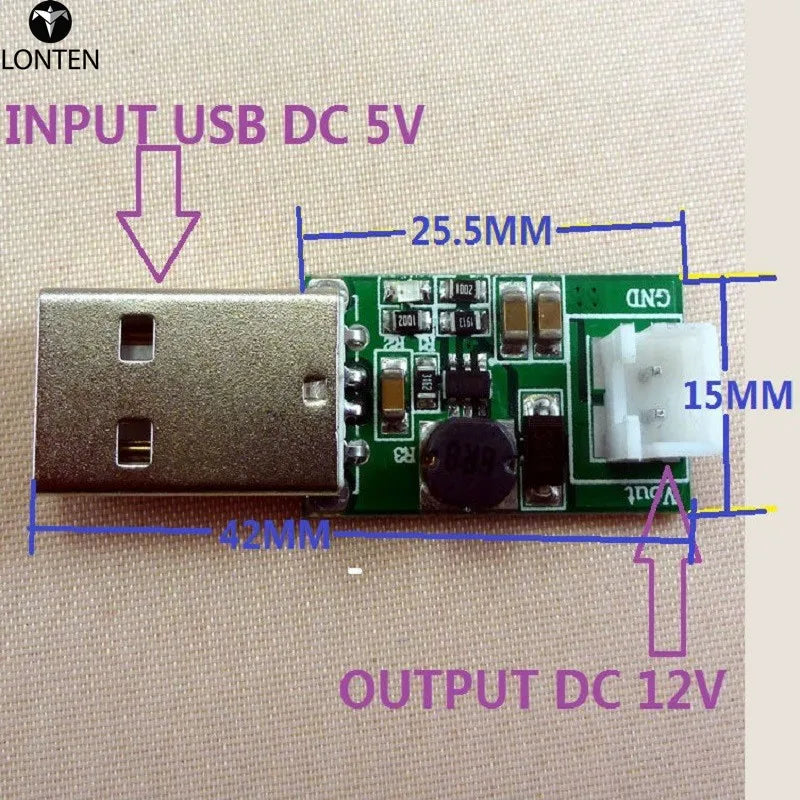

Description: Maximum input current : 1.2A Long-term work Current : 1A Conversion efficiency : 78-90% Start Voltage 2.8V, Output Current 50MA INPUT 3V 1A; OUTPUT 12V 210MA INPUT 3.3V 1A; OUTPUT 12V 250MA INPUT 3.7V 1A; OUTPUT 12V 280MA INPUT 4.5V 1A; OUTPUT 12V 340MA INPUT 5V 1A; OUTPUT 12V 370MA INPUT 6V 1A; OUTPUT 12V 450MA DC-DC Boost module working frequency 1.0MHZ. Operating ambient temperature : -40~+85 Degrees Celsius . Size 42mm x 15mm x 5.6mm(small) Weight : about 5.6g(light) Applications: 12V Low Power Motor 12V Low Power Fan LED Lighting 12V Relay board Wireless communication equipment 315M 433M Wireless remote controller Attention : This is a DC-DC voltage converter module,Must be noted when using: 1 Input voltage can not be greater than the maximum input range

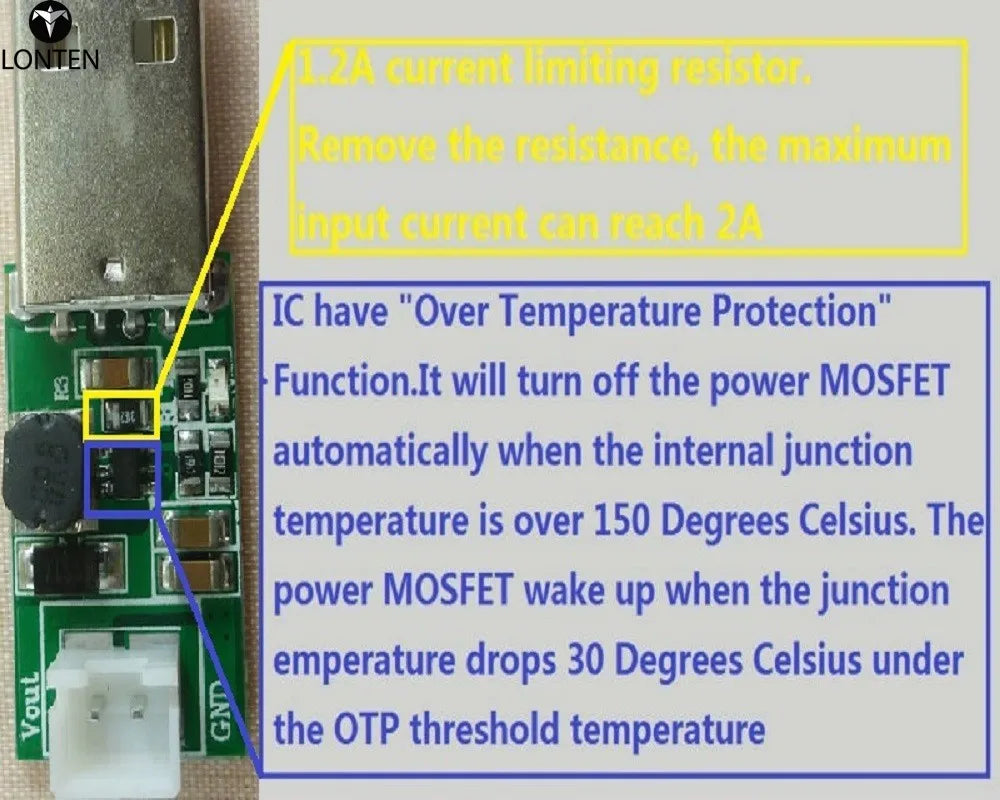

Modify Parameter Description: 1.2A current limiting resistor,Remove the resistance, the maximum input current can reach 2A. But IC have "Over Temperature Protection" Function.It will turn off the power MOSFET automatically when the internal junction temperature is over 150 Degrees Celsius. The power MOSFET wake up when the junction emperature drops 30 Degrees Celsius under the OTP threshold temperature The master chip is FP6291GLR This module supports sleep mode, remove the LED indicator the sleep current 50mA,250-350 mA current can support the one-year stand mode! The micropower environment more suitable for special use .
|
