Custom CE015+TB236+TB225 40W DC /DC Converter 5V to 12V Boost Step-Up Power for IP PTZ Camera CCTV Monitor Route Manufacturer
Custom CE015+TB236+TB225 40W DC /DC Converter 5V to 12V Boost Step-Up Power for IP PTZ Camera CCTV Monitor Route Manufacturer
Regular price
$8.99 USD
Regular price
$8.99 USD
Sale price
$8.99 USD
Unit price
per
Couldn't load pickup availability
Lonten provide electronic component ,welcome OEM CUSTOM ,ODM,for more please contact.
Applications:
IP PTZ Camera
Solar charger
Smart Home / Home Automation
Monitor Power
CCTV Power
PLC Power
LED Driver Power
Motor Driver Power
Product Name:CE015+TB236+TB225 40W DC DC Converter 5V to 12V Boost Step-Up Power for IP PTZ Camera CCTV Monitor Router

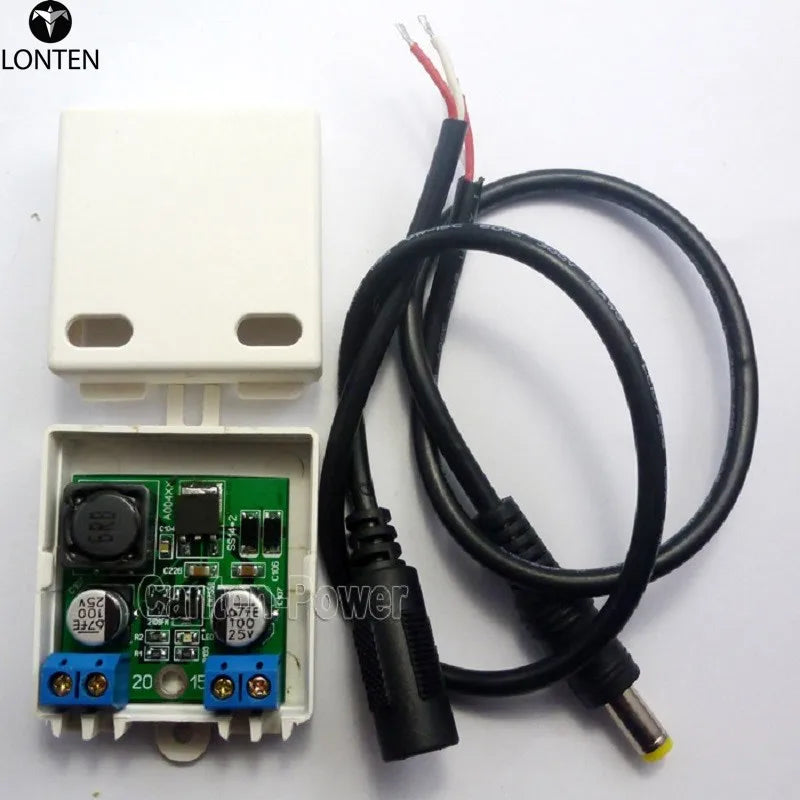

Packing list:
1 pcs 40W DC-DC Converter Step Up 1.5V-12V to 12V;
1 pcs PC material shell

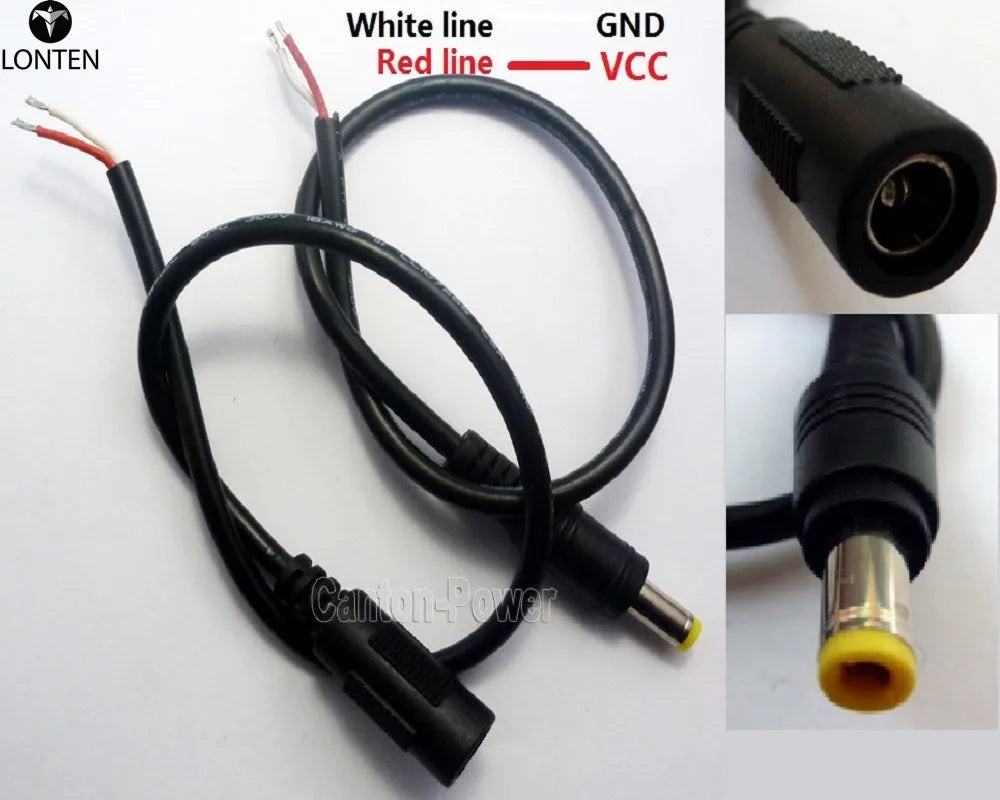

1 pcs DC 5.5MM Female Cable;
1 pcs DC 5.5MM Male Cable;

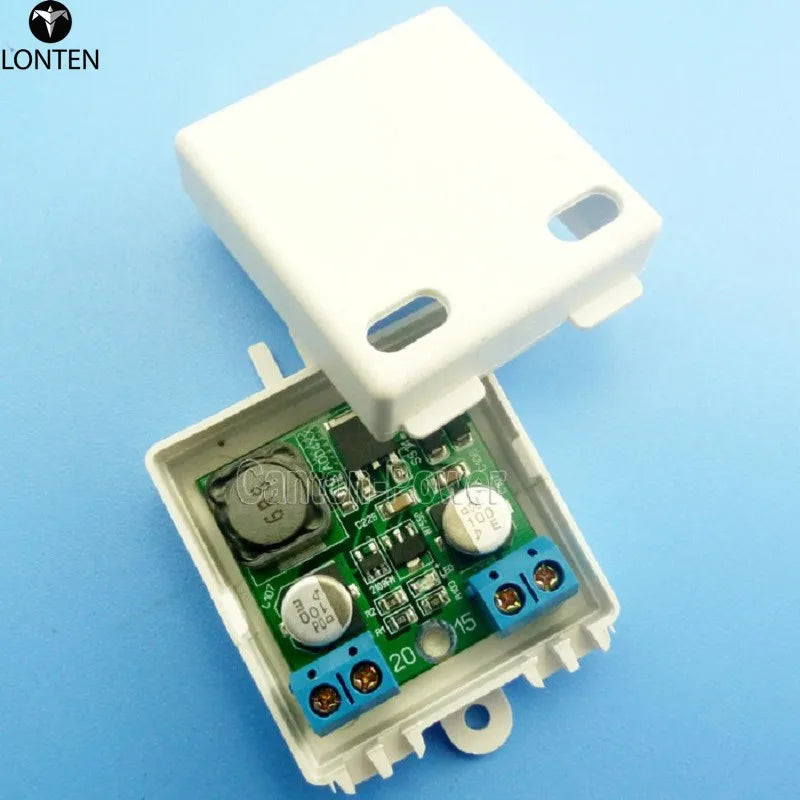

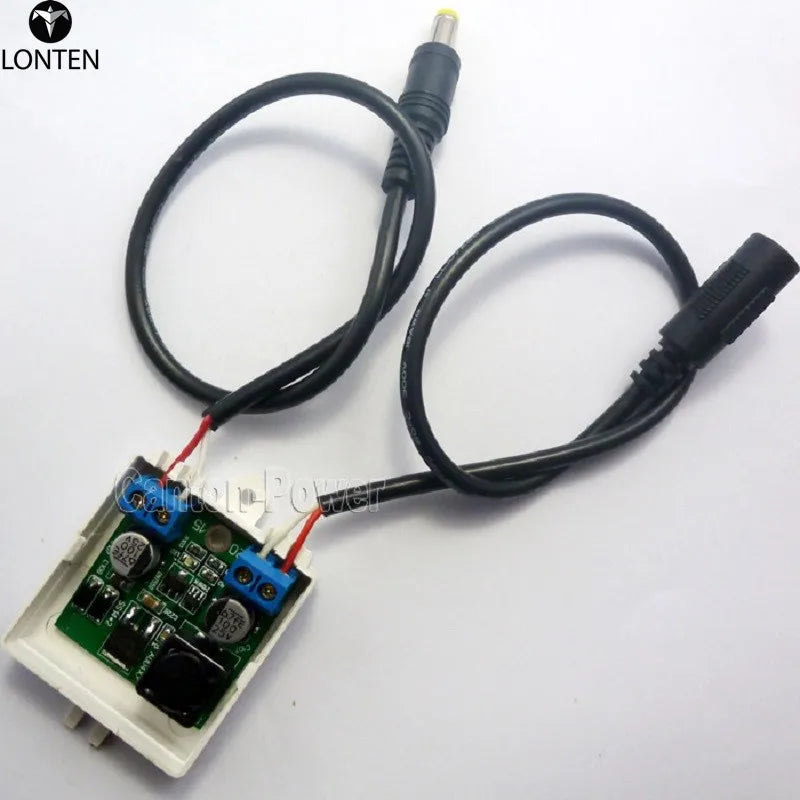

Description:

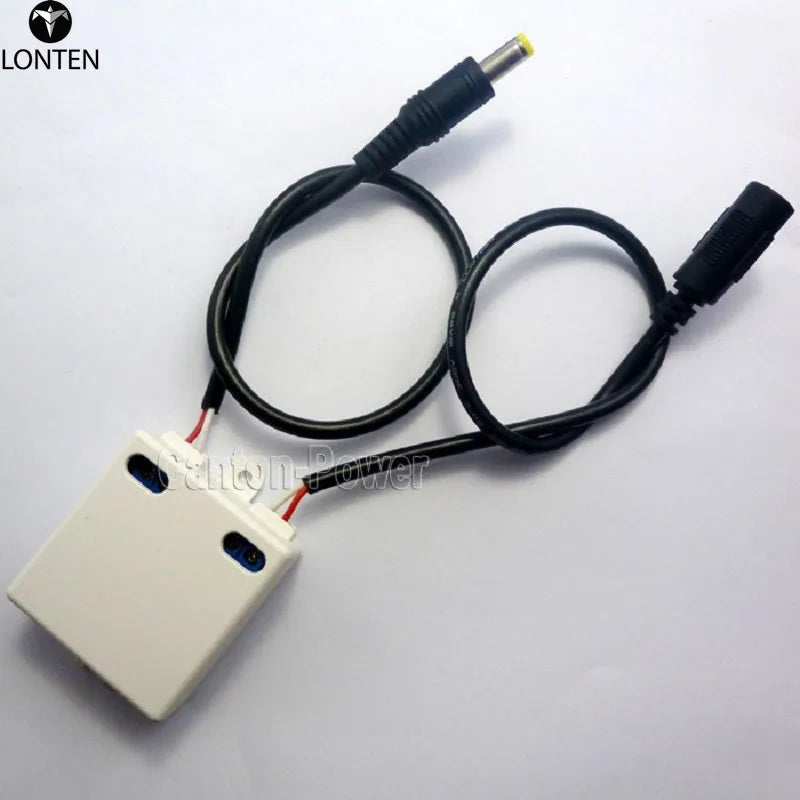

DC 5.5MM Female 1.5V-12V input,DC 5.5MM Male 12V Output
DC-DC Boost module working frequency 300KHZ.efficiency 57%-92% .
Operating ambient temperature : -20~+85 Degrees Celsius
Voltage ModuleSize 33mm x 33mm x 14mm
Shell Size : 41mm x 40mm x 20mm
Maximum withstand voltage : 16V(When >12V,Output >12V)
Maximum input current : 5A(Instantaneous maximum value)
Input voltage DC 1.5 ~ 12V, output DC 12V(+-5%)
Maximum output current: 3.4A
Under different conditions, the measurement result will be some deviation
| Input voltage | Input Current | Output Voltage | Output Current | Efficiency |
| 1.5V | 0.28A | 12V | 0.02A | 57% |
| 1.8V | 0.33A | 12V | 0.03A | 60% |
| 2V | 0.36A | 12V | 0.04A | 67% |
| 2.5V | 0.4A | 12V | 0.06A | 80% |
| 3V | 1.5A | 12V | 0.3A | 80% |
| 3.3V | 1.8A | 12V | 0.49A | 80% |
| 3.7V | 2.2A | 12V | 0.54A | 80% |
| 4V | 3A | 12V | 0.8A | 80% |
| 5V | 3.2A | 12V | 1.1A | 82% |
| 6V | 3.2A | 12V | 1.3A | 86% |
| 7V | 3.3A | 12V | 1.66A | 86% |
| 8V | 3.4A | 12V | 1.97A | 87% |
| 9V | 3.5A | 12V | 2.31A | 88% |
| 10V | 3.7A | 12V | 2.8A | 92% |
| 11V | 4A | 12V | 3.32A | 91% |
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
Q & A:
Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,at this time of the input voltage is very low
