Custom CE015*3 3PCS High Power 3.3V 4.2V 5V 6V to 12V DC DC Boost Converter for PLC LED Monitor CCTV Smart Home / Home Automation Manufacturer
Custom CE015*3 3PCS High Power 3.3V 4.2V 5V 6V to 12V DC DC Boost Converter for PLC LED Monitor CCTV Smart Home / Home Automation Manufacturer
Regular price
$14.69 USD
Regular price
$14.69 USD
Sale price
$14.69 USD
Unit price
per
Couldn't load pickup availability
Lonten provide electronic component ,welcome OEM CUSTOM ,ODM,for more please contact.
Applications:
Automobile emergency power supply
RS485 PLC Power
Router Power
Solar charger
Smart Home / Home Automation
Monitor Power
CCTV Power
PLC Power
LED Driver Power
Motor Driver Power
Product Name: CE015*3 3PCS High Power 3.3V 4.2V 5V 6V to 12V DC DC Boost Converter for PLC LED Monitor CCTV Smart Home / Home Automation
Packing list:
3 pcs 3.3V 4.2V 5V 6V to 12V DC DC Boost Converter ;

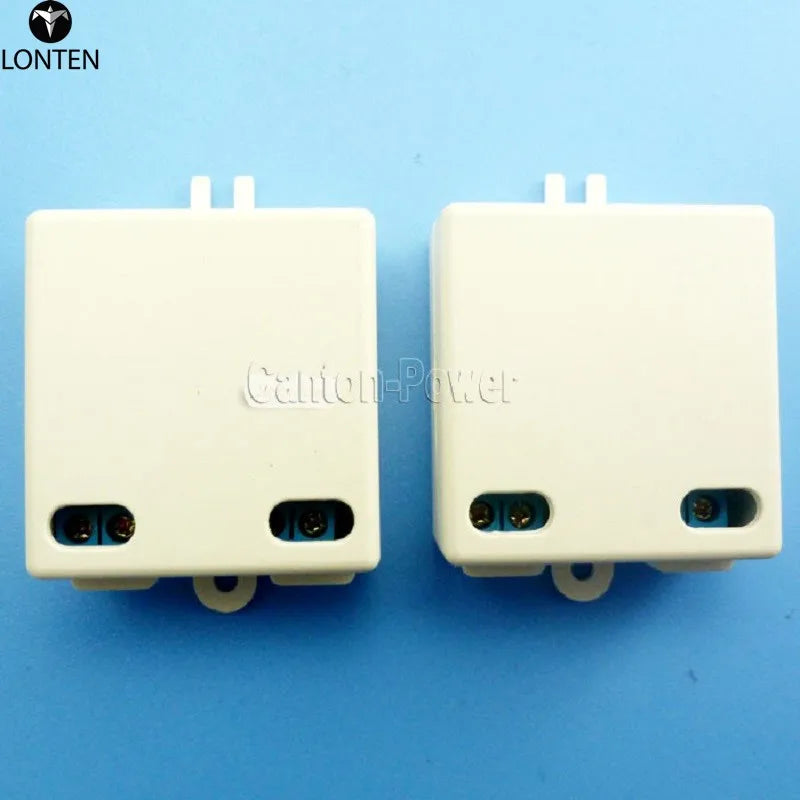

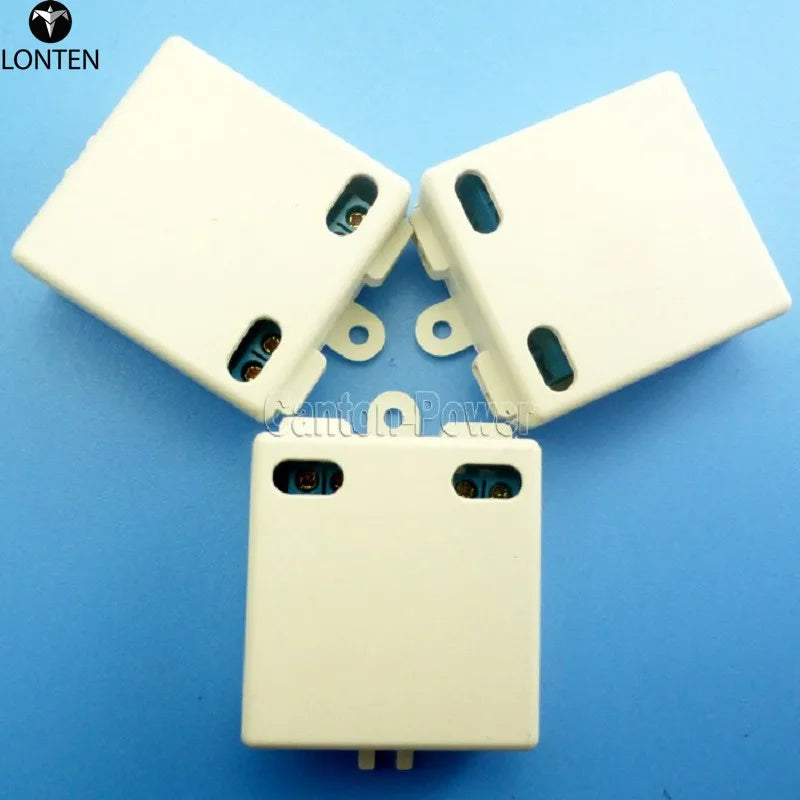

3 pcs PC material shell
Description:

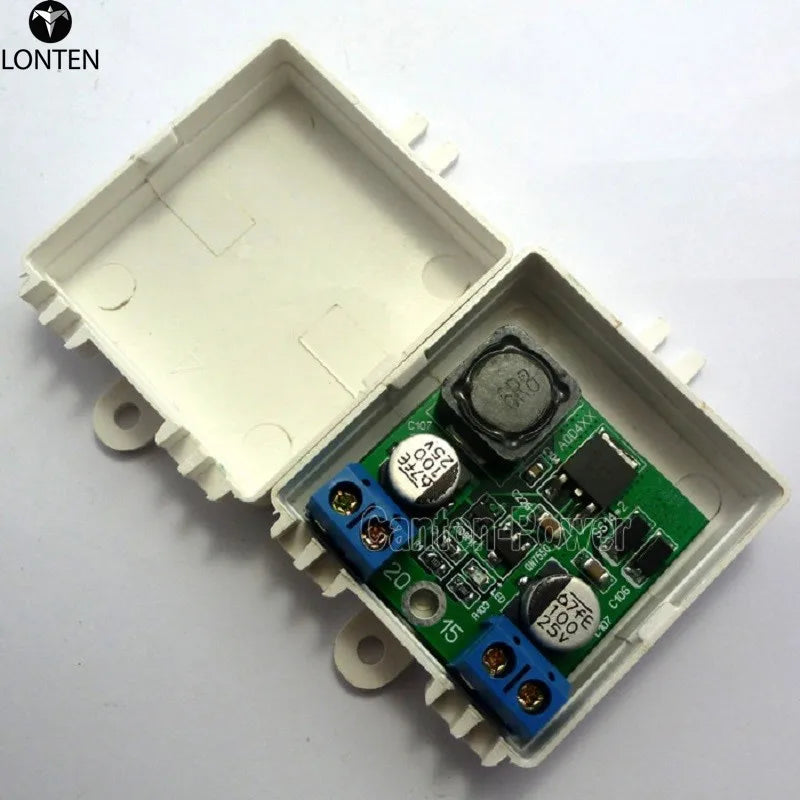

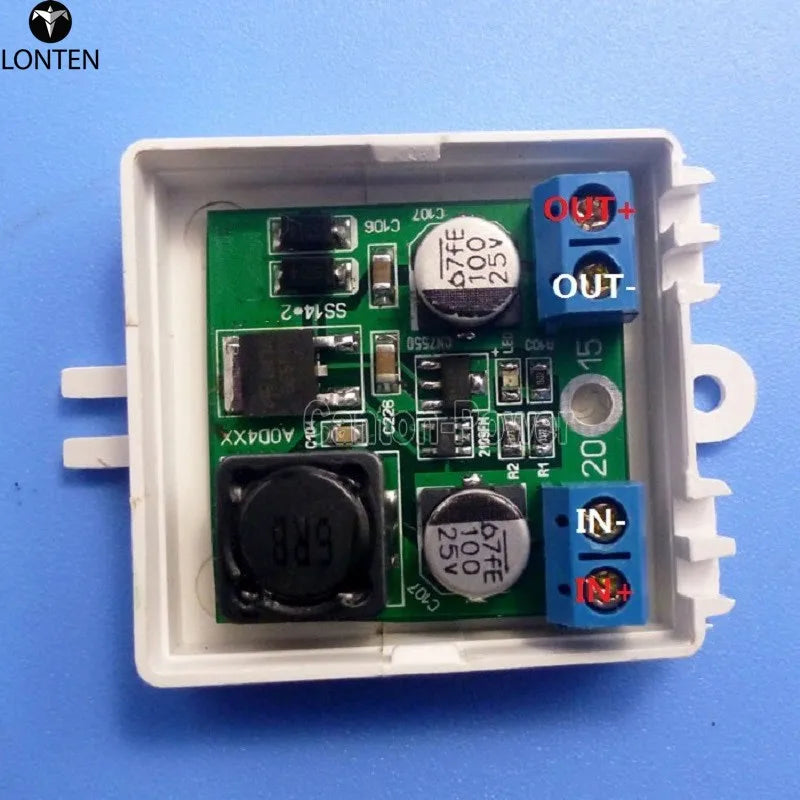

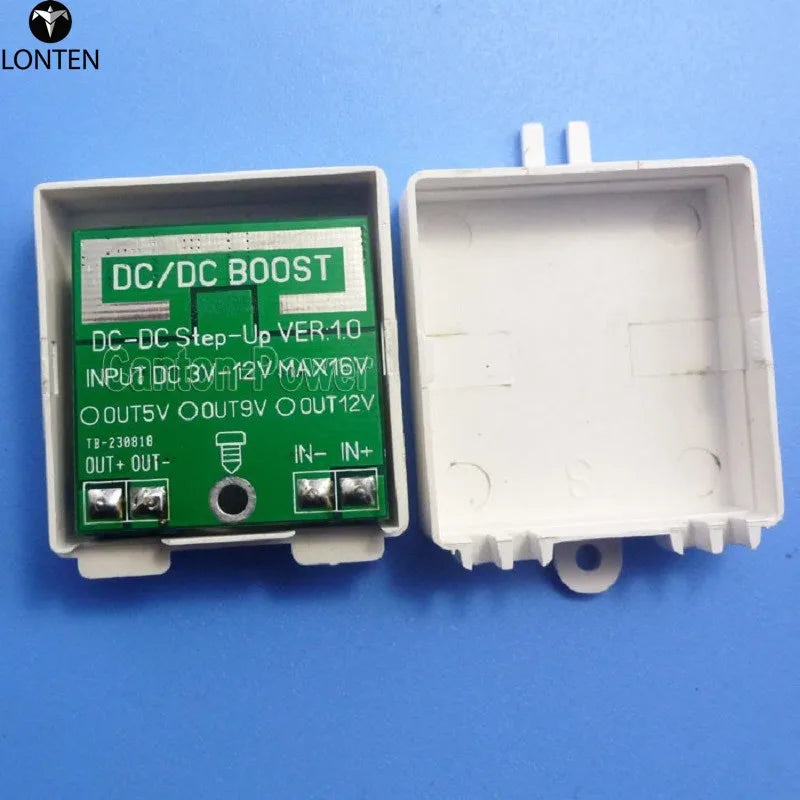

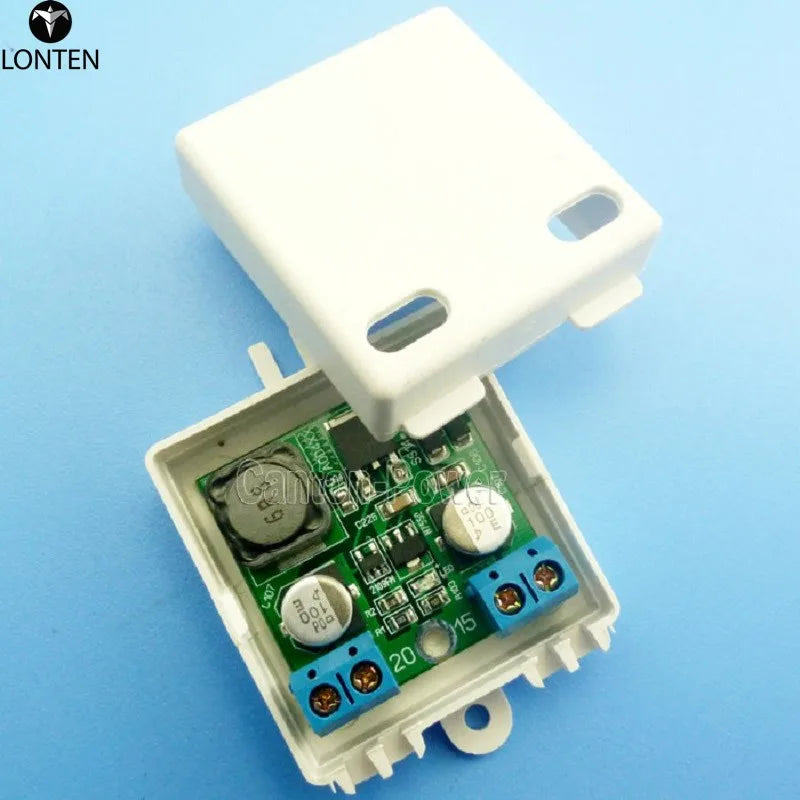

Module Properties: DC DC Converter step-up BOOST module
DC-DC Boost module working frequency 300KHZ.efficiency 58%-93% .
Operating ambient temperature : -20~+85 Degrees Celsius
Voltage Module Size 33mm x 33mm x 14mm; Weight : 12g
Shell Size : 41mm x 40mm x 20mm;Weight : 11g
Maximum withstand voltage : 16V(When >12V,Output >12V)
Maximum input current : 5A(Instantaneous maximum value)
Input voltage DC 1.5 ~ 12V, output DC 12V(+-5%)
Maximum output current: 3.4A
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
Q & A:
Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter, a t this time of the input voltage is very low
