Custom CC2640 R2F beacon Bluetooth module iBeacon base station equipment beacon asset indoor check-in positioning

Product parameters

Product Name: CC2640- B2iBeacon

Chip model: CC2640 R2F chip (imported chip)

Communication distance: within a practical distance of 50m

Broadcasting power: -21dB -5dB

Broadcast interval: 1000ms/time

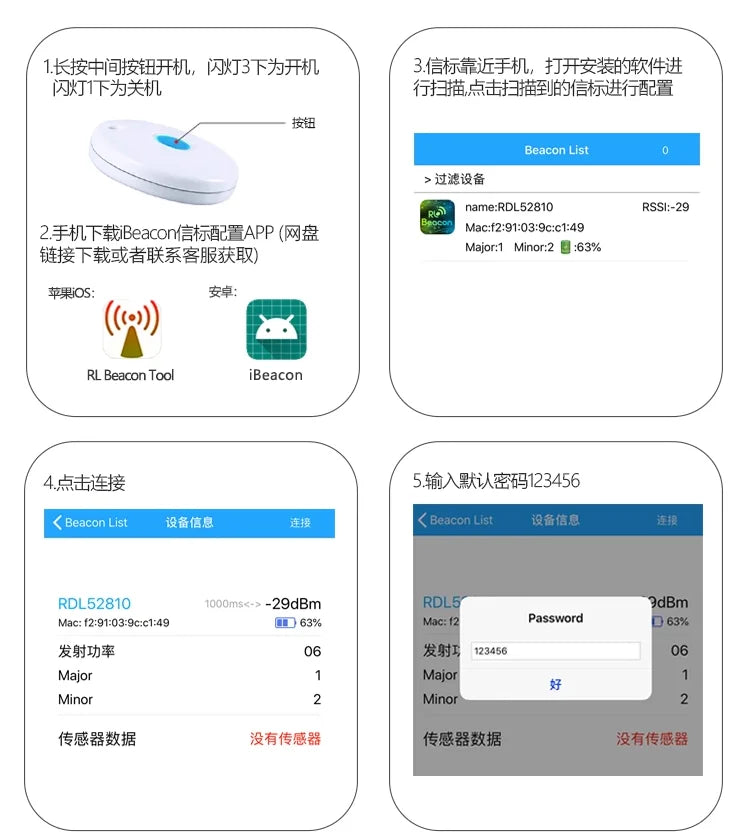

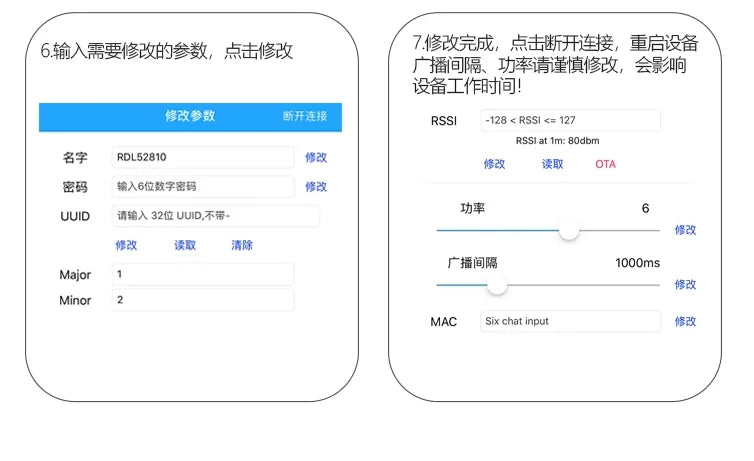

Parameter configuration: UUID Major Minor Mac address Product name

Work standby: 8 months

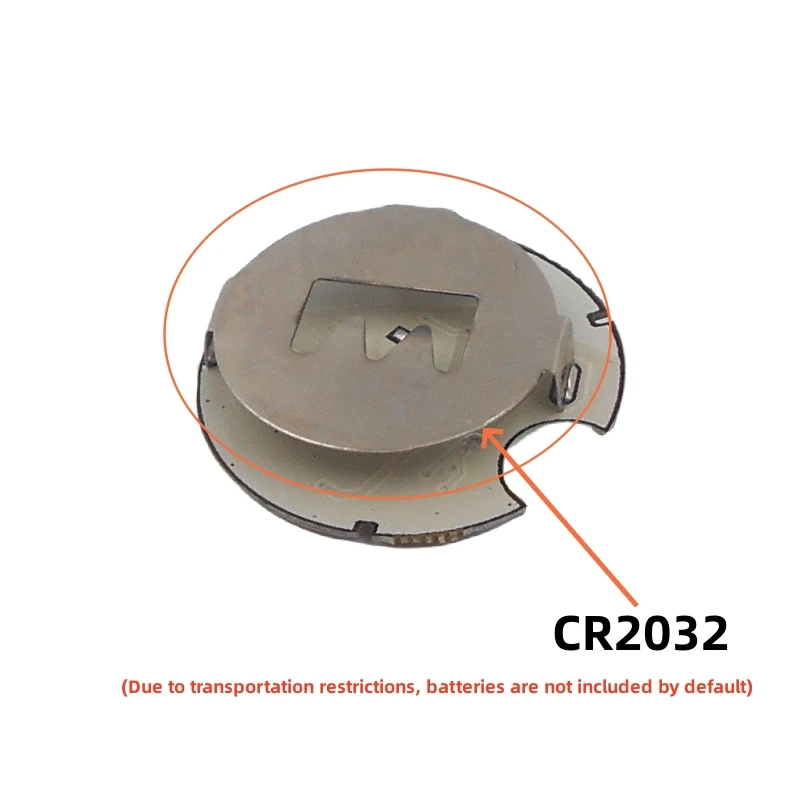

Battery model: CR2032 (replaceable battery)

Battery capacity: 240mAh

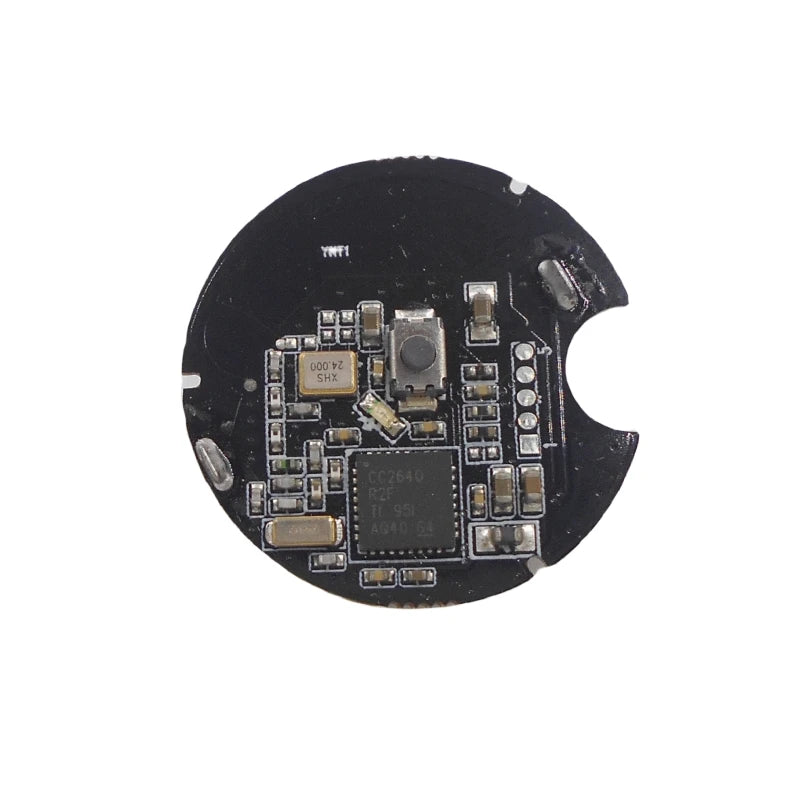

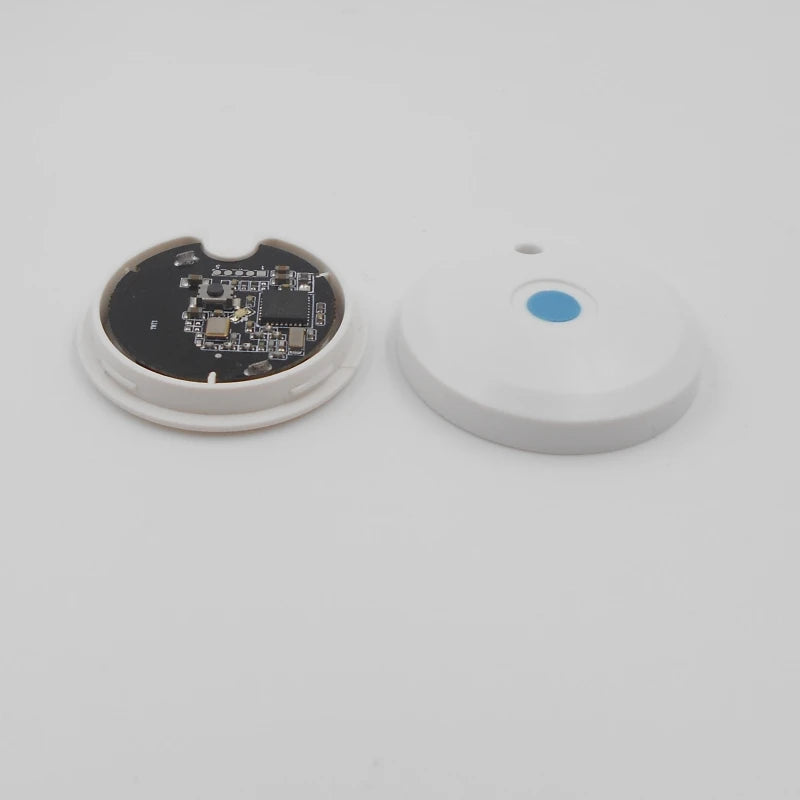

Product size: Module board circular diameter 25.5mm, shell diameter 32mm, thickness 10mm

Product features: IP67 waterproof and dustproof (anti splash, light rain, short-term soaking)

Default parameters

UUID (Device ID): "FDA50693-A4E2-4FB1-AFCF-C6EB07647825 Note: The default UUID for WeChat Shake One Shake"

Major: 1

Minor: 2

Measured power: -59dBm, 0xC5

Note: The RSSI value measured at a distance of 1 meter from the device

Transmission Power:+0dBm

Broadcasting Interval: 1000ms

Bluetooth address (MAC): burned by the manufacturer, based on the actual measured value

IBeacon Name: RDLCC2640

Battery: New battery, based on actual measured values
