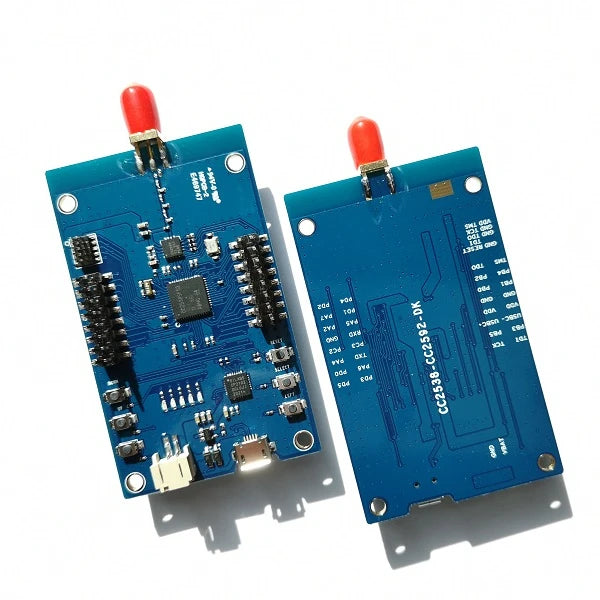

Custom Custom CC2538+CC2592 Development Board Contiki 6LoWPAN Learning Zigbee2mqtt Z2m Manufacturer

The main parameters:

Onboard chip: CC2538/CC2592/CP2102

RAM: 32KB

FLASH: 512KB

GPIO: 32

Debug interface: 10PIN JTAG (1.27mm)

Communication: 2.4G

Power supply: 3.6V~5V

Power supply interface: MicroUSB/Battery (PH2.0)

Purpose: 6LoWPAN/Zigbee3.0/Contiki

Circuit diagram and Contiki driver download:

https://github.com/knowic/CC2538_CC2592_DK

English:

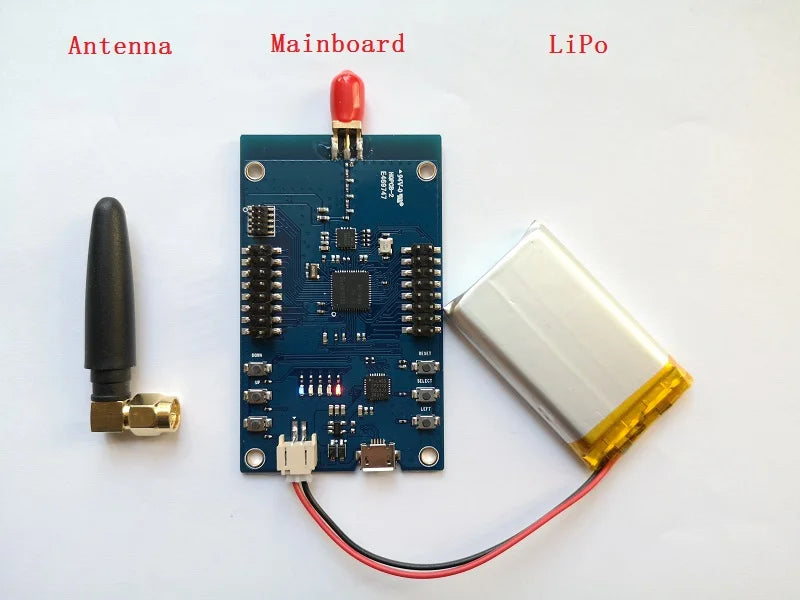

-- Antenna:SMA 2.4G

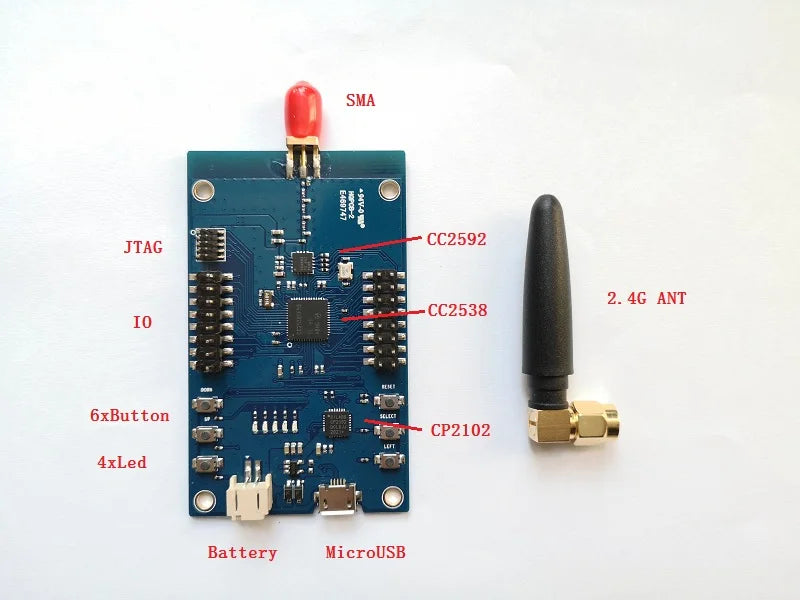

-- Chip on board: CC2538SF53RTQ,CC2592(PA),CP2102(USB to serial)

-- RAM:32KB

-- Flash:512KB

-- GPIO:32

-- Debug:10PIN JTAG(1.27mm pitch)

-- Power: 3.6V~5V

-- Supply: MicroUSB/PH2.0(Battery)

-- Button: x6

-- LED: x4

Compatible with TI CC2538+CC2592 EMK
