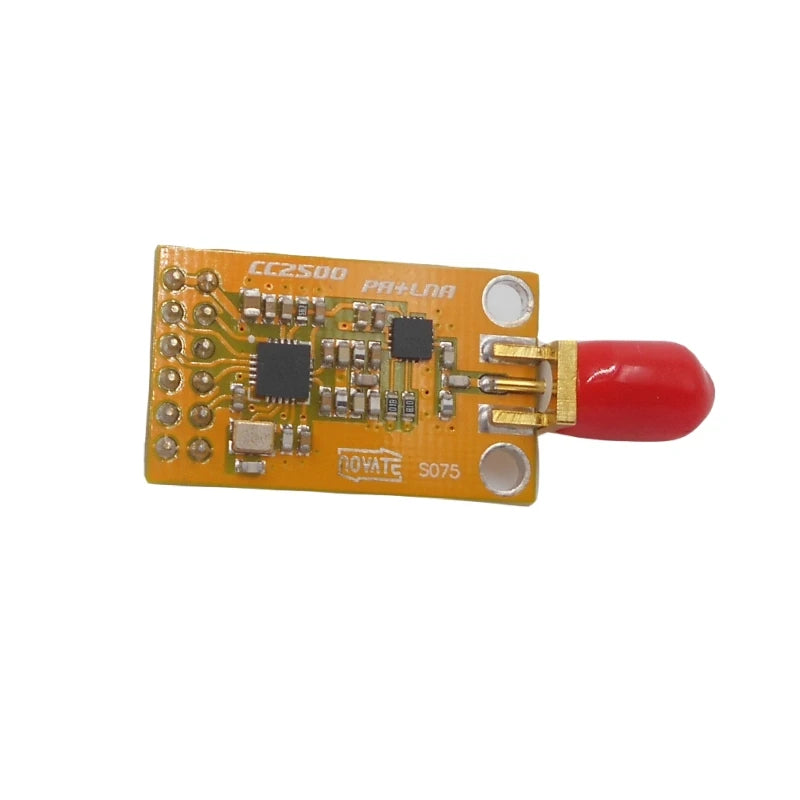

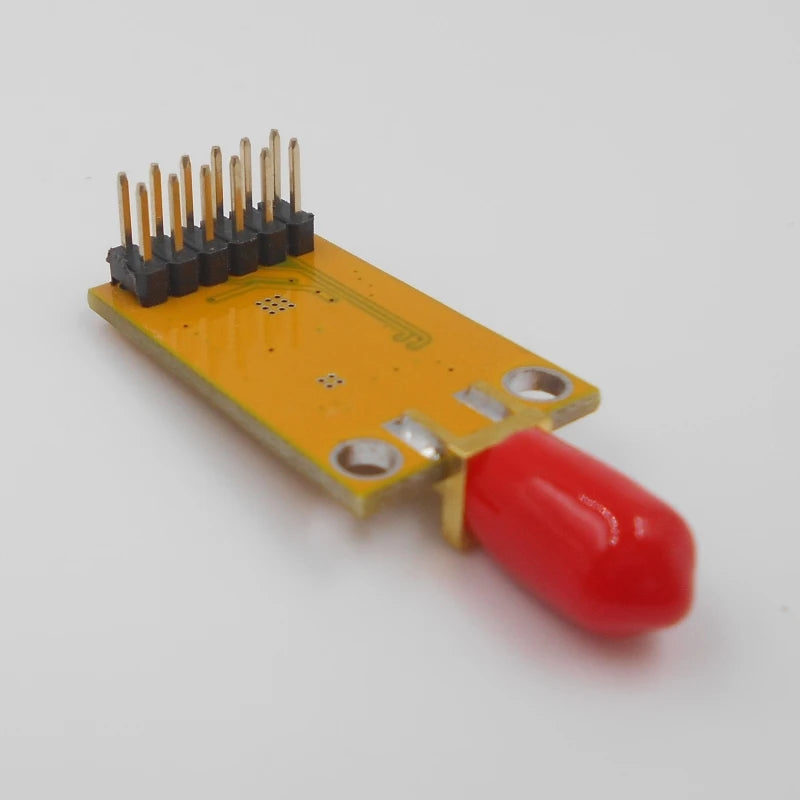

Custom CC2500PA/2.4G/22dBm/wireless data transmission RF module/transceiver communication module/1800m

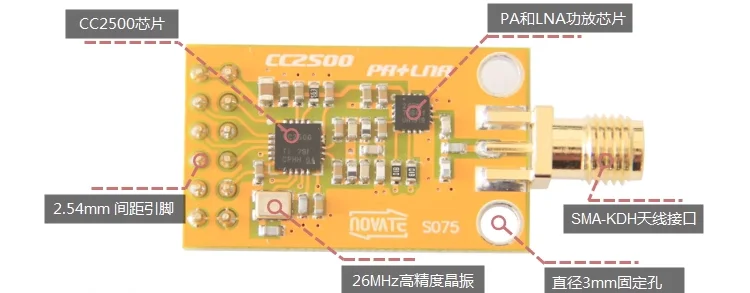

CC2500PA is a single-chip wireless transceiver that operates in the world wide ISM frequency band from 2.4GHz to 25GHz. The wireless transceiver unit uses a powerful CC2500 chip and integrates a highly integrated RF front-end chip, resulting in a maximum output power of+22dBm for this module.

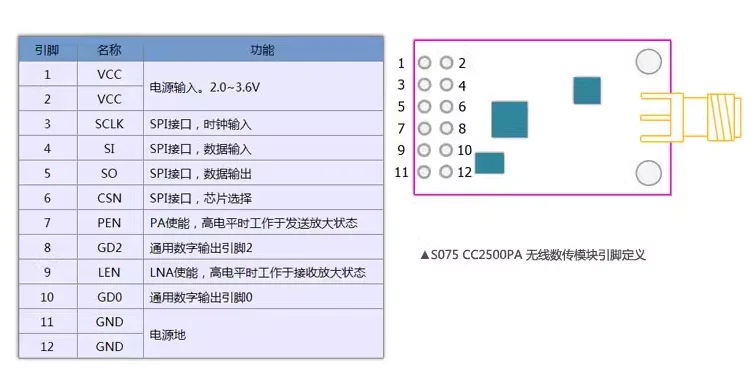

The switching and power-off of the RF front-end chip are controlled by two independent pins, while the other pins and functions are the same as those of a regular CC2500 chess block.

CC2500PA is suitable for various wireless communication applications, such as ultra-low power wireless transceivers, wireless sensor networks, home and building automation, advanced meter reading architectures (AMI, wireless metering, wireless alarm and security systems, etc.)

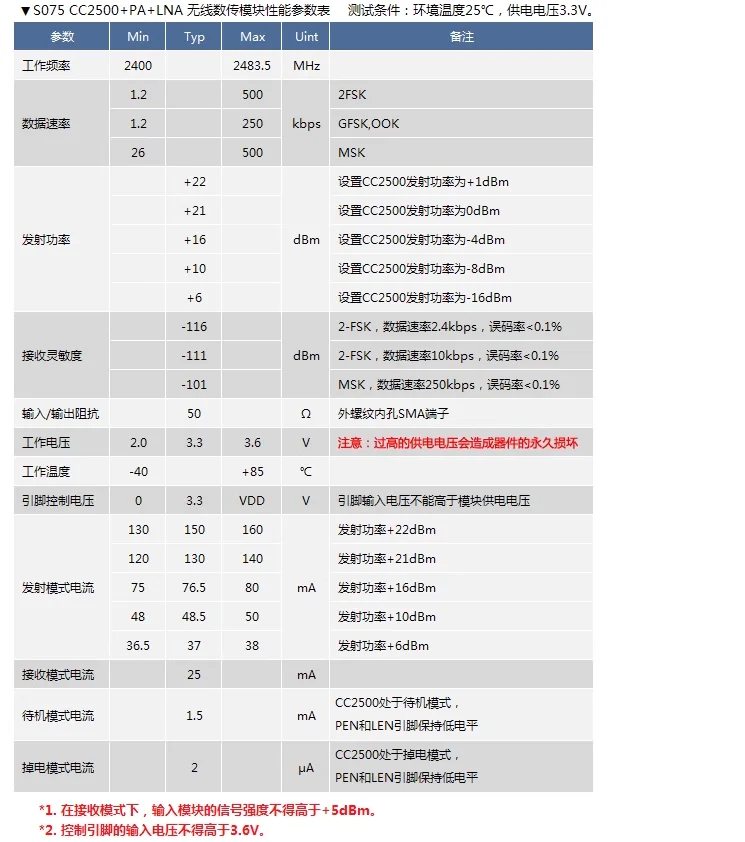

*Working frequency range: 2400MHz~2483.5MHz

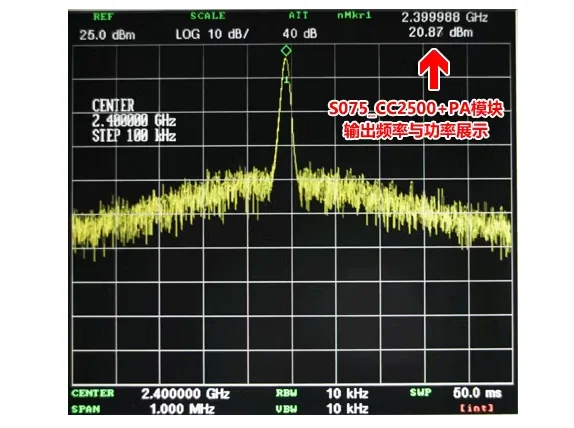

*Maximum transmission power+22dBm (160mW)

*Data transmission rate 1.2-500kbps

*Test communication distance in open environments up to 1800 meters

*Powerful features, rich settings, suitable for high RF applications
