Custom Bringsmart Four Types Of Shaft 110V/220V CW/CCW Permanent Magnet Synchronous Motor 5V-240V For Fan DIY TYC-50 Manufacturer

Custom Bringsmart Four Types Of Shaft 110V/220V CW/CCW Permanent Magnet Synchronous Motor 5V-240V For Fan DIY TYC-50 Manufacturer

$100.00 USD
$100.00 USD $100.00 USD
Sale Sold out



Note : If you need a DC synchronous motor, please click on the following picture to check.



1) Power: 4W
Long life, wide range of applications, commonly used power supply voltage AC5V, 6V, 9V, 12V, 24V, 110V, 220V, speed per minute 1.4rpm, 2rpm, 3rpm, 4rpm, 5rpm, 8rpm, 10rpm, 15rpm, 30rpm, 50rpm, 60rpm, the smaller the speed, the greater the torque, the special output shaft can be customized



This product is integrated by a permanent magnet synchronous motor and reduction gearbox.
With features of low power consumption, high torque, low noise, small size, light weight, easy to use.


At rated frequency,  motor speed is not affected by voltage.
If overload or stall when load, the motor coil will not burn!




2) There are three directions of rotation:  CW/CCW ; CW ; CCW


3) Note : When the load reaches the rated torque, the motor will automatically reverse.


4)    Application: electric fireplace; Heater / microwave / refrigerator, Display; lighting motor; fan motor / light box motor,Popcorn machine

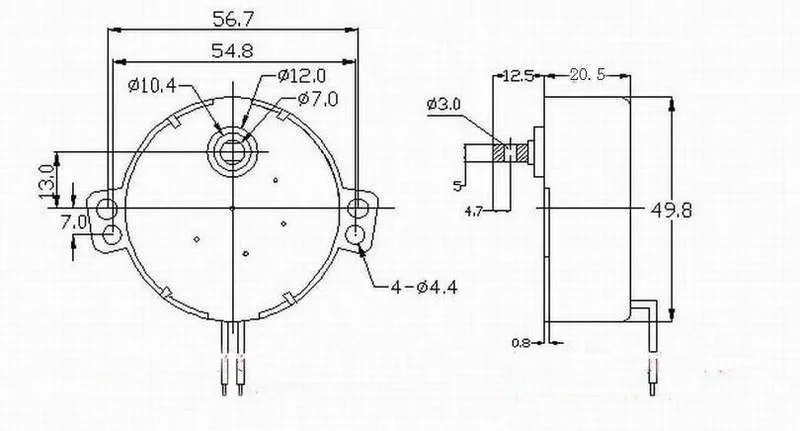

Unit : mm
HTB1.uvwKVXXXXXNaXXXq6xXFXXX2









Note

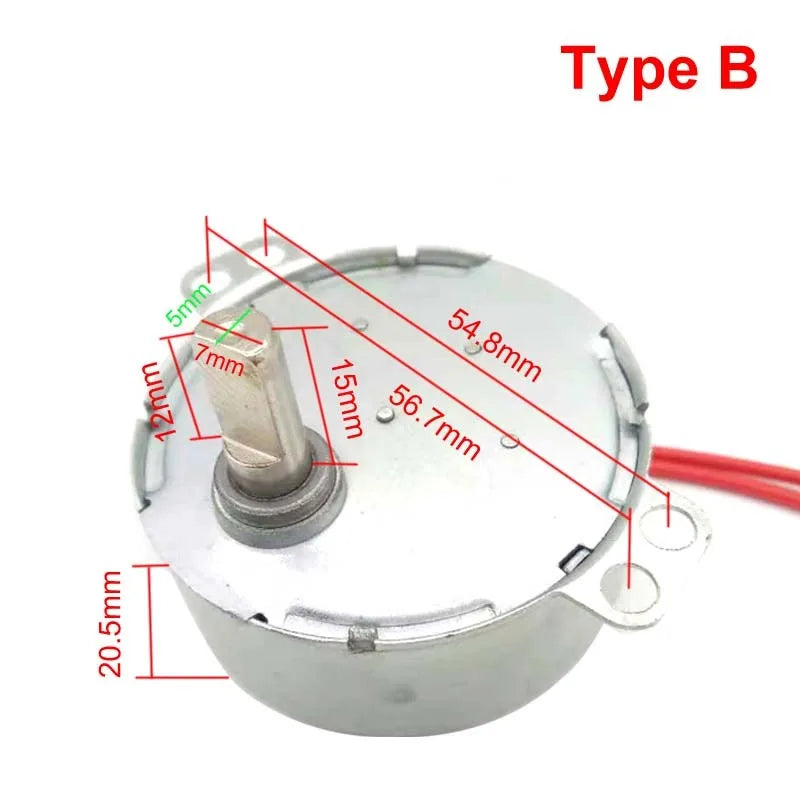

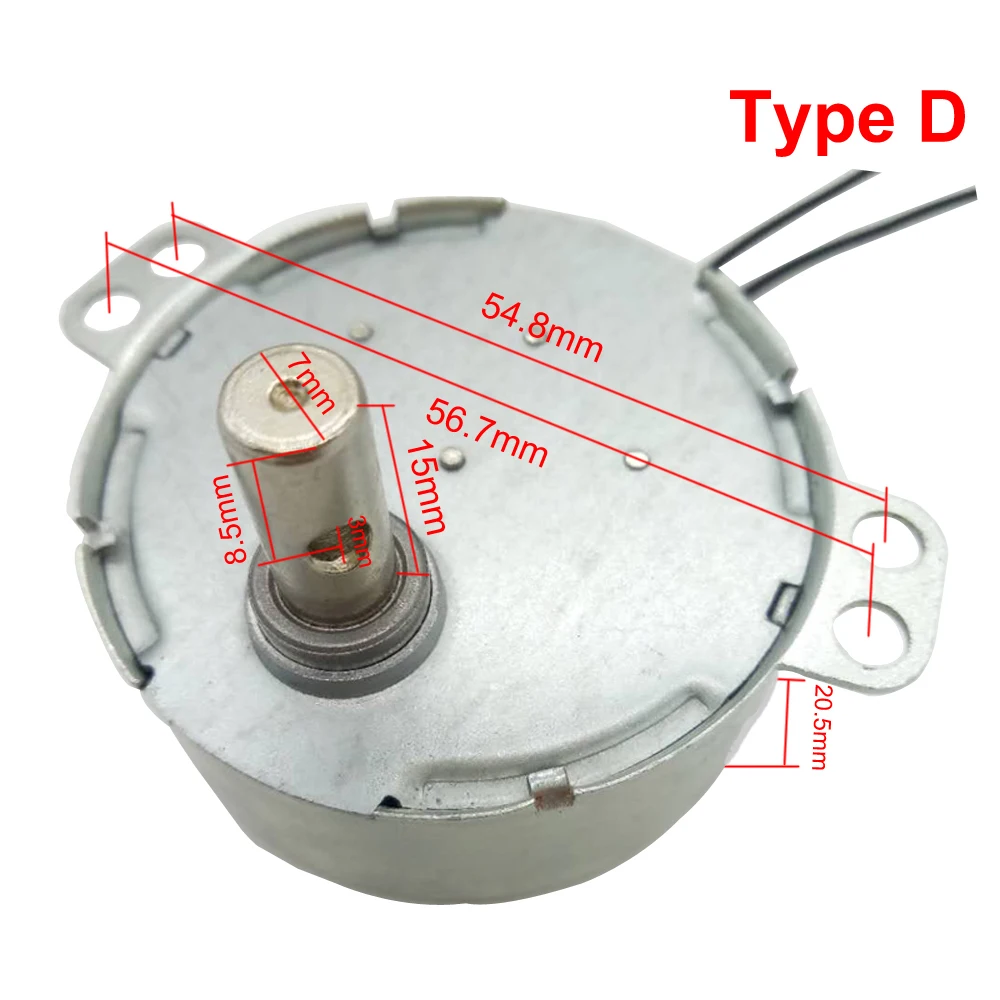

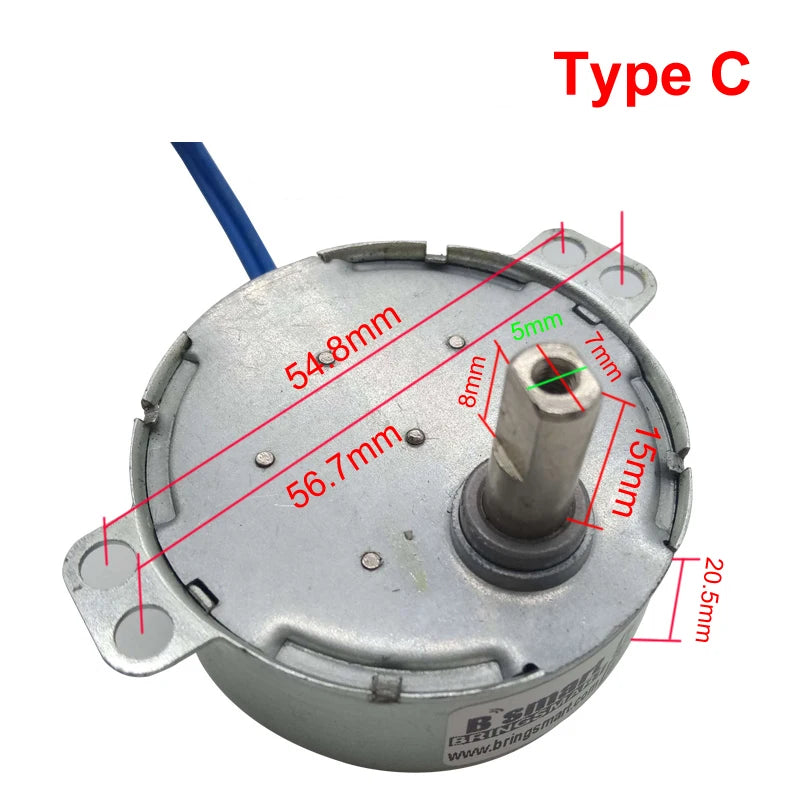

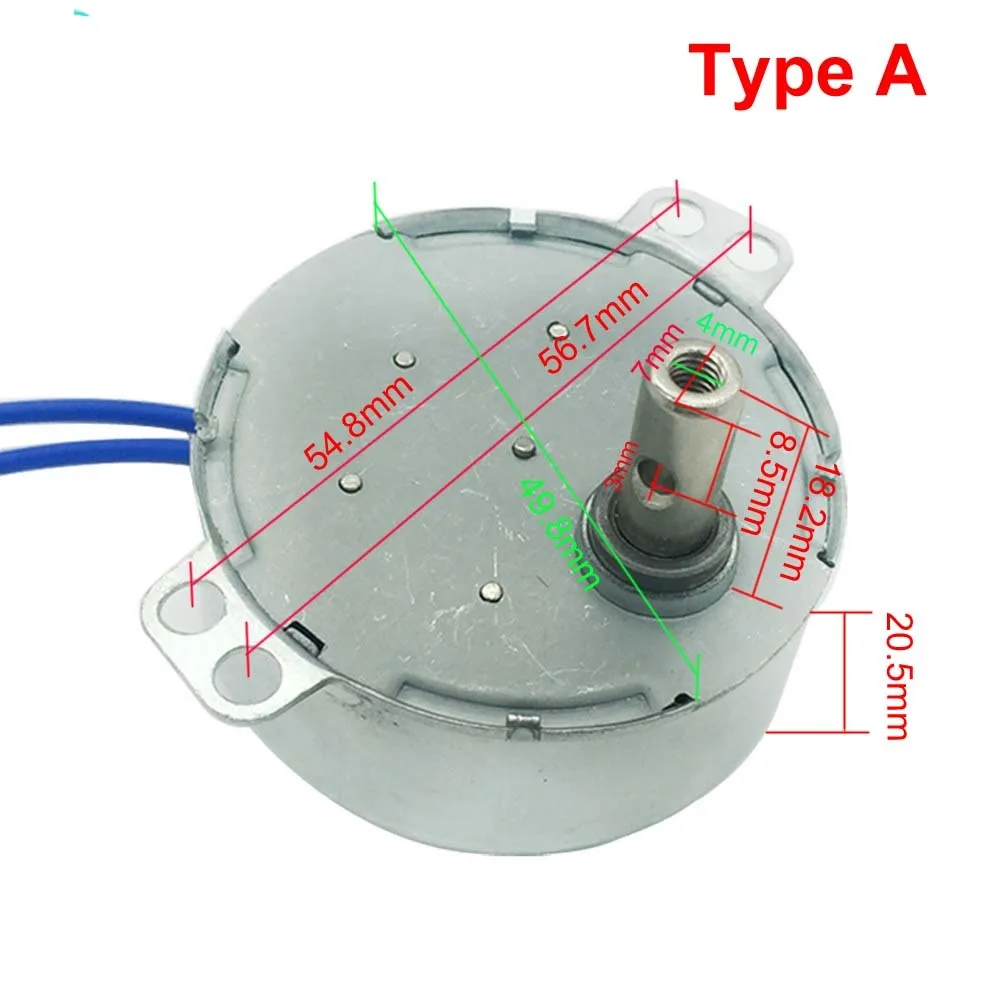

Please leave a message to tell us your choice of voltage, speed, direction of rotation (CW / CCW;CW; CCW three type) and the type of shaft ( Type A ; Type B ; Type C ; Type D )





For example 220v ; 8r / 10r ;  CW ; Type A







If did not get your message within 6 hours after your payment, we will deliver

8rpm/10rpm, 220v cw, Type A or 110v 8rpm/10rpm cw, Type A  (according to your country voltage) by default.





Thanks for your understand.







Note :  this motor is AC synchronous motor

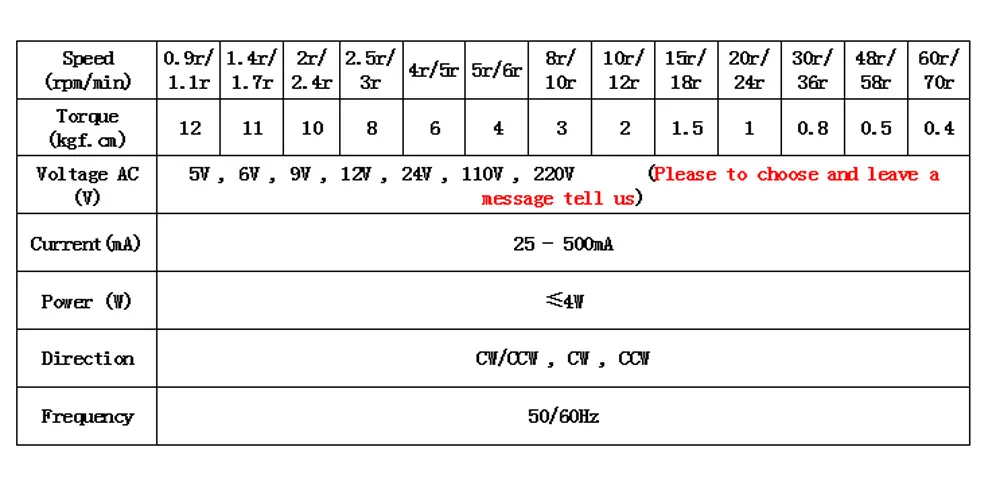

Please see the parameter table, for example you choose 1.4/1.7r/min


If your country's frequency is 50Hz, the motor rotation speed is 1.4rpm/min
If your country's frequency is 60Hz, the motor rotation speed is 1.7rpm/min







TC-50




 Welcome Customize Order!
