Introduction

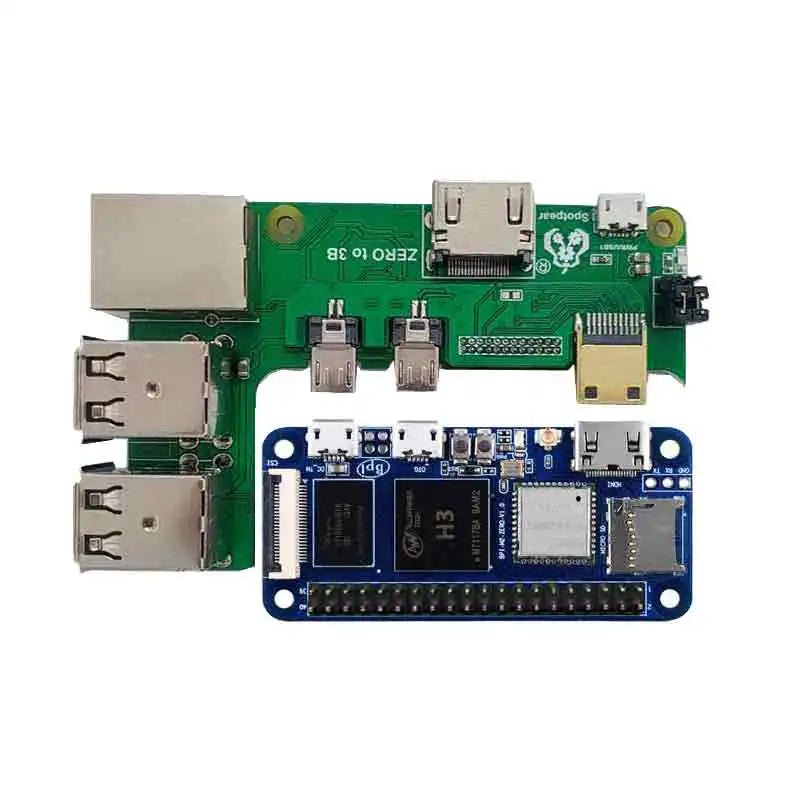

The Banana Pi M2 Zero to 3B/4B interface adapter with USB hub and RJ45 10/100M port ,
which is designed refer to the Raspberry Pi 3B/4B size
When the official factory stop to product 3B, Some old project have to change to use 4B.
At the same time, if you use Banana Pie BPI-M2 Zero, you can also achieve perfect compatibility, and expand USB HUB and Ethernet interface.
Now we give another option which use a zero to replace 3B with this adapter
Features
With the unique design , you can make your zero with same USB/HDMI/RJ45 port .
The height of 20x2 GPIO Pins will not change . You can use GPIO expansion board perfectly
Introduction to interface
•3x USB ports, compatible with USB2.0/1.1
•1x RJ45 10/100M port, based on the RTL8152B Ethernet chip
•Micro HDMI to 3B HDMI port
•It can be directly installed to Raspberry Pi Zero/Zero W/Zero WH and Banana Pi M2 Zero, and can be connected to other versions of raspberry pie, banana pie, general-purpose computers or Android phones through usb cable through jumper test.

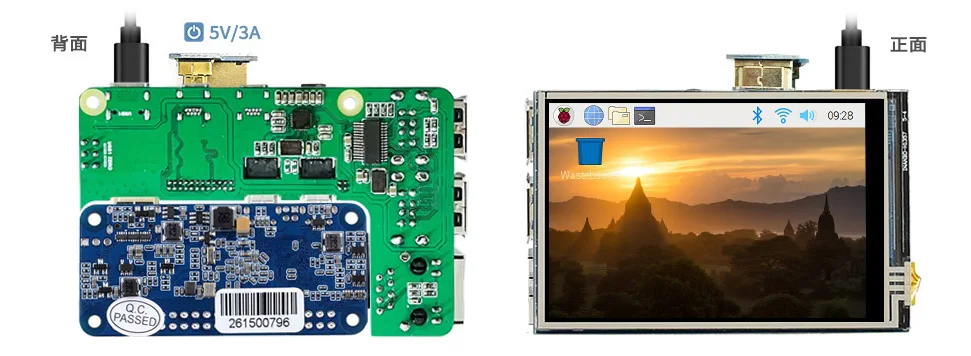

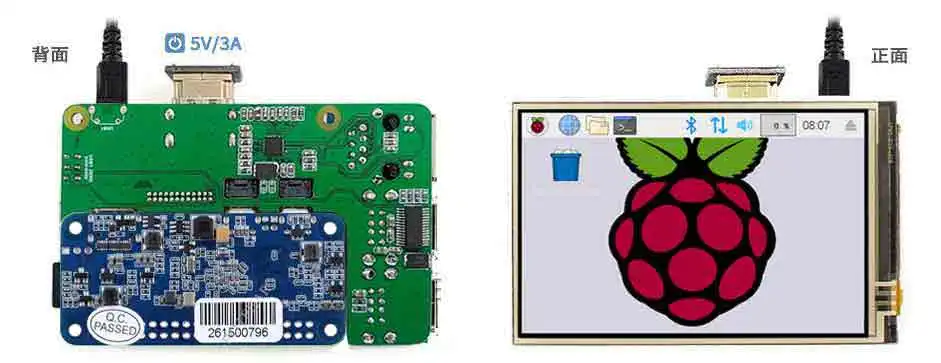

Working With 3.5inch HDMI LCD
Working With Computer
Working With Mobile

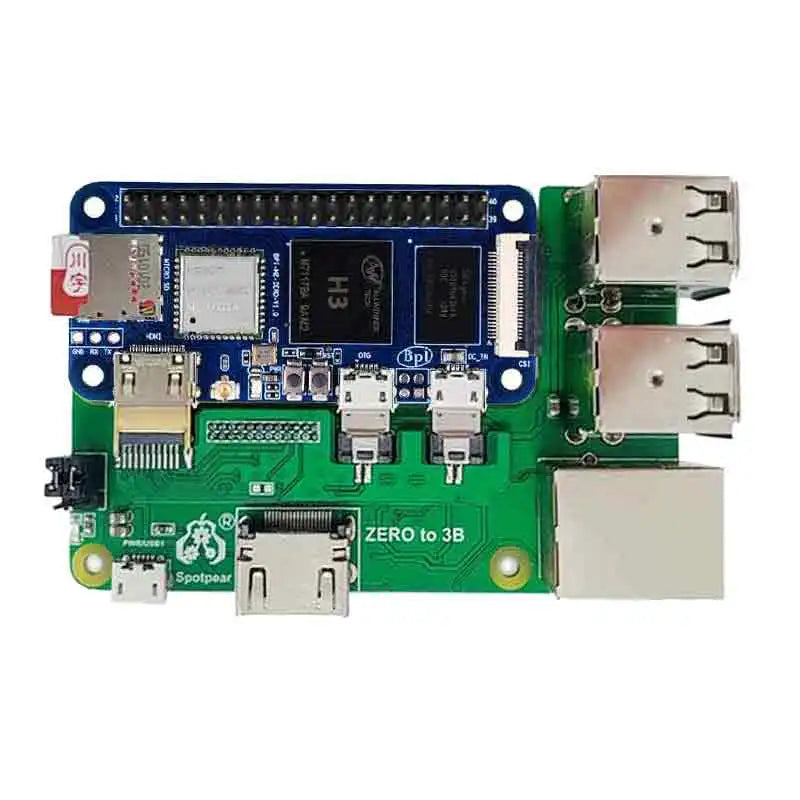

Working With BPI-M2 Zero

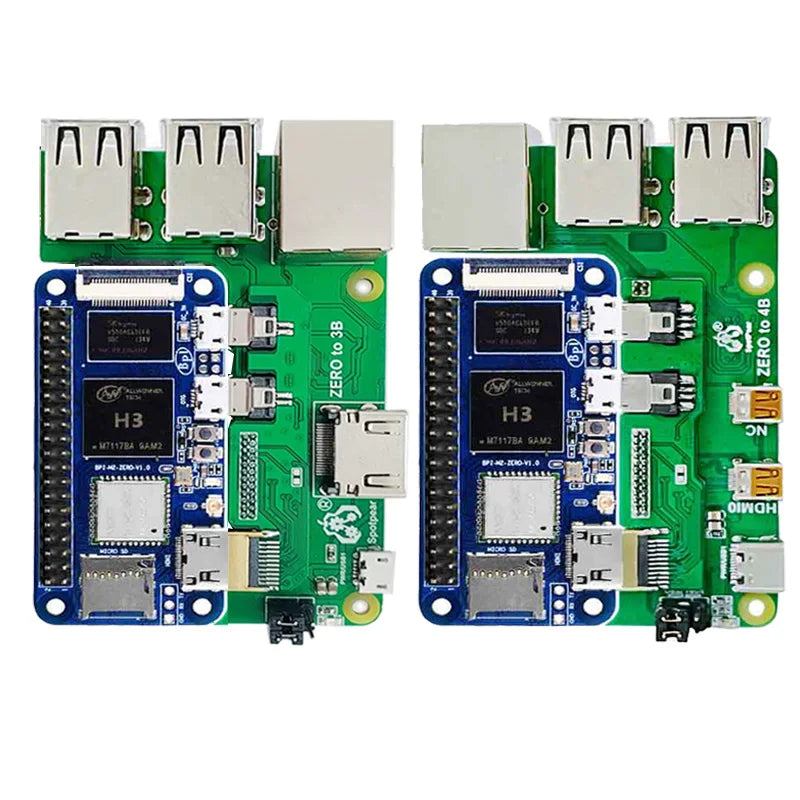

Two Specifications Are Available:
-
4USB-No RJ45 expansion board: 4 USB interfaces without RJ45 Ethernet interface
-
3USB+RJ45 expansion board: 3 USB interfaces with RJ45 Ethernet interface
-
NC = No such Function

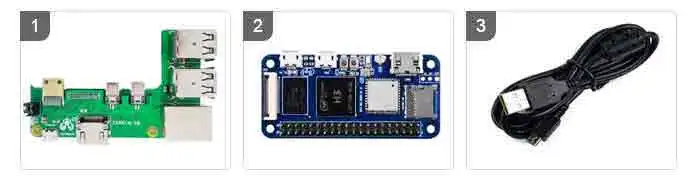

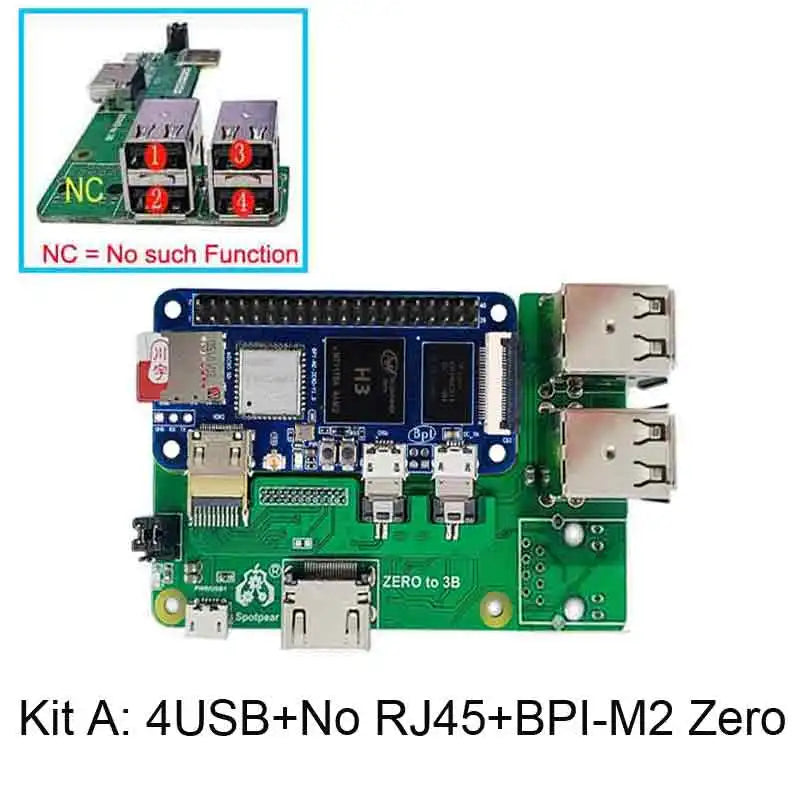

Bundle: Kit A
-
Zero to 3B Adapter（4USB+No RJ45 x1
-
BPI-M2 Zero
-
Micro USB x1

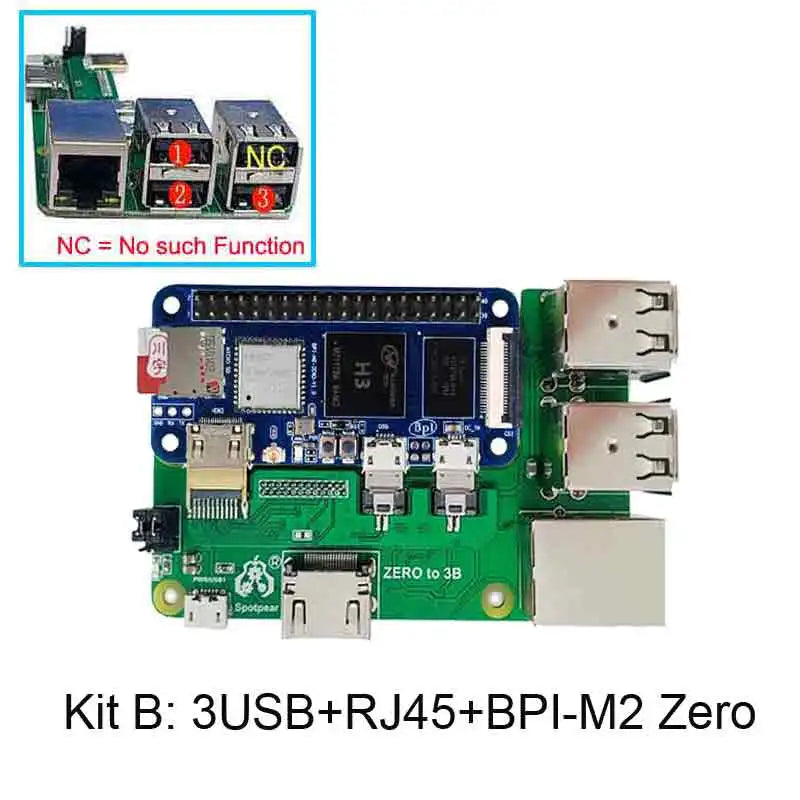

Bundle: Kit B
-
Zero to 3B Adapter（3USB+RJ45） x1
-
BPI-M2 Zero
-
Micro USB x1

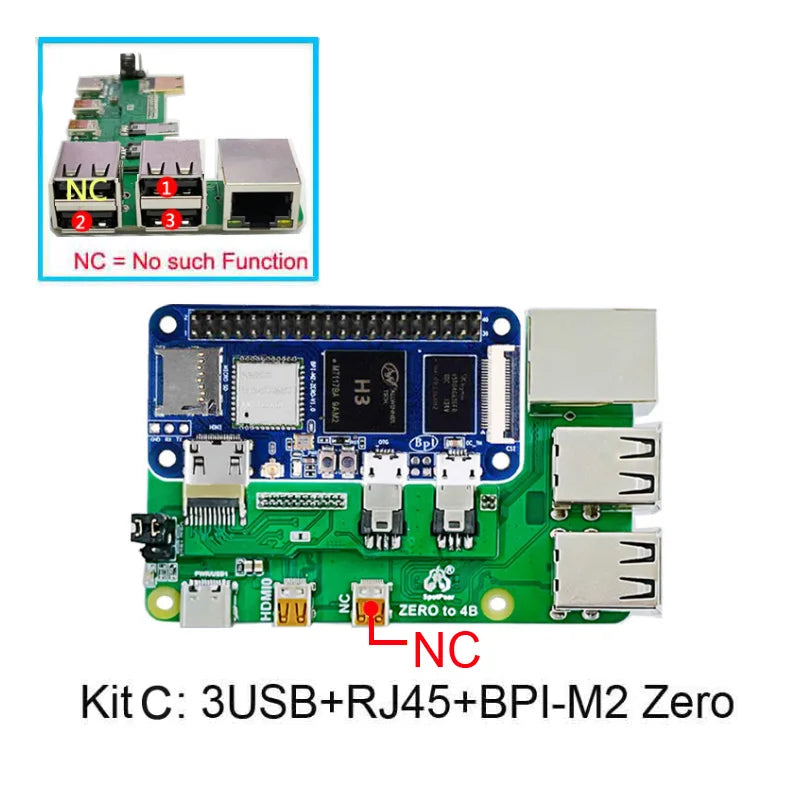

Bundle: Kit C
-
.Zero to 4B Adapter（3USB+RJ45） x1
-
BPI-M2 Zero
-
Type-C USB x1
Welcome Customize Order!
