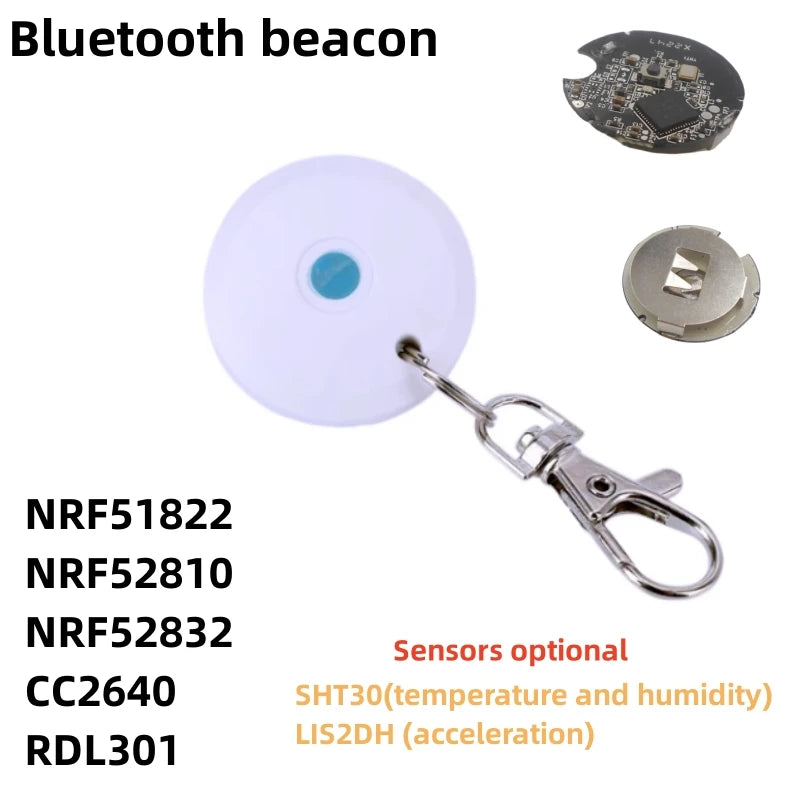

Product Name: RDL810-B2/RDL832-B2

Chip model: nRF51822/NRF52832/NRF52810/CC2640/RDL301

Communication distance: within a practical distance of 50m (adjustable from 1m to 50m)

Broadcasting power: -95dB -4dB (adjustable for 1-9 levels)

Broadcast interval: 1000ms/time (adjustable from 80ms to 4000ms)

Parameter configuration: UUID Major Minor Mac address Product name

Work standby: 8 months (can change broadcast power, shorten interval or extend working time)

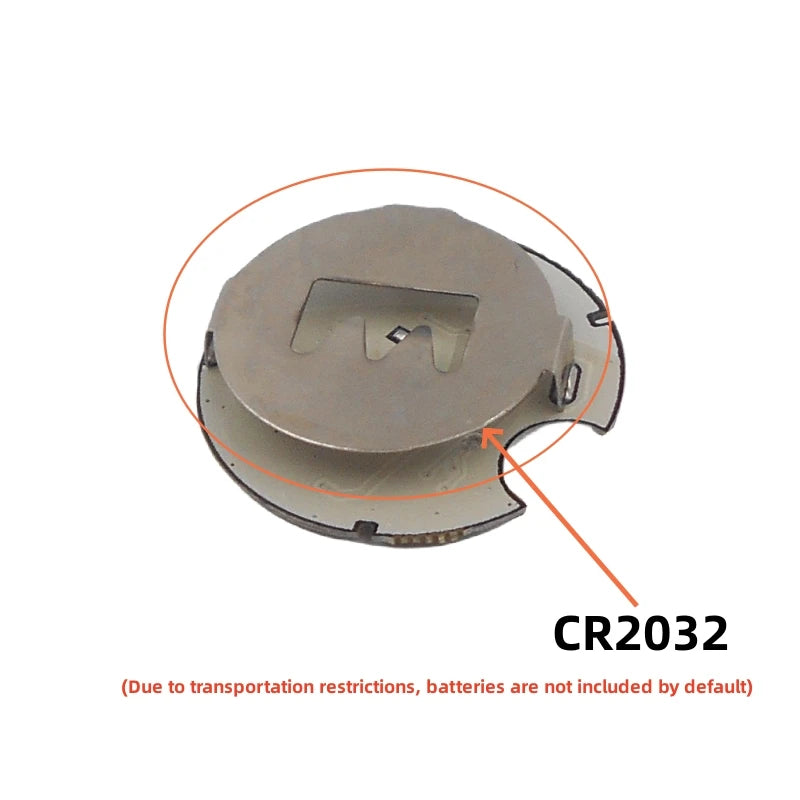

Battery model: CR2032 (replaceable battery)

Battery capacity: 240mAh

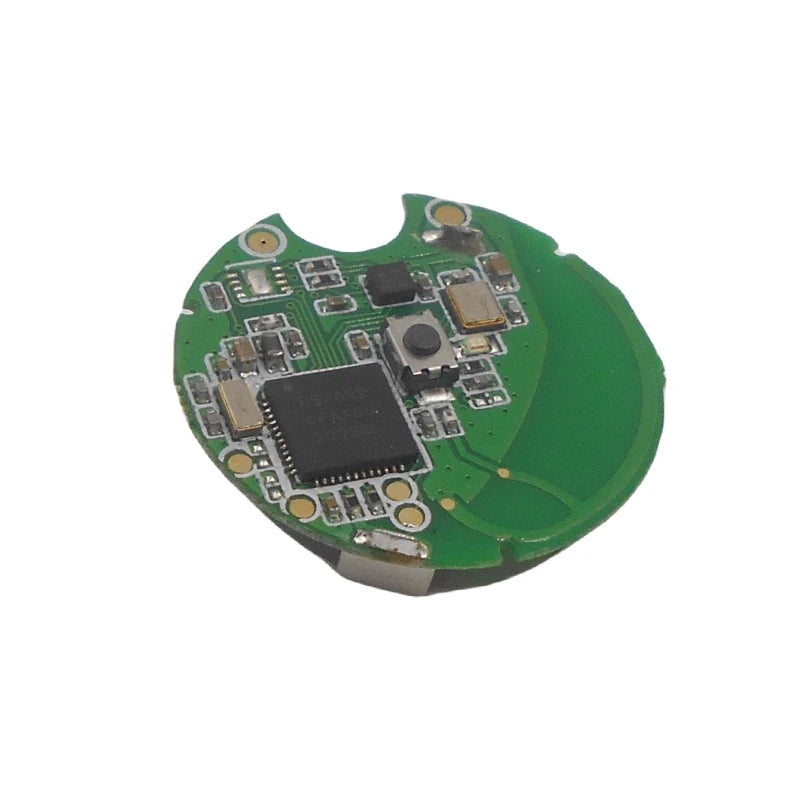

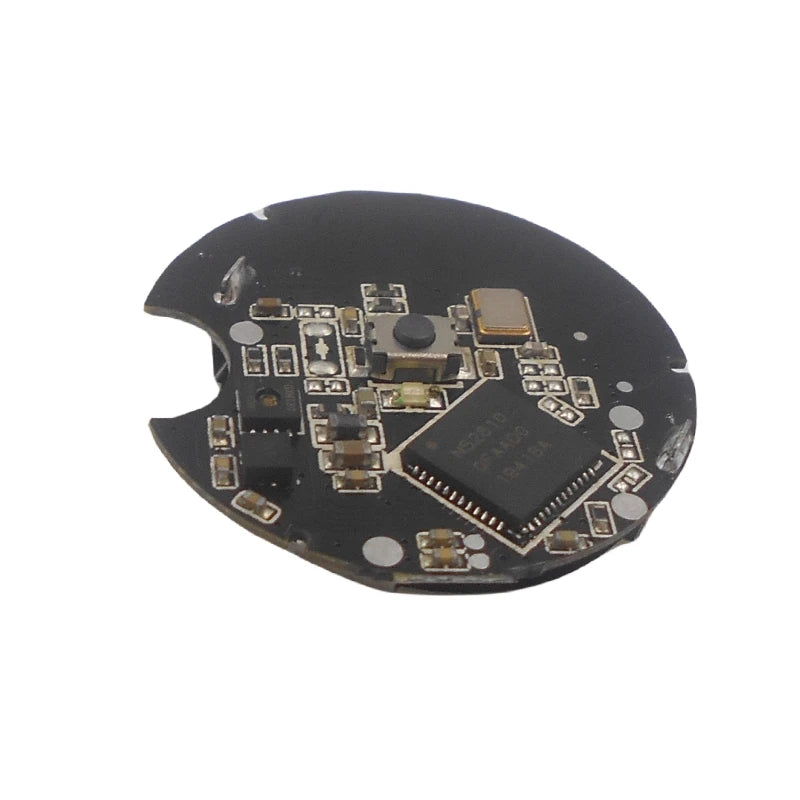

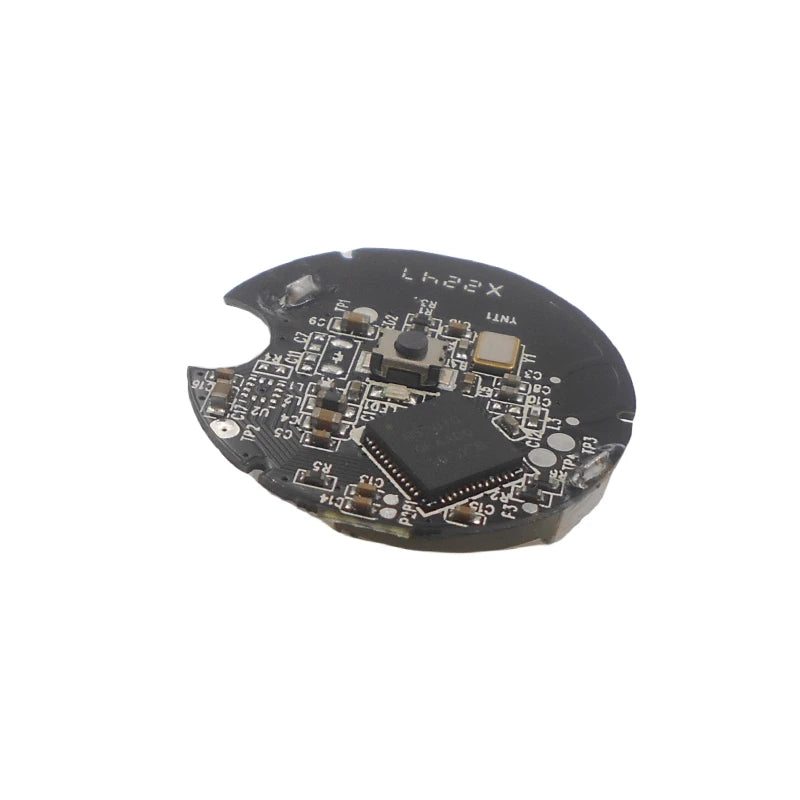

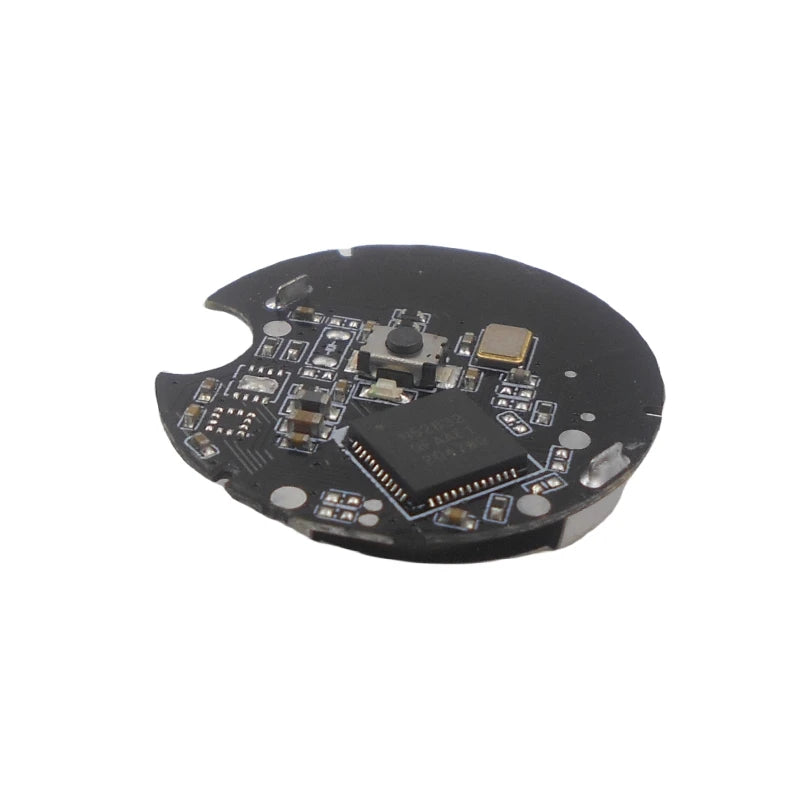

Product size: Module board circular diameter 25.5mm, shell diameter 30mm, thickness 10mm

Product features: IP67 waterproof and dustproof (anti splash, light rain, not resistant to soaking)\

Default parameters

UUID (Device ID): "FDA50693-A4E2-4FB1-AFCF-C6EB07647825"

Note: The default UUID for shaking WeChat

Major: 1

Minor: 2

Measured power: -59dBm, 0xC5

Note: The RSSI value measured at a distance of 1 meter from the device

Transmission Power:+0dBm

BroadcastingInterval: 1000ms

Bluetooth address (MAC): burned by the manufacturer, based on the actual measured value

IBeacon Name: name: RDL51822

Battery: New battery, based on actual measured values

[Beacon operation instructions]

① Beacon can be used directly when powered on. Long press the button in the middle above the beacon, flashing three times to turn it on and once to turn it off.

*The power on method for some models is to turn on by turning the switch to ON, and the light above will flash three times.

If you need to modify parameters, please use configuration software and follow the examples in the software tutorial.

*Please contact customer service for software usage tutorials, or download them using the Baidu Cloud link below.

② Baidu Netdisk link: Find the Android APK, download it, and configure the software download: https://pan.baidu.com/s/1vsqxg852zj16esueplnj-w?pwd=3iqt

③ Beacon parameter configuration software:

[Apple] App Store Search: RL Beacon Tool software (developed by our company)

[Android] Using Nordic official website software

*Please confirm that all app permissions are open, then turn on Bluetooth and location simultaneously, and adjust the RSSI value to the appropriate position (about one-third)

*The default password for connecting software to devices is 123456. If there is an error, please contact customer service

*The software needs to successfully enter the password within 15 seconds to connect to the device, otherwise an error will occur and a reconnection is required

④ The software on Nordic's official website

Download the compressed file of nrf software from the network disk link

The NRF software tutorial introduces the steps to modify a name, which can be used to modify other parameters.

*To modify the name, you need to enter: 11+corresponding to ASCII code.

*Modify the UUID and MAC address by directly entering the corresponding values without the need for base conversion.

*Due to the fact that MAJOR and MINOR are consecutive decimal values, they need to be converted to hexadecimal during the conversion process. For example: major=10002, converted to 2712, minor=31, converted to 001F. You need to input: 14+2712001FD8. D8 is the dbm of RSSI at 1 meter, so it does not need to be modified by default.

⑤ 【 Common errors 】: No signal, unable to connect

Please investigate several reasons first:

1. Is the beacon powered on? Is there a flickering light? (Flashing lights indicate successful startup)

Can the built-in Bluetooth of the phone detect beacons? (If possible, it indicates that the beacon is working properly)

3. Set the RSSI range of the software to the appropriate position, and have the phone approached the beacon. Can you receive the signal? (Reducing the RSSI signal reception range is to filter out nearby interference signals)

*If the above steps cannot be resolved, please contact customer service
